Viktoras Kaštelionis
casteliano

Lithuania
19 Posts
Posted - Feb 09 2017 :  05:46:55 AM  Show Profile  Reply with Quote
I have recently acquired some very interesting equimpent for calibrating and checking lenses and rangefinders. There are nor factory signs on any of them, however I think that they might have been made in Panevežys precision mechanics factory. КЮ-136 is pretty simple, its used for checking the focusing of lenses, imitating various distances.

http://www.ussrphoto.com/UserContent/922017__PHT8719.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8721 - Copy.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8679.JPG


Edited by - casteliano on Feb 09 2017 06:28:00 AM
Viktoras Kaštelionis
casteliano
Lithuania
19 Posts
Posted - Feb 09 2017 :  05:53:54 AM  Show Profile  Reply with Quote

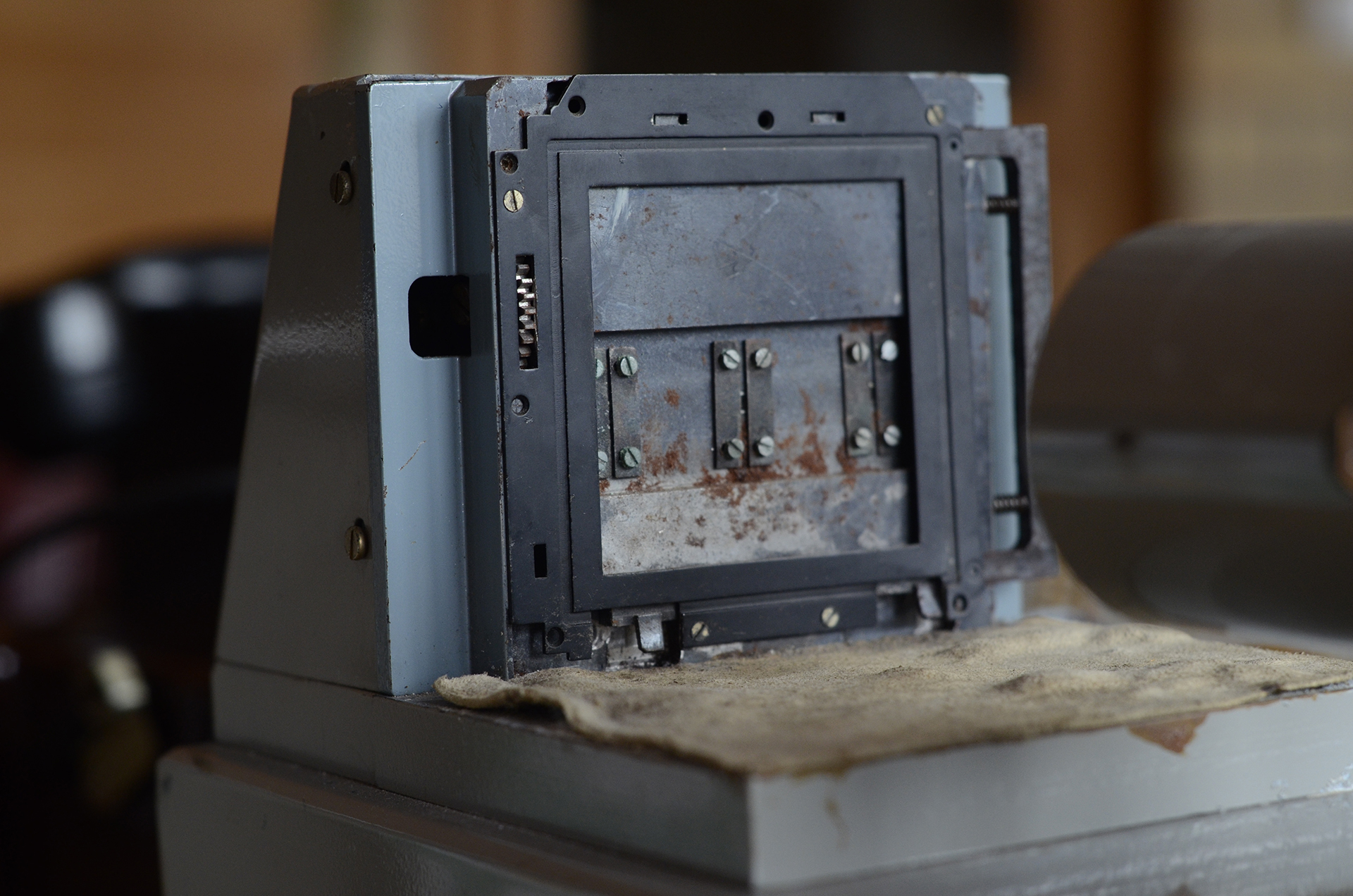

The second ones purpose is also pretty clear. ПТ-611 is used for checking shutter performance of Saliut cameras. Cables that I dont have in pictures hook probably hook up to an oscilloscope.


http://www.ussrphoto.com/UserContent/922017__PHT8716.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8712.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8701.JPG


Go to Top of Page
Viktoras Kaštelionis
casteliano
Lithuania
19 Posts
Posted - Feb 09 2017 :  06:08:34 AM  Show Profile  Reply with Quote
Another device that has something to do with lenses is ЮТ-376, it has two possitions that produce different patterns, it also has a transformer box attached that is not included with КЮ-136. ANy information about this device is welcome.

http://www.ussrphoto.com/UserContent/922017__PHT8739.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8745.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8750.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8747.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8748.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8675.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8694.JPG

Go to Top of Page
Viktoras Kaštelionis
casteliano
Lithuania
19 Posts
Posted - Feb 09 2017 :  06:22:03 AM  Show Profile  Reply with Quote
УКЮ 255 is the oldest one and judging from the serial number from 1957. It is used for testing rangefinder cameras, possibly only kiev ones. It also has some other functions possibly related to aperature of the lens. The last picture is the view through the viewfinder.

http://www.ussrphoto.com/UserContent/922017__PHT8752.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8753.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8762.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8767.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8764.JPG


http://www.ussrphoto.com/UserContent/922017__PHT8681.JPG

Go to Top of Page

Vladislav Kern
Vlad
USA
3930 Posts
My Collection

Posted - Feb 09 2017 :  07:57:29 AM  Show Profile  Visit Vlad's Homepage  Reply with Quote
Wow this is seriously fantastic stuff, congratulations!
Go to Top of Page

Alfa2
Poland
204 Posts
Posted - Feb 09 2017 :  07:58:48 AM  Show Profile  Reply with Quote
Very fine toys.
Could you describe how the first one works ?

Edited by - Alfa2 on Feb 09 2017 4:10:01 PM
Go to Top of Page
Viktoras Kaštelionis
casteliano
Lithuania
19 Posts
Posted - Feb 09 2017 :  09:51:13 AM  Show Profile  Reply with Quote
It's quite simple, you choose one of the positions, for example 4 meters, and focus the lens so the pattern is clearly visible, if everything is okay the lens should be exacly 4m position. Same results should be achieved in other positions 1.5 3 4 meters and infinity.
Go to Top of Page

Milo Schekkerman
Valkir1987
Netherlands
171 Posts
Posted - Feb 09 2017 :  3:23:50 PM  Show Profile  Click to see Valkir1987's MSN Messenger address  Reply with Quote
Here's one in action. As seen in one of the East West Agencies catalogues.


Go to Top of Page

Alfa2
Poland
204 Posts
Posted - Feb 09 2017 :  4:15:03 PM  Show Profile  Reply with Quote
Ach, there are lenses in those 4 circle shape holes.
I can understand now. Thanks a lot.
Go to Top of Page
sean perry
seany65
United Kingdom
140 Posts
Posted - Mar 01 2017 :  4:13:18 PM  Show Profile  Reply with Quote
Some of those things look like mediaeval torture machines.
Go to Top of Page
