rangefinder adjusting

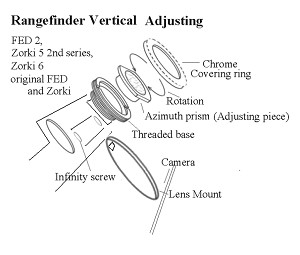

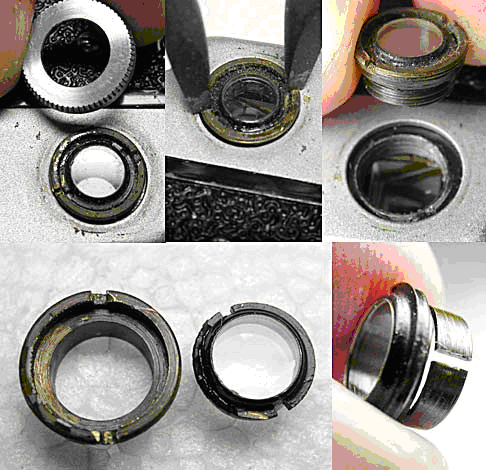

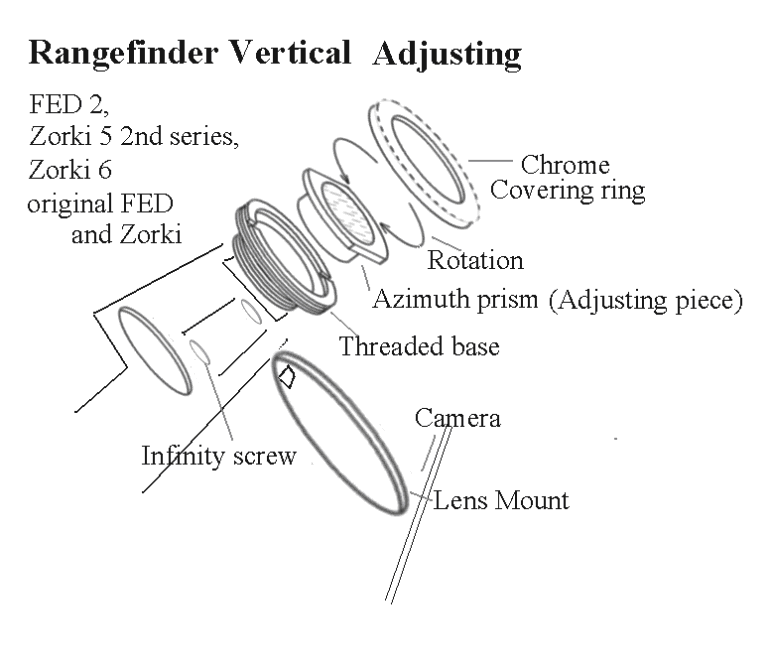

Some FED original and type 2 or 3 , first series of model 4, Zorki 1, S, 2 and 2S and models 5 second series and 6 . eventually need a rangefinder adjusting in horizontal aligment. This adjusting is done by rotating the center core of the set. There exists a small prism inbuilt. It is the external auxiliary RF window. Drawing and pictures will clear explanations. Drawings from Novacon pictures from jay.fedka
(Click to enlarge)


Created by Luiz Paracampo on 11/8/2007 6:03:41 PM   |   Last Edited by Luiz Paracampo on 11/8/2007 6:22:23 PM   Revision History
