FED 28mm f:4.5
-1941

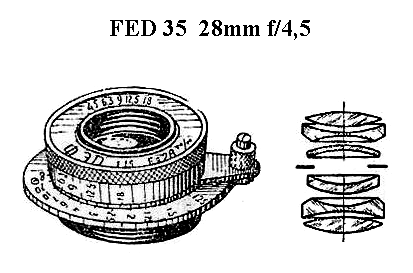

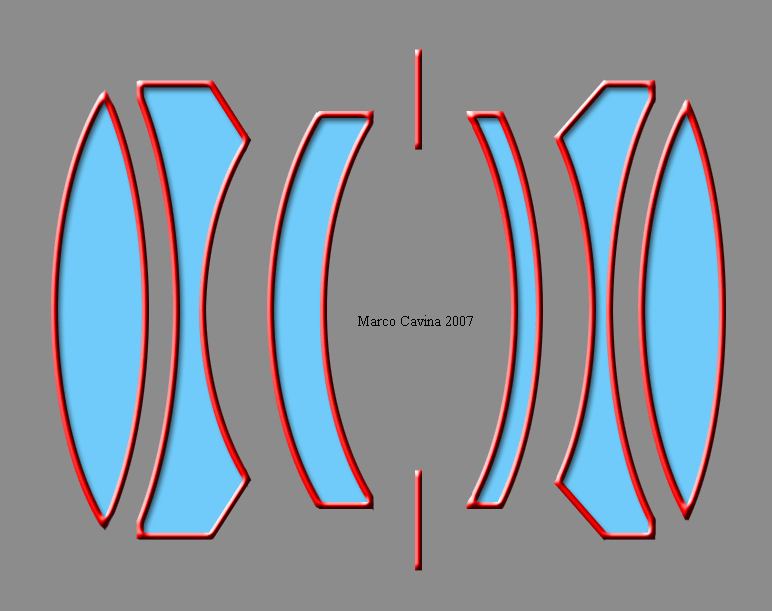

British Ross-Wide-Angle formula (see picture).
6 elements in 4 groups, the outside element pairings are cemented.
6-blade aperature f4.5-f18.
Uncoated.
.

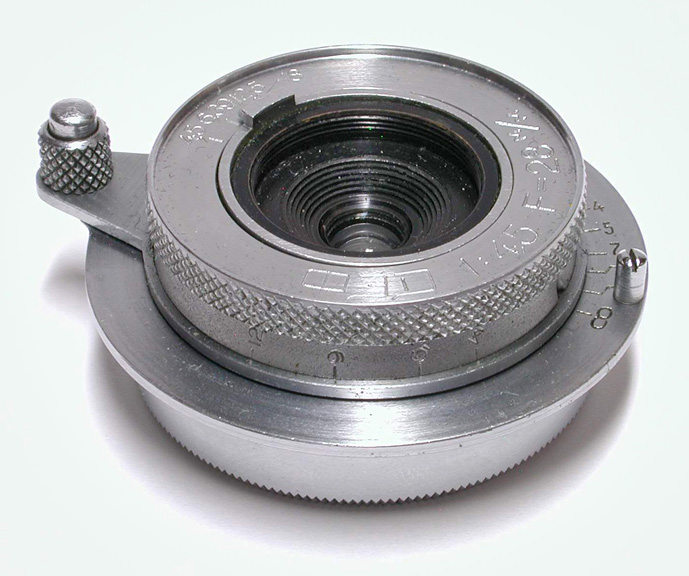

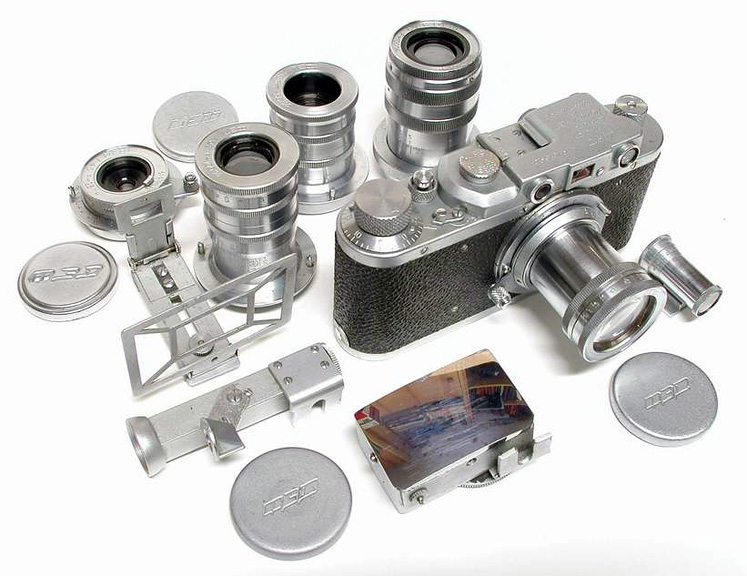

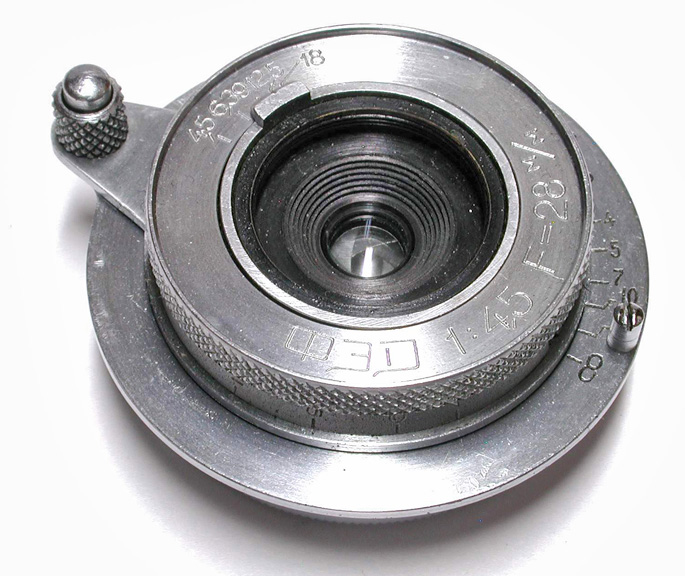

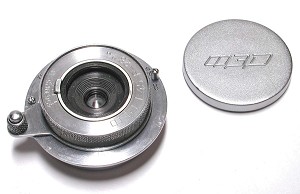

Released in mid-30's, the FED 28mm f4,5 closely matched the outer forms of a Leitz Elmar 35mm f/3,5, but it's deluxe optical formula was really advanced against the famous German competitors, Leitz Hektor and Zeiss Jena Tessar. What turns this lens a really admirable Soviet realization is the fact they have minimal total dimensions of the optical parts. The frontal disc of the lens has a diameter of approximately 7mm (analogous dimensions also have the other elements), while the thickness of the third, the most thin of the group, does not exceed the 6-7 tenths of millimeter. Imagine the difficulties met in the grinding and the assembly of each of these elements, maintaining a reasonable precision. The photos illustrating this rare objective have been realized purposely by Dr. Milos Paul Mladek, beloved friend who kindly offered to divulgation and we give our thanks of heart for the contribution. Mario Cavina In the last photo we see a FED B in a complete vintage outfit with normal f2 50mm; f3,5 50mm macro; f5.6 100mm; f6.3 100mm; and f4,5 28mm; wide angle sport finder, telephoto finder, angular finder, self timer and lens caps.
.
Serial number range: 40.xxx to 46.xxx
.
Known serial numbers:
40092 ____________ DVD
40430 ____________ eBay
41085 ____________ David Tomlinson
41202 ____________ eBay
41290 ____________ Philipp Reichmuth
41374 /19 _________ ussrphoto
41675 ____________ eBay
41874 /19 _________ Pierre Tizien
42199 ____________ Jim McGee
42472 ____________ eBay
42518 /74 _________ ebay
42864 ____________ web
43058 /14 /00 _____ web
43175 ____________ Westlicht auction#29 lot#257
43183 ____________ PY-C
43439 /73 _________ ebay
43602 /87 _________ fotoua
43610 ____________ DVD
443xx ____________ Alain Berry
44101 /32 _________ eBay
44508 /59 _________ ebay
44608 /58 _________ ebay
44785 ____________ eBay
45117 /176 ________ ebay
45239 /922 ________ ebay
45370 /64 _________ eBay
45407 ____________ eBay
45419 ____________ eBay
45455 /93 _________ Christian G. (Niko80)
45551 /74 _________ eBay
45948 /94 _________ eBay
45964 /5 __________ Christian G. (Niko80)
46015 ____________ eBay
46118 ____________ eBay
46184 ____________ ebay

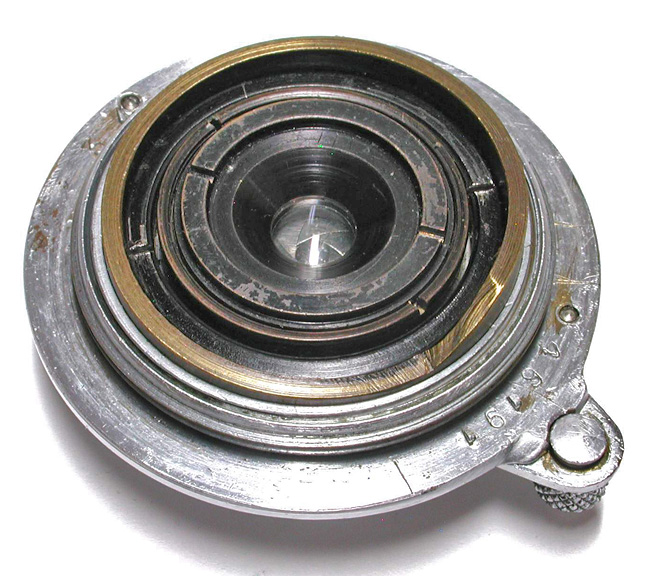

46191 /37 _________ Luiz _________________ see photo
46231 ____________ A.Nikitin
46358 ____________ Serhio Vorobaz
46370 /34 _________ Fotomuda
46385 ____________ eBay
46531 ____________ eBay
46654 ____________ Jacques M.
46764 ____________ eBay
46816 ____________ Aidas / SovietCams
==== /37 _________ web
_____________________________________________________
(Click to enlarge)


File Downloads:
fed35.pdf
