FT 3
1952-1952

Panoramic camera FT-3 is designed for use with regular 35mm film. One film roll contains 14 frames of 24x96mm format.

FT-3 is equiped with coated Industar-22 lens.
Focusing distance of F=5cm.
Diafragm has modes of F3.5 to F16.
Speeds: 1/25, 1/50, 1/100, 1/150.

The camera uses special lightproof casette that can be loaded with regular 1.65m of 35mm film for 14 shots.

It is equiped with foldable optical viewfinder with built-in leveling bubble.

Dimensions:
Width: 85mm
Lenght:135mm.
Height: 65mm without viewfinder.
Weight: 915grams

Serial Numbers Known:

#53001 NTC collection
#53017 Alexander Bronstein

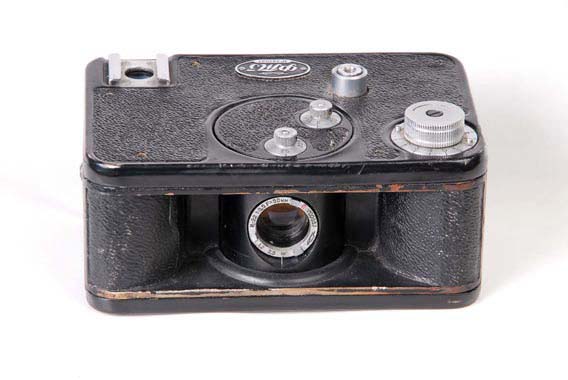

(Click to enlarge)
