| Author |
 Topic  |
|
Nathan Chen
nhchen
Australia
10 Posts |
|
Alfa2
Poland
349 Posts |
 Posted - Nov 21 2016 : 04:43:00 AM
|
There is a name of the camera:
этюд - etyud |
Edited by - Alfa2 on Nov 21 2016 11:34:13 AM |
 |
|
Jacques M.
France
2604 Posts |
Posted - Nov 21 2016 : 07:33:59 AM
|

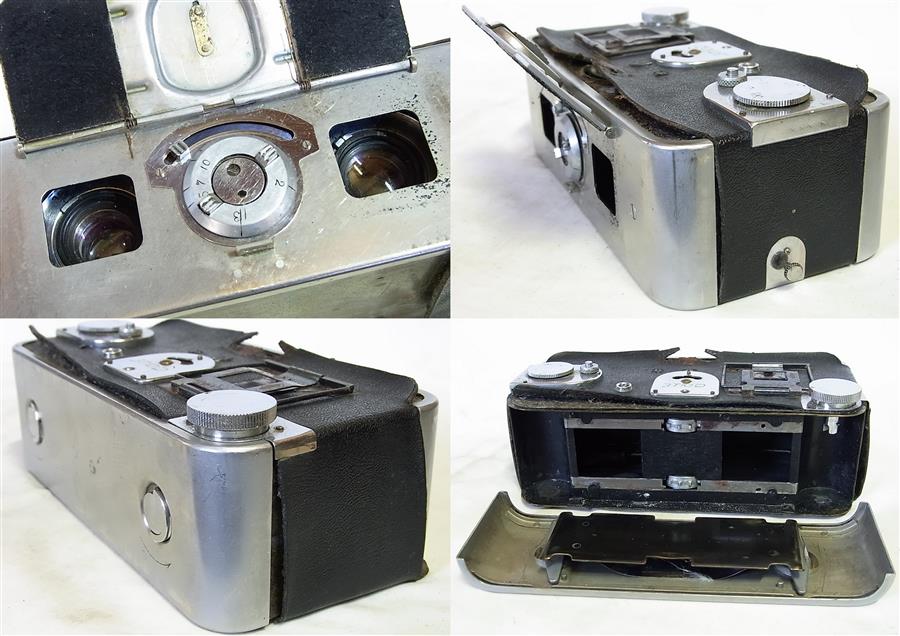

Interesting camera that I had never seen.
Old, but not prewar. The Fed lenses have the new diaphragm scale (f 3,5 - 4 - 5,6...) which appeared in the early 50s.
Jacques. |
|
|
Alexander K.
AlexanderK
Germany
590 Posts |
Posted - Nov 21 2016 : 12:28:50 PM
|
quote:
Originally posted by Jacques M.
Interesting camera that I had never seen.
Jacques,
you have never seen this camera before, because it doesn't exist at all.
It seems to be an attempt to tinker something like stereo camera from the parts of some special device (may be military).
Name "этюд" was engraved manually and not really neat.
P.S. It is only my opinion of course, but I think it is so.
Regards, Alexander |
|
|
Pierre Tizien
Moxies
France
183 Posts
My Collection
|
|
Luiz Paracampo
Luiz Paracampo
Brazil
2002 Posts
My Collection
|
Posted - Nov 21 2016 : 8:52:07 PM
|
Extraordinary! .....
At Photohistory. ru there are two different pictures of two different "etiud" models. The auctioned one is slightly different from both.
Regards
LP |
|
|
Luiz Paracampo
Luiz Paracampo
Brazil
2002 Posts
My Collection
|
Posted - Nov 21 2016 : 8:55:19 PM
|
At least there were spoted three different hand made cameras! It should have more! the camera EXISTS!
LP |
|
|
Nathan Chen
nhchen
Australia
10 Posts |
|
Alfa2
Poland
349 Posts |
Posted - Nov 22 2016 : 03:18:26 AM
|
| There is focal plane shutter. I wonder how is construction. |
|
|
Alexander K.
AlexanderK
Germany
590 Posts |
Posted - Nov 22 2016 : 11:46:13 AM
|
quote:
Originally posted by Luiz Paracampo
Extraordinary! .....
At Photohistory. ru there are two different pictures of two different "etiud" models.
Luiz,
there are two pictures of the same camera, one photo of the camera in leather case (above) and one without (below). And it seems to be the camera from the jp auction (in already worse condition).
So, there was only one home made "model", sorry.
Regards, Alexander |
|
|
Luiz Paracampo
Luiz Paracampo
Brazil
2002 Posts
My Collection
|
Posted - Nov 23 2016 : 5:26:28 PM
|
1) This camera deserves a separate description page.
2) The camera was altered, once it was added a flash contact in the top panel (probably from Zorki)
3) Every detail conduct us to a "guillotine shutter" (seats behind the lens) as it is armed through Pin 7 and speed regulated through knob 6.
4) It is a kind of cloth shutter with slit regulation but not a focal plane as one can clearly see through pictures.
5) The camera uses some FED parts has a particular construction.
Engravings are clearly hand made but body and external chrome parts imposes special dyes demonstrating the probability that more than one was made.
6)Lenses seems to be coated denoting post war construction.
7)Who was A.Mishenko?
Who knows the hidden true story?
Best Regards
LP |
|
|
Vladislav Kern
Vlad
USA
4252 Posts
My Collection
|
Posted - Nov 23 2016 : 5:27:04 PM
|
Anyone has any info on A.Mishenko? Is he a known camera designer or just enthusiast? this is pretty cool though, seems like it's a historical home made camera  , photos seem to be from some magazine, most likely Soviet Photo... |
|
|
Zoom
596 Posts |
Posted - Nov 24 2016 : 3:32:00 PM
|
quote:
Originally posted by Vlad
Anyone has any info on A.Mishenko? Is he a known camera designer or just enthusiast?
An enthusiast.
quote:
Originally posted by Vlad
... photos seem to be from some magazine, most likely Soviet Photo...
Yes, "Sovetskoe Photo", 1959 year, issue 10, page 70. |
|
|
Vladislav Kern
Vlad
USA
4252 Posts
My Collection
|
Posted - Nov 24 2016 : 3:33:23 PM
|
Thank you Zoom!! I will look for that issue
Best regards,
Vlad |
|
|
Alfa2
Poland
349 Posts |
Posted - Nov 25 2016 : 06:21:45 AM
|
Construction of the camera is described in link in 5th post of this thread by Moxies.
There is Затвор щелевой which means focal plane shutter, isn't it ?
Is it proper translation ?
|
Edited by - Alfa2 on Nov 25 2016 06:22:11 AM |
|
|
Zoom
596 Posts |
Posted - Nov 25 2016 : 3:03:49 PM
|
quote:
Originally posted by Alfa2
There is Затвор щелевой which means focal plane shutter, isn't it ?
"slit shutter" == "щелевой затвор".
"focal plane shutter" == "фокальный затвор".
"focal plane slit shutter" == "фокальный щелевой затвор".
Each term has its own meaning. |
Edited by - Zoom on Nov 25 2016 3:06:22 PM |
|
|
Alfa2
Poland
349 Posts |
Posted - Nov 28 2016 : 03:42:30 AM
|
Thank you for the translation.
But I can see only starnge sighns instead of cyrylic.  |
|
|
Zoom
596 Posts |
Posted - Nov 28 2016 : 05:45:07 AM
|
quote:
Originally posted by Alfa2
Thank you for the translation.
But I can see only starnge sighns instead of cyrylic.
Change your browser codepage to Windows-1251. (This forum has an error: the "charset" value in HTML code is not specified anyway). |
|
|
| |
