Hello to all,

my newest find, a Zorki 3 with serial number 01237.

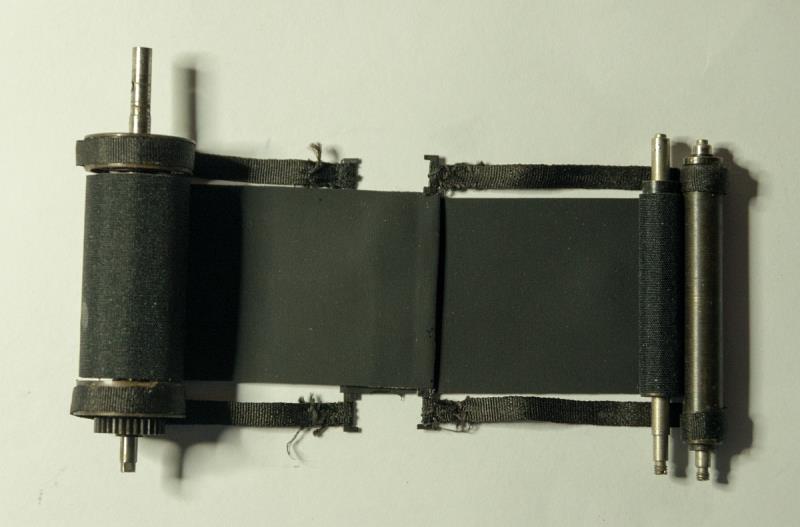

Ok, at the moment it does not look like a camera ;-) The shutter curtains were broken and so I disassembled it completely to install new ones.

Whew, a Zorki 3 has a lot of parts, I hope I can put it all together again...


http://www.ussrphoto.com/UserContent2/20122022_zorki3.jpg

Ulrich


http://fotos.cconin.de

Vladislav Kern
Vlad
USA
4248 Posts
My Collection

Posted - Dec 20 2022 :  9:11:03 PM  Show Profile  Visit Vlad's Homepage  Reply with Quote
oh wow looks like someone put a bomb in your Zorki! . Would love to see the finish product! Good luck!
Go to Top of Page
Jacques M.
France
2589 Posts
Posted - Dec 21 2022 :  10:13:00 AM  Show Profile  Reply with Quote
My God!
As for me, I wait for the first photo made with that Zorki

Aùiyiés. Jacques.
Go to Top of Page

Ulrich W.
uwittehh
Germany
828 Posts
My Collection

Posted - Dec 21 2022 :  2:32:24 PM  Show Profile  Visit uwittehh's Homepage  Reply with Quote
I am on the way :-)


http://www.ussrphoto.com/UserContent2/21122022_zorki3_1.jpg


http://www.ussrphoto.com/UserContent2/21122022_zorki3_2.jpg


http://www.ussrphoto.com/UserContent2/21122022_zorki3_3.jpg

Ulrich

http://fotos.cconin.de
Go to Top of Page

Ulrich W.
uwittehh
Germany
828 Posts
My Collection

Posted - Dec 23 2022 :  2:09:35 PM  Show Profile  Visit uwittehh's Homepage  Reply with Quote
Ok, ready to continue reassembling :-)

The shutter is ready for inserting:


http://www.ussrphoto.com/UserContent2/23122022_zorki3_4.jpg

Shutter and rangefinder re-installed:


http://www.ussrphoto.com/UserContent2/23122022_zorki3_5.jpg


http://www.ussrphoto.com/UserContent2/23122022_zorki3_6.jpg

Front plate and slow speed wheel installed:


http://www.ussrphoto.com/UserContent2/23122022_zorki3_7.jpg



http://www.ussrphoto.com/UserContent2/23122022_zorki3_8.jpg

Some screws are really tiny...


http://www.ussrphoto.com/UserContent2/23122022_zorki3_9.jpg

Top cover:


http://www.ussrphoto.com/UserContent2/23122022_zorki3_10.jpg

Adjusting the slow speeds made me crazy, but now they work, see this small video:

http://ritzelkiste.de/ussrphoto/zorki3.mp4

I will do the complete assembly tomorrow.

Ulrich


http://fotos.cconin.de
Go to Top of Page
luigi gesi
schyter
Italy
85 Posts
My Collection

Posted - Dec 23 2022 :  2:18:52 PM  Show Profile  Visit schyter's Homepage  Reply with Quote
wow !!!

ok ... now we know who to send our Zorki 3s to if they break down !!

--------------------------

Only dead fish follow the stream ...
Go to Top of Page

Ulrich W.
uwittehh
Germany
828 Posts
My Collection

Posted - Dec 26 2022 :  11:10:56 AM  Show Profile  Visit uwittehh's Homepage  Reply with Quote
I hope everyone has/had a nice XMas!

The Zorki is now completely reassembled and adjusted. Another problem was the rangefinder, it was totally out of place and has vertical disalignment. But I was able to justify it to correct distances (I hope it, I will try a roll of film with it when there is a bit more light outside). The camera can be wound very smooth and the shutter sound is not very loud, a bit like a Leica ;-)

During the repair I found some differencies compared to the regular Zorki 3. As I wanted to adjust the slow speeds I looked in the Maizenberg but found out that my camera could not be adjusted that way he describes it.

On the early models they must be adjusted on the bottom of the camera, there is the lever that connects to the slow speed escapement (the thing that goes up and down during winding ans releasing near the gear as you can see in my video. That lever is fixed with a screw to the vertical lath that goes to the top. You can loose this screw and turn the lever a little bit. Then the piece on the top that brakes down the second curtain moves and the speeds get slower or faster depending on the position of that flat piece (see it in http://www.ussrphoto.com/UserContent2/23122022_zorki3_8.jpg). Was a bit tricky to find it out ;-)

Here are some pictures after reassembling it all, enjoy the shining chrome :-)


http://www.ussrphoto.com/UserContent2/26122022_zorki3_11.jpg




http://www.ussrphoto.com/UserContent2/26122022_zorki3_12.jpg



http://www.ussrphoto.com/UserContent2/26122022_zorki3_13.jpg



http://www.ussrphoto.com/UserContent2/26122022_zorki3_14.jpg



http://www.ussrphoto.com/UserContent2/26122022_zorki3_15.jpg


http://www.ussrphoto.com/UserContent2/26122022_zorki3_16.jpg


http://www.ussrphoto.com/UserContent2/26122022_zorki3_17.jpg

Ulrich


http://fotos.cconin.de
Go to Top of Page
xya
France
155 Posts
Posted - Dec 26 2022 :  1:48:58 PM  Show Profile  Reply with Quote
What a beautiful restauration of a camera! Bravo!
