Still Cameras > KMZ - Other > Horizon 202
<< Previous entry      Next entry >> Print this entry      View Related Forum Thread - 5 post(s)     Edit this entry

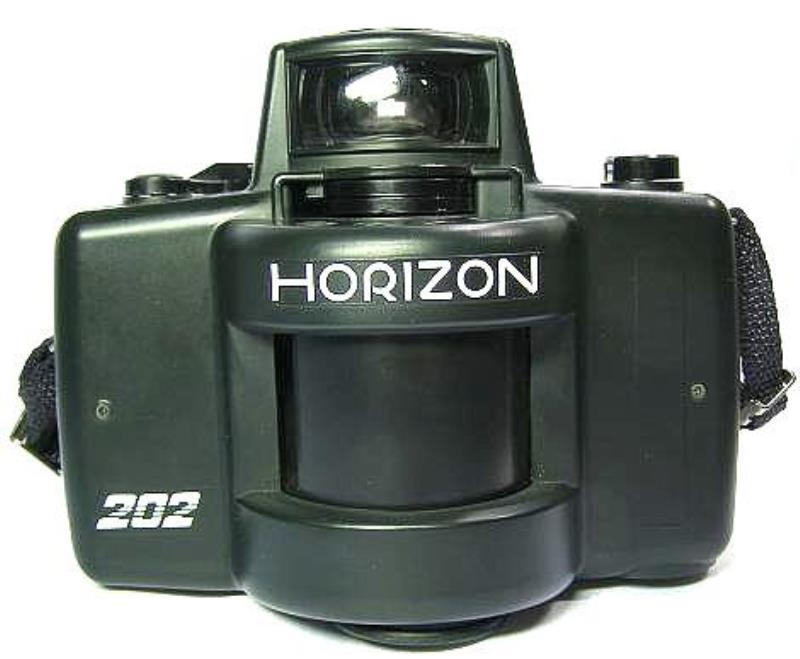

Horizon 202
1991-2005

The Horizon 202 is in production since ca. 1989. It is a successor of the Horizont (note the ‘t’) which was produced from ca. 1967-1973. Although both cameras look quite different – the Horizont's housing made of metal and the Horizon's housing made of ABS – their internals are very similar. The Horizon 202 was designed by P. A. Tikhomirov, and the whole project was led by N. Tarassov.

The camera project started under the label “Technopan” and the first models were named “Zenit” and “Horizont” like the predecessor model. These early models had 8 speeds from 1/2s to 1/250 sec in contrast to generations 1992 and later, named “Horizon 202” (without ‘t’). The later models lack the 1/30 sec and 1/15 sec, but give a more even exposure (source: http://www.pauck.de).

Produced: c.1991
Name: „Horizon“
Producer: KMZ
Frame size: 24x58.
Lens: MC 2.8/28.
Shutter: 1/2s, 1/4s, 1/8s, 1/60s, 1/125s, 1/250s.

Quantity: unknown.

Can be found under export names: "Technopan-202", "Pan-35SL" [2].

(Click to enlarge)

Created by AidasCams on 8/18/2007 4:18:58 PM   |   Last Edited by nightphoto on 9/5/2007 8:46:42 PM   Revision History
