Still Cameras > KMZ - Other > Horizon D-L3
<< Previous entry      Next entry >> Print this entry      Start forum thread about this entry     Edit this entry

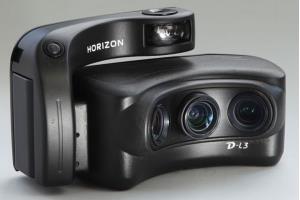

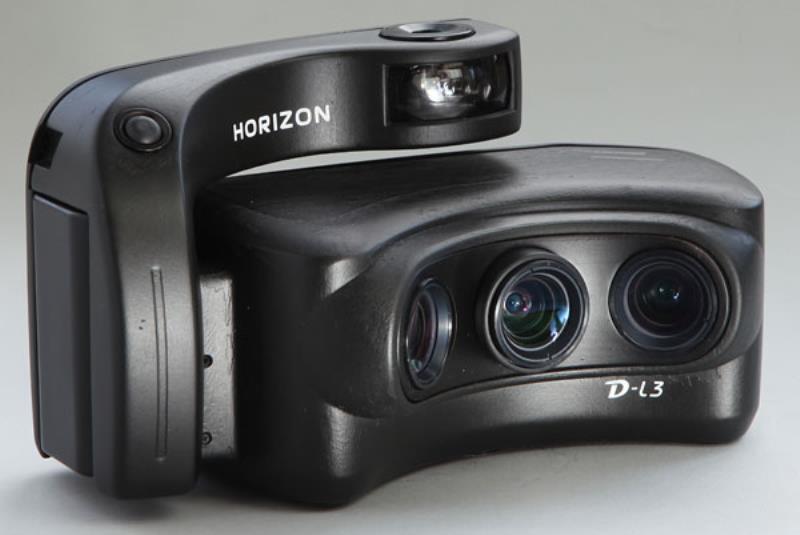

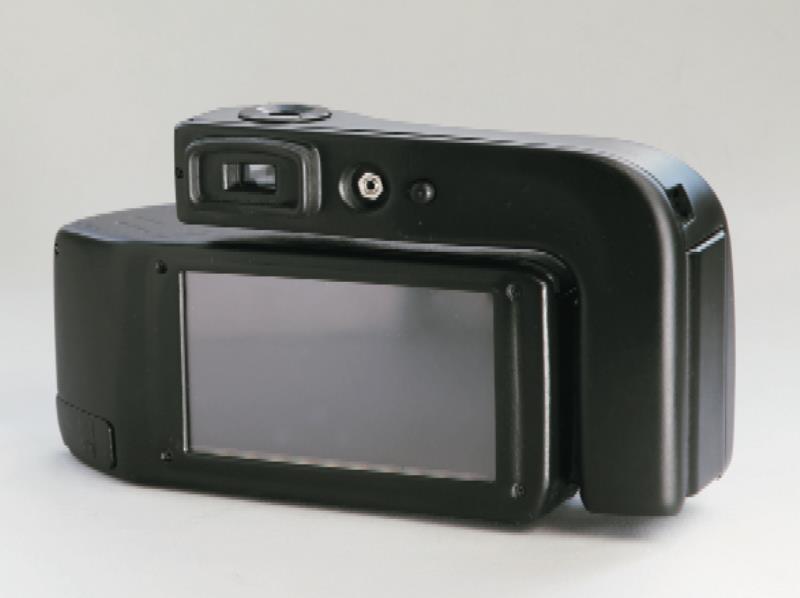

Horizon D-L3
2010

Zenit, the Russian producer, known for relatively simple panoramic cameras from Horizon, ventured to the D-L3 to step into the digital age. The camera will be available to the end of the year and cost between € 1000 and 1500:

The camera is being developed in a joint venture between Zenit and Silvestri and was presented at the photokina as non-functional plastic model. The D-L3 (based on small picture) has three lenses Zenitar 3,5 / 28 mm and three 5MP CMOS sensors, which are arranged on a circular arc. The advantage of this design is the ability to create three images exactly at the same time. The stitching of the three shots does not happen in the camera, but on a PC program, which will be supplied with the camera. The hardware and the software comes from Zenit Silvestri from Italy.

The Italian family Silvestri is known for their analog medium format cameras .

Specifications Horizon D-L3
Lenses3 x Zenitar 3,5 / 28mm (White balance)
Angle120 ° x 45 °
Sensors3 x 5-megapixel CMOS sensor
Display4.3 inch touch screen
Power supplyLithium Battery (Canon BP 915)
MemorySD card slot
Dimensions110 x 90 x 195 mm
Weight900 grams (including battery)
(Click to enlarge)
