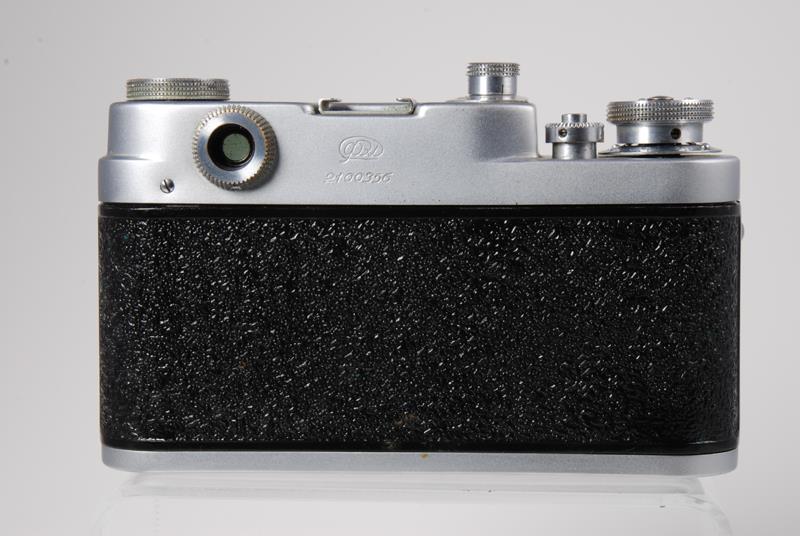

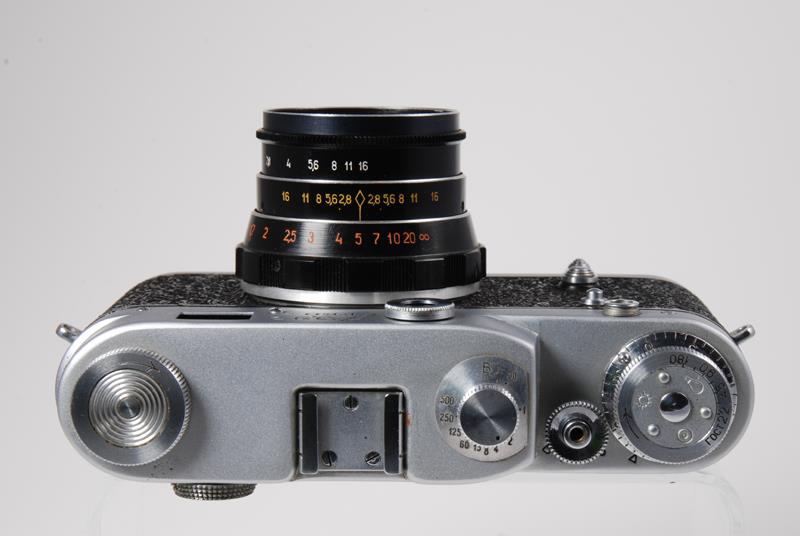

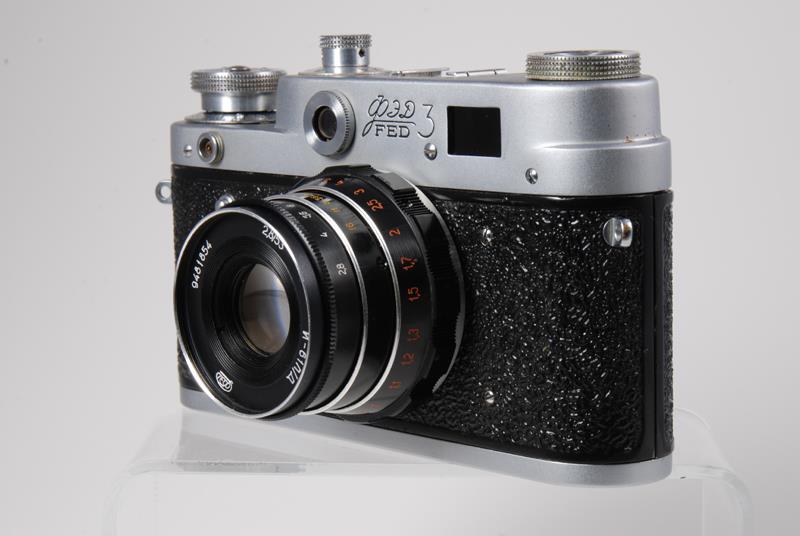

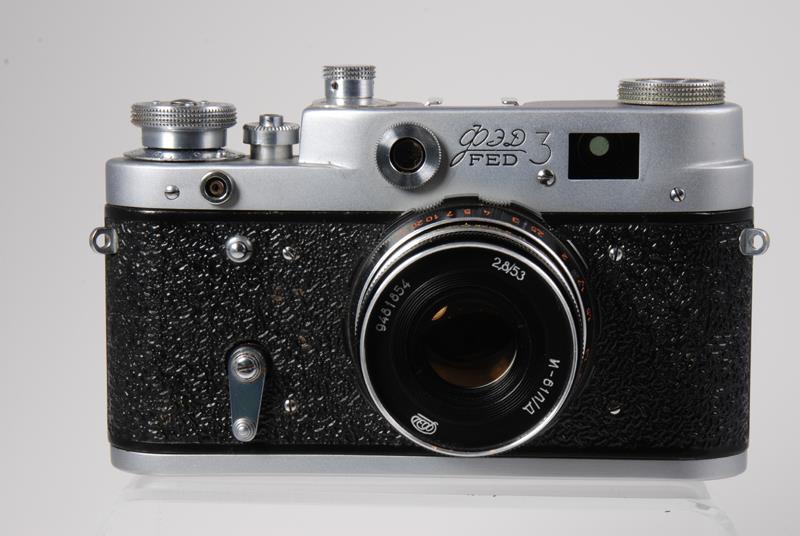

FED 3a Type 2
1961-1965

The Fed-3 (a) is a new model which keeps the old body from the Fed-2. It has a new short base rangefinder assembly with a new shutter. The shutter already has slow speeds. The range finder cam now has its axis of rotation on the rewind side and diopter adjustment is made by rotating the view finder. The engraving is either the Single Cyrillic script " FED-3" or the dual engraving on export models with "MADE IN USSR" on the back.





fed-3 (a) type II 1961-1965


Name: „ФЭД-3“
Producer: FED
Frame size: 24x36
Lens: Industar-26M 2.8/52.
Shutter: 1s, 1/2s, 1/4s, 1/8s, 1/15s, 1/60s, 1/125s, 1/250s, 1/500s + B.

Quantity: 2.086.825 units (all types). (sovietcams.com)
(Click to enlarge)


Created by Vlad on 8/22/2007 4:39:08 PM   |   Last Edited by Vlad on 9/5/2007 6:34:47 PM   Revision History
