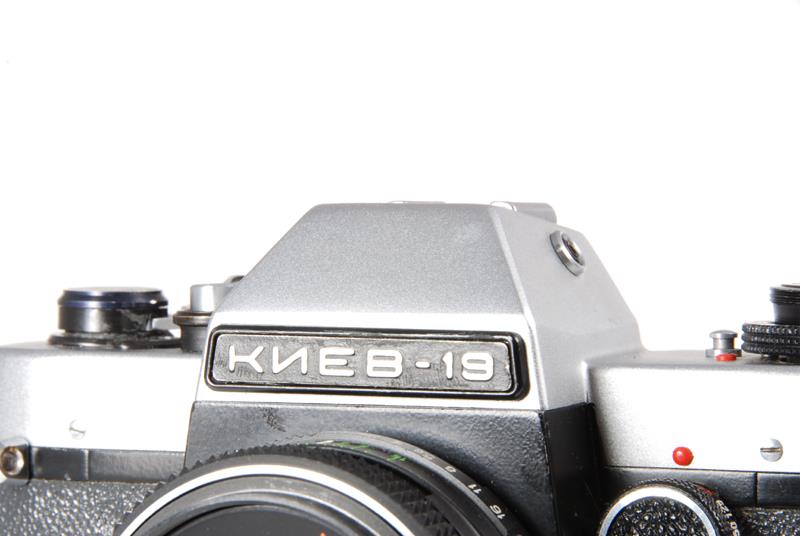

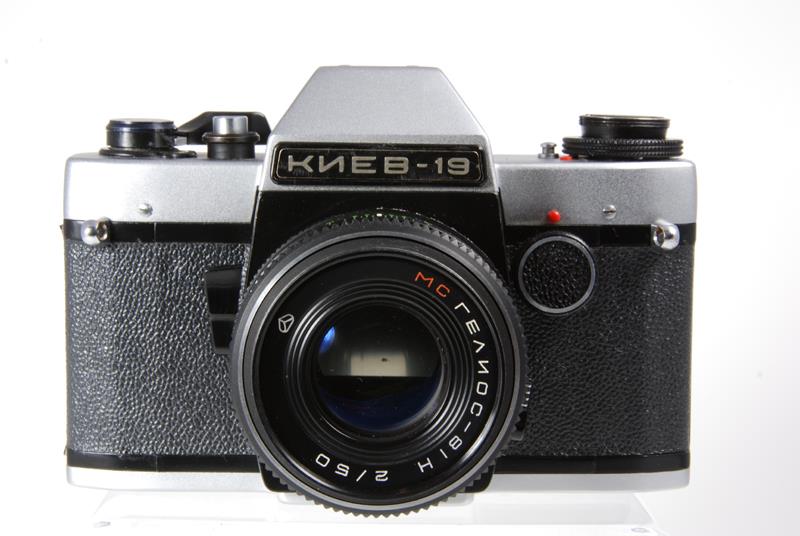

Kiev 19
1985-1994

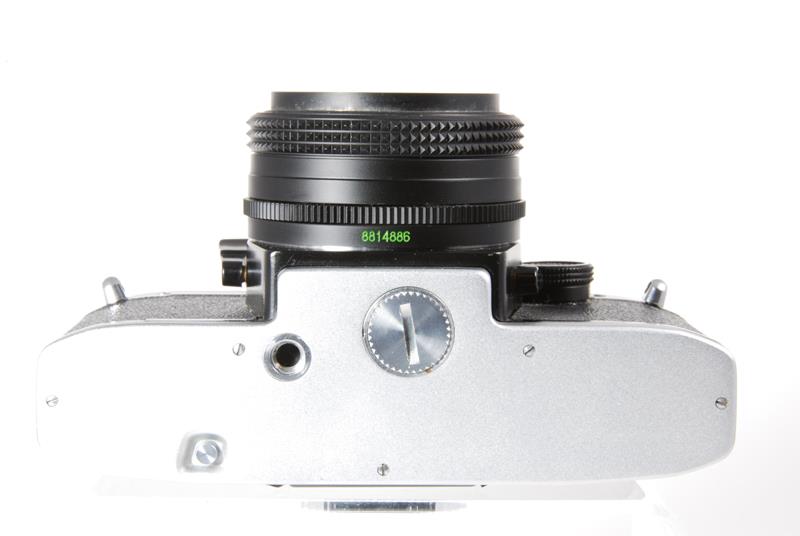

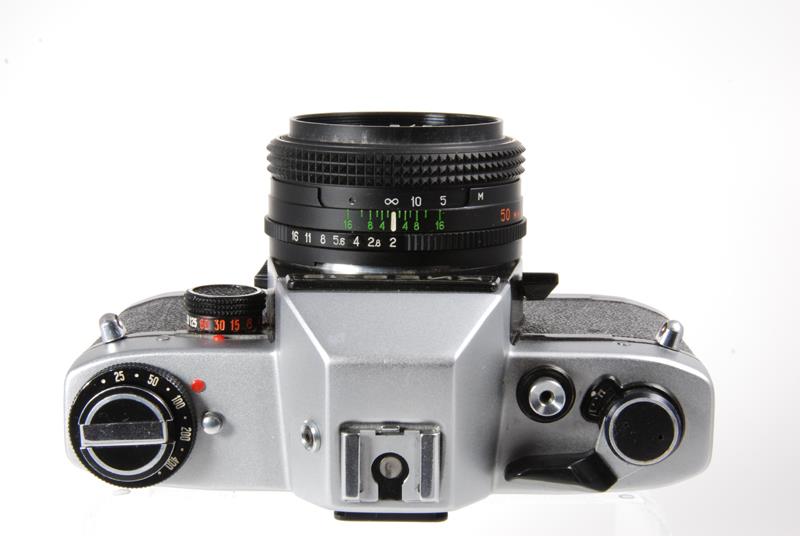

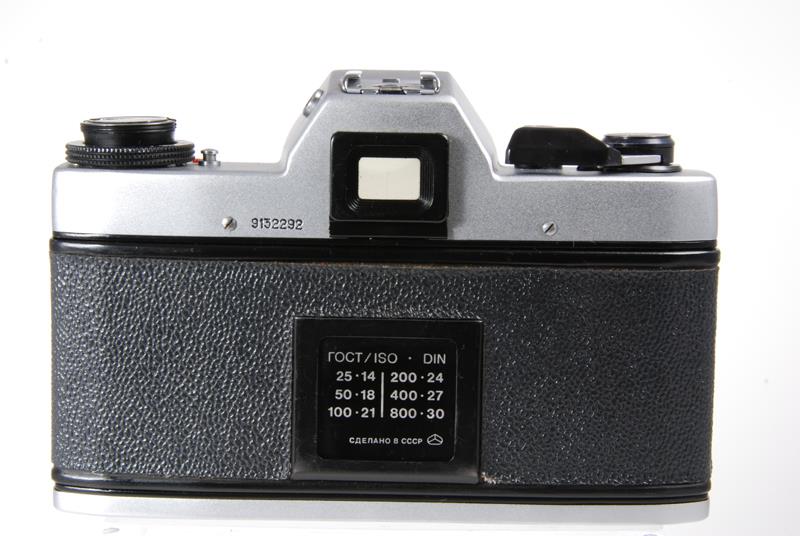

The Kiev-19 adds through the lens metering to the Kiev-17. The metering system is automatically turned on by depressing the depth of field preview lever. The exposure is set by adjusting the exposure time and aperture until both the red minus and plus led are lit. The film speed is set on a dial under the rewind crank. The dial is released by pressing a small chrome button next to it. There is no self timer and the flash jack has been moved to the side of the prism housing. On the back of the camera is a frame for the end of the film box (source: http://www.commiecameras.com).

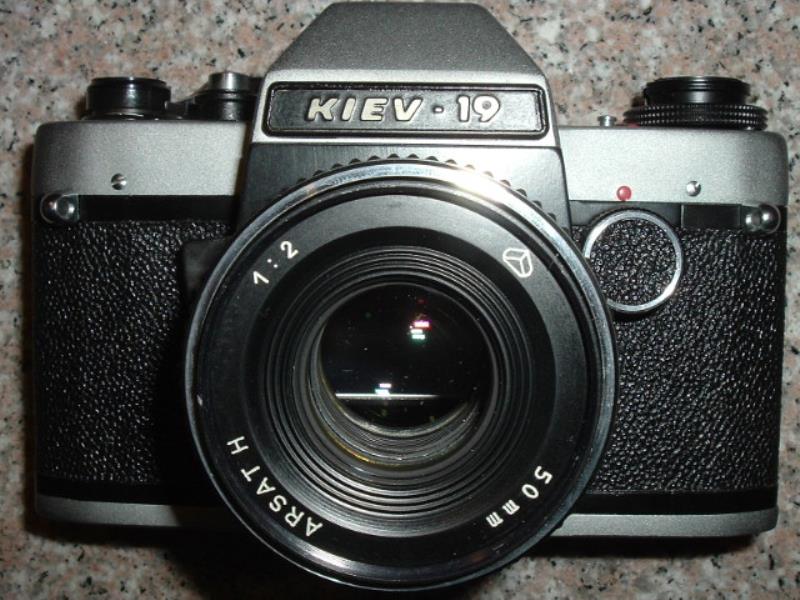

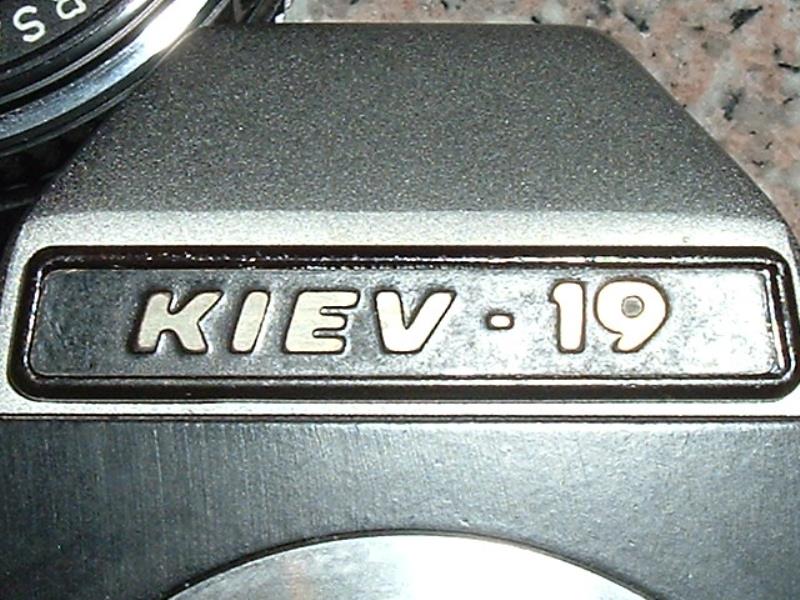

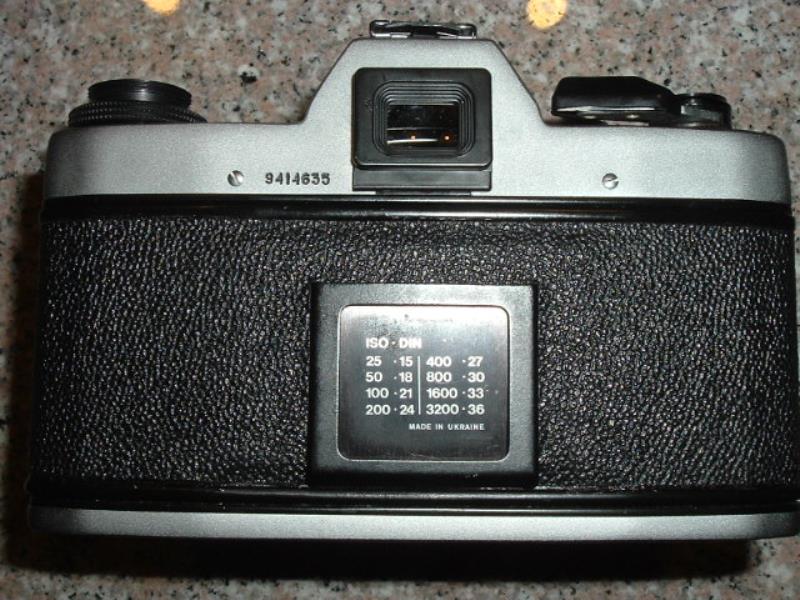

After Ukraine separated from Russia (1992?) camera was fitted with lens Arsat H - relabeled Helios 81? and it has Latin letters on the front and Made in Ukraine on the back. It was succeeded by Kiev 19M mostly made from plastic.



Produced: 1985-1994
Name: „Киев-19“
Producer: Arsenal (Kiev)
Frame size: 24x36.

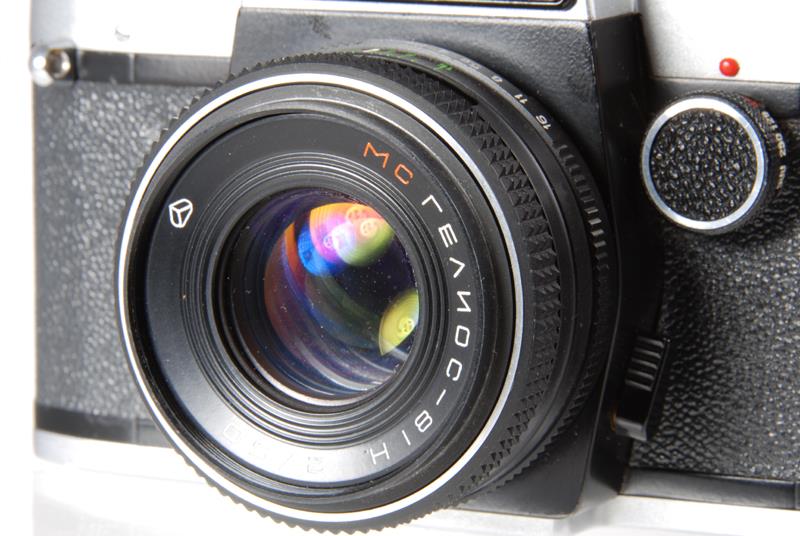

Lens: Helios-81H 2/50.
Shutter: 1/2s, 1/4s, 1/8s, 1/15s, 1/30s, 1/60s, 1/125s, 1/250s, 1/500s + B.

Original price (in year 1986) 150 roubles. (Sovietcams.com)
