Topic author: Lexx

Posted on: 20190702034916

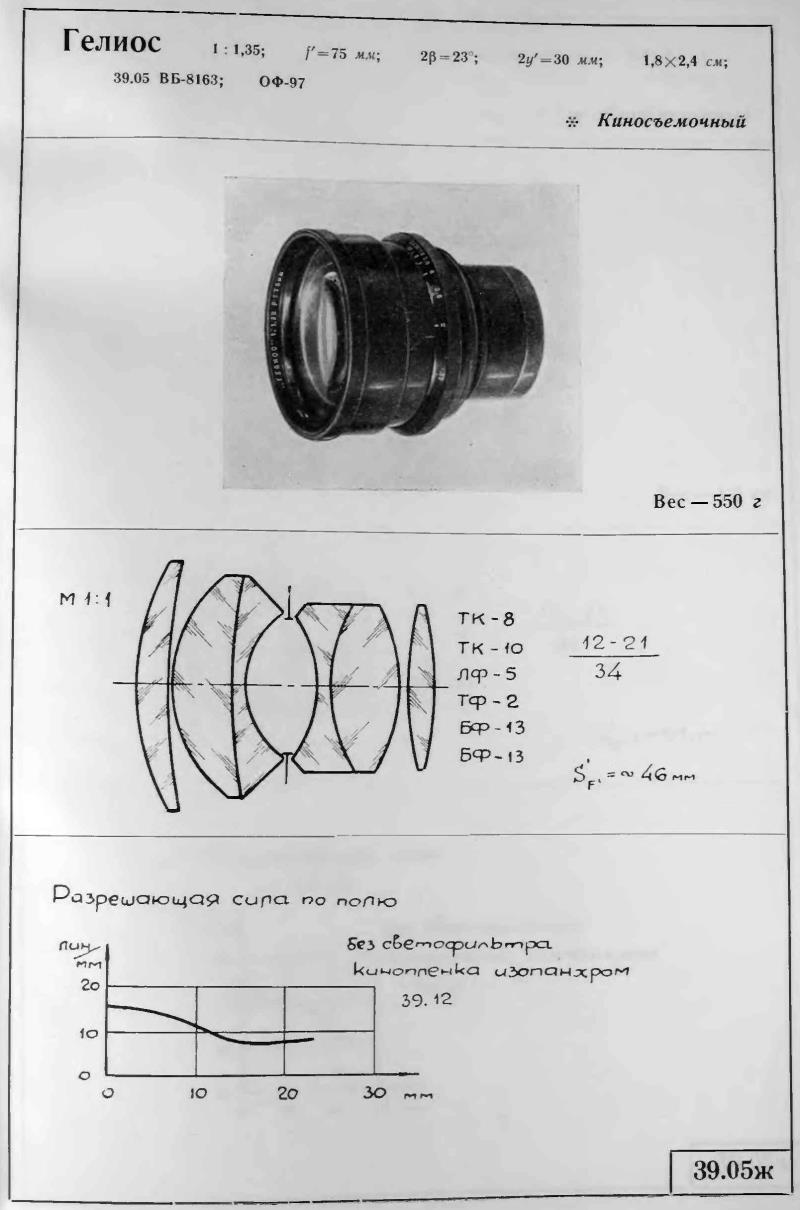

Hello! Found such a lens in 2018. It is in the GOI album, released in 1939 for shooting films.

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_GOI_album.jpg


http://www.ussrphoto.com/UserContent2/272019_GOI_album.jpg

This is one of the earliest helios, never produced serially. In addition to the GOI Helios 75mm 1.35, prototypes were made with a focal length of 50mm and 100mm with an aperture of f1.35. As well as 50, 75 and 100mm f2.0, which are prototypes of next PO, Ж, OKS and other f2.0 cinema lenses. I did not manage to find other GOI lenses f1.35 neither in Russia nor abroad (I checked all possible forums, databases, social networks, collectors, auctions, etc.).

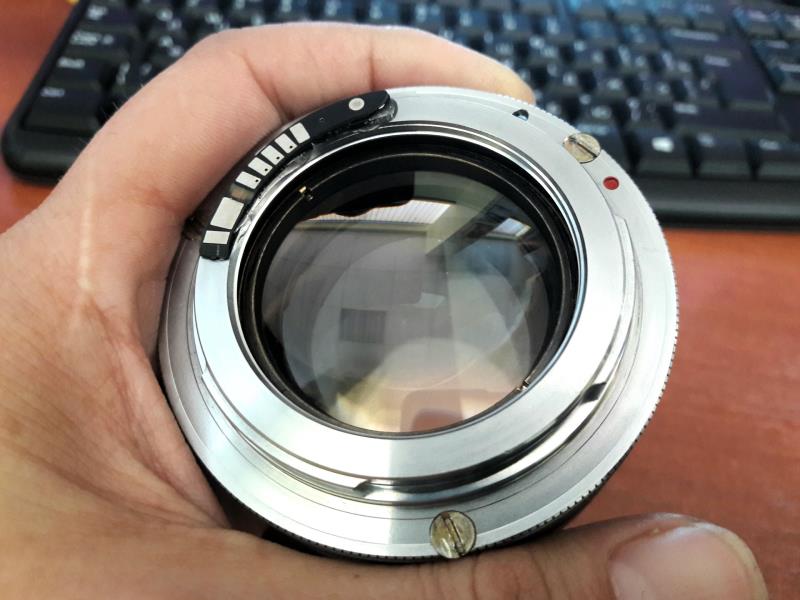

According to the most probable version, the lens is made as an analogue of the German lens for shooting films of Carl Zeiss Biotar 7cm 1.4 1929. I adapted the lens for shooting on a full frame canon.

I would like to know if there is information about other GOI lenses f1.35 or f2.0 and what is the approximate cost of such a lens when it is sold at auction?

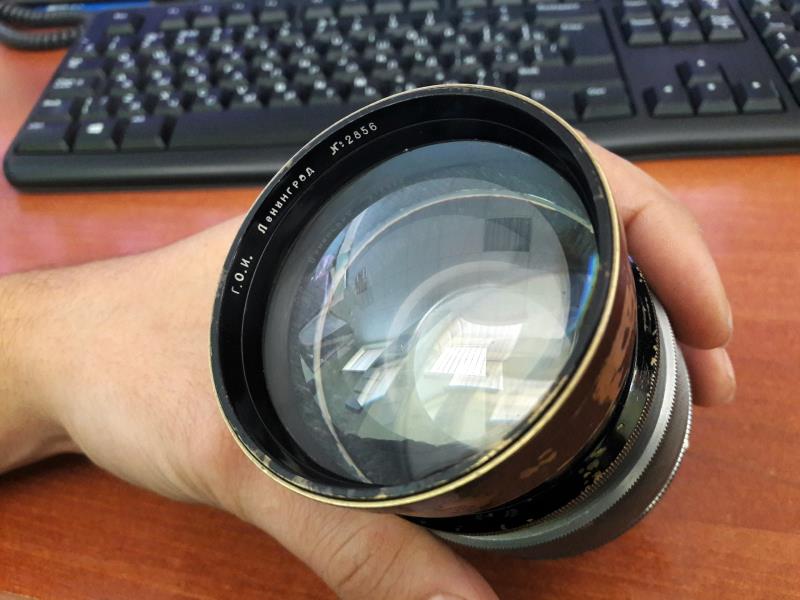

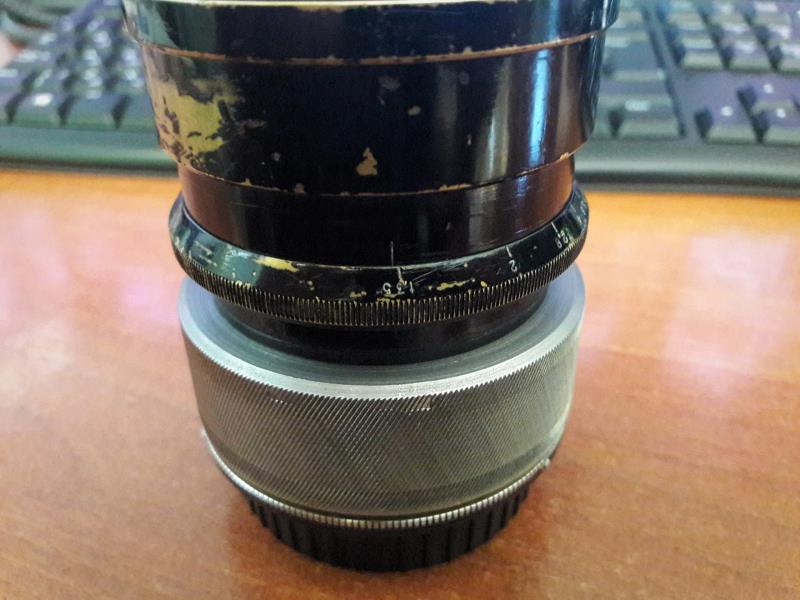

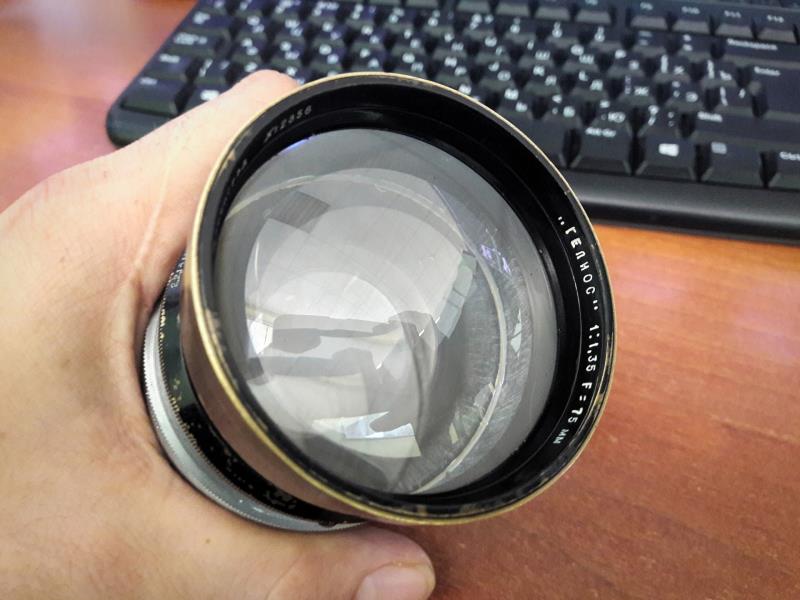

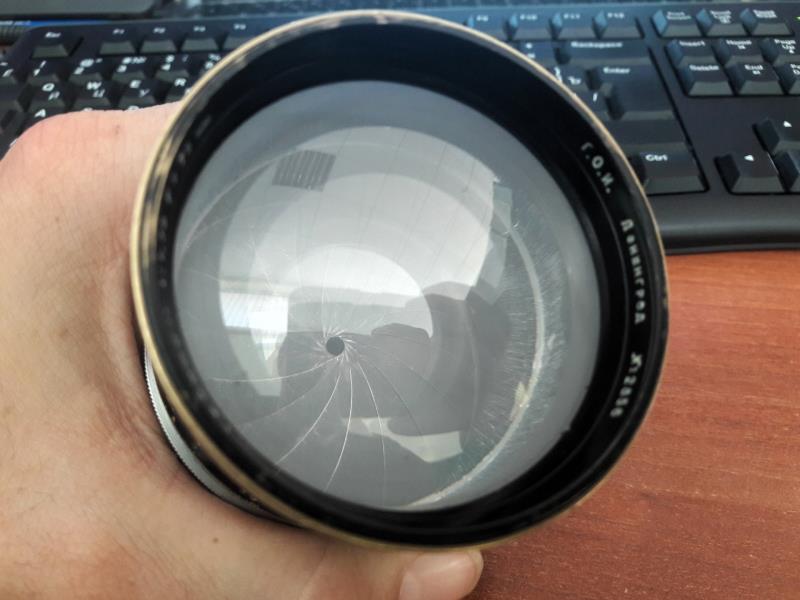

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_1_GOI_Helios_75mm _f1.35.jpg


http://www.ussrphoto.com/UserContent2/272019_1_GOI_Helios_75mm _f1.35.jpg

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_2_GOI_Helios_75mm _f1.35.jpg


http://www.ussrphoto.com/UserContent2/272019_2_GOI_Helios_75mm _f1.35.jpg

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_3_GOI_Helios_75mm _f1.35.jpg


http://www.ussrphoto.com/UserContent2/272019_3_GOI_Helios_75mm _f1.35.jpg

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_4_GOI_Helios_75mm _f1.35.jpg


http://www.ussrphoto.com/UserContent2/272019_4_GOI_Helios_75mm _f1.35.jpg

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_5_GOI_Helios_75mm _f1.35.jpg


http://www.ussrphoto.com/UserContent2/272019_5_GOI_Helios_75mm _f1.35.jpg

Replies

Reply author: Alfa2

Replied on: 20190702112448

Hello Alexander.
This is very interesting.
Could you please share photos made with the lens ?

Reply author: Lexx

Replied on: 20190702114357

<blockquote id="quote"><font size="1" face="MS Trebuchet, Arial, Helvetica" id="quote">quote:<hr height="1" noshade id="quote"><i>Originally posted by Alfa2</i>
<br />Hello Alexander.
This is very interesting.
Could you please share photos made with the lens ?
<hr height="1" noshade id="quote"></font id="quote"></blockquote id="quote">
Yes, here are a few photos on the full-frame Canon 6D on the open F1.35

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_IMG_4302_s.jpg


http://www.ussrphoto.com/UserContent2/272019_IMG_4302_s.jpg

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_IMG_4305_s.jpg


http://www.ussrphoto.com/UserContent2/272019_IMG_4305_s.jpg

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_IMG_4572.jpg


http://www.ussrphoto.com/UserContent2/272019_IMG_4572.jpg

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/272019_IMG_4580.jpg


http://www.ussrphoto.com/UserContent2/272019_IMG_4580.jpg

Reply author: Alfa2

Replied on: 20190702152034

Thank you very much. [:)]

Great lens. Bokeh is fantastic.

Reply author: Jacques M.

Replied on: 20190706154449


Really, I am astonished too by the bokeh.
The misty halo around the children is fantastic...

Thanks, Lexx!

Reply author: Lexx

Replied on: 20190707042116

<blockquote id="quote"><font size="1" face="MS Trebuchet, Arial, Helvetica" id="quote">quote:<hr height="1" noshade id="quote"><i>Originally posted by Alfa2</i>
<br />Thank you very much. [:)]
Great lens. Bokeh is fantastic.
<hr height="1" noshade id="quote"></font id="quote"></blockquote id="quote">
Thank! I like it too. Very unusual

Reply author: Lexx

Replied on: 20190707042456

<blockquote id="quote"><font size="1" face="MS Trebuchet, Arial, Helvetica" id="quote">quote:<hr height="1" noshade id="quote"><i>Originally posted by Jacques M.</i>
<br />
Really, I am astonished too by the bokeh.
The misty halo around the children is fantastic...

Thanks, Lexx!
<hr height="1" noshade id="quote"></font id="quote"></blockquote id="quote">

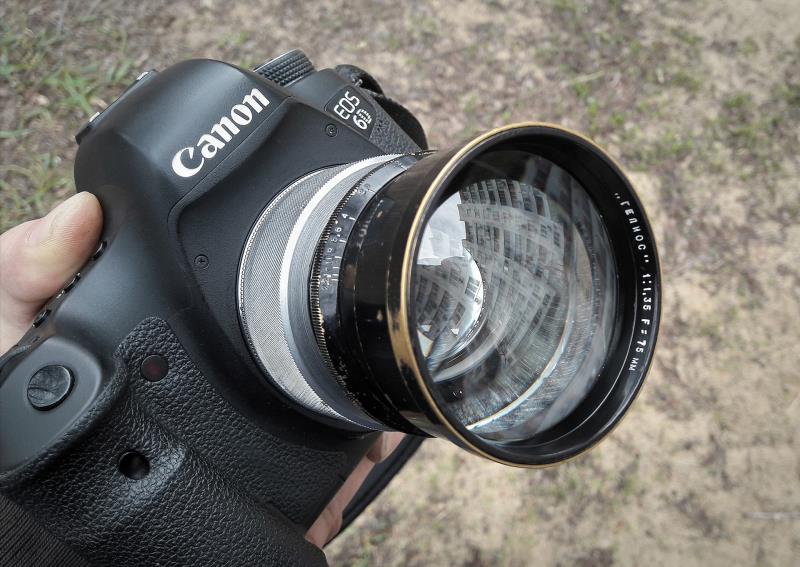

Glad you liked how this lens shoots. That's why I don’t know whether to sell it, I own it for a year now and don’t dare to do it. Although if the lens is in a decent and well-known collection, I will also be pleased because I don't use it often, it’s mostly stored in a box.

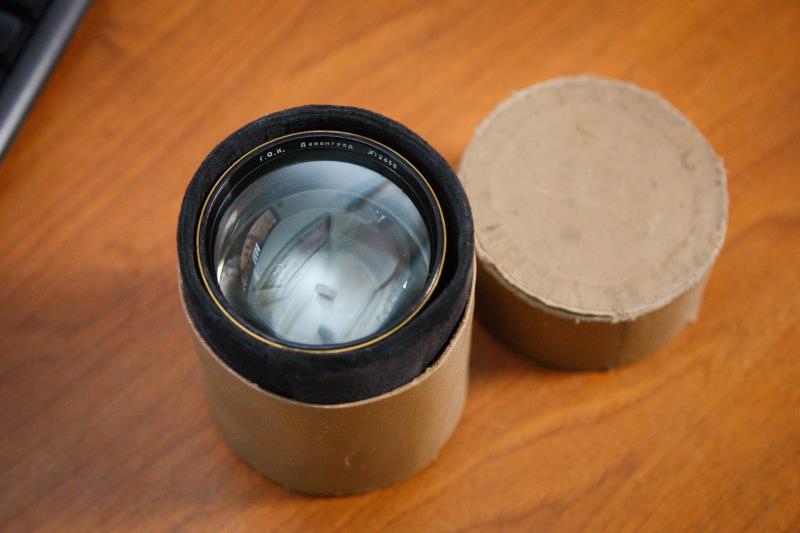

http://www.ussrphoto.com/resize/resize_image.aspx?ImgWd=800&IptFl=/UserContent2/772019_IMG_4597.jpg


http://www.ussrphoto.com/UserContent2/772019_IMG_4597.jpg
