Still Cameras > GOMZ / LOMO / VOOMP - Other > Signal
<< Previous entry      Next entry >> Print this entry      View Related Forum Thread - 2 post(s)     Edit this entry

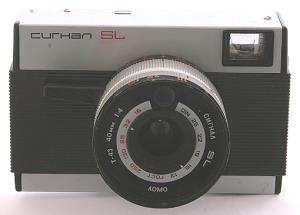

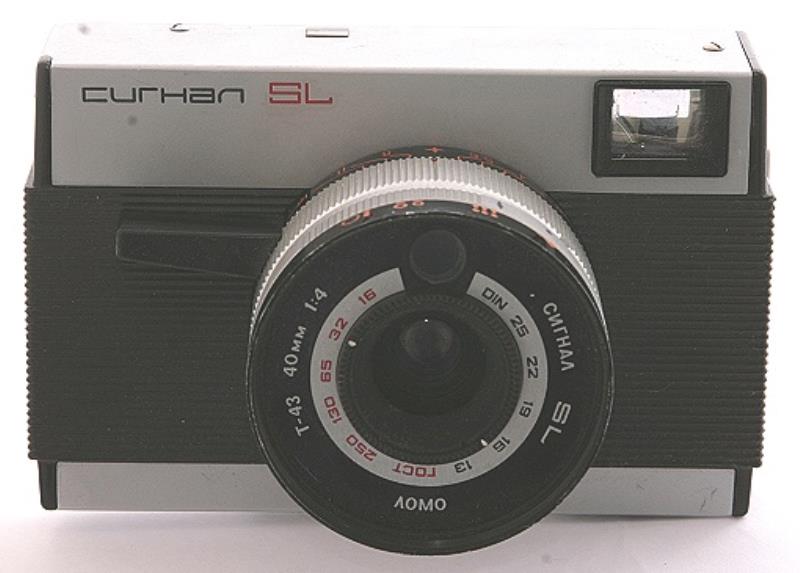

Signal


SIGNAL SL

- may be a factory prototype .no serial number except "5" numbered , hand wrote whith pencil,.came from LOMO desk.
- heavy die-cast metal body camera (500 gr.)

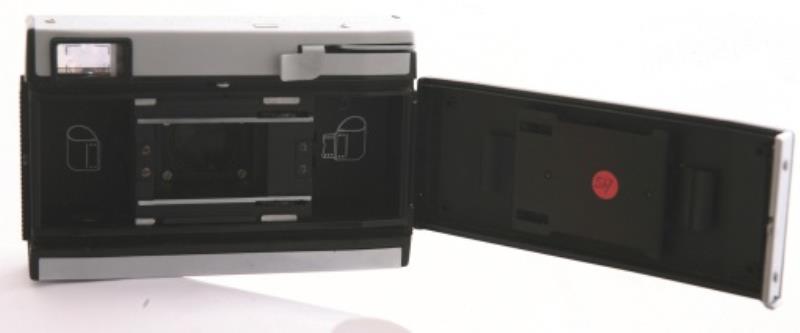

- use ORWO rapid cassettes (Agfa licence ?)
- automatic exposure : aperture priority and all automatic set(contact button under lense).
- no speeds dial.
- framed finder
- T 43 shutter
- LOMO lense 1:4 - 40 mm
- focus scale : 1m. to infinite.

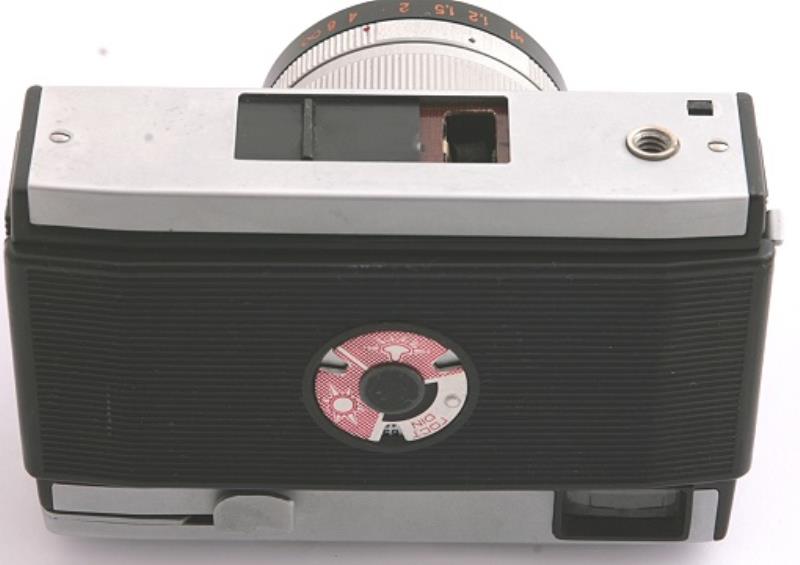

- lightmeter CDS powered by 2+1 vp 625 batteries type (in a nest in the bottom ).
- flash synch socket on the left side , but no accessories shoe.
- frame counter in a little window on top of the camera.

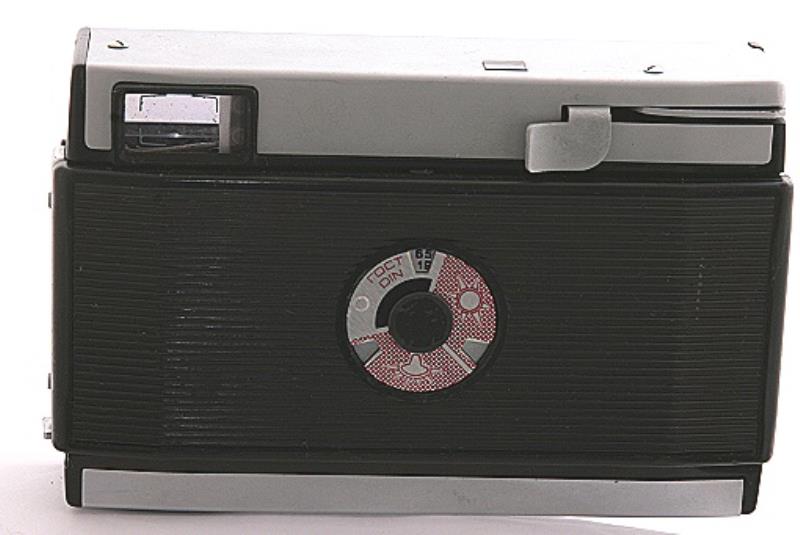

- memory disk on back (sun/ tungsten) DIN / GOST.

from Alain 1 Claire BERRY collection.

Consider this point: The Soviets never made "rapid" film and it was unavailable in the SU. So why did they make a camera that required it? Nathan Dayton
