Two M39 4/13,5cmTriotars

Hello,

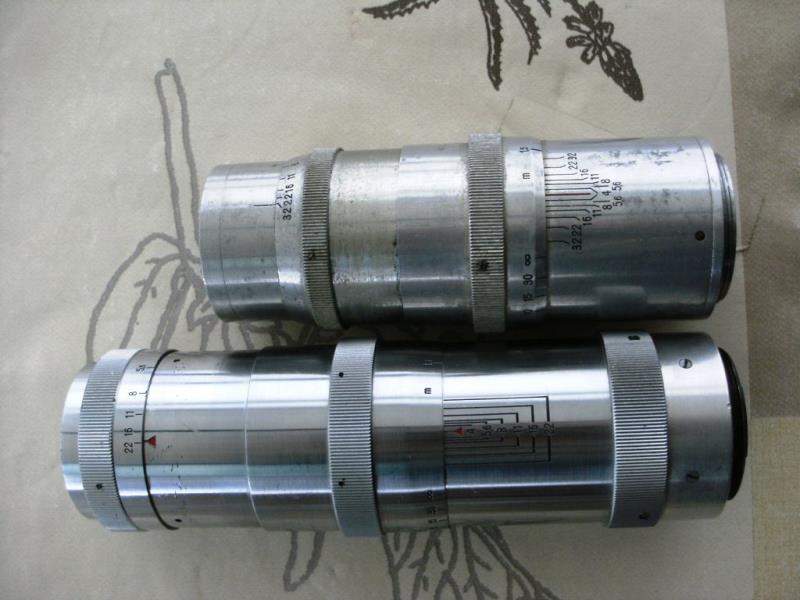

Here are my two Triotars:


http://www.ussrphoto.com/UserContent/2122015_DSCF1794.JPG

The biggest one is a LTM. Not very common: these Triotars were first made for Exakta cameras, then for M42 ones. And some were specially made in LTM, by "extension" of the body.

The shorter is a M39. But I wonder to which camera it can fit. It is much shorter than the other: c. 33mm! So, certainly, it could not fit SLR cameras like Zenit. (Registers: 28,8mm for LTM, 45,46mm for SLR M39 and M42). A Visoflex system?

A word more: the formula dates of 1939 and was calculated originally for Exaktas. No change of formula afterwards, after the Thiele. So, the lens block, inside, should be the same, I think. My two lenses are of 1945 (the shorter) and 1948.

Thanks for your comments!
Jacques.

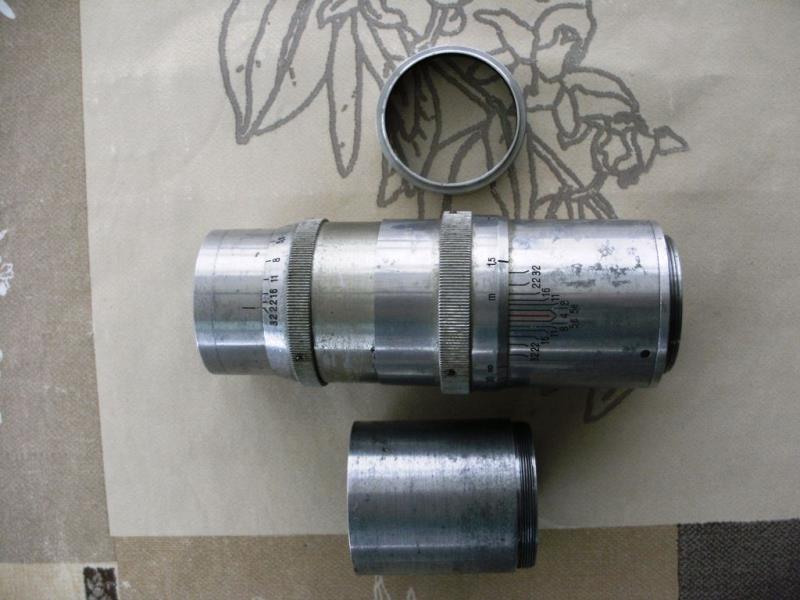

A photo more:

http://www.ussrphoto.com/UserContent/2122015_DSCF1798.JPG

The small part is the shade.
The other tube can be screwed, but only to the shade, not directly on the lens.

Another mystery...

Hello Jaques

the mistery Triotar is made to the Neucaflex I had shown in another thread.
This is an even rare lens for this extremely rare cвmera.

I especulate that Mr. Neubert was one of the team who worked in Russia in the immediate post war days.

The link is certainly tied to the the similarities between Zorkis and Neucas as well as Neucaflex second series and further Ucaflex first series that at he same time shared together Zenits M39 x 45.2 flange, mount, not forgotting the TSVVS

A fact to be observed.
Regards.
LP

Another point Jacques!

You are a first class collector who feels and sees with special eyes the best of each item.

Congratulations

LP

Congrats Jacques.
Yes, Jacques has special eyes,
he wouldn't understand that I have my first Smena now too, lol.

Thanks...

No merit: I am fond of these cameras and lenses which are not exactly what they appear... A Leica which looks like a Fed, screws not at the right place, a lens too short...

So, this lens would perhaps fit a Neucaflex. I will send it to a friend who could determine the register of the right camera.

Merci! Jacques.

Well, my repairman worked on the "short" Triotar.
He found that there must be a ~34mm ring to have an image on his Leica M9.

It corresponds more or less to the difference of length with the "long" LTM Triotar. So, the two ones share the same lens formula, as I thought.

He thinks of a possible use on a LTM camera with a Visoflex system or on a M39 reflex.

This lens seems prone to flare, as he told me (it is non coated, contrarily to the "long" LTM one).

Amitiйs. Jacques.

hello Jacques

these are the register os the most importante reflex kousings

Leitz Visoflex I M39x26tpi 91.3
Leitz Visoflex II, III Leica M bayonet 68.8
Novoflex 100

Accura follows Visoflex I and Komura Pentabox and Mirax compatible with Visoflex II (but threaded M39)

Regards

LP
