Movie Cameras > KGB Movie Cameras > Imbir KGB Movie Camera (2nd type)
<< Previous entry      Next entry >> Print this entry      Start forum thread about this entry     Edit this entry

Imbir KGB Movie Camera (2nd type)

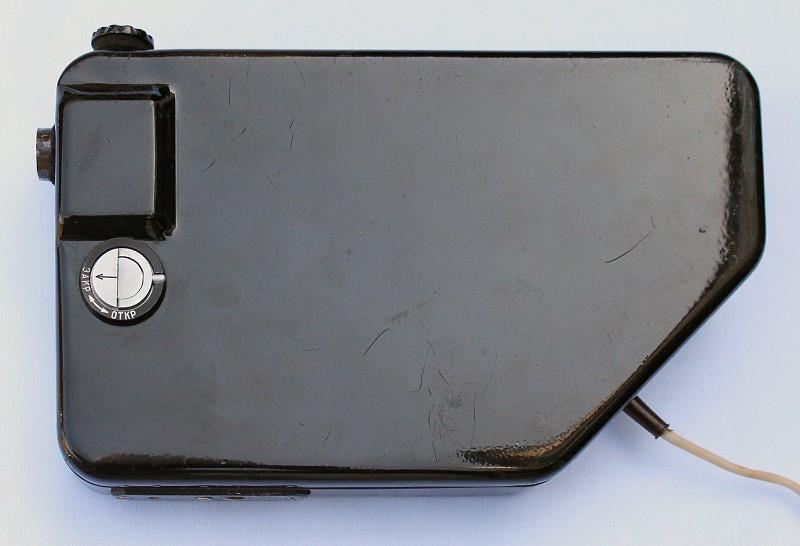

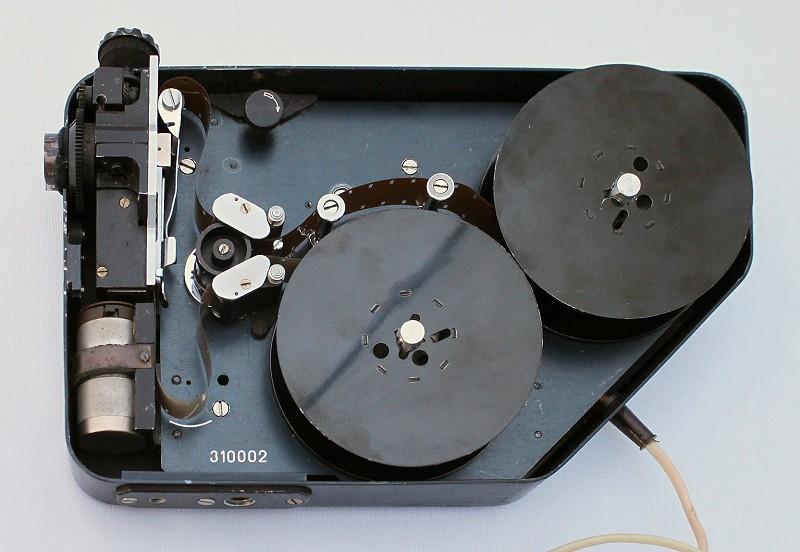

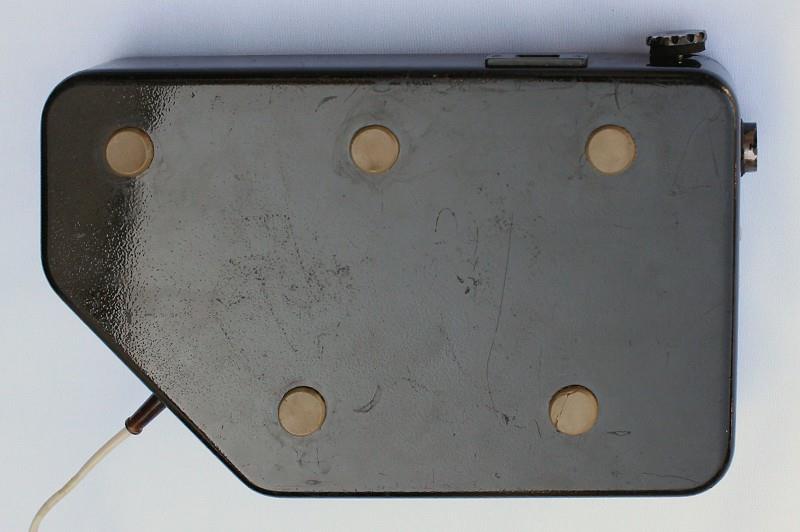

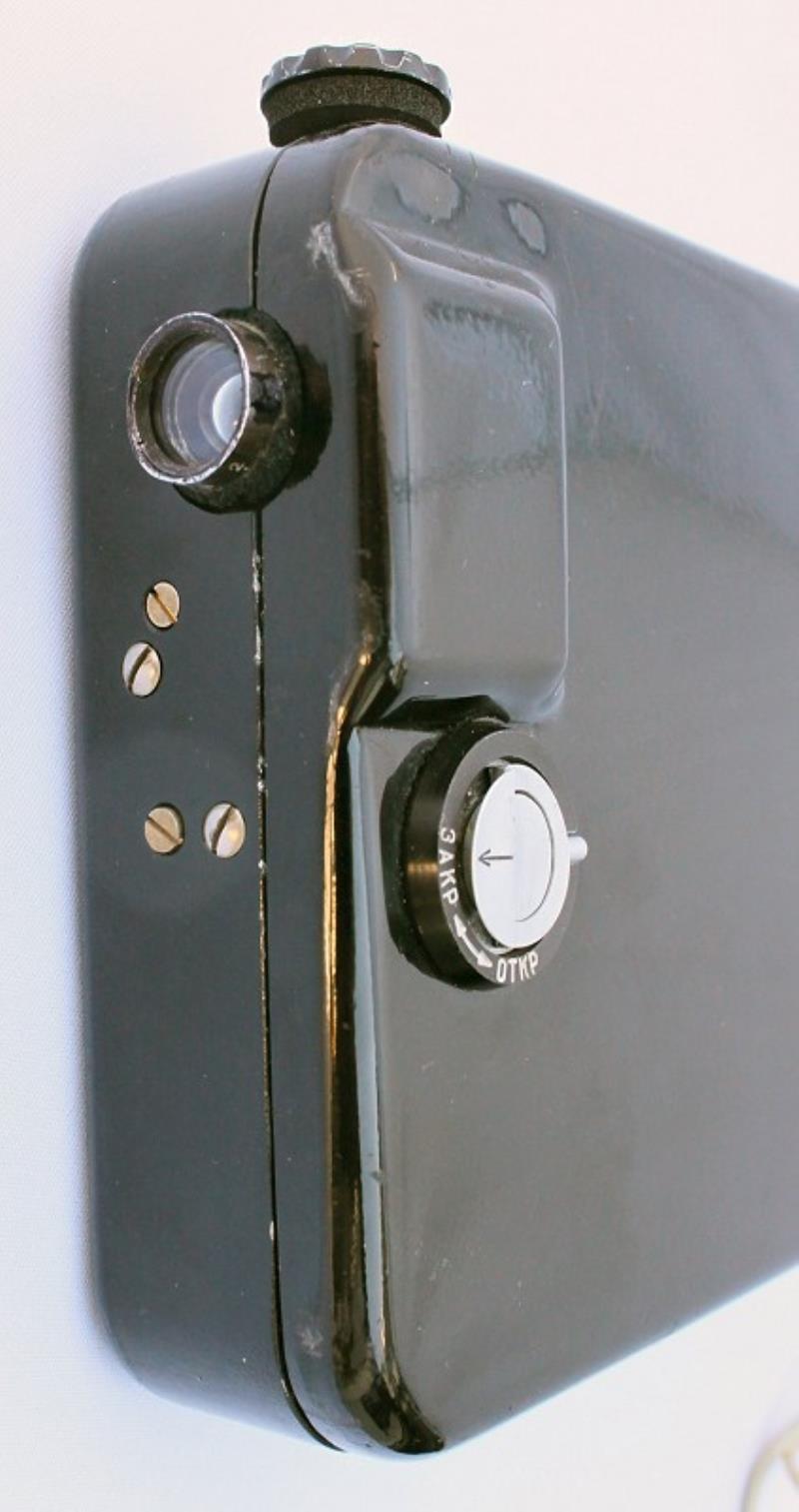

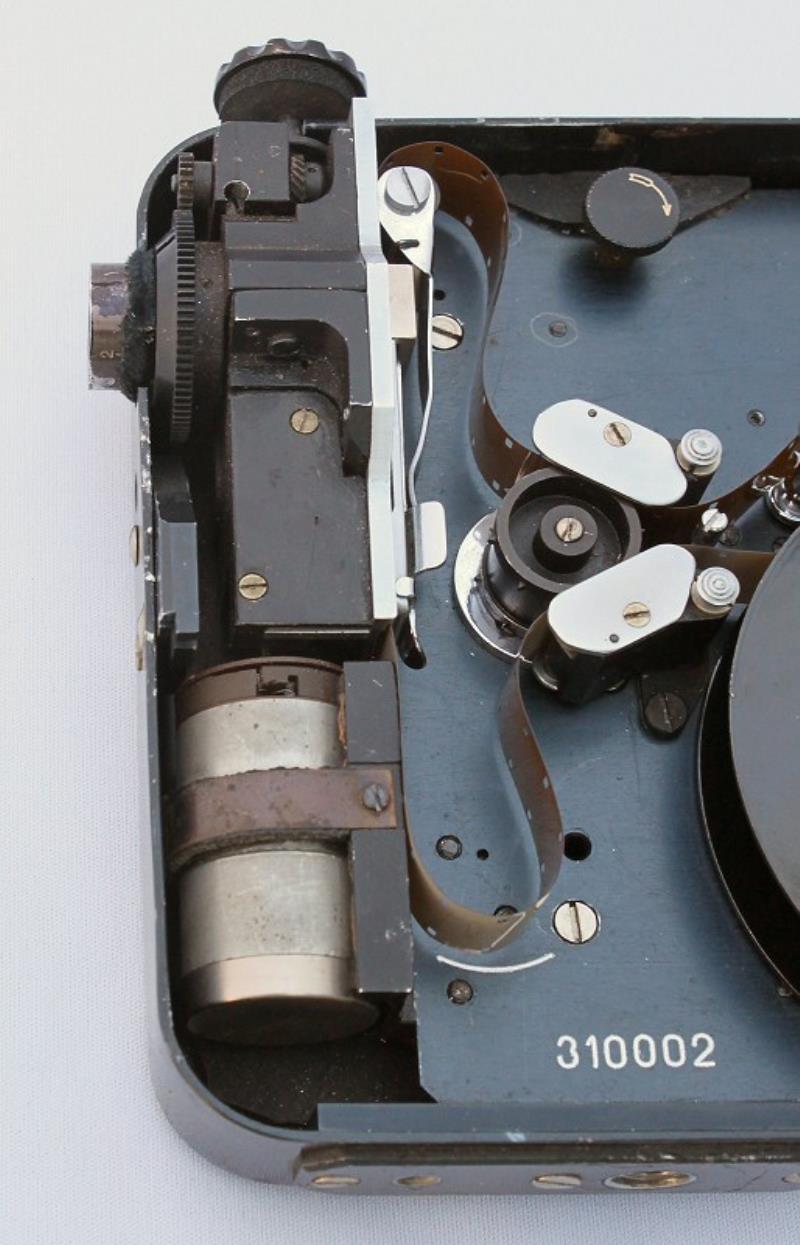

This Imbir camera uses a smaller casing, with the lower back corner cut away to save on space. The position of the film spools has also been changed. The f/2 28mm lens is the same as that used on some F-21 cameras. It is fixed focus and the aperture is adjusted by means of the knob on the top of the camera. Also on the top of the camera is the film counter allowing for up to 60 metres of film. The inside of the case and the electric motor are both soundproofed and the back of the case has five rubber pads to further cushion the camera and reduce sound.

David Tomlinson.

(Click to enlarge)


Created by RCCCUK on 5/23/2010 11:07:11 AM   |   Last Edited by RCCCUK on 5/24/2010 10:08:53 AM   Revision History
