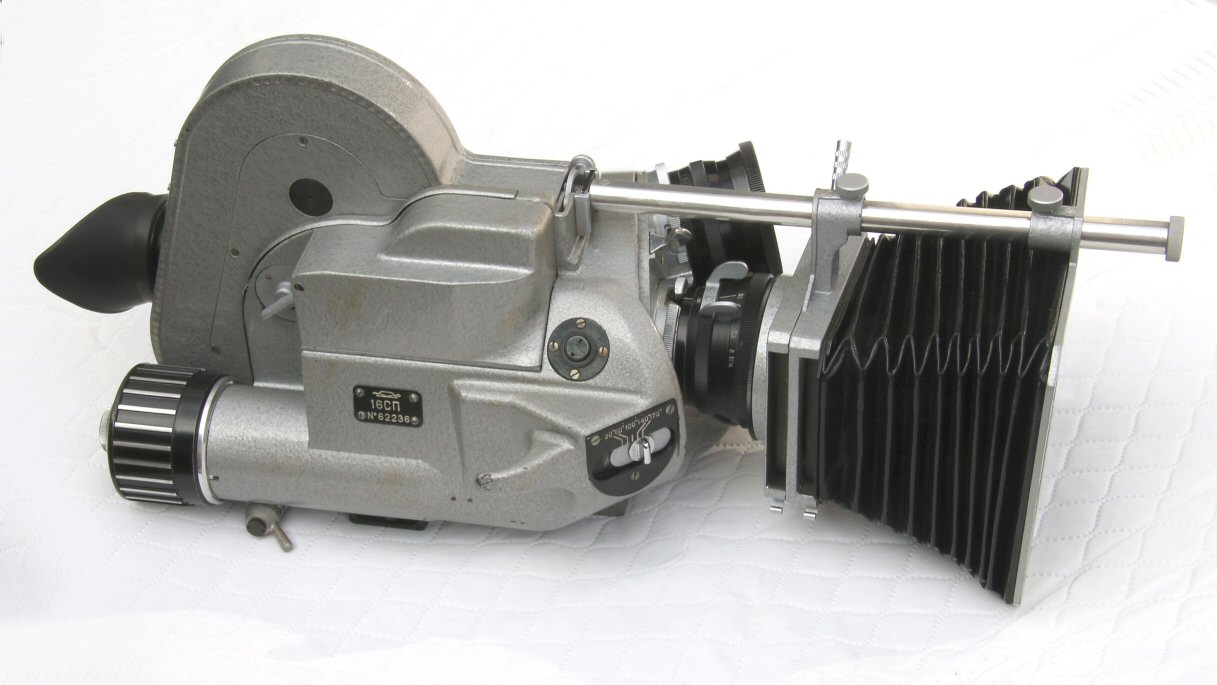

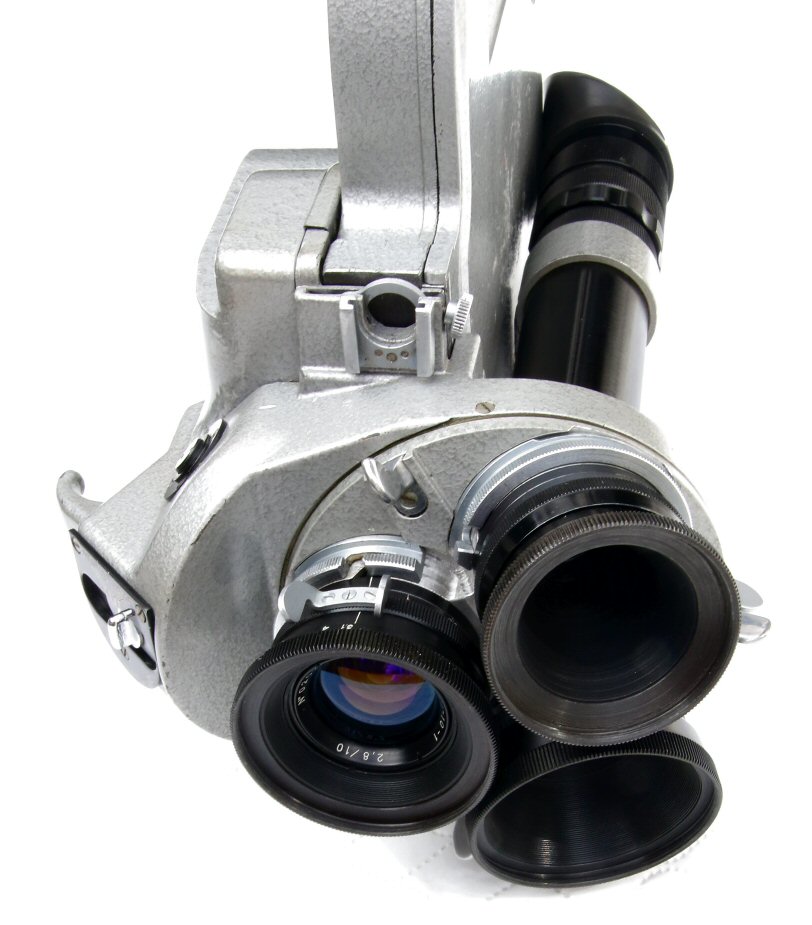

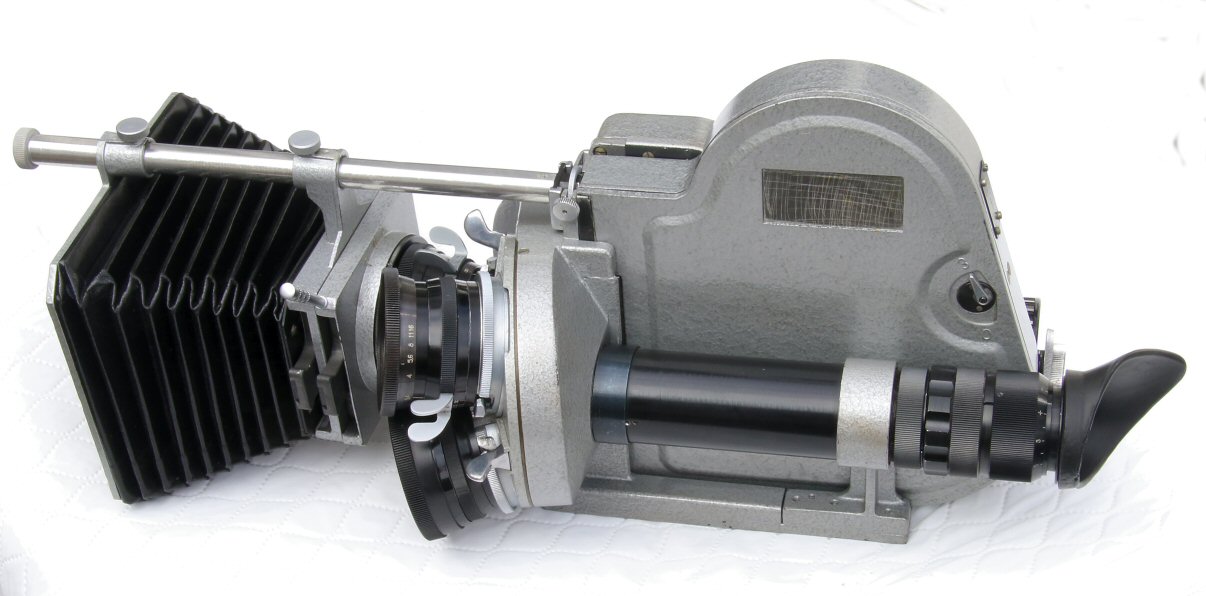

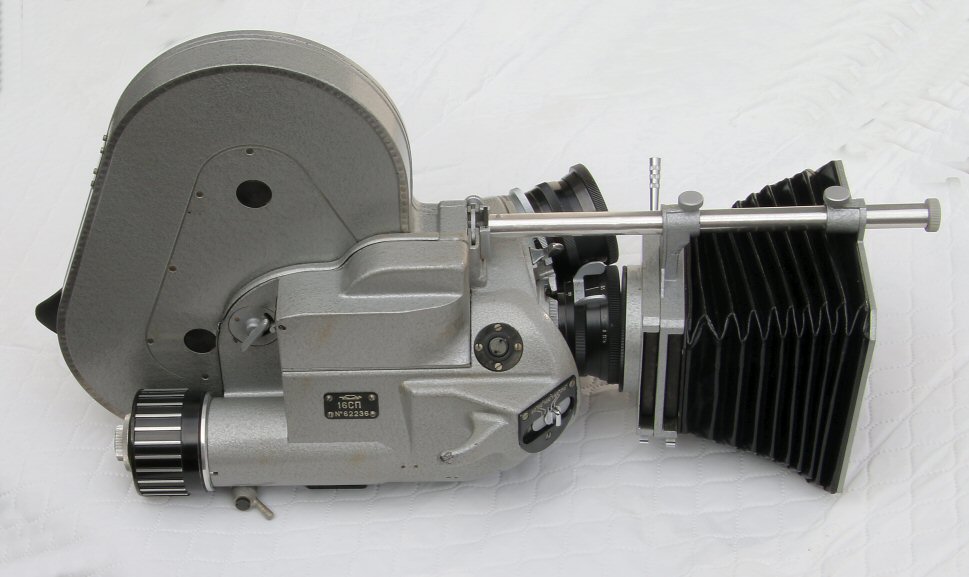

The 16SP (16СП) movie camera, manufactuted by KMZ, is a 16mm camera based on the design of the Arriflex 16. It is driven by a 6-8 volt 20 watt electric motor, type 25M-11. The camera ios capable of film speeds of 8, 16, 24. 32. 48 and 64 fps. It has a three lens turret which is fitted with a f/2.8 10mm OKS1-10-1, a f/2.8 15mm OKS2-15-1 and a f/2.5 25mm OKS1-25-1 lens. The camera can be comes with 30 or 60 metre film magazines. The last photograph shows the camera with the 60 metre magazine fitted.
David Tomlinson.
