Leningrad's rewind knob.

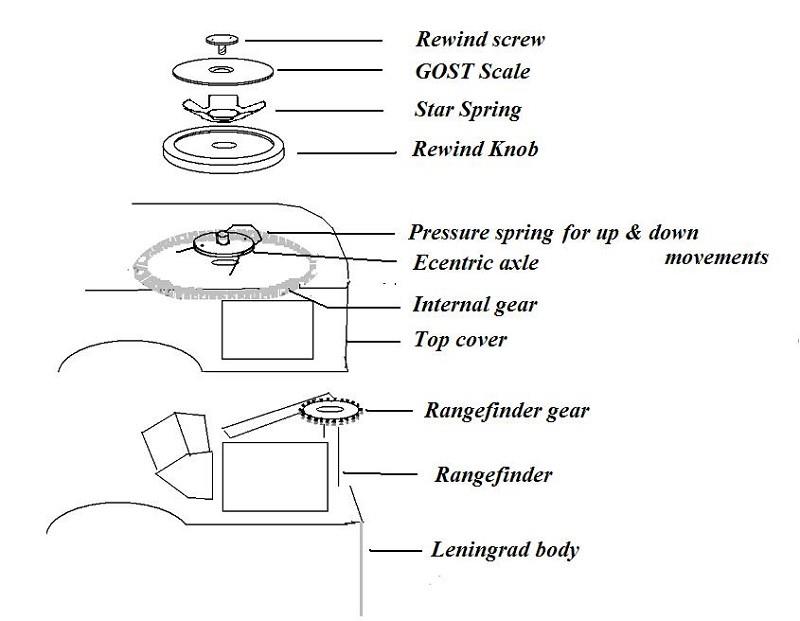

This pictured explanation shows the rewind engaging system of Leningrad cameras.

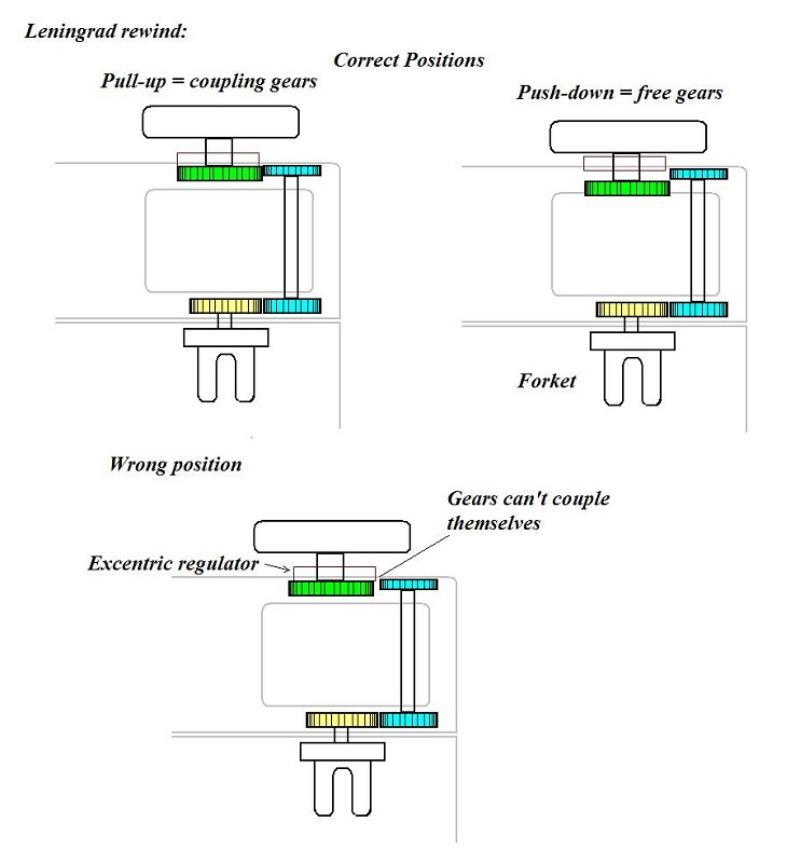

The knob in the down position frees the rewind forket.

If rewind is in the upper position (engaged) the film will not run properly once it will be hold in the cassete spool.

(Click to enlarge)
