Helios 57

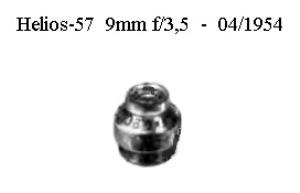

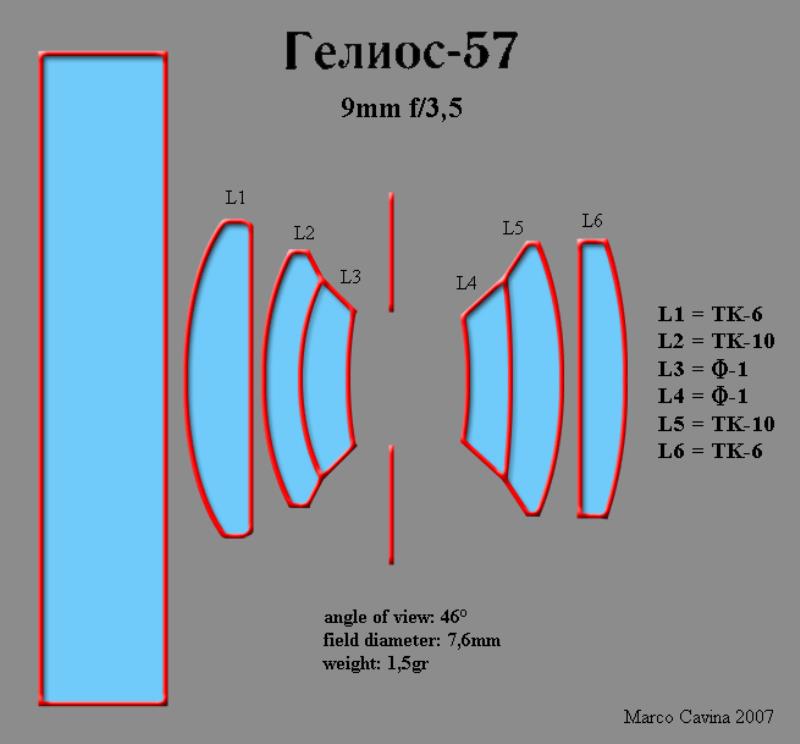

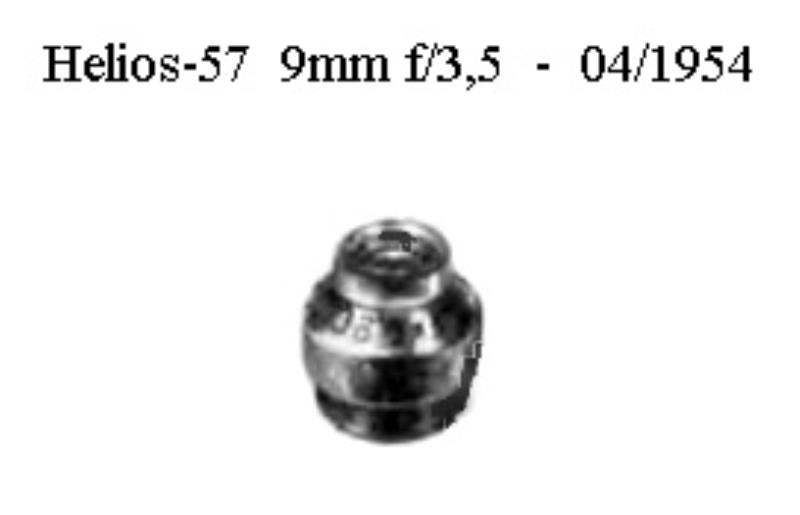

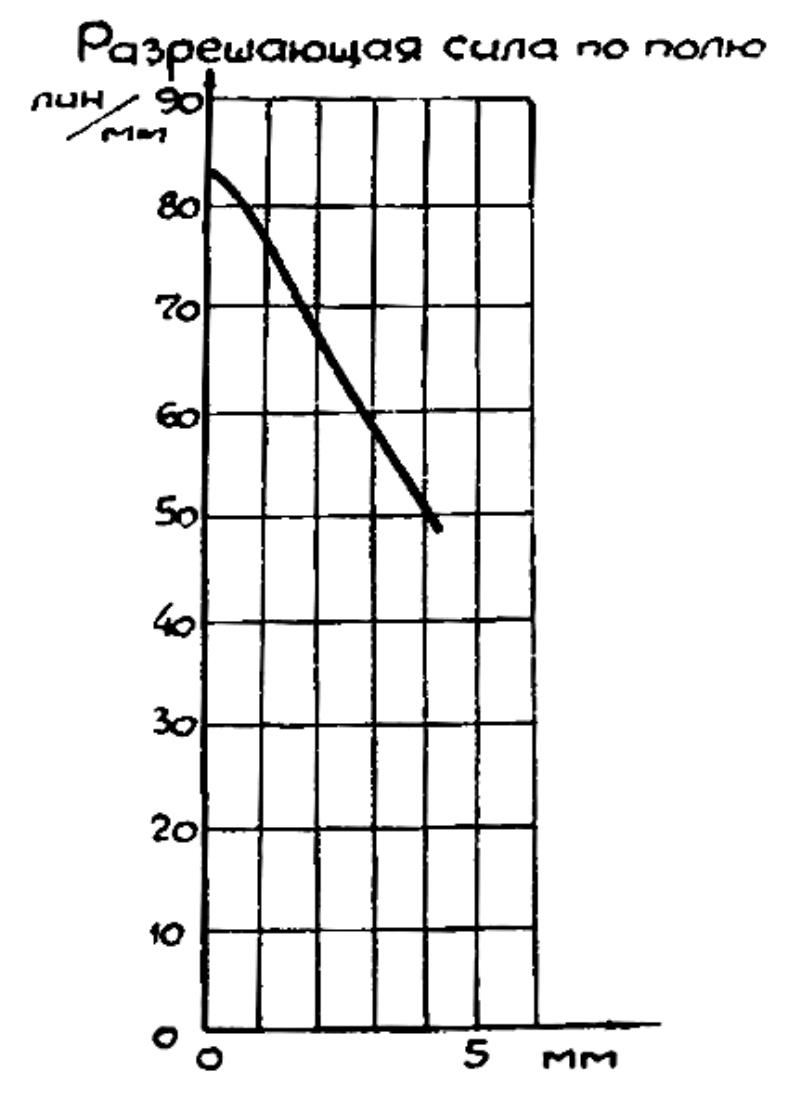

Here enclosed three pictures the lens. a six element 3.5 used in revolving mood in the miniature panoramic camera at: In the second picture we see the lens diagram and in the third one a graphic of the lens resolution from the center to the borders
Cortesy: Mario Cavina
The camera can be seen at: http://www.ussrphoto.com/Wiki/default.asp?WikiCatID=17&ParentID=1&ContentID=402&Item=Miniature+Panoramic+Camera
(Click to enlarge)


Created by Luiz Paracampo on 11/22/2007 8:52:16 PM   |   Last Edited by Luiz Paracampo on 11/22/2007 9:02:41 PM   Revision History
