'FED' aerial lens

New Topic Reply to Topic
Back to Forum Previous TopicNext Topic
Printer Friendly Send Topic to a Friend
17 posts in this thread
Jump to reply Jump to bottom

12/18/2014 04:53

Reply with Quote Edit Reply Delete Reply

I had asked the seller of one of these lenses. He thought it had been made by KMZ. By the serial number, it seems logical.
Probably we have somewhere a thread about that question on USSRphoto, I think.

Jacques.

12/19/2014 09:13

Reply with Quote Edit Reply Delete Reply
As I understand this lenses are direct descendants from prewar FED 100MM lens:
http://ussrphoto.com/Wiki/default.asp?WikiCatID=87&ParentID=2&ContentID=317&Item=FED+100mm+f%3A6.3

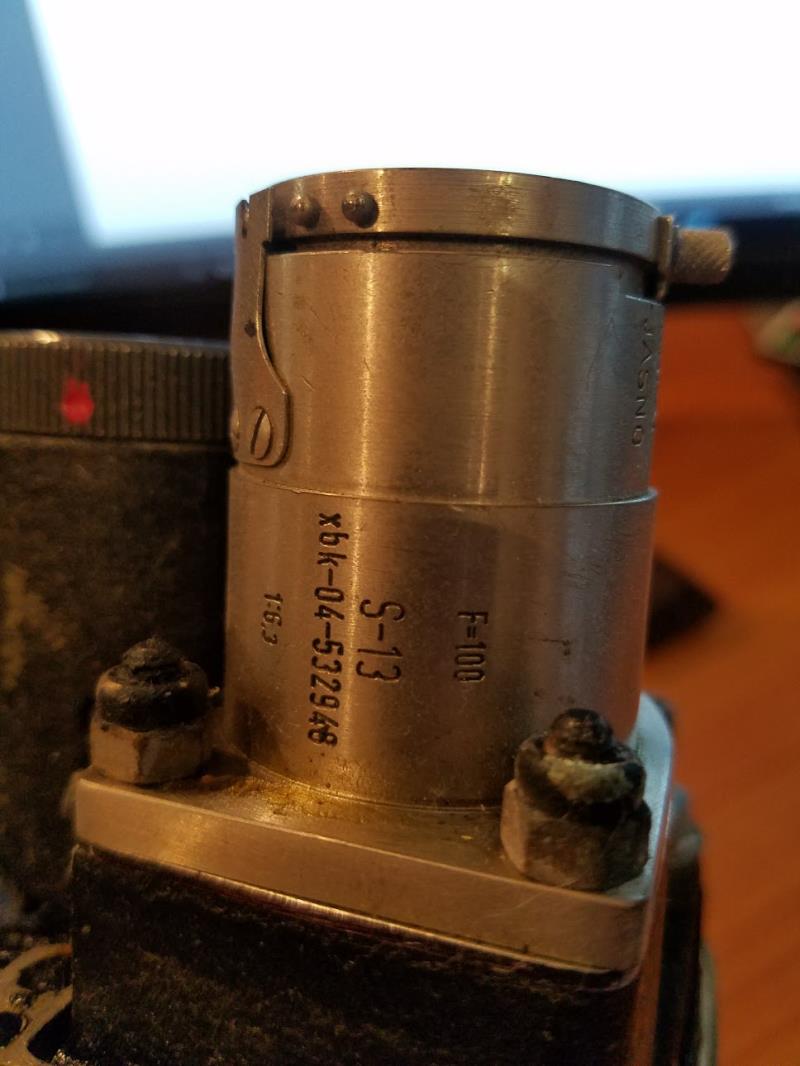

Most likely at list some of these lenses made by KOMZ. I'm not sure if any of these lenses was made by KMZ. Lenses what I have on 2 of my C-13 cameras do not have manufacturer marking, but one of the C-13 cameras has KOMZ logo, so on sure at list some of the cameras made by KOMZ. I have also suspicion that some of the C-13 cameras and probably lenses made in Poland and/or in Check Republic.

05/12/2017 14:32

Reply with Quote Edit Reply Delete Reply

Yes, curious. All the 100mm I have seen were engraved in cyrillic.

For me, it's the first time I see an "aerial" 50mm. But I am not familiar with these militaria items.

Amitiés. Jacques.

05/12/2017 16:23

Reply with Quote Edit Reply Delete Reply
I had this lens or I have it still maybe. I don't remember if it was 50 or 100 mm but as I remember it was engraved in Polish.
Unfortunately I'm not able to find it now.

05/16/2017 05:35

Reply with Quote Edit Reply Delete Reply
Hello,

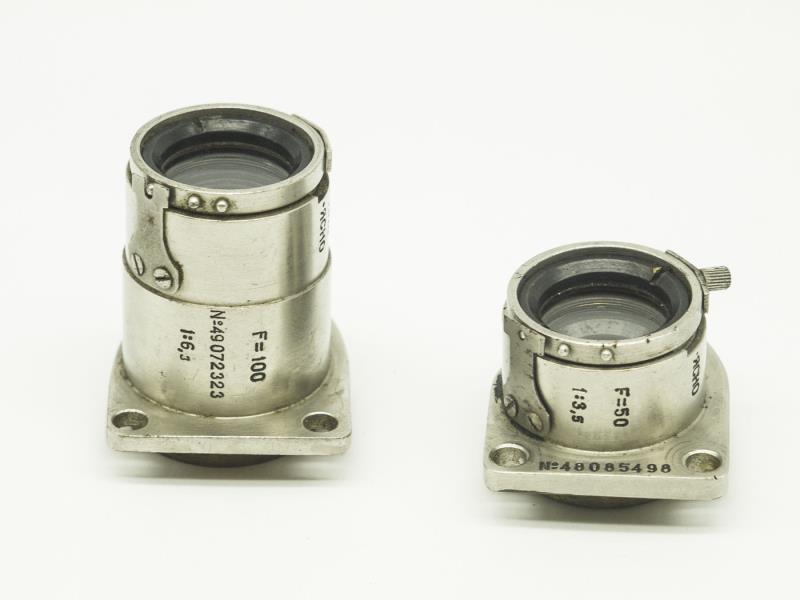

The lenses are here. Of course not usable on a usual camera! Smile
They both are protected by a neutral glass to avoid any direct shock. And they are non coated.

After a short comparison, the 50mm has an eight blade diaphragm, like the Industar 10 (or 22). And the diaph is at the rear of the lens (always like the Industars, but unlike an Elmar).
The aerial 100mm has a diaph with 8 blades too (there are 10 on the regular 6,3/100mm Fed).

Difficult to say if these aerial lenses were derived from the regular ones, or not. I wonder too about the numbering of these lenses: 48085498 for the 50mm and 49072323 for the 100mm. If the two first ciphers probably point the year of making, it's difficult to imagine that several tens of thousands of these lenses were produced...

If you have ideas? These lenses are interesting by the questions they put...

Amitiés. Jacques.

05/17/2017 03:34

Reply with Quote Edit Reply Delete Reply
quote:
Originally posted by Vlad

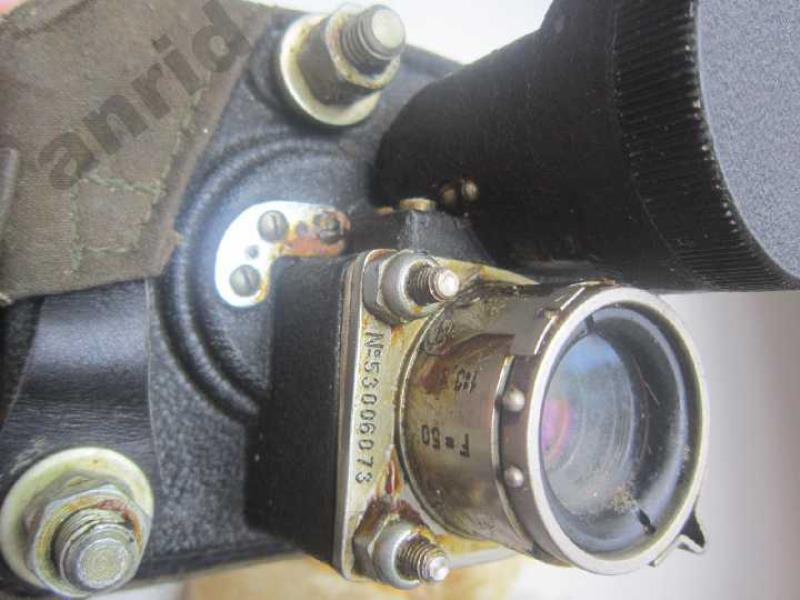

Hi Jacques, I've seen both of these on an S-13 camera. How about a Polish (I think?) export of this lens? Wink

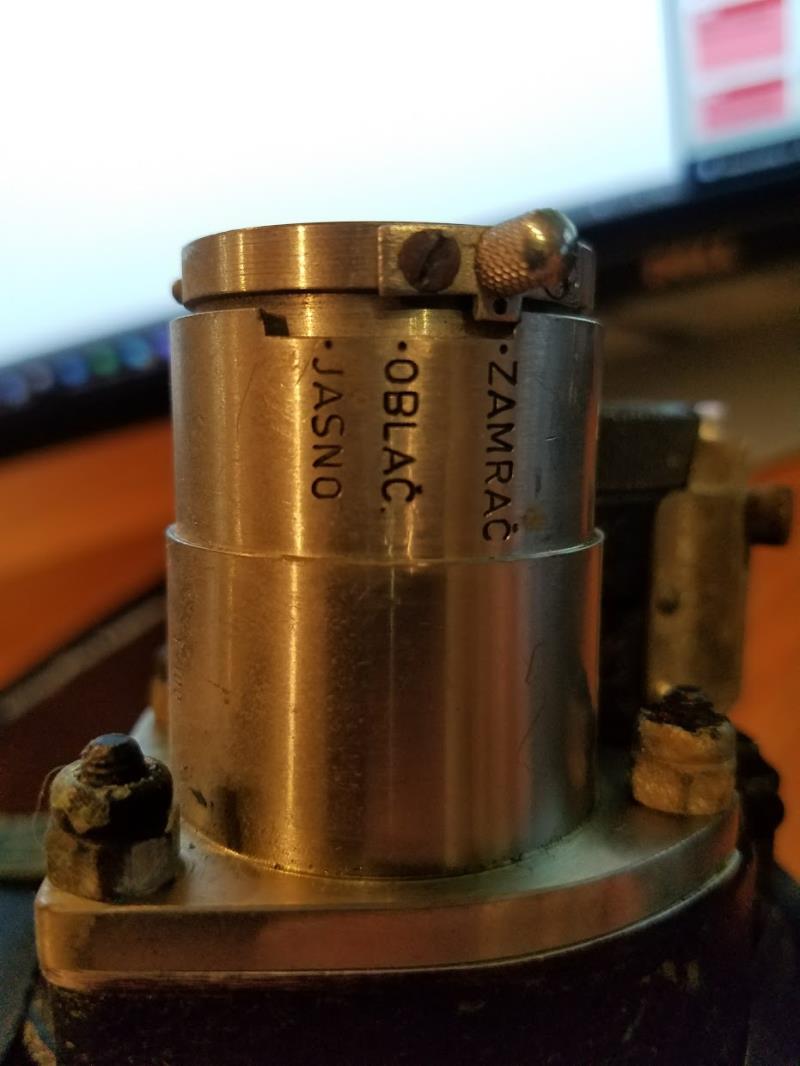

Vlad, this is not in Polish. This is in Czech or Slovakai. They have very similar languages with the same local/regional letters e.g. ¹ or è.
I saw the same lens but engravings were made in Polish.

So we have lenses produced somewhere and engravings were made in languages which depends on where lenses were exported.
