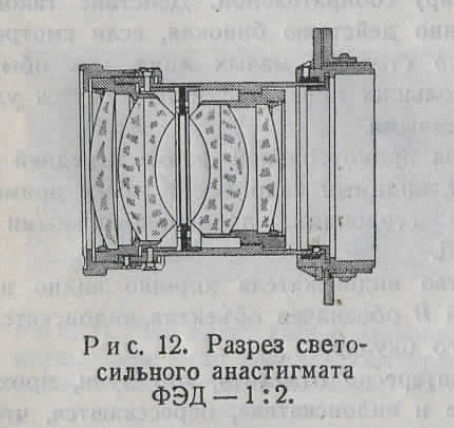

Taylor-Hobson formula from 1920.
6 elements in 4 groups.
5 flat grinded element surfaces. Only 2 different kind of glass were needed.
Uncoated glass.
.
The evolution of this lens type:
- First there was the Double-Gauss from 1888, 4 elements with 8 round surfaces in 4 groups.
- Developed from this Double-Gauss was the Planar from 1896, 6 elements with 12 round surfaces in 4 groups, the inner lens pairs were cemented.
- Developed from this Planar was the Taylor-Hobson from 1920, 6 elements with 7 round surfaces in 4 groups, asymmetry was added.
- Developed from this Taylor-Hobson was the Biotar from 1927, 6 elements with 12 round surfaces in 4 groups.
- After WW2 the name was changed from Biotar into Planar again.
- Developed from this Double-Gauss was the Planar from 1896, 6 elements with 12 round surfaces in 4 groups, the inner lens pairs were cemented.
- Developed from this Planar was the Taylor-Hobson from 1920, 6 elements with 7 round surfaces in 4 groups, asymmetry was added.
- Developed from this Taylor-Hobson was the Biotar from 1927, 6 elements with 12 round surfaces in 4 groups.
- After WW2 the name was changed from Biotar into Planar again.
.
Angle of coverage: 46,5 degrees
Aperture markings: from 2,0 to 18
Resolution: 25 l/mm center, 10-12 l/mm edges (photohistory.ru)
.
According to sovietcams.com some lenses are without serial number.
According to the book 'Russian and Soviet cameras (1840-1991) Catalogue / Iskusstvo 1993' 20.000 FED S were produced.
Princelle has a subtype F305 listed with engravings 'SUMMAR Leitz'.
.
Serial number range: 20.xxx to 33.xxx, so probably c. 13000 lenses were made.
.
Known serial numbers:
no # ___ ? ____________________________________ sovietcams.com PT2805
no # ___ 60 ____ lens only, no serial, see topic 2982 __ private
no # ___ 180 ___ lens only, no serial _______________ geoffox23
10 ____________ FED-B _________________________ A.Nikitin
34 ____________ FED-B _________________________ A.Nikitin
20684 __ 19 ____ FED-S _________________________ A.Nikitin
20701 __ 121/X _ FED-S _________________________ ebay
20912 __ ? _____ FED-S #59309 __________________ Princelle
20936 __ ? _____ FED-S _________________________ ebay
20971 __ 20 ____ FED-S #62906 __________________ PYC
21118 __ ? _____ FED-S #65769 __________________ ebay
21276 __ ? _____ FED-S #83059 __________________ Soviet Power
21334 __ ? _____ FED-S #56054 __________________ ussrphoto

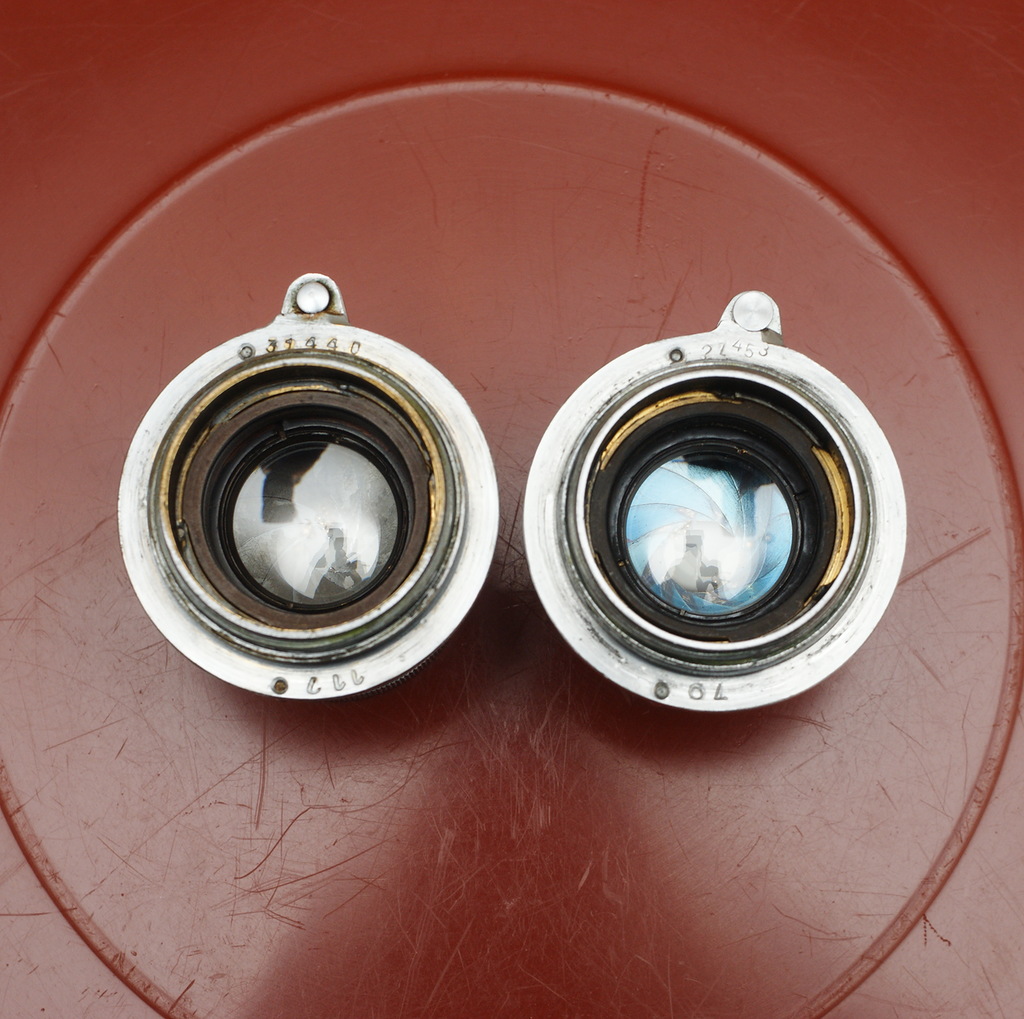

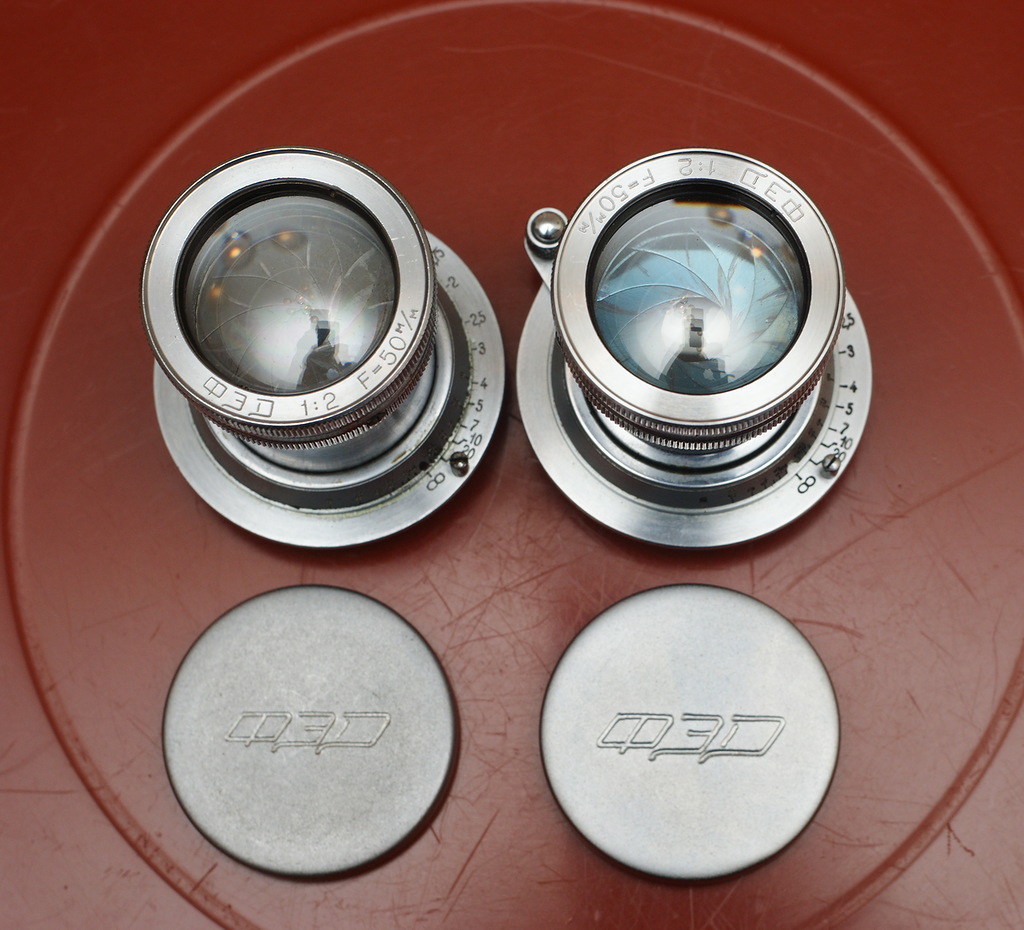

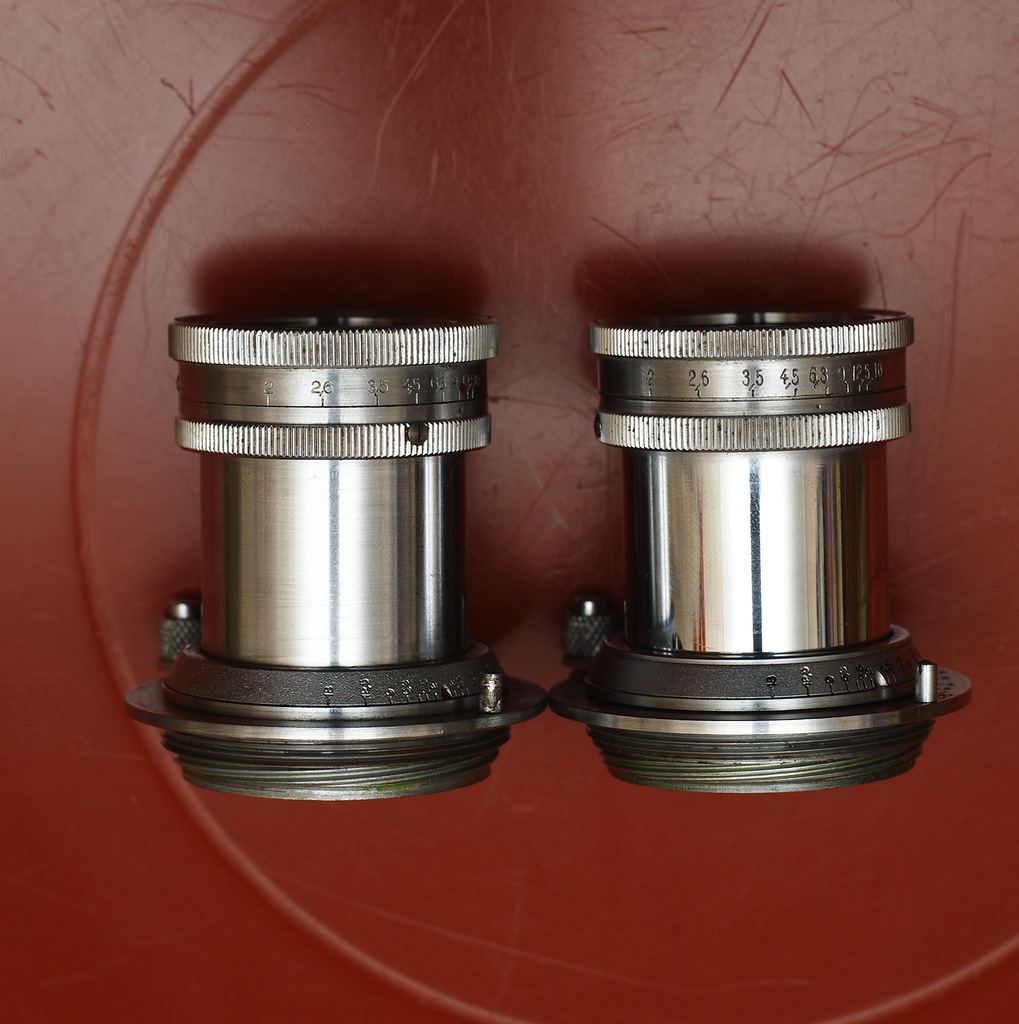

2?453 __ 70 ____ FED-S #65839 _______ see photo __ Serhio Vorobaz
21488 __ ? _____ lens only, fake Summar __________ Jacques M.
21506 __ 69 ____ lens only ______________________ ebay 2016
21536 __ ? _____ lens only ______________________ eBay
21623 __ ? _____ FED-S #62887 __________________ Princelle
21904 __ ? _____ FED-S #65328 __________________ Molotok
22001 __ 32 ____ FED-S #67723 __________________ Jacques M.
22485 __ 8/0 ___ FED-S #70348 __________________ ebay
22495 __ 8/0 ___ FED-S #69929 __________________ Christian G. (Niko80)
22506 __ 31 ____ FED-S #70883 __________________ Christian G. (Niko80)
22613 __ 55 ____ FED-S #73248 __________________ eBay
22624 __ ? _____ FED-S #73260 __________________ A.Nikitin
22657 __ ? _____ FED-S #59274 __________________ Bill Parkinson
22816 __ ? _____ standard FED-1 #50797 __________ Mike Haley (napchop)
22828 __ 4/8 ___ FED-S #90345 __________________ Jacques M.
22898 __ / _____ FED-S #98361 __________________ Christian G. (Niko80)
23017 __ ? _____ FED-S #77232 __________________ ebay
23021 __ ? _____ FED-S #73338 __________________ ebay
23183 __ ? _____ FED-S #77057 __________________ ebay (Aidas)
23225 __ ? _____ standard FED 1e #177862 _________ Westlicht auction#29 lot#257
23334 __ 90/0 __ FED-S #81205 __________________ ebay
23371 __ 67/0 __ lens only _______________________ eBay
23373 __ ? _____ lens only ______________________ eBay
23456 __ 143 ___ lens only ______________________ eBay
23515 __ 96 ____ lens only ______________________ ebay
23784 __ ? _____ FED-S #78799 __________________ ebay
23814 __ ? _____ FED-S #65494 __________________ David Tomlinson
24129 __ 13 ____ lens only _______________________ mirror
24157 __ ? _____ standard FED-1 #58453 __________ Mike Haley (napchop)
24214 __ 38/5 ___ lens only ______________________ ebay
24466 __ ? _____ FED-S #145843 _________________ outfitter
24511 __ ? _____ FED-S #177597 _________________ Aidas
24761 __ ? _____ FED-S #158978 _________________ SOVDEPIA
24854 __ 2 _____ lens only ______________________ ebay
24892 __ ? _____ FED-S #98666 __________________ ebay
25122 __ ? _____ FED-S #83339 __________________ ebay
25178 __ ? _____ FED-S #115732 _________________ Soviet Camera Store
25237 __ 10 ____ FED-S ________________________ Christian G. (Niko80)
25492 __ ? _____ FED-S #93609 _________________ Jacques M.
25571 __ ? _____ Fed-B #173618__________________ Mladek / Leicashop Vienna
25682 __ 18/2 __ FED-S #97298 __________________ Jacques M.
25909 __ ? _____ FED-S #98527 __________________ Alex Photo
25996 __ ? _____ FED #217531 __________________ web
26054 __ 55/1 __ lens only _______________________ geoffox23
26504 __ ? _____ FED-S #138730 _________________ Juhani
26708 __ 74/4 __ FED-S #104370 _________________ Jacques M.
27151 __ ? _____ FED-S _________________________ Johan Kuiper
27282 __ 78 ____ FED-S #115356 _________________ Vladislav Kern
27585 __ ? _____ lens only ______________________ DVD
27672 __ ? _____ FED-S #117171 ________________ A.Nikitin
27721 __ ? _____ FED-S #116318 ________________ A.Nikitin
27890 __ 41 ____ FED-S #76862 _________________ Jacques M.
27938 __ 4 _____ FED-S #118999 ________________ ebay
27951 __ ? _____ FED-S #119792 ________________ Jacques M.
28549 __ 126 ___ lens only _____________________ eBay
28550 __ ? _____ FED-Sport _____________________ Jacques M.
28869 __ ? _____ lens only, fake Summar __________ Bill Parkinson
28904 __ 50 ____ FED-S #131794 ________________ Chris Sabine
28946 __ ? _____ FED-S #132262 ________________ eBay
28957 __ ? _____ FED-S #132610 ________________ David Tomlinson
29044 __ 59 ____ FED-S #157694 ________________ Jacques M.
29205 __ ? _____ FED #56540 ___________________ eBay
29254 __ 128 ___ lens only ______________________ ebay
29299 __ 124 ___ lens only ______________________ ebay
29406 __ ? _____ FED-S #168125 ________________ Alain Berry
29484 __ 19 ____ FED-S #179349 ________________ Bill Parkinson
29515 __ ? _____ lens only ______________________ Agfa100
29576 __ ? _____ FED-S #136157 ________________ DVD
29713 __ ? _____ lens only ______________________ web
29989 __ ? _____ FED-S #141580 ________________ kievuser
30132 __ ? _____ FED-S #145712 ________________ ebay
30301 __ ? _____ FED-S #145088 ________________ list_service
30335 __ 12 ____ FED-S #145902 ________________ okynek
30458 __ 55/7 __ lens only _______________________ ebay 2016
30525 __ ? _____ FED-S #146818 _________________ Johan Kuiper
30633 __ ? _____ FED-S #129129 _________________ Socrat Store
30650 __ ? _____ FED-S #148495 _________________ eBay
31110 __ 7/5 ___ FED-S _________________________ Jacques M.
31119 __ ? _____ FED-S #156361 _________________ Aidas
31185 __ ? _____ FED-S #107723 _________________ Stephan VDZ
31228 __ ? _____ FED-S #157264 _________________ eBay
31331 __ ? _____ FED-S #113097 _________________ ebay
31358 __ 81 ____ FED-S #158202 _________________ ebay
31409 __ 34 ____ FED-S #133561 _________________ Aidas
31440 __ 117 ___ lens only ___________ see photo __ Serhio Vorobaz
31613 __ 52 ____ lens only ______________________ ebay
31726 __ ? _____ FED-S #160873 ________________ Stephan VDZ
31933 __ ? _____ FED-S #164771 ________________ SOVDEPIA
32168 __ 63 ____ FED-S #171362 ________________ ebay
32189 __ 65 ____ standard FED-1 #175011 _________ Jacques M.
32194 __ 17 ____ lens only ______________________ ebay
32383 __ ? _____ FED-S #170792 _________________ net
32412 __ 118 ___ standard FED #158859 ___________ net
32470 __ 11/3 __ FED-S #167621 _________________ georg16nik
32520 __ 68/0 __ Fed-S #63296 __________________ eBay
32726 __ 5 _____ FED-S #172936 _________________mirror
32763 __ 160 ___ FED-S #174119 ________________ Christian G. (Niko80)
33048 __ ? _____ FED-S, with Sonnar parts ________ Cl.Asquini
33128 __ 91/2 __ FED-S ________________________ eBay
33323 __ 3 _____ FED-S #180024 ________________ Christian G. (Niko80)
33509 __ 872 ___ FED-S #177376 ________________ ebay
