FED 28mm f:4.5

Previous entry Next entry Print this entry

View Related Forum Thread (1 posts) Edit this entry Find on eBay

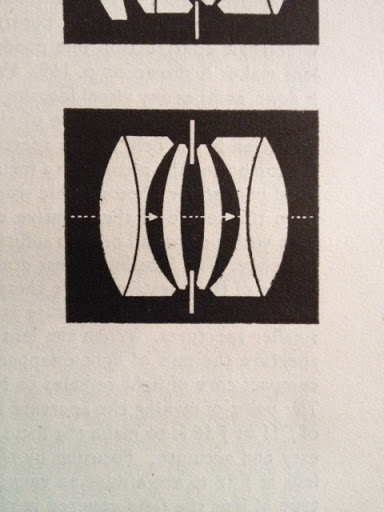

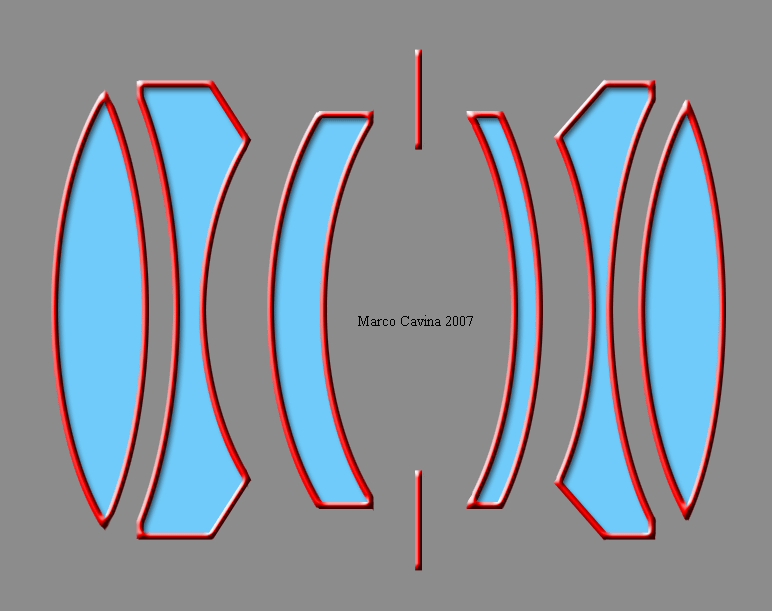

British Ross-Wide-Angle formula (see picture).

6 elements in 4 groups, the outside element pairings are cemented.

6-blade aperature f4.5-f18.

Uncoated.

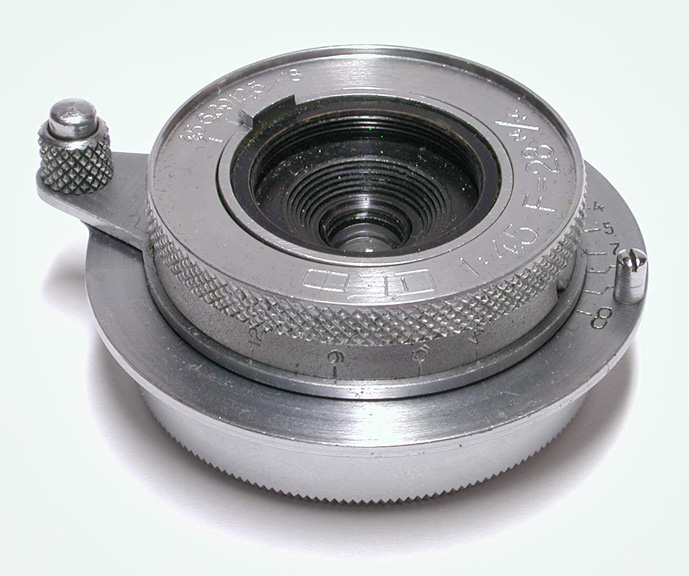

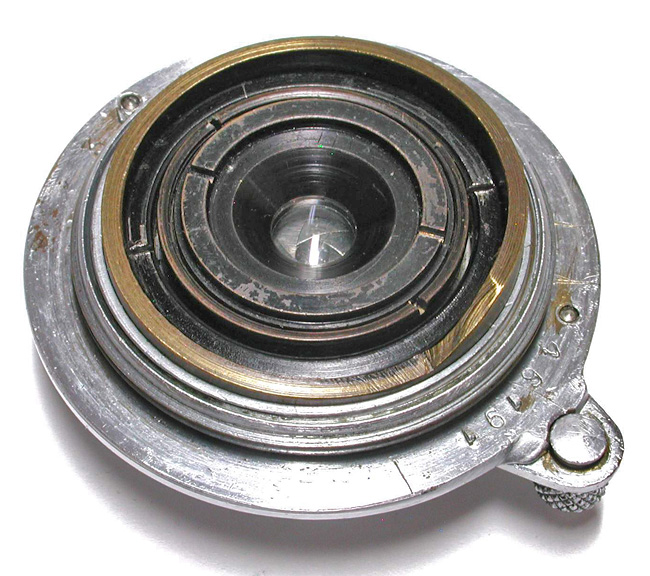

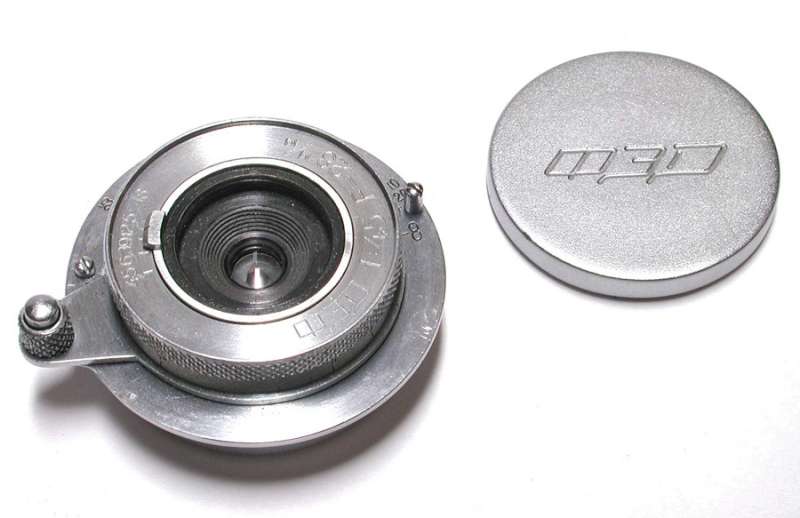

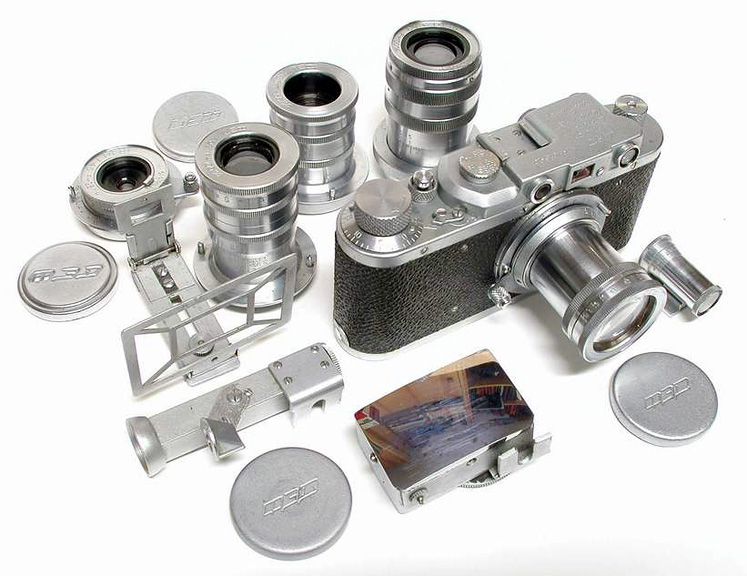

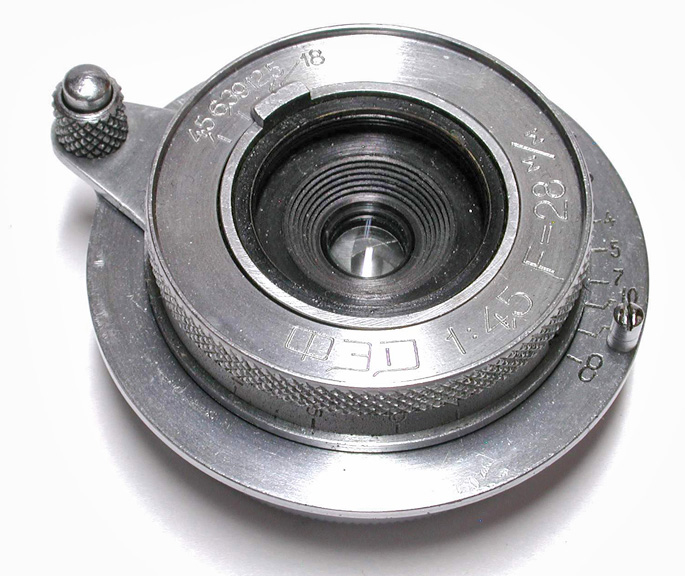

Released in mid-30's, the FED 28mm f4,5 closely matched the outer forms of a Leitz Elmar 35mm f/3,5, but it's deluxe optical formula was really advanced against the famous German competitors, Leitz Hektor and Zeiss Jena Tessar. What turns this lens a really admirable Soviet realization is the fact they have minimal total dimensions of the optical parts. The frontal disc of the lens has a diameter of approximately 7mm (analogous dimensions also have the other elements), while the thickness of the third, the most thin of the group, does not exceed the 6-7 tenths of millimeter. Imagine the difficulties met in the grinding and the assembly of each of these elements, maintaining a reasonable precision. The photos illustrating this rare objective have been realized purposely by Dr. Milos Paul Mladek, beloved friend who kindly offered to divulgation and we give our thanks of heart for the contribution. Mario Cavina In the last photo we see a FED B in a complete vintage outfit with normal f2 50mm; f3,5 50mm macro; f5.6 100mm; f6.3 100mm; and f4,5 28mm; wide angle sport finder, telephoto finder, angular finder, self timer and lens caps.

Serial number range: 40.xxx to 46.xxx

Known serial numbers:

40092 ____________ DVD

40430 ____________ eBay

40439 _ 45 ________ web

41085 ____________ David Tomlinson

41202 ____________ eBay

41290 ____________ Philipp Reichmuth

41374 _ 19 ________ ussrphoto

41675 ____________ eBay

41874 _ 19 ________ Pierre Tizien

42199 ____________ Jim McGee

42472 ____________ eBay

42518 _ 74 ________ ebay

42864 ____________ web

43058 _ 14 / 00 ____ web

43175 ____________ Westlicht auction#29 lot#257

43183 ____________ PY-C

43439 _ 73 ________ ebay

43602 _ 87 ________ fotoua

43610 ____________ DVD

44101 _ 37 ________ Christian G. (Niko80)

443xx ____________ Alain Berry

44508 _ 59 ________ ebay

44572 _ 17 ________ Jacques M.

44608 _ 58 ________ ebay

44785 ____________ eBay

44940 _ 162 / 6 _____ ebay

45117 _ 176 _______ ebay

45239 _ 922 _______ ebay

45370 _ 64 ________ eBay

45407 ____________ eBay

45419 ____________ eBay

45455 _ 93 ________ Christian G. (Niko80)

45551 _ 74 ________ eBay

45948 _ 94 ________ eBay

45964 _ 5 _________ Christian G. (Niko80)

46015 ____________ eBay

46118 ____________ eBay

46184 ____________ ebay

46191 _ 37 ________ Luiz _________________ see photo

46231 ____________ A.Nikitin

46358 ____________ Serhio Vorobaz

46370 _ 34 ________ Fotomuda

46385 ____________ eBay

46531 ____________ eBay

46654 ____________ Jacques M.

46764 ____________ eBay

46816 ____________ Aidas / SovietCams

xxxxx _ 37 _________ web
