Zakhod

Created by AidasCams on 12/10/2007 8:13:14 AM
Last Edited by RCCCUK on 3/28/2016 2:07:16 AM
Located in
Still Cameras > KGB - Spy Cameras

Author Previous Topic Topic Next Topic

Aidas Pikiotas
AidasCams

Lithuania
973 Posts
My Collection

Posted - Dec 10 2007 :  08:28:04 AM  Show Profile  Visit AidasCams's Homepage  Reply with Quote
Hello,

I wonder if some of you could have this uncommon camera in personal collections. Please, share your information with me.

Thanks,
Aidas
Zoom
596 Posts
Posted - Dec 10 2007 :  11:39:26 AM  Show Profile  Reply with Quote
quote:
Originally posted by AidasCams

Please, share your information with me.


At first: "Zakhod" ("Çàõîä") -- "Sunset"... ;)
Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - Dec 10 2007 :  12:23:05 PM  Show Profile  Reply with Quote
i have , with "owner's manual" but you know in very bad condition (hammered !!!)
Go to Top of Page

Aidas Pikiotas
AidasCams
Lithuania
973 Posts
My Collection

Posted - Dec 10 2007 :  12:51:31 PM  Show Profile  Visit AidasCams's Homepage  Reply with Quote
Alain,
Could you scan your manual for me? I would be very appreciated ...

Thanks, Aidas
Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - Dec 11 2007 :  03:14:38 AM  Show Profile  Reply with Quote
no problem, whith pleasure ...but please wait a few time ...i am a litle bit busy to day.
Go to Top of Page

Aidas Pikiotas
AidasCams
Lithuania
973 Posts
My Collection

Posted - Dec 11 2007 :  06:43:04 AM  Show Profile  Visit AidasCams's Homepage  Reply with Quote
Thank you!
Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - Dec 11 2007 :  5:18:50 PM  Show Profile  Reply with Quote
i sent you ...i hope good reception in :
photo@e-idea.lt
Go to Top of Page

Aidas Pikiotas
AidasCams
Lithuania
973 Posts
My Collection

Posted - Dec 12 2007 :  01:16:56 AM  Show Profile  Visit AidasCams's Homepage  Reply with Quote
Dear Alain,
Thank you sooooooooo much! Will be happy to assist you somehow, just ask.

Regards,
Aidas
Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - May 22 2008 :  12:14:36 PM  Show Profile  Reply with Quote
hi friends,

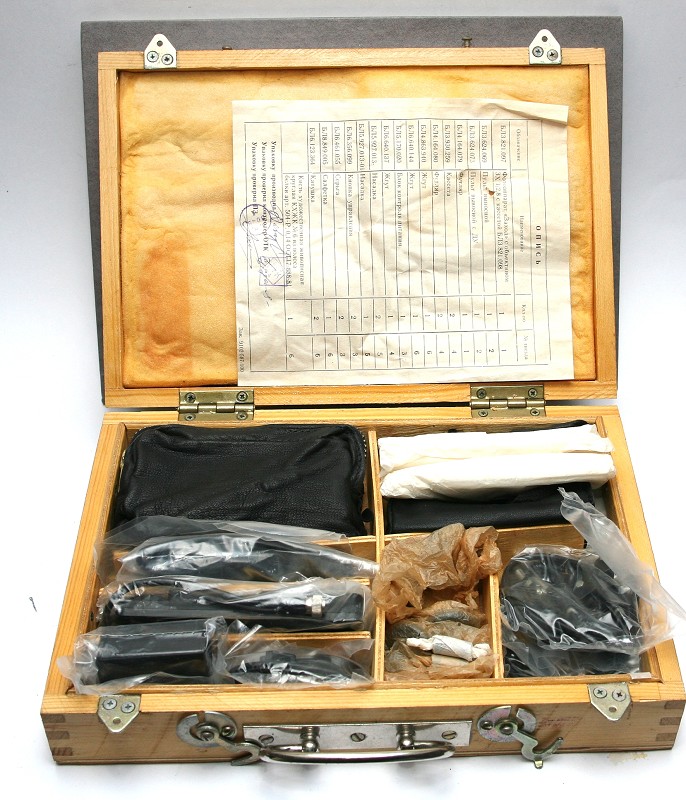

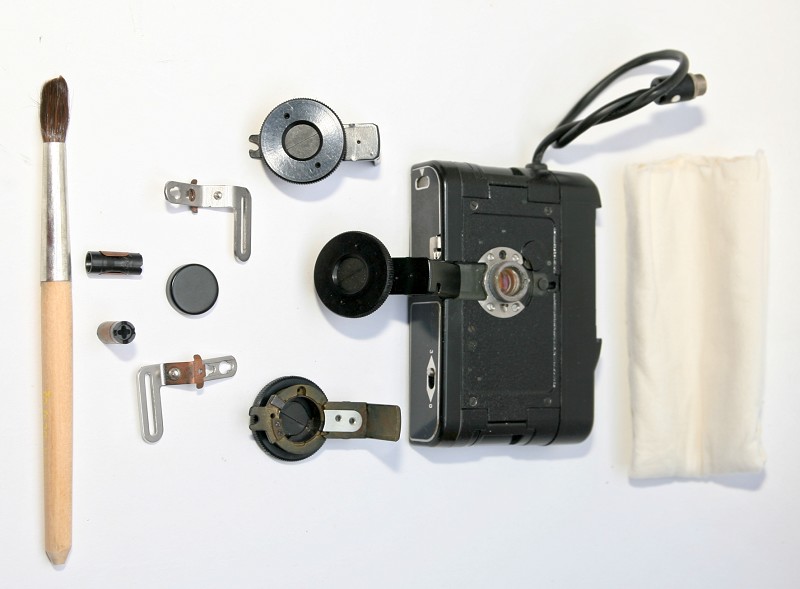

i just bought a complete wooden box case whith all items like you (lucky guys )
So ...is there someone which will send to me a "check list" translation please ?
you can see this list on a picture (include in the wooden box.
So , i will try soon take some pictures whith this camera as I did whith all my "kgb's".
just an information : it was said on wiki : the lens is 3 lens made ...I think it is a 4 lens (Tessar type ?) no ? (the same as you can find on Horizont camera)

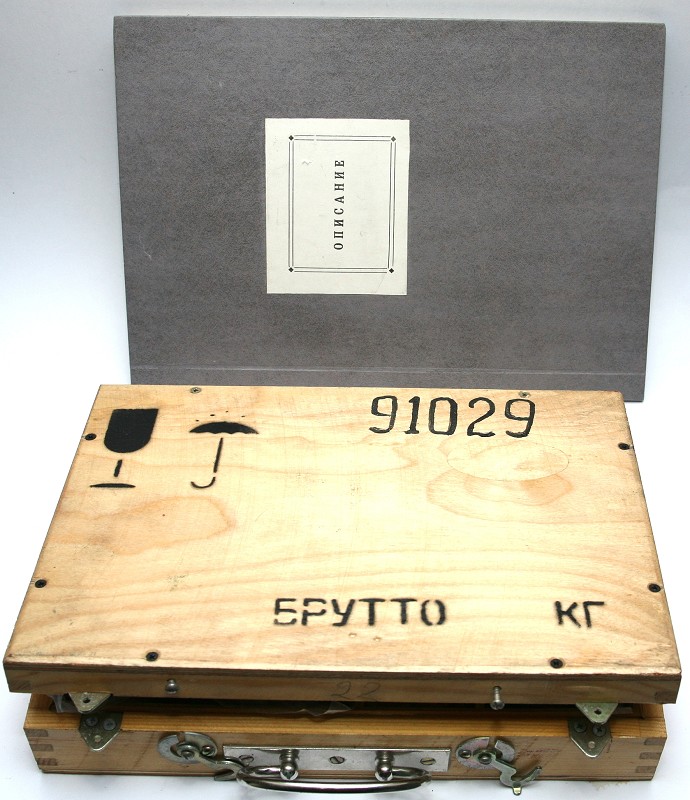

ps : mine is 91029.
and owner's book cover is gery (i sold in the past : one blue example and one burgundy)



http://www.ussrphoto.com/UserContent/W box 10.jpg


http://www.ussrphoto.com/UserContent/W box 2.jpg


http://www.ussrphoto.com/UserContent/W box 9.jpg

Go to Top of Page

Vladislav Kern
Vlad
USA
4251 Posts
My Collection

Posted - May 22 2008 :  2:59:07 PM  Show Profile  Visit Vlad's Homepage  Reply with Quote
Alain,

an excellent acquisition! Congratulations!

Please post more close-up version of this checklist, preferably in flipped format, so maybe 600x800 pixels file? I will do my best to translate it.

Also where would one see the images you took with these KGB cameras?? I am first hearing about this, if you have them somewhere, it would be great if you could post them all in Wiki in Member Articles section!

Thank you!
Vlad
Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - May 23 2008 :  03:26:45 AM  Show Profile  Reply with Quote
Hi Vlad, here is .
i hope you can read it....thanks in advance for translation : just translate line after line and i will print a similar check list in French to put in the case , near the original.

jsut a joke : i love the "luxury" cleaner brush, in the set !


http://www.ussrphoto.com/UserContent/W box 1.jpg

Go to Top of Page

Vladislav Kern
Vlad
USA
4251 Posts
My Collection

Posted - May 23 2008 :  10:57:52 AM  Show Profile  Visit Vlad's Homepage  Reply with Quote
Translating as best as I can:

Contents:

- Camera Zakhod with lens 3X 1/2.8 with cassette BLZ.821.098
- Detachable (?) remote control
- Detachable (?) remote control with DU(DU=remote control?) - remote control with remote control??
- Case
- Cassette
- Case
- Rubber band(? or connecting wire maybe?)
- Rubber band(? or connecting wire maybe?)
- Power control block
- Rubber band(? or connecting wire maybe?)
- Attachment
- Attachment
- Control button
- Earing(?)
- Napkin
- Spool
- Artist brush, round KXZHK No.6 made out of hair of a squirrel

Further below it says:
Packed by... and name and stamp
Packing inspected by ... and name and stamp
Packing inspected after exit from factory... and name and stamp
Go to Top of Page
Luiz Paracampo
Luiz Paracampo
Brazil
2000 Posts
My Collection

Posted - May 24 2008 :  12:02:16 PM  Show Profile  Visit Luiz Paracampo's Homepage  Reply with Quote
Allain and others.
This case is not a camera outfit! But an special set for camera repairing- that is - for parts substitution I have seen several of these cases for Kiev, Zenits and Zorkis. Believe or not there were such csees for Vilia and Smenas! Lubitel etc... That particular one is an emergency case for -in field repairing-
Very interesting!
Now a question- I want to know which digital camera has such a device?
Regards
Luiz
Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - May 24 2008 :  1:14:23 PM  Show Profile  Reply with Quote
Hummmm, dear Luiz,
i think it is not a repair set but a basic device .
Michel bought a Kiev repair set in wooden box too ,
then we both opened the box : all parts are differents axle, gears, shaft etc ...never a complete functionnal camera and accessories as in that set.
here is just missing battery charger (to refill batteries inside remotes controllers)
but i hope i can built one whith complete information owners book. just understand it is a 3 and (or) 5 Volts power spply)...

But do not forget , i can easily make a mistake....
to be continued
Go to Top of Page

Bill Parkinson
nightphoto
USA
1027 Posts
My Collection

Posted - May 24 2008 :  7:01:53 PM  Show Profile  Visit nightphoto's Homepage  Reply with Quote

I agree with Alain. These sets shown are the origianl set with all (or most) accessories and useful items for the camera. There are no replacement parts. Just the box is similar to the boxes that are used for the replacement kits. Probably the boxes are made at the same wood box-making factory. Things like the reproduction camera Elochka also come in the same boxes, and many other types of Soviet technical equipment besides cameras ... even with the same stenciled writing on the outside ... (broken martini glass to visually mean "very fragile"!).

Regards, Bill

Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - May 27 2008 :  3:17:55 PM  Show Profile  Reply with Quote
hi Bill,
wood box ??? ha ha haha

my yolochka was provided to me packed up in a back bag made of brown coarse linen.
Go to Top of Page

Vladislav Kern
Vlad
USA
4251 Posts
My Collection

Posted - May 27 2008 :  5:10:44 PM  Show Profile  Visit Vlad's Homepage  Reply with Quote
Alain, mine too, we may have gotten it from the same seller.. it was a burlap bag with a tie on it..

Go to Top of Page

Bill Parkinson
nightphoto
USA
1027 Posts
My Collection

Posted - May 27 2008 :  6:08:19 PM  Show Profile  Visit nightphoto's Homepage  Reply with Quote
Here, you guys ... this is what box mine came in ... nice wood box with everything needed . Supposedly this one I have came from a Navy base near Odessa ... so maybe that's why it had the box. I have heard they were kept on ships so that they could be used if ever a ship was boarded and documents needed to be copied!

http://www.nightphoto.com/c64.html

Regards, Bill

Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - May 28 2008 :  04:54:29 AM  Show Profile  Reply with Quote
hello,

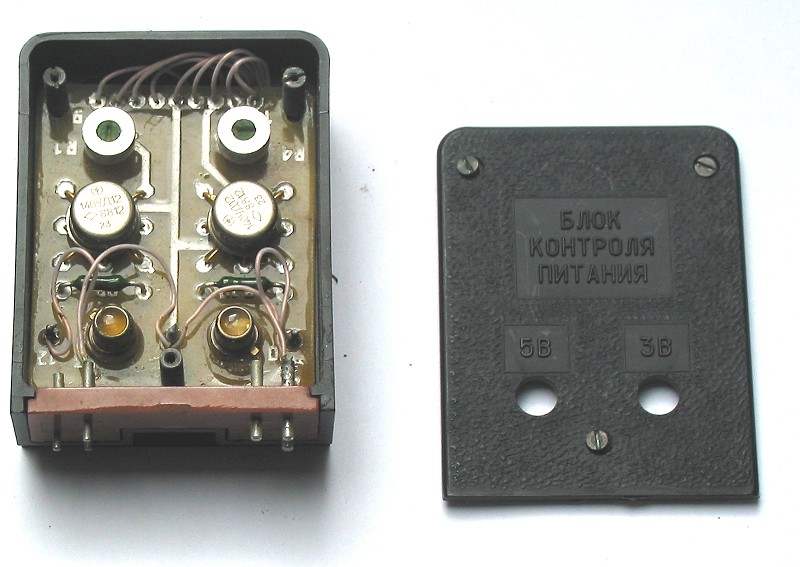

may be someone here can explain something about this accessorie in the box :

3 Volt , 5 Volt...ok, but what use is this electronic device ?...(Power control but how ?)




http://www.ussrphoto.com/UserContent/IMG_3902.JPG


http://www.ussrphoto.com/UserContent/IMG_3901.JPG

Go to Top of Page
Jacques M.
France
2599 Posts
Posted - May 28 2008 :  05:00:48 AM  Show Profile  Reply with Quote

Hello!
http://cgi.ebay.fr/KGB-spy-mini-camera-ZAHOD-button-kit-f-21-Ajax-kiev-fed_W0QQitemZ150252187055QQihZ005QQcategoryZ4701QQssPageNameZWDVWQQrdZ1QQcmdZViewItem
It seems to be the same...

Amitiés. Jacques.
Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - May 29 2008 :  03:33:14 AM  Show Profile  Reply with Quote
yes it is excatly , except wood box...
interesting pictures ,
so whith Michel,visiting my home, and checking my device , we learn looking at this pics, how to connect a power supply and more : to connect remote control round button !!!


just hunting now how to modifye a 3v (or 5) chinese/japanese standard power supply , to refill batteries and try to take some shot (i posses the matching film cutter, different from the F21 film cutter size)


what exciting forum ....No ? Thanks again Vlad for this nice place....
Go to Top of Page
BERRY alain
mermoz37
France
814 Posts
Posted - Jun 04 2008 :  05:33:43 AM  Show Profile  Reply with Quote
hi,

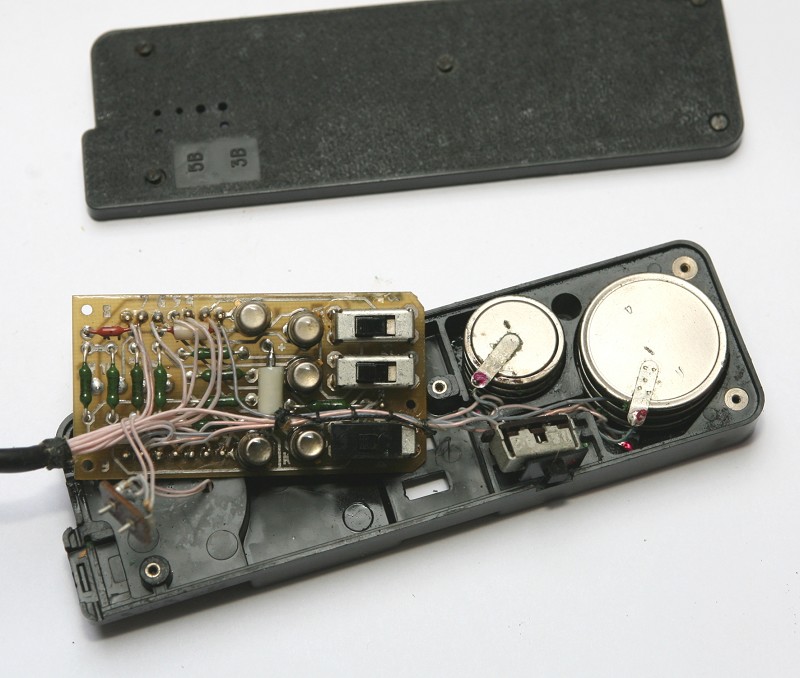

I still dismantle remote controls ...
any ideas about ???






http://www.ussrphoto.com/UserContent/IMG_4535.JPG


http://www.ussrphoto.com/UserContent/IMG_4536.JPG


http://www.ussrphoto.com/UserContent/IMG_4537.JPG


http://www.ussrphoto.com/UserContent/IMG_4534.JPG


http://www.ussrphoto.com/UserContent/IMG_4534.JPG

Go to Top of Page
Detlev Vreisleben
Detlev
Germany
109 Posts
Posted - Jul 17 2009 :  6:02:13 PM  Show Profile  Reply with Quote
Hello,
the unknown part is a battery tester for 3 V and 5 V.
Detlev
Go to Top of Page
David Tomlinson
RCCCUK
United Kingdom
208 Posts
Posted - Jul 18 2009 :  07:22:04 AM  Show Profile  Reply with Quote
Hi Allain

I managed to charge the batteries in mine by adding some leads to a standard battery charger. I found that the batteries held their charge for a few hours, so I was able to test the camera.
The pins on the battery tester push into the holes in the remote controls and the LEDS light to show that the batteries are charged.

David(http://www.rcccuk.com)
Go to Top of Page
Detlev Vreisleben
Detlev
Germany
109 Posts
Posted - Jul 18 2009 :  12:51:22 PM  Show Profile  Reply with Quote
Hi,
here is a translation how to charge the batteries.
Detlev

http://www.ussrphoto.com/UserContent/1872009_Zacho_e-26.jpg

Go to Top of Page
Detlev Vreisleben
Detlev
Germany
109 Posts
Posted - Jul 19 2009 :  12:59:52 PM  Show Profile  Reply with Quote
Hello,
later Zachod models have a new remote control with only one battery (6V).
Detlev

http://www.ussrphoto.com/UserContent/1972009_Zachod.jpg
