Smena-2M Technical??

6 posts in this thread
Reply with Quote Edit Topic Delete Topic

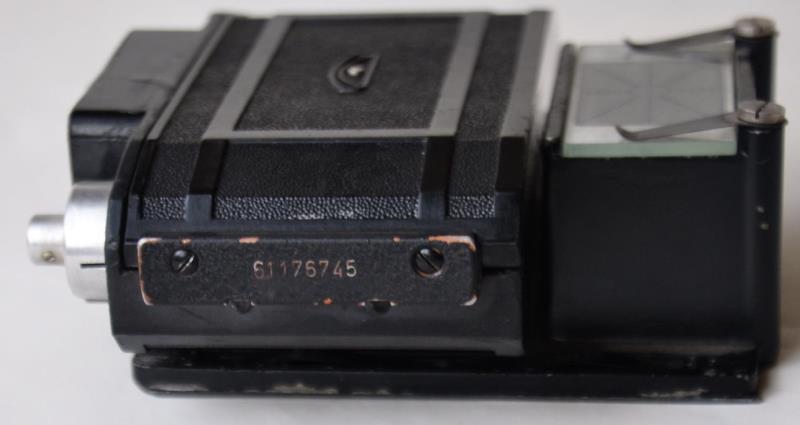

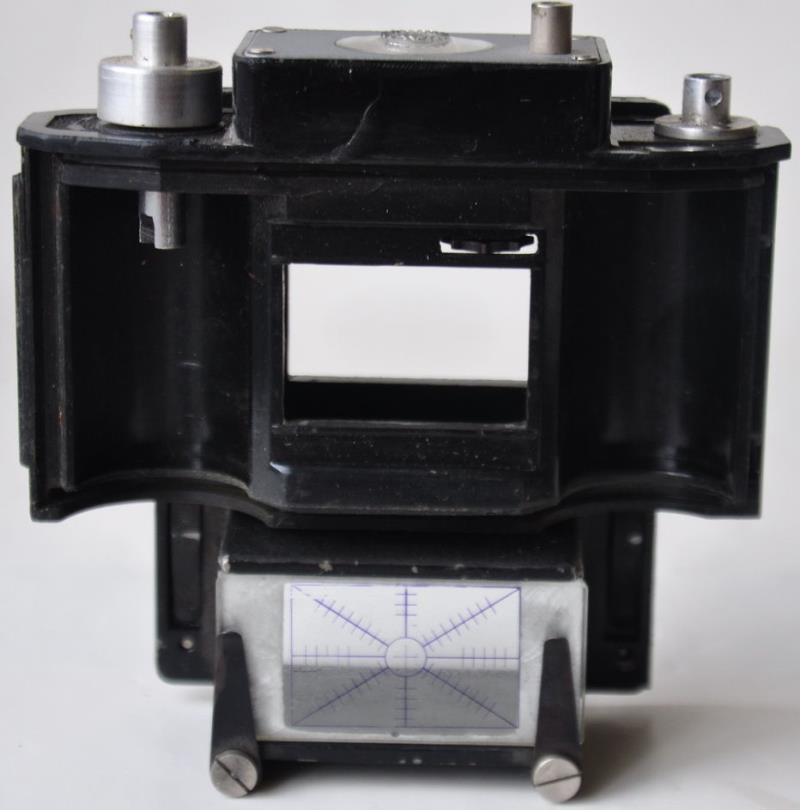

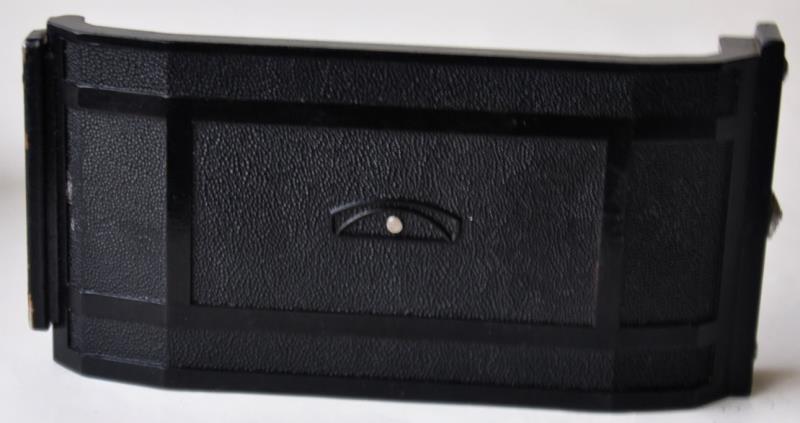

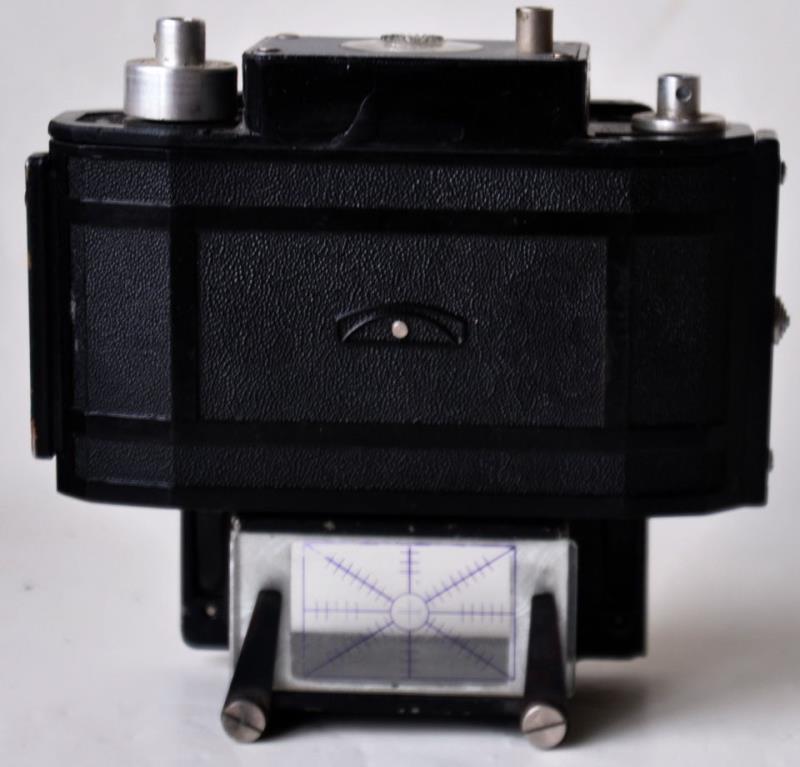

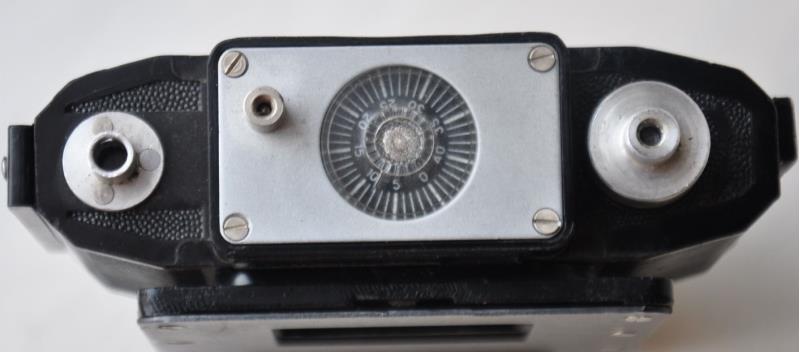

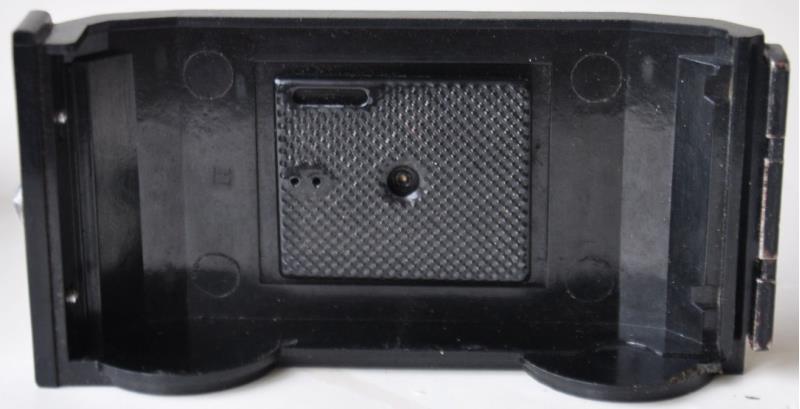

I just bought this, have no idea what this is, definitely something technical, can anyone identify what could this apparatus have been used for? I also apologize if I outbid some of you on this one Smile

Thanks,
Vlad


http://www.ussrphoto.com/UserContent/792015_s1.JPG


http://www.ussrphoto.com/UserContent/792015_s2.JPG


http://www.ussrphoto.com/UserContent/792015_s3.JPG


http://www.ussrphoto.com/UserContent/792015_s4.JPG


http://www.ussrphoto.com/UserContent/792015_s5.JPG


http://www.ussrphoto.com/UserContent/792015_s6.JPG


http://www.ussrphoto.com/UserContent/792015_s7.JPG


http://www.ussrphoto.com/UserContent/792015_s8.JPG

Reply with Quote Edit Reply Delete Reply

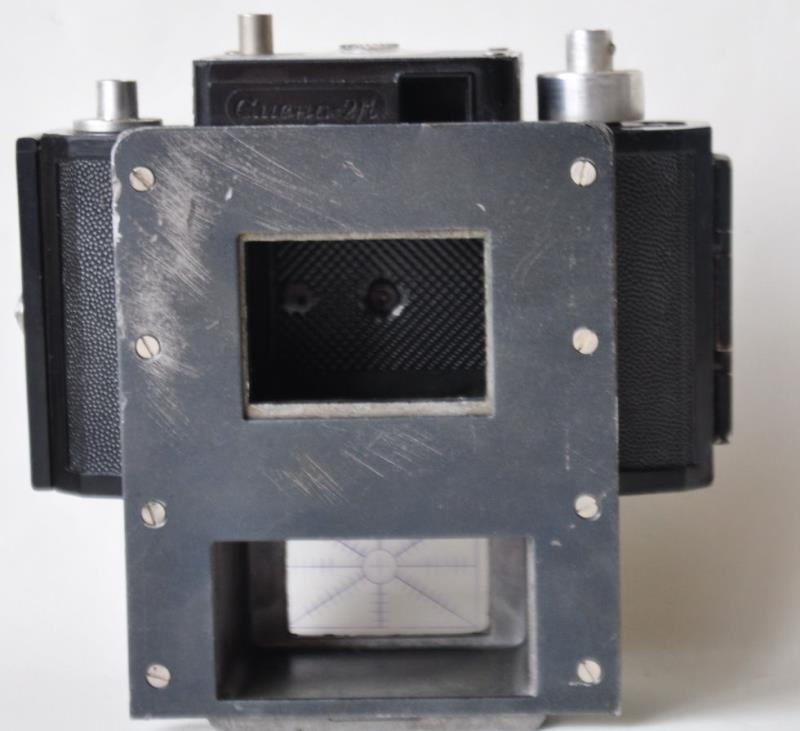

looks like a device to make a reprography device from an enlarger. you put the drawing or photo that you want to copy on the base plate and illuminate it by some repro lamps. you take off the enlarger lamp and put the camera instead of the film holder. then you slide the matte screen into place for focussing. if it's fine, you slide the camera into position. there should be a shutter or a dark slide.

the polaroid MP-4 was a similar device, but for instant film.
Reply with Quote Edit Reply Delete Reply

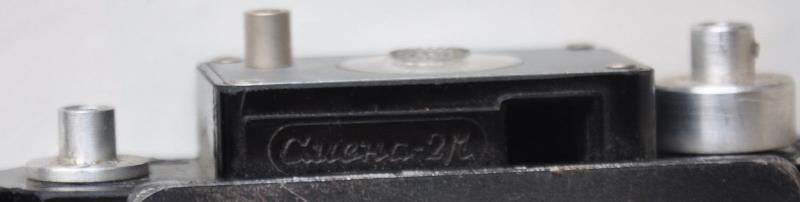

Aidas, xya, Juhani, Jacques, thank you very much! It's a very cool piece, I've never seen it before, great for my collection! I would to see the whole enlarger setup with this camera attached. And it's a very rare logo Smena-2M as well!!

Best regards,
Vlad
