Industar-22 K360 Kazan
1954-1955

Another version of the Industar-22.
.
Factory: KOMZ (Kazan)
Formula: 4 elements in 3 groups
Glass: coated
Aperture markings: from 3,5 to 16
Resolution: 32 lines/mm center, 20 lines/mm corners
Weight: 104g (less than the previous lenses)
Princelle: K360
SovietCams: PT5770: 4 and 5 digit serials without date prefix
SovietCams: PT5775: 7 digit serials with year prefix
Fotoua: KOMZ type-1
.

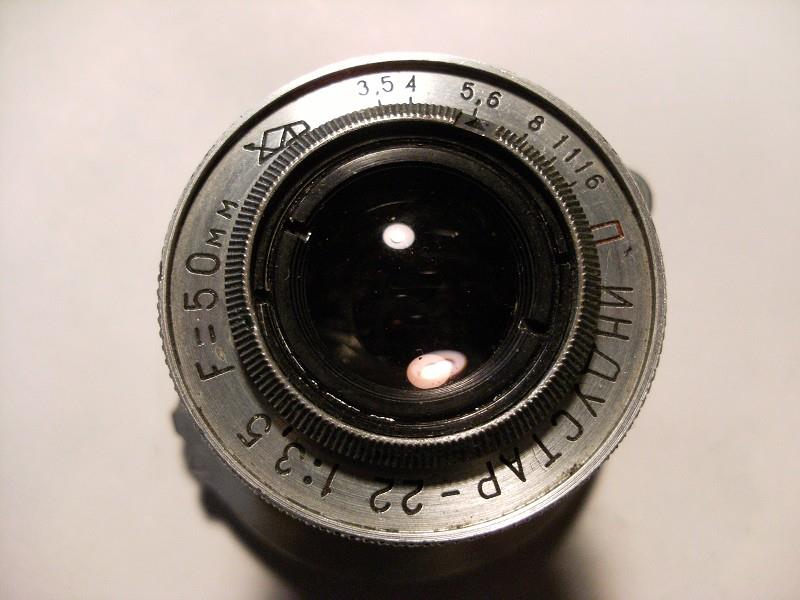

Photo 1: Serial #5021081 made in 1950 at Kazan.
It was mounted on an early Zorki-Zorki 1b serial #32870 (Jacques M. collection).
.
(Click to enlarge)
