just arrived in my collection

I will show in the next segment something that really shocked me I am still preparing photos
Regards

Otherwise a very professional and/or expensive kit, but the Marucon really doesn't fit there, especially timewise.

Best regards,
Juhani

hello Juhani
that is true but the inventiveness of the sunchade/lens adapter has its real merits, as wll as the the home made finder.
Regards

This fourth approach runs around a beautiful vintage adapted bottle bag:
That contains a Start and a Zenit Sporting some Professional and cleverly home made accessories. In order to show better this excelent kit I devided the article is segments for better appreciation.
First a Start body to which was built a fitted home made eveready case, a M39 transient ring and a vertical accessory finder which seems to have a a Zenit ocular of a later era.

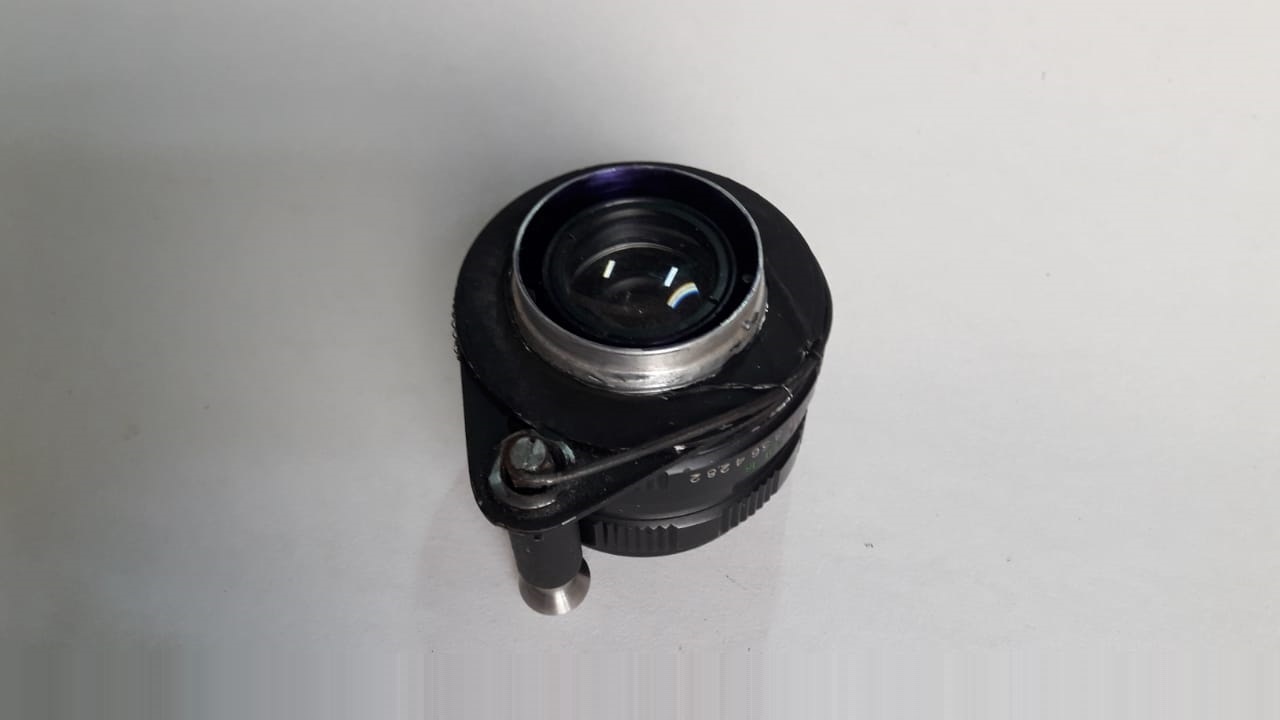

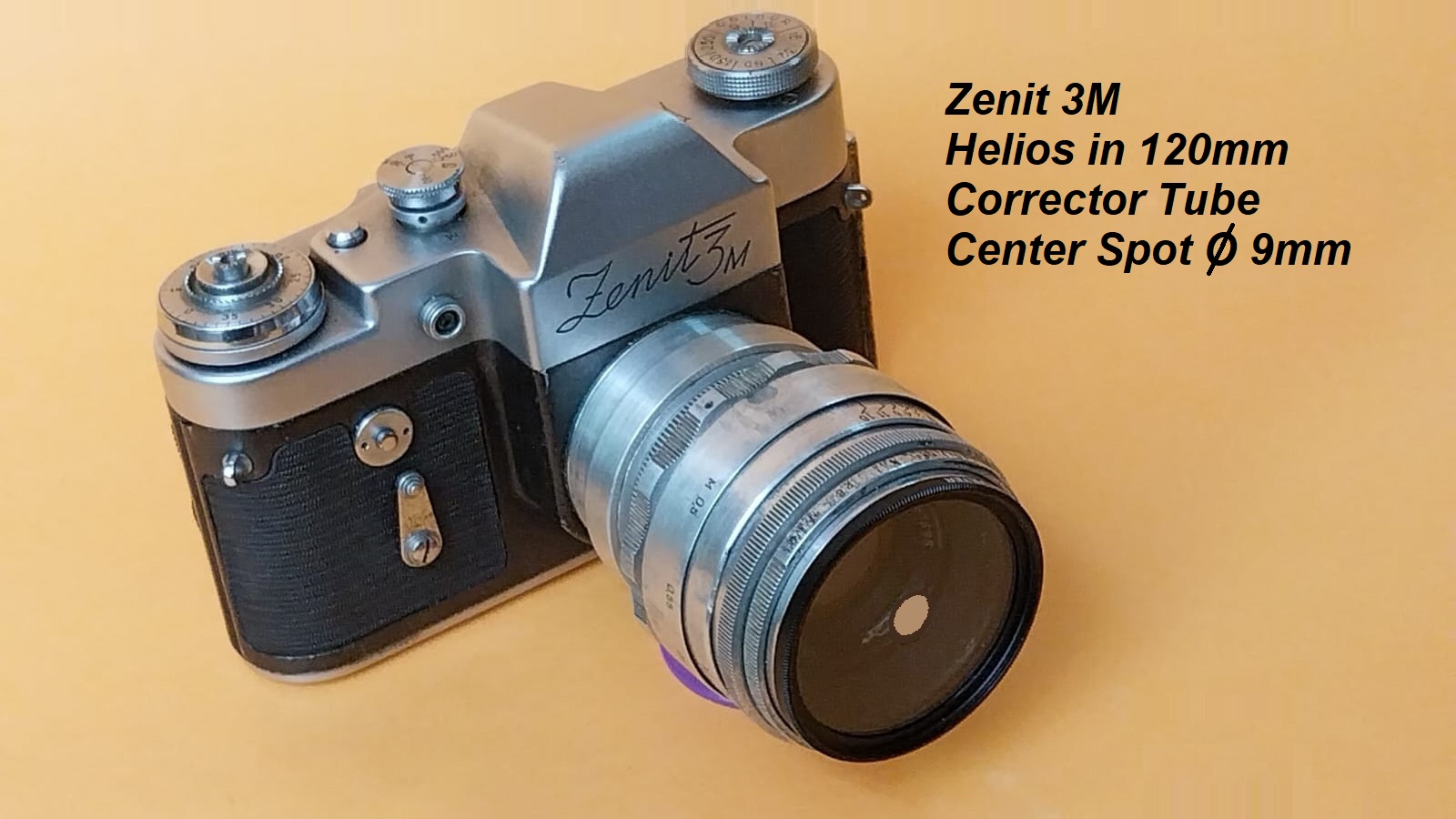

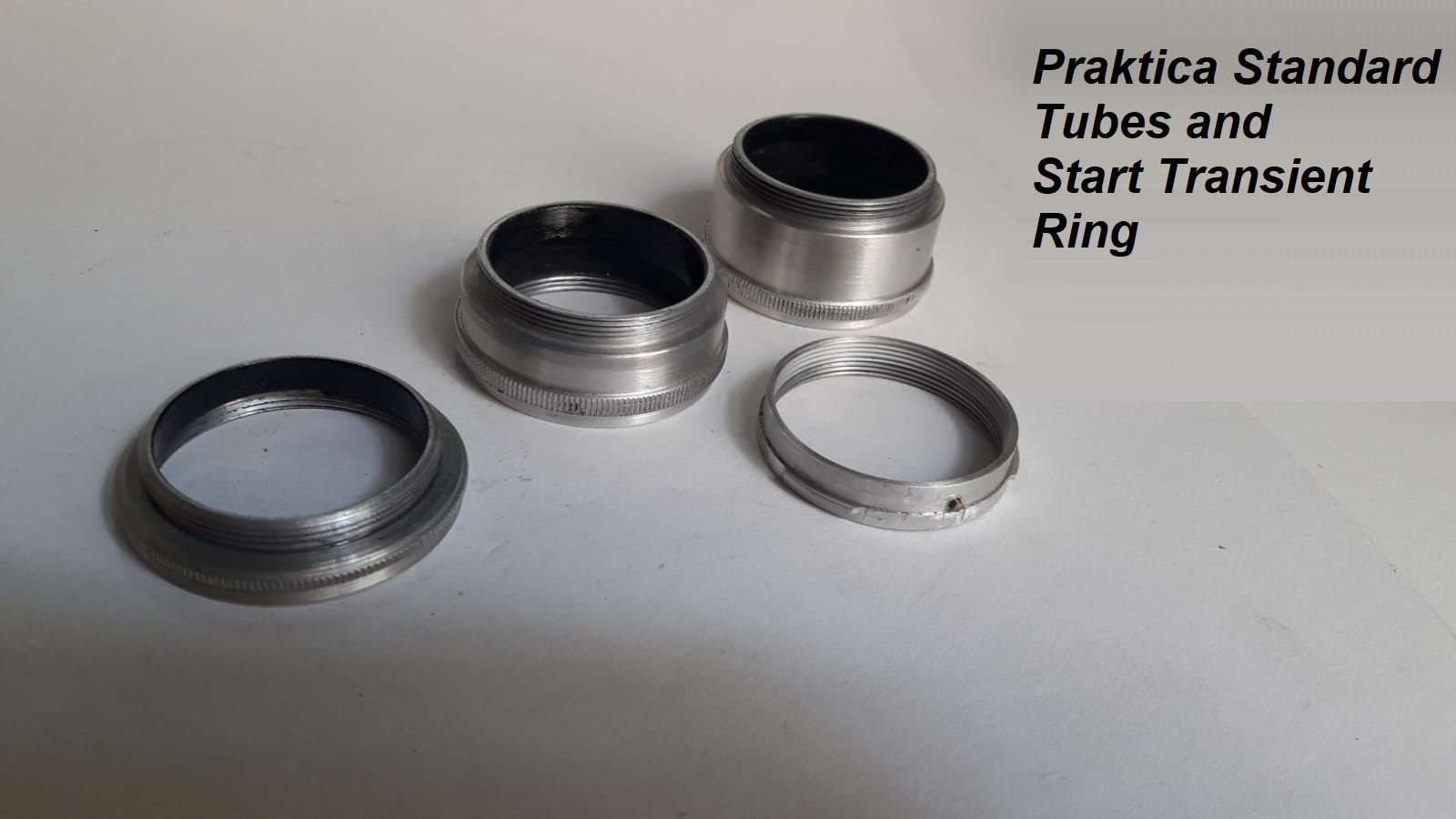

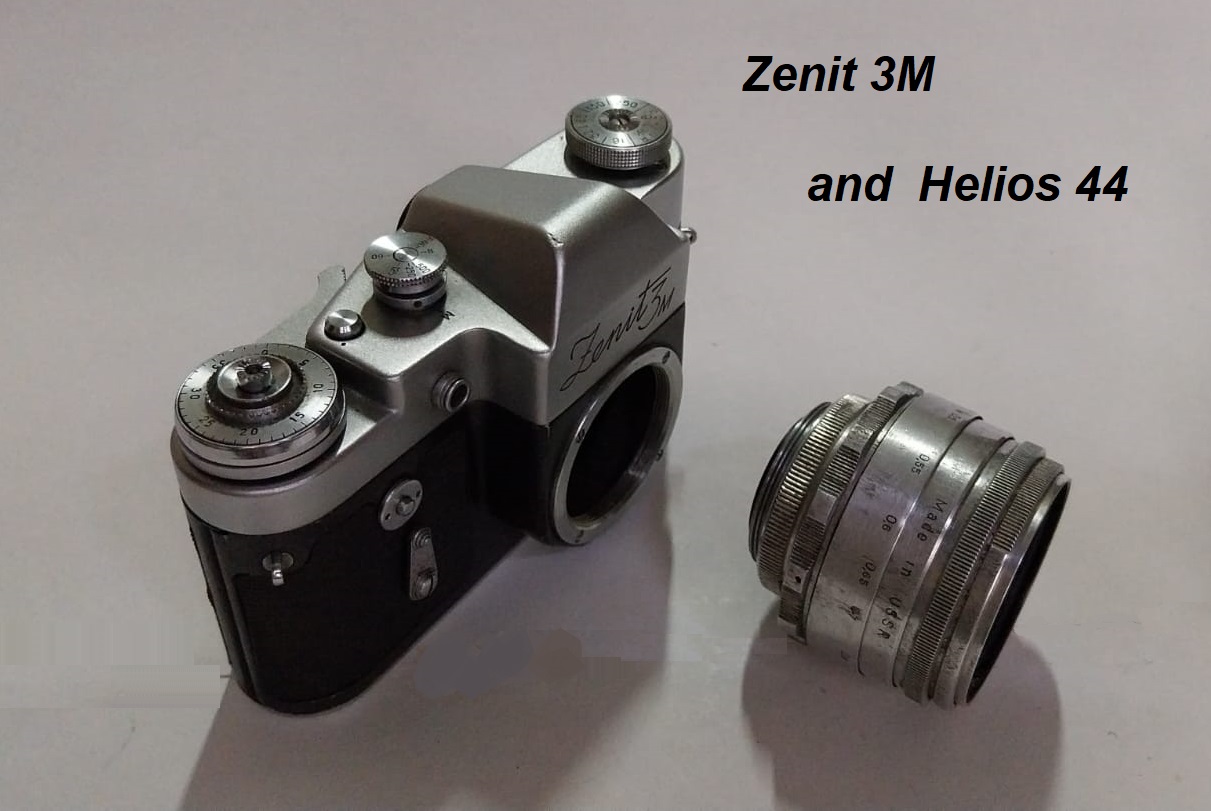

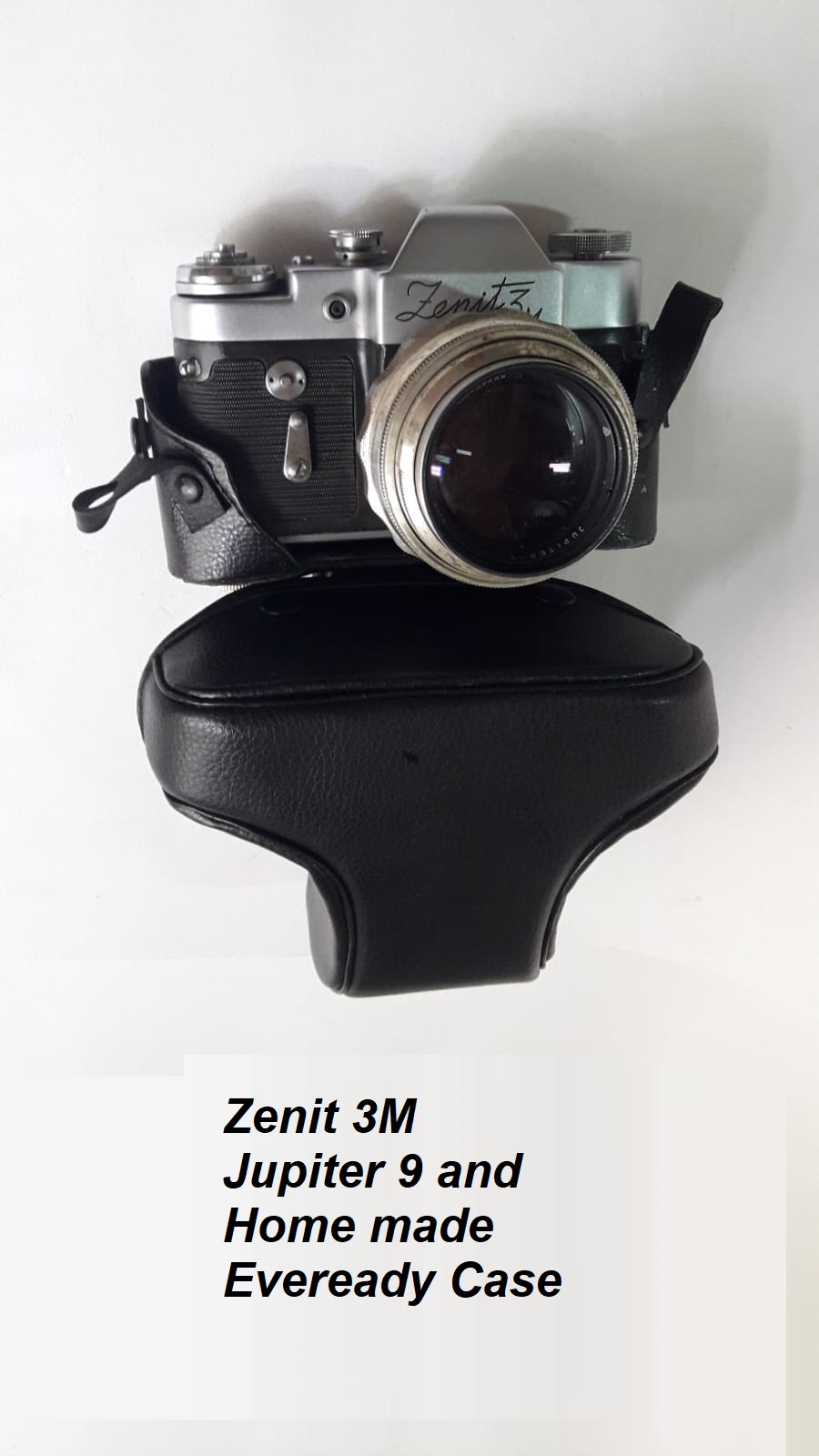

The camera itself seems to have lost its original lens but Mr Gilberto magistrally adapted a Helios 44 M 6 from Valdai operating in complete auto mood and with a proper bayonet. It was also made a M39 old Zenit mount and an extra knob giving better shooting ergonomy when used with non automatic lenses. Also a conventional Zenit 3M with a tailored identical eveready case, but obviously smaller than the previous model. The camera came with its original black Helios 44 from Belomo. The kit includes two sets of specially made extension tubes (one in original Leica Standard and other in Praktica Standard lenghts) both cameras have a rethread 1/4” tripod lock. The accessory lenses included are a Mir 1 from Sergei Posad, a Jupiter 9 from Lytkarino and a Jupiter 11 from Kazan. It also included a modified 75mm Soligor enlarging lens All in M39 Zenit mount.

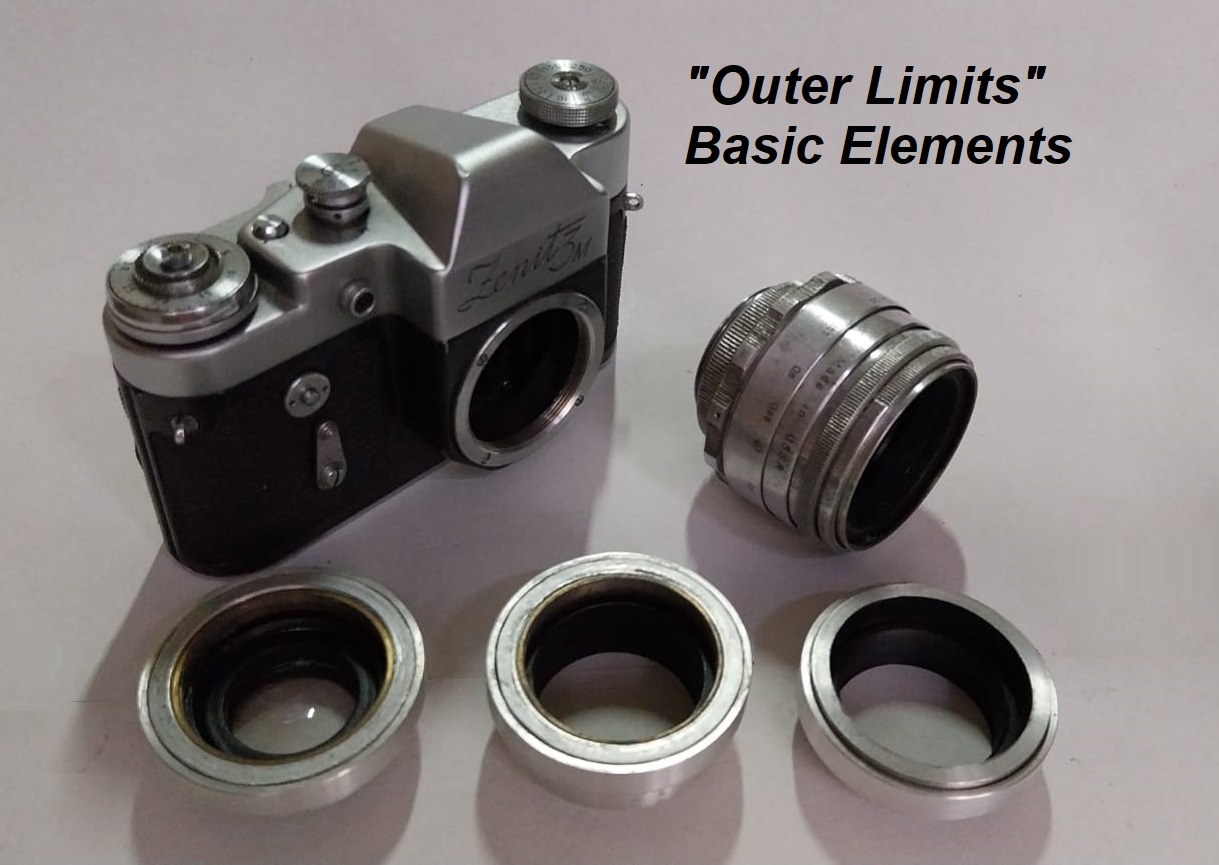

And finally something that really shocked me. - Some time ago I published at these USSRPhoto pages the article ‘Helios 44 outer limits” see http://ussrphoto.com/Wiki/default.asp?WikiCatID=86&ParentID=4&ContentID=297&Item=Helios+44+Outer+Limits+%2D+by+Luiz+Paracampo

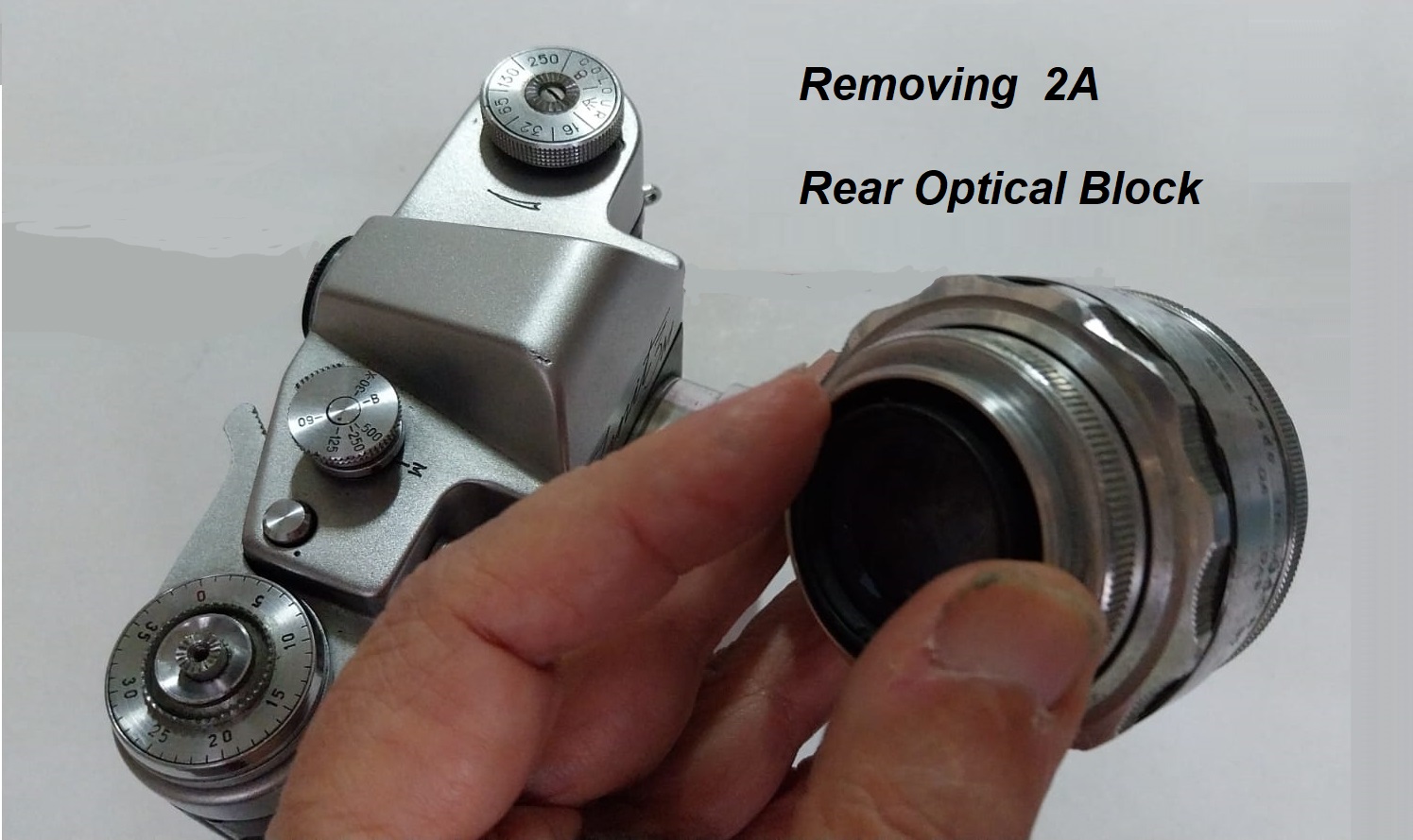

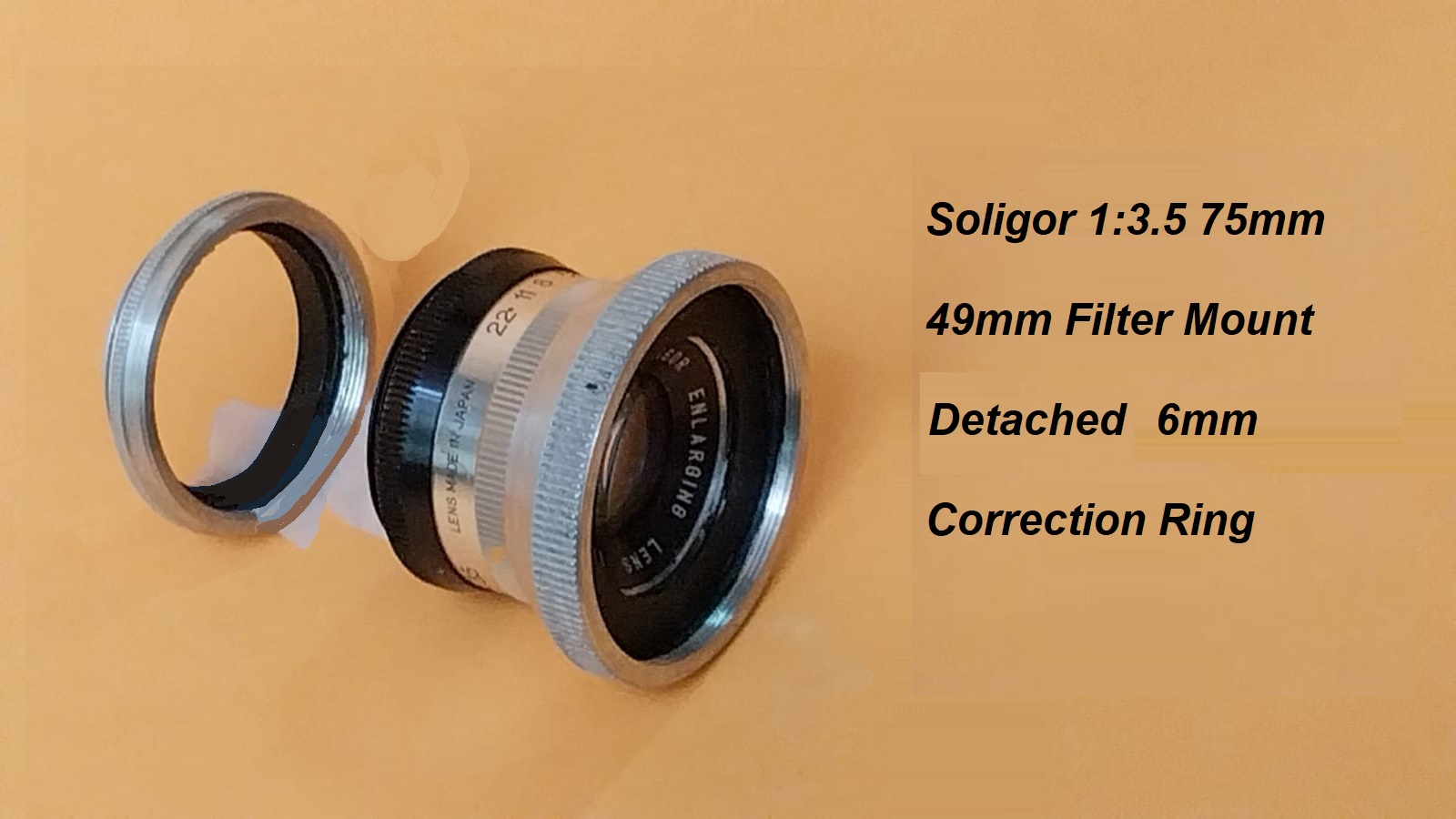

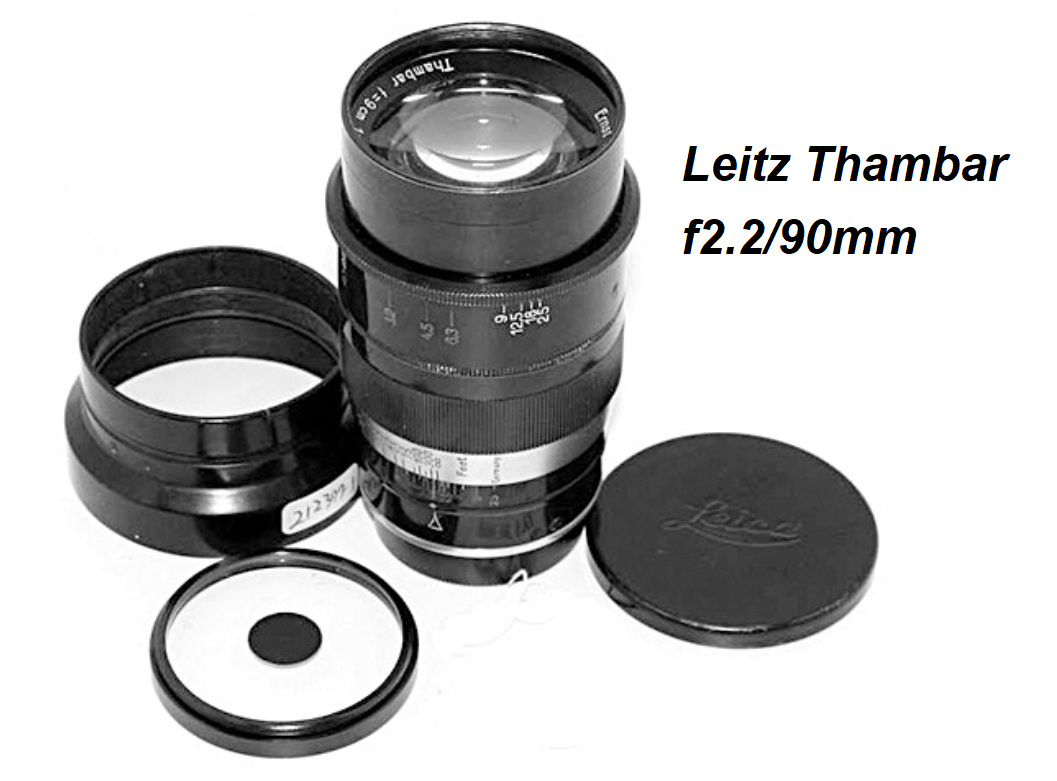

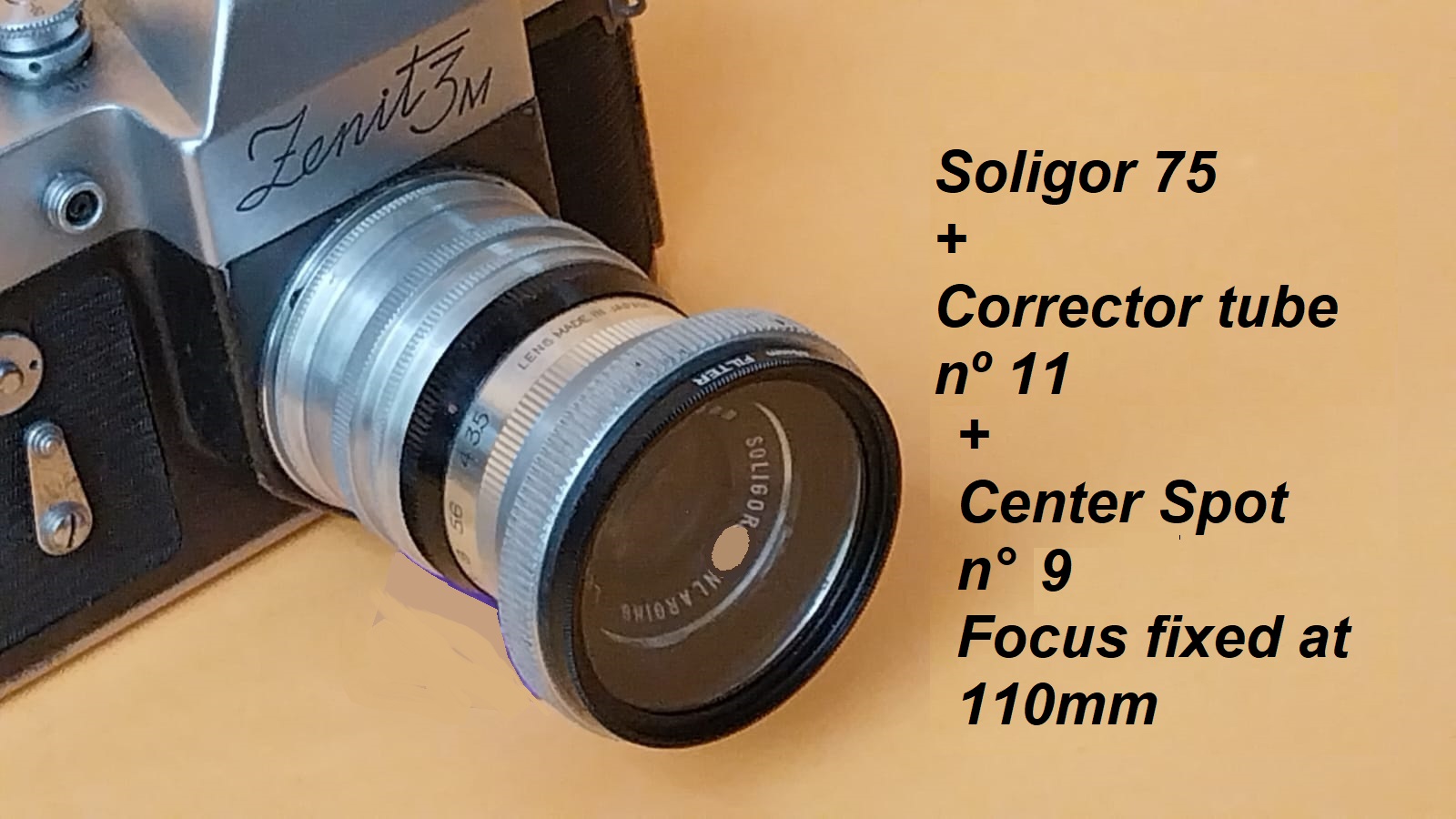

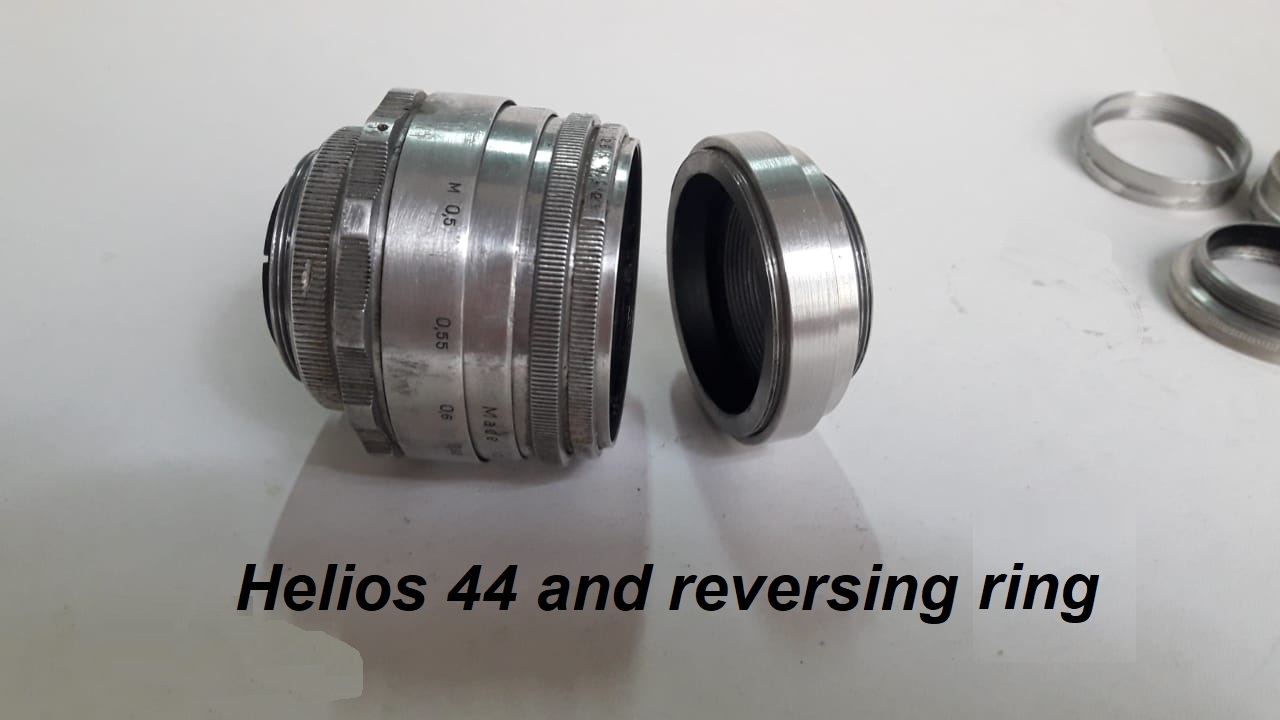

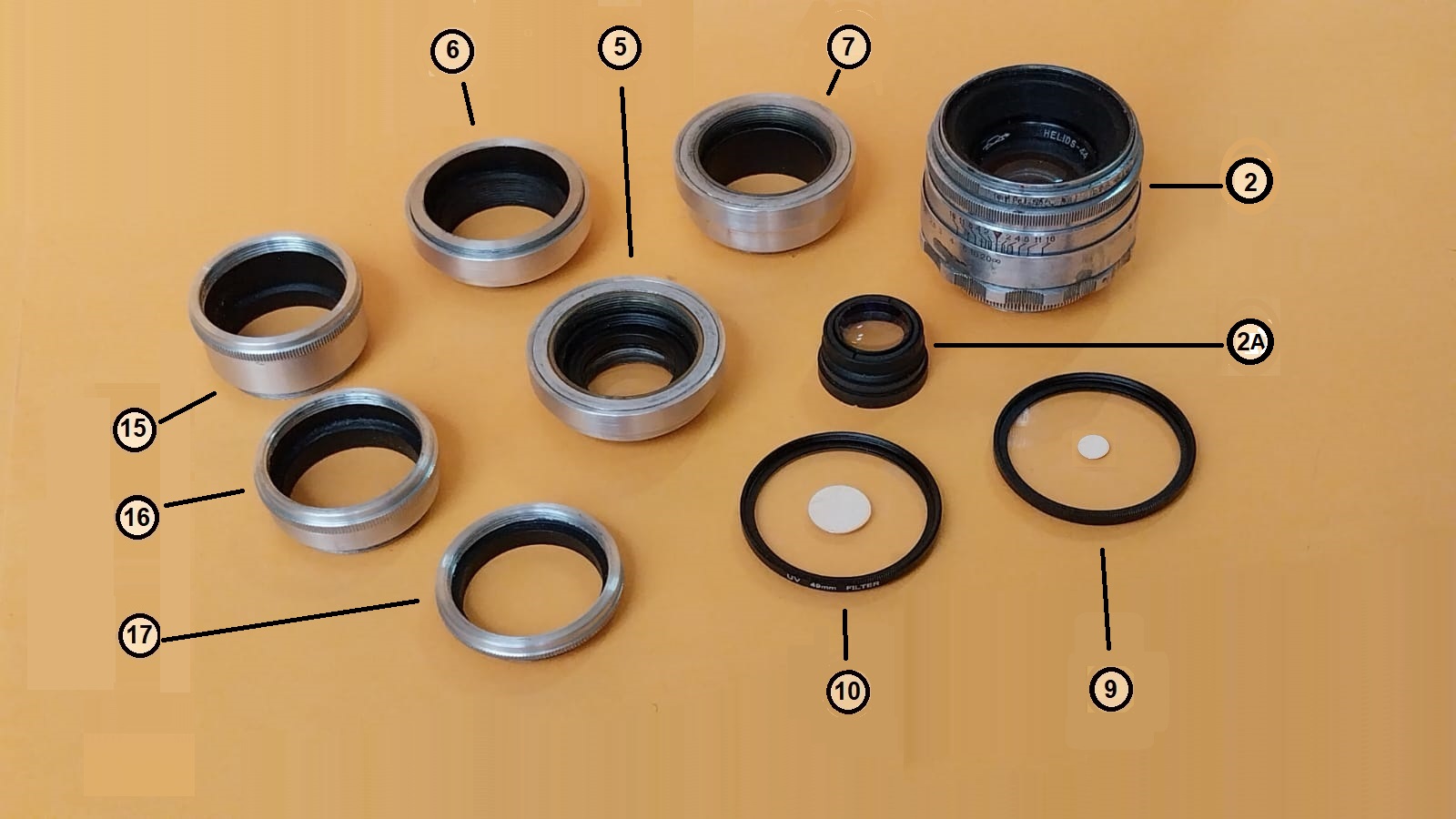

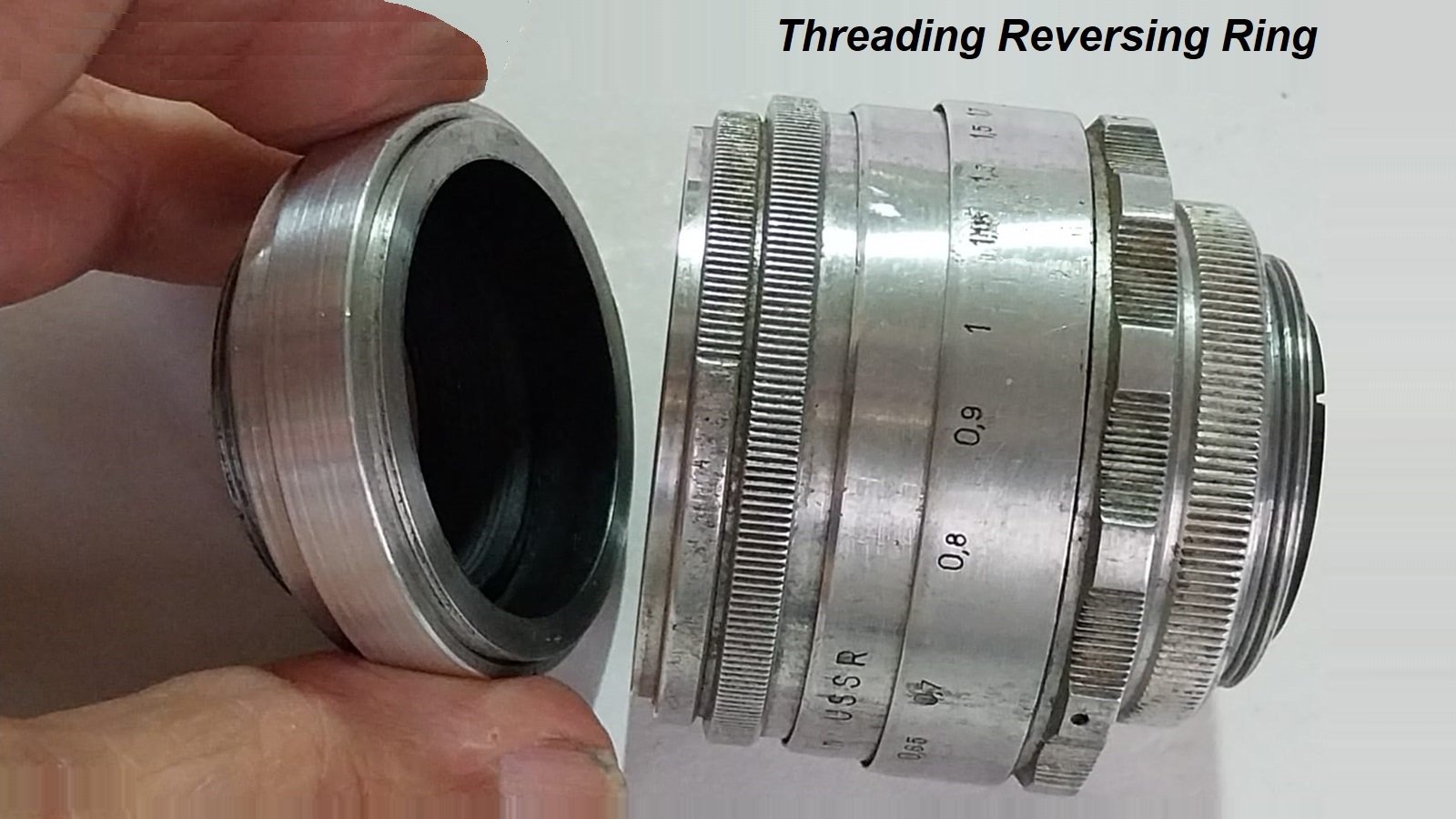

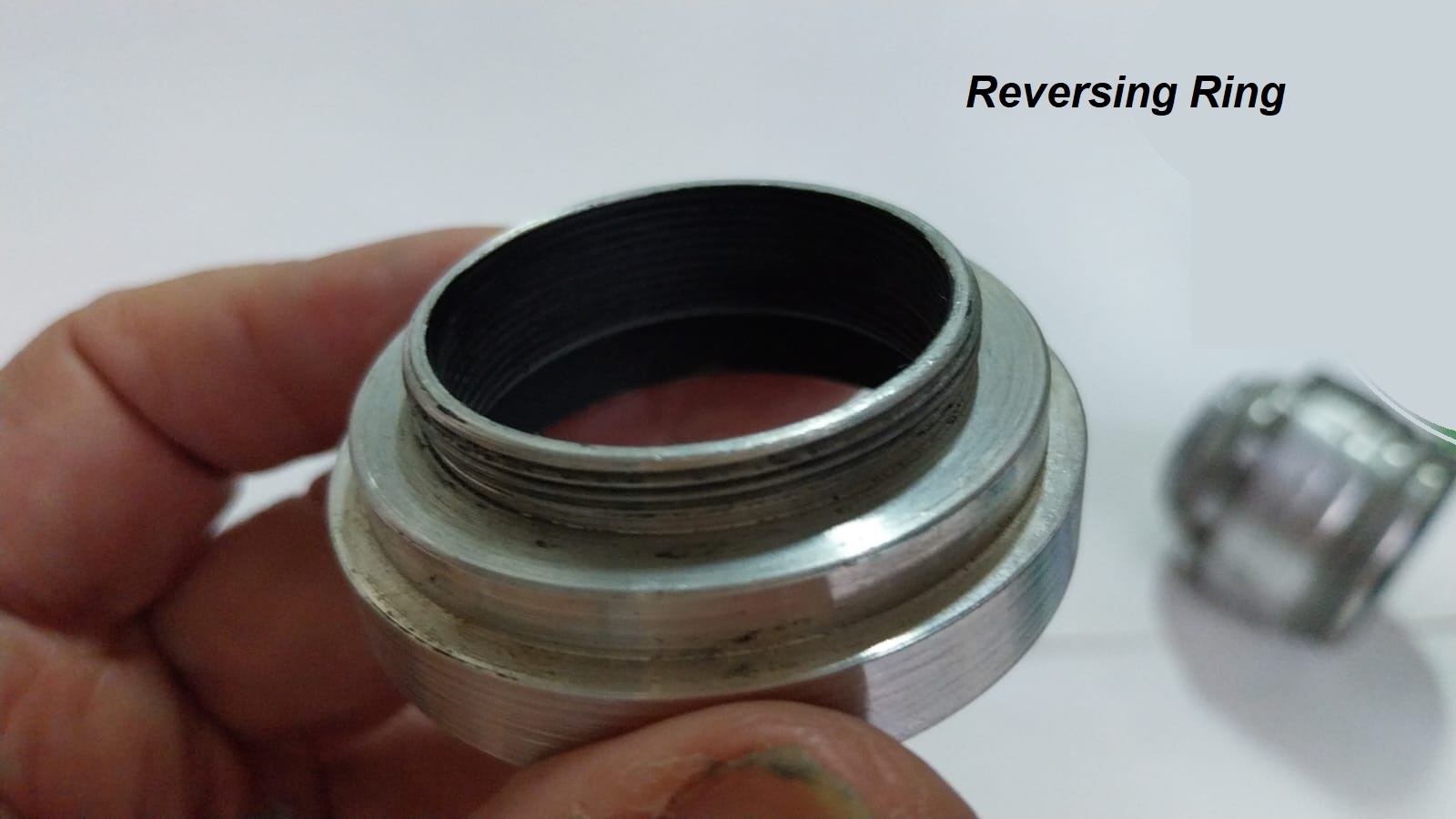

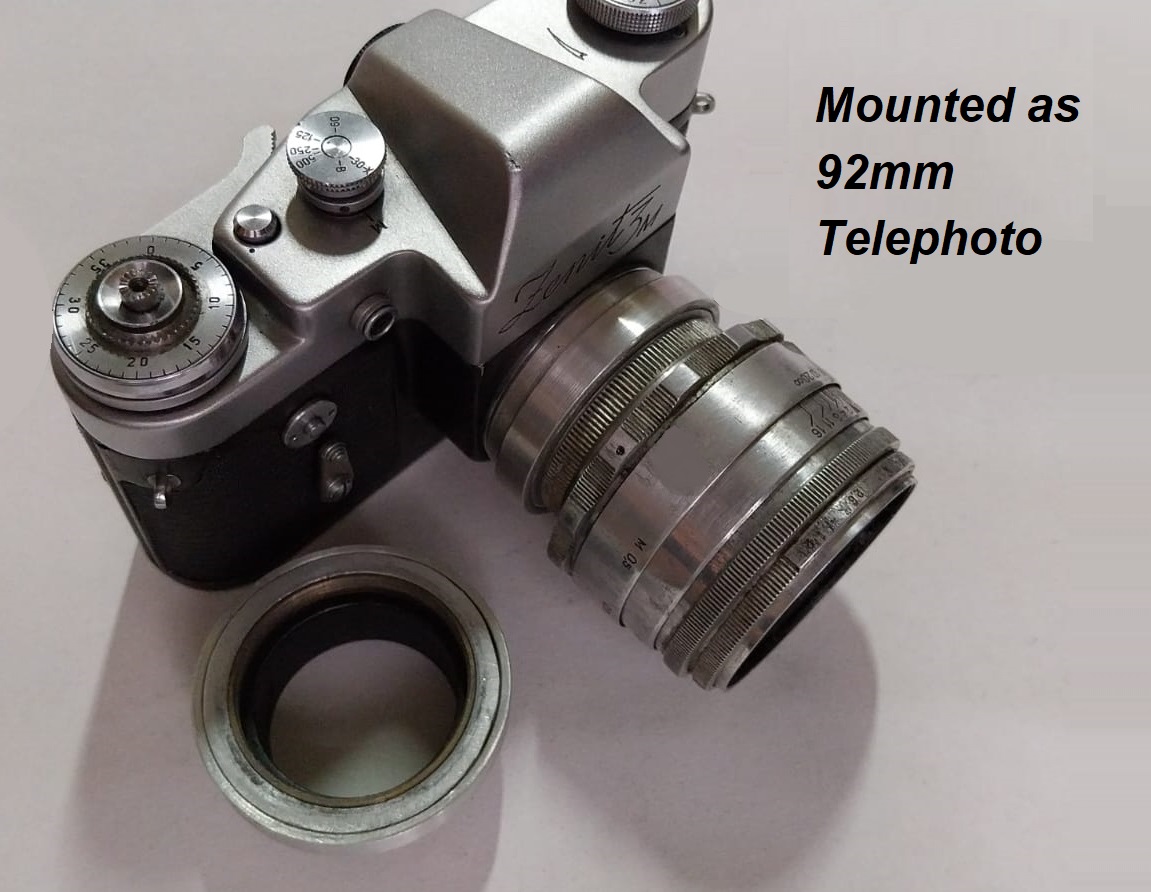

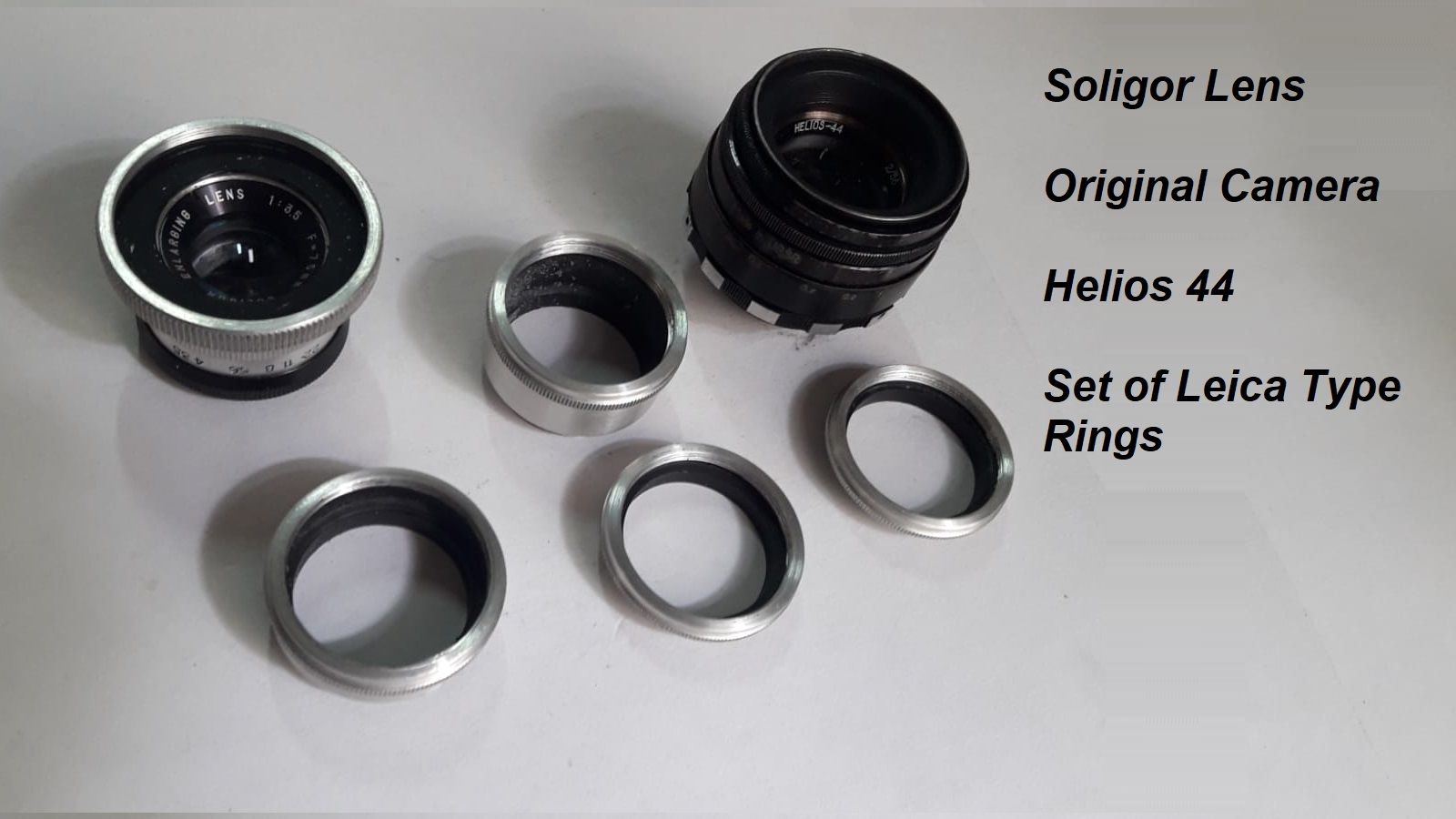

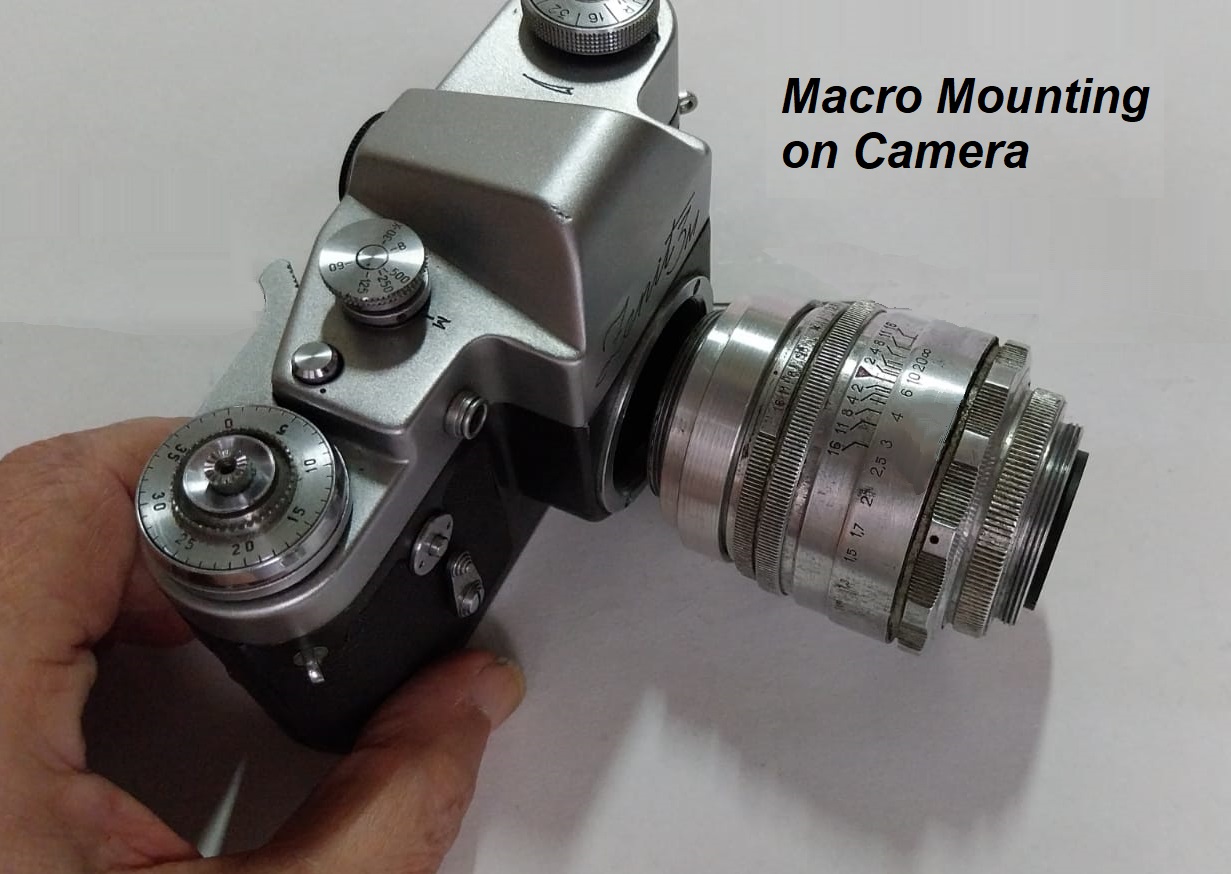

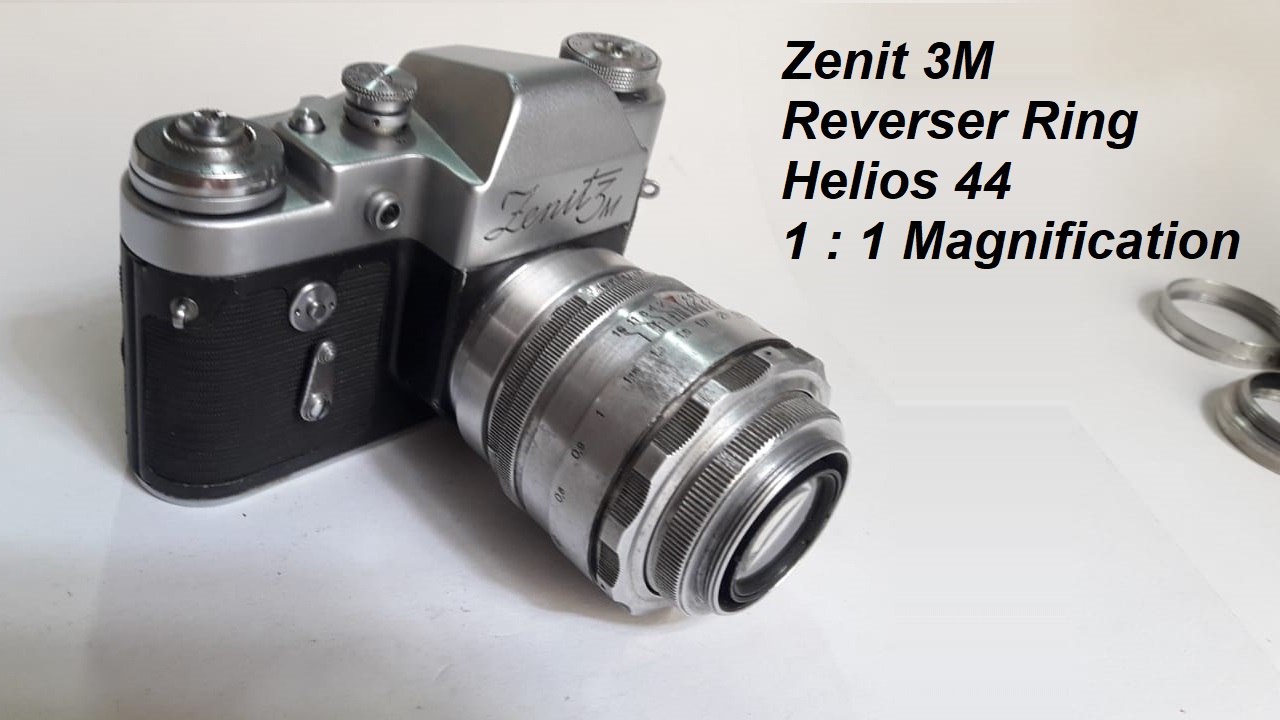

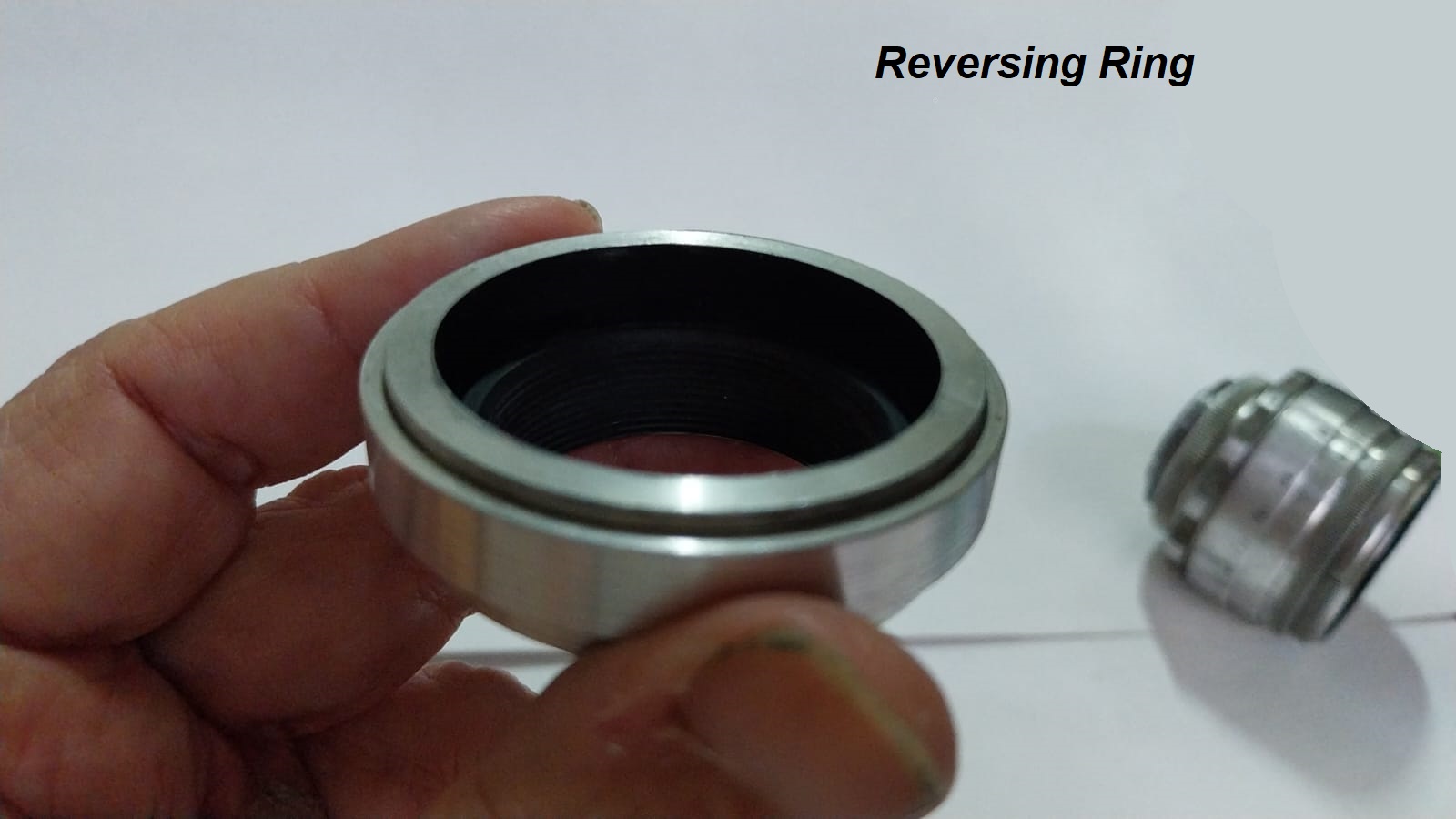

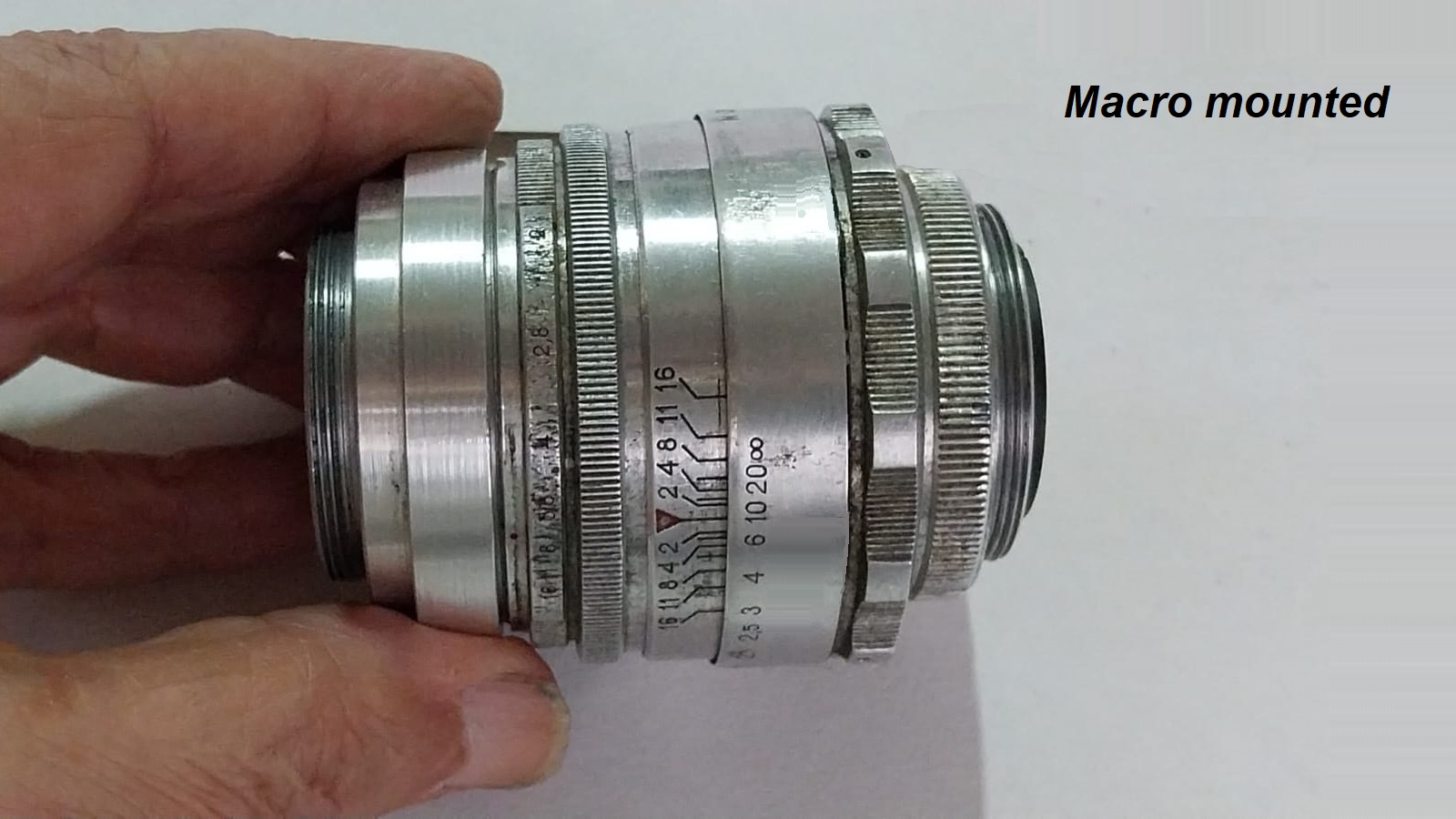

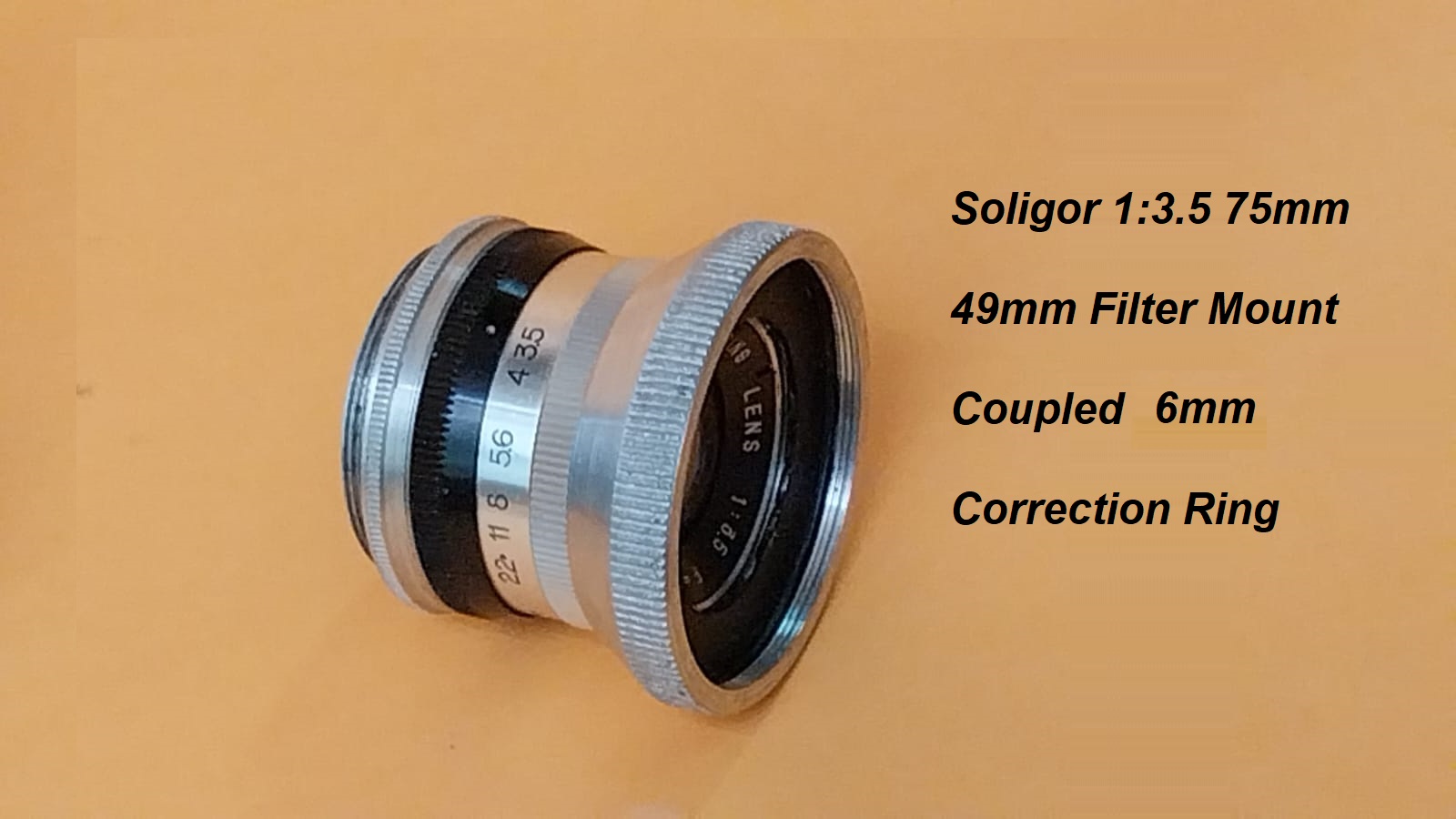

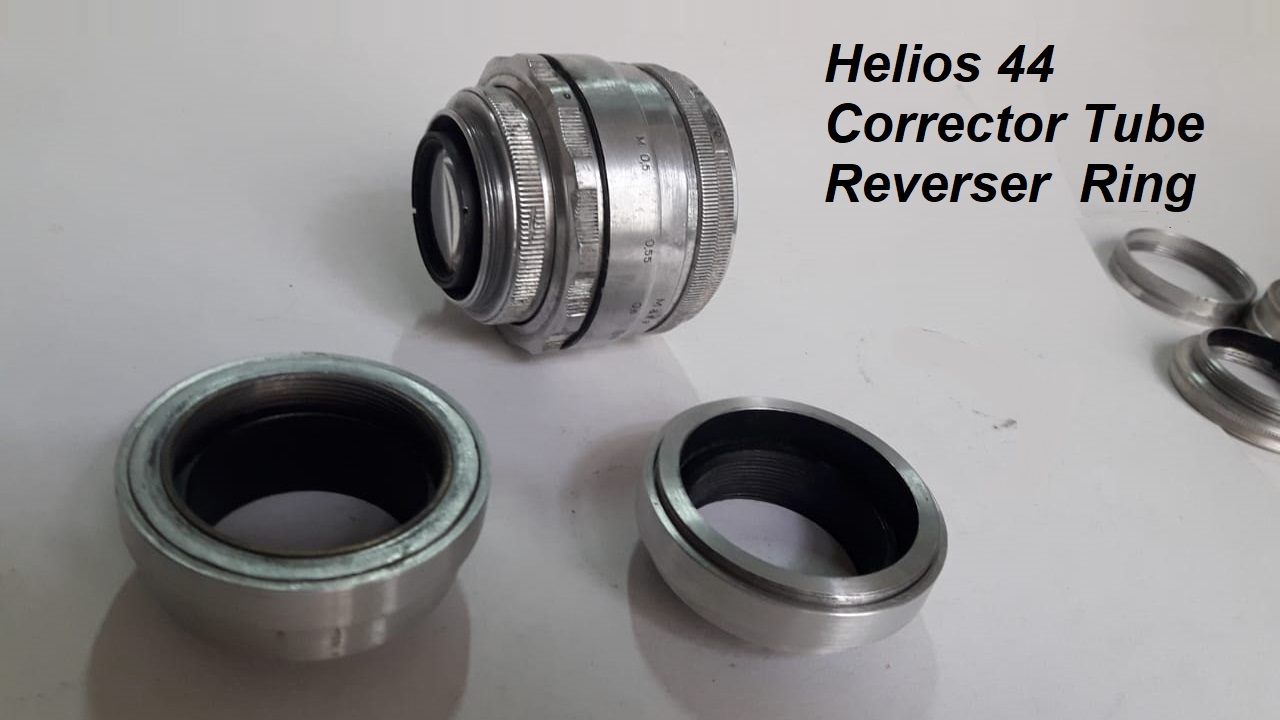

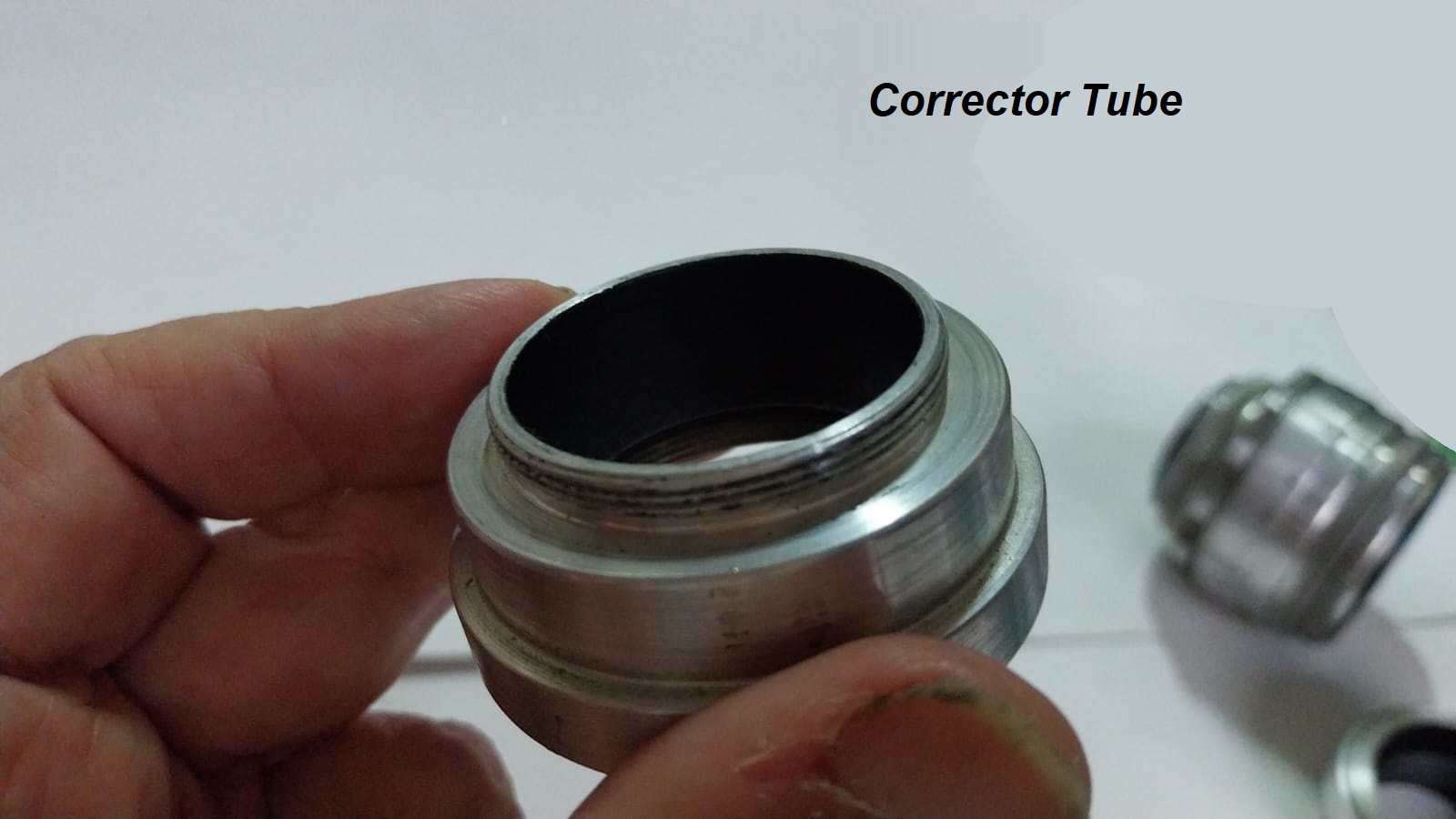

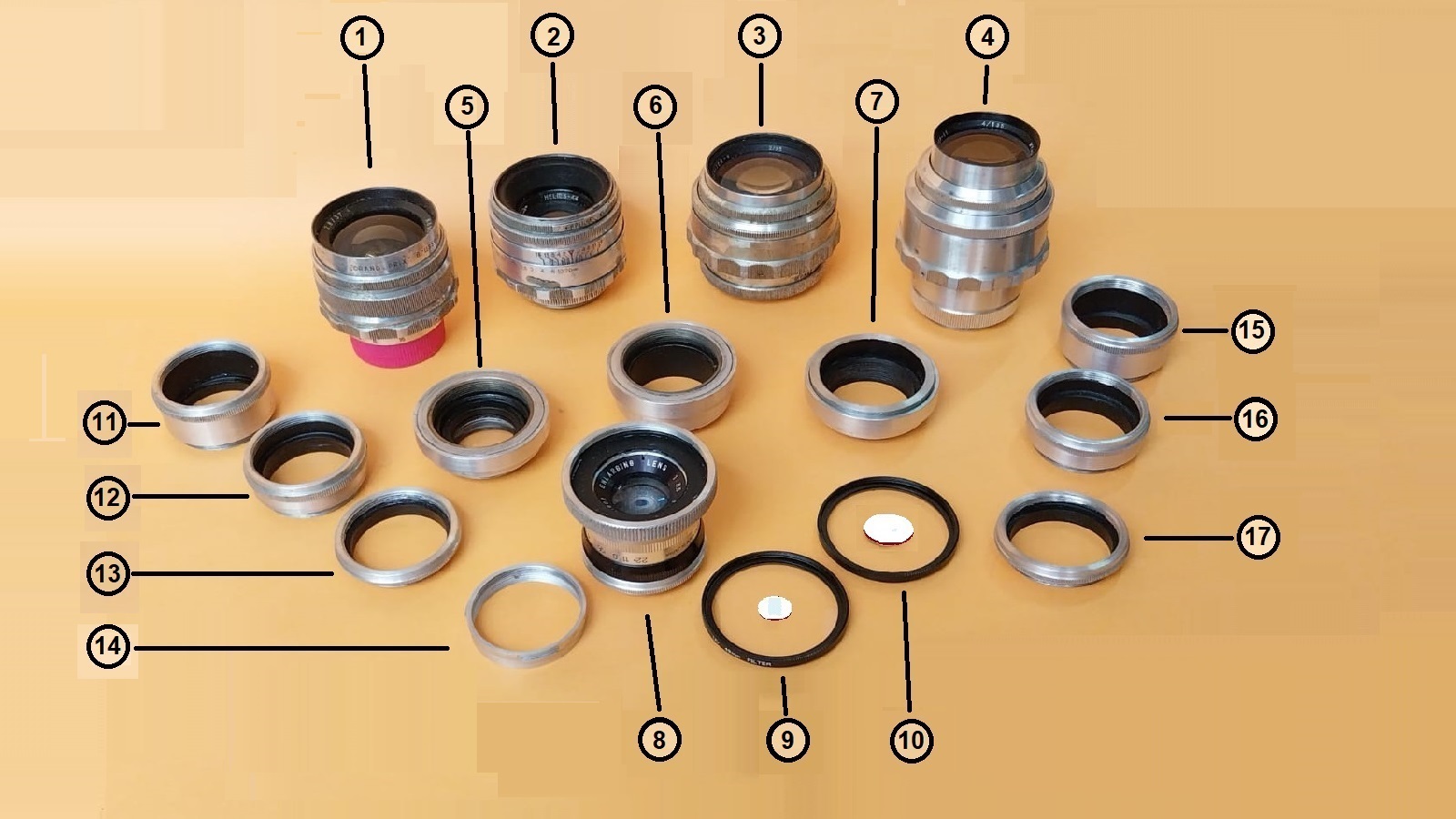

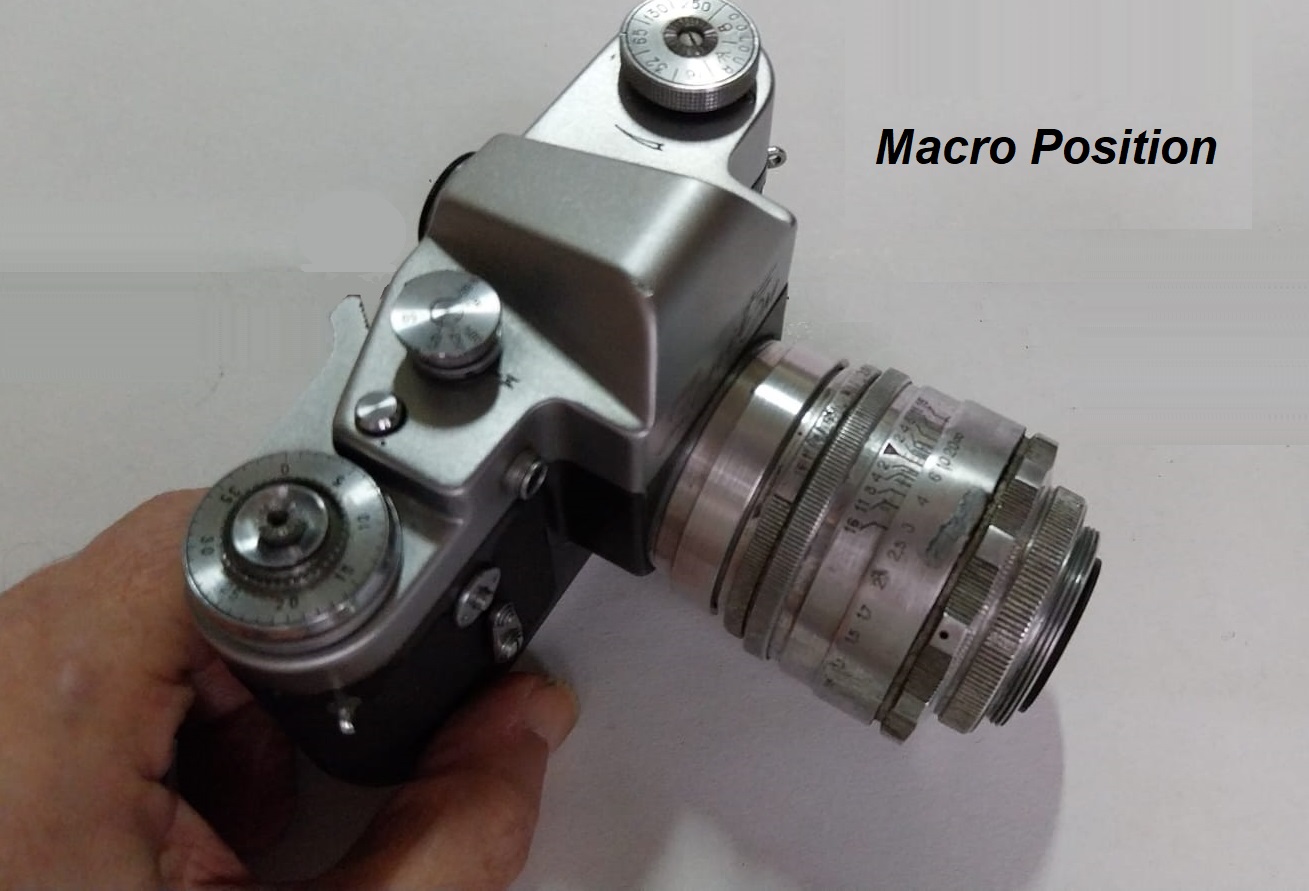

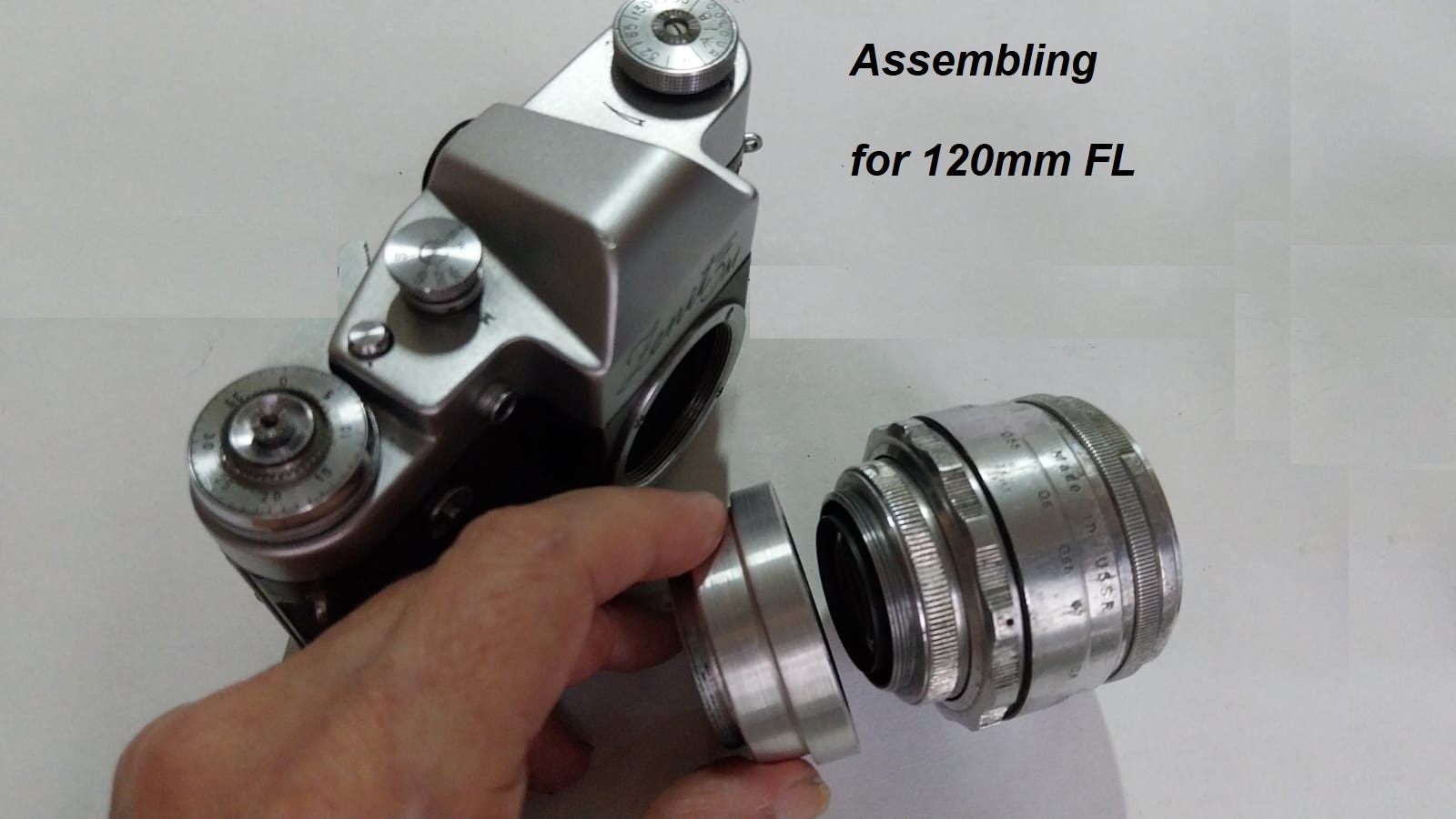

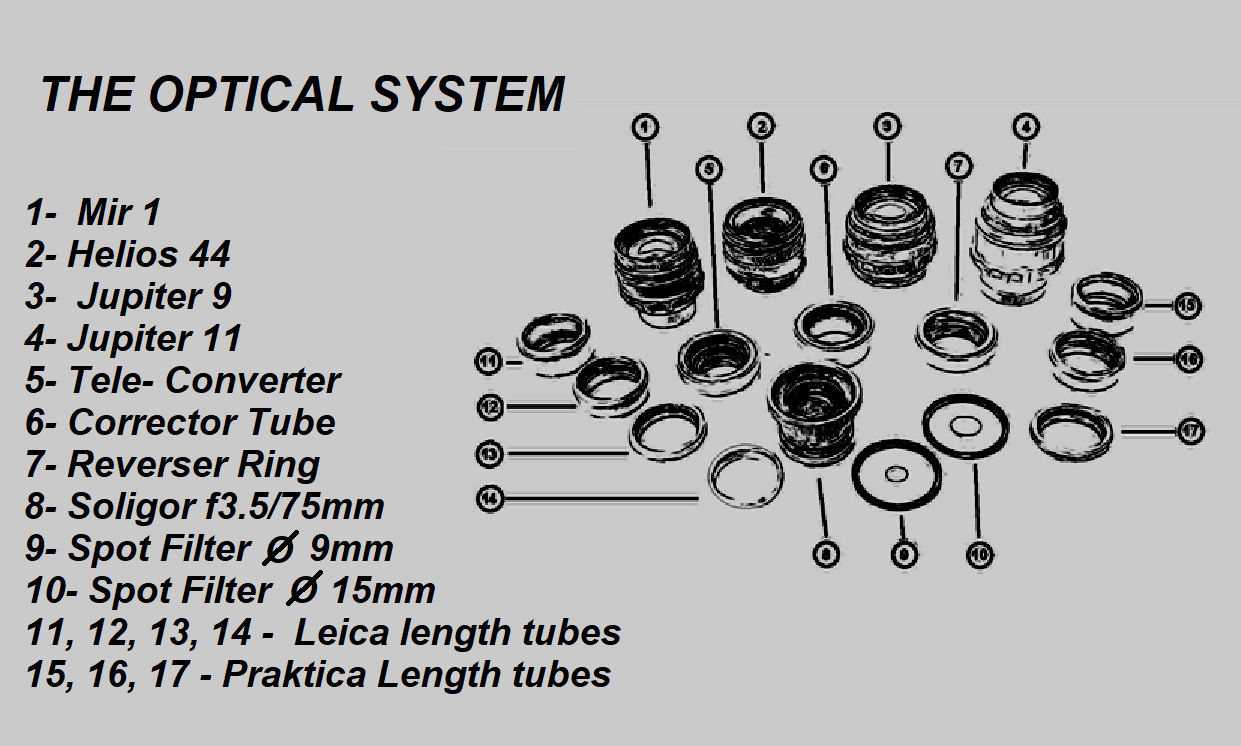

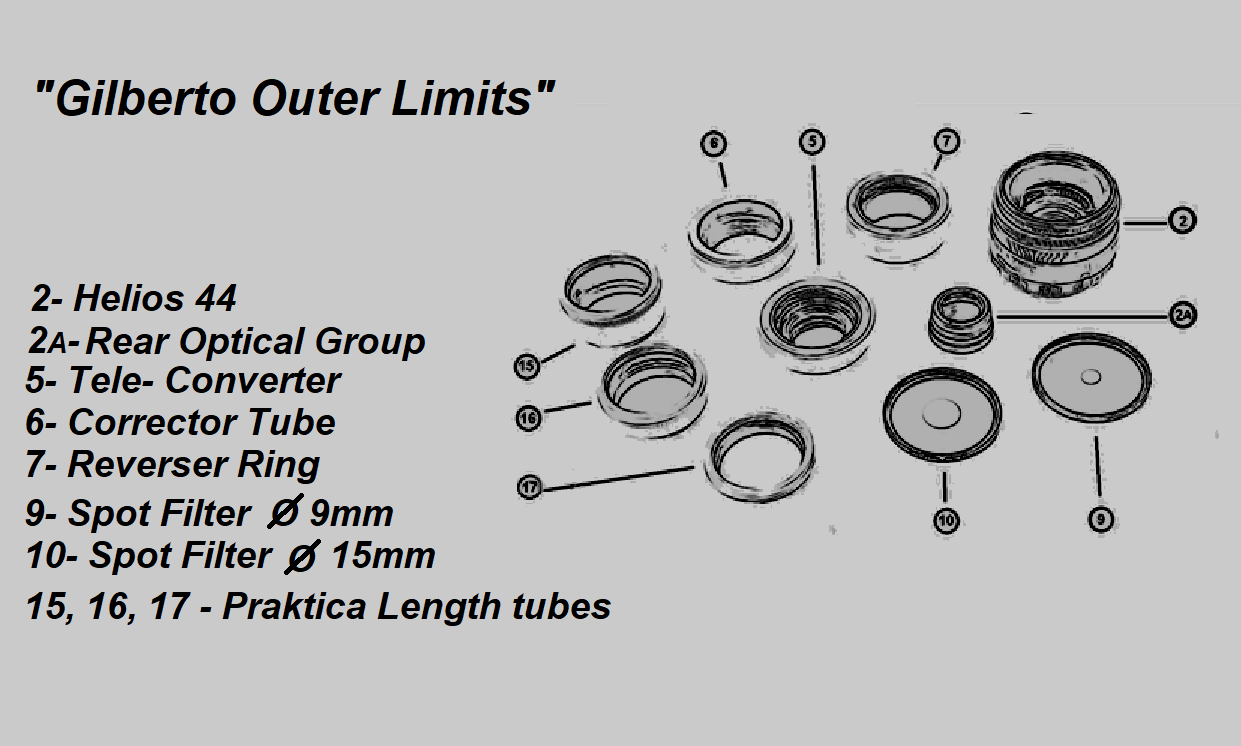

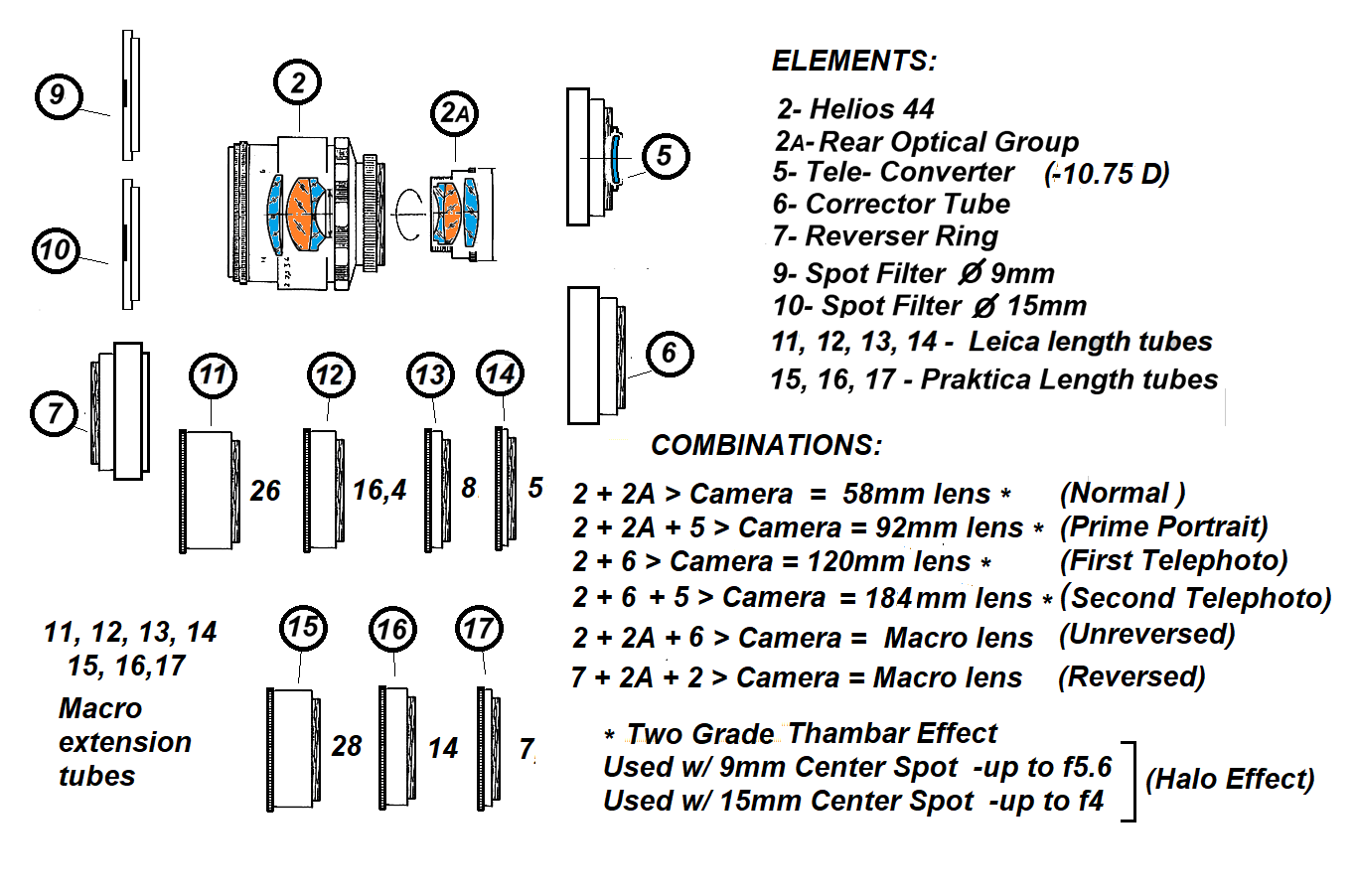

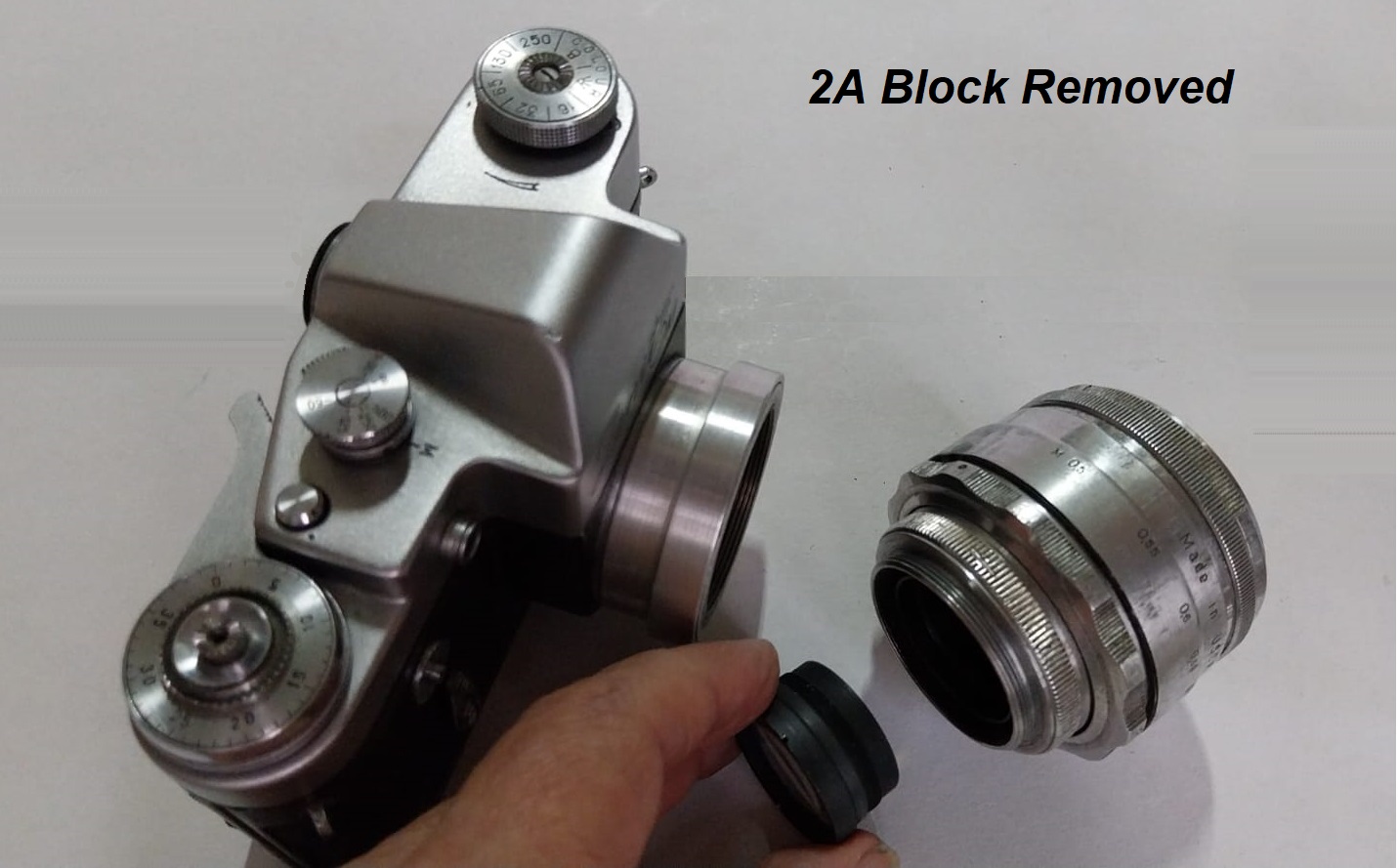

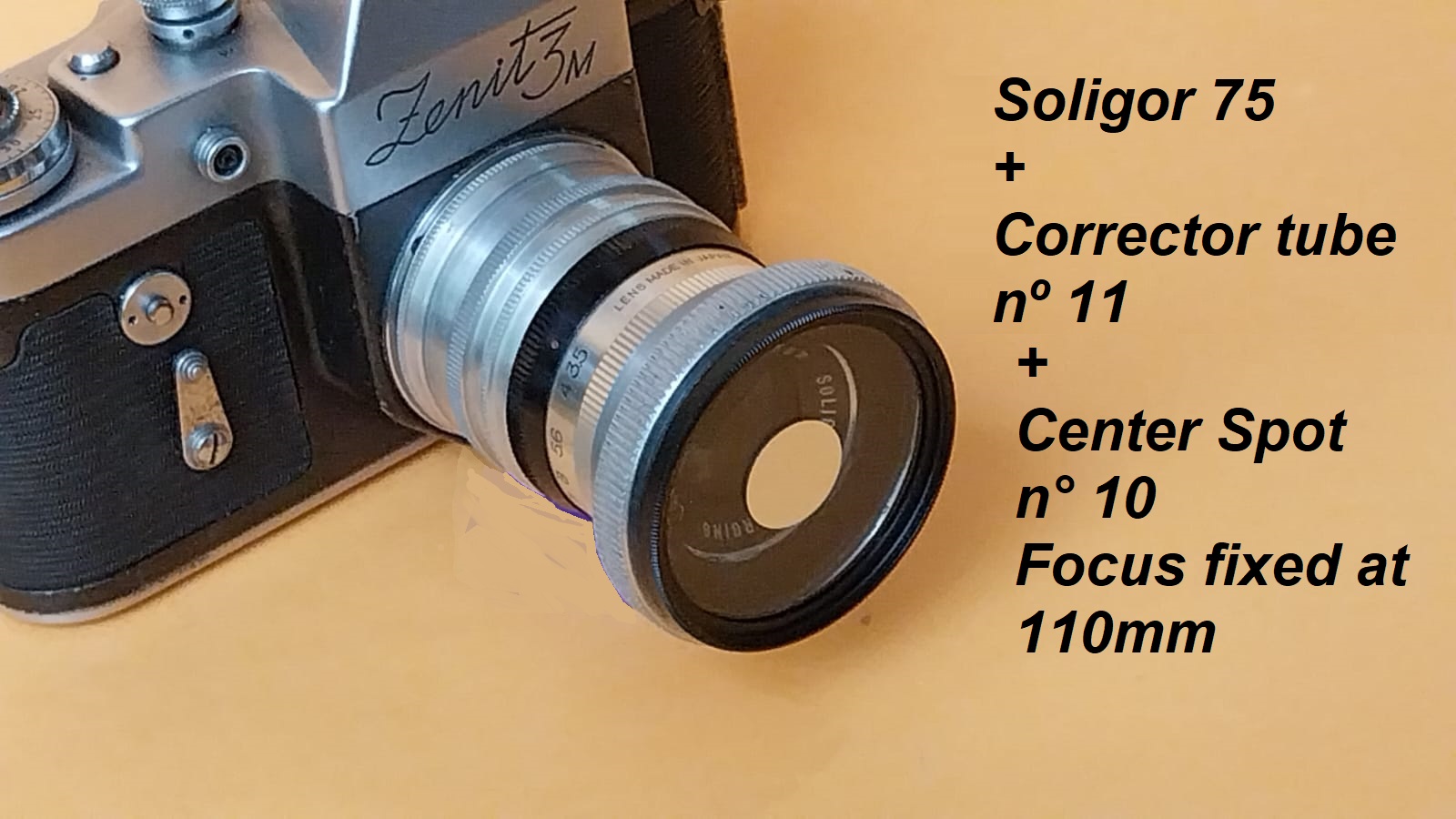

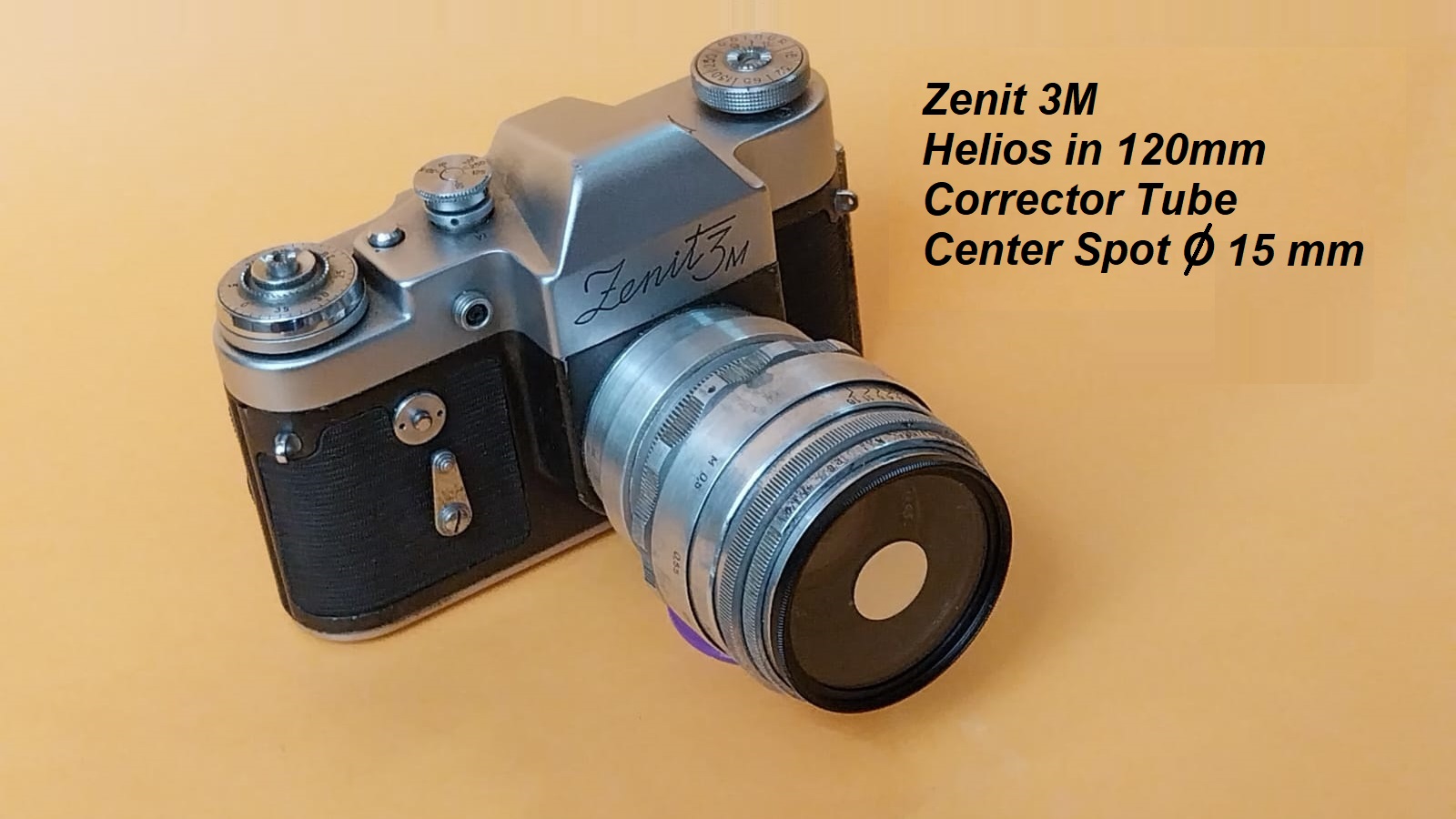

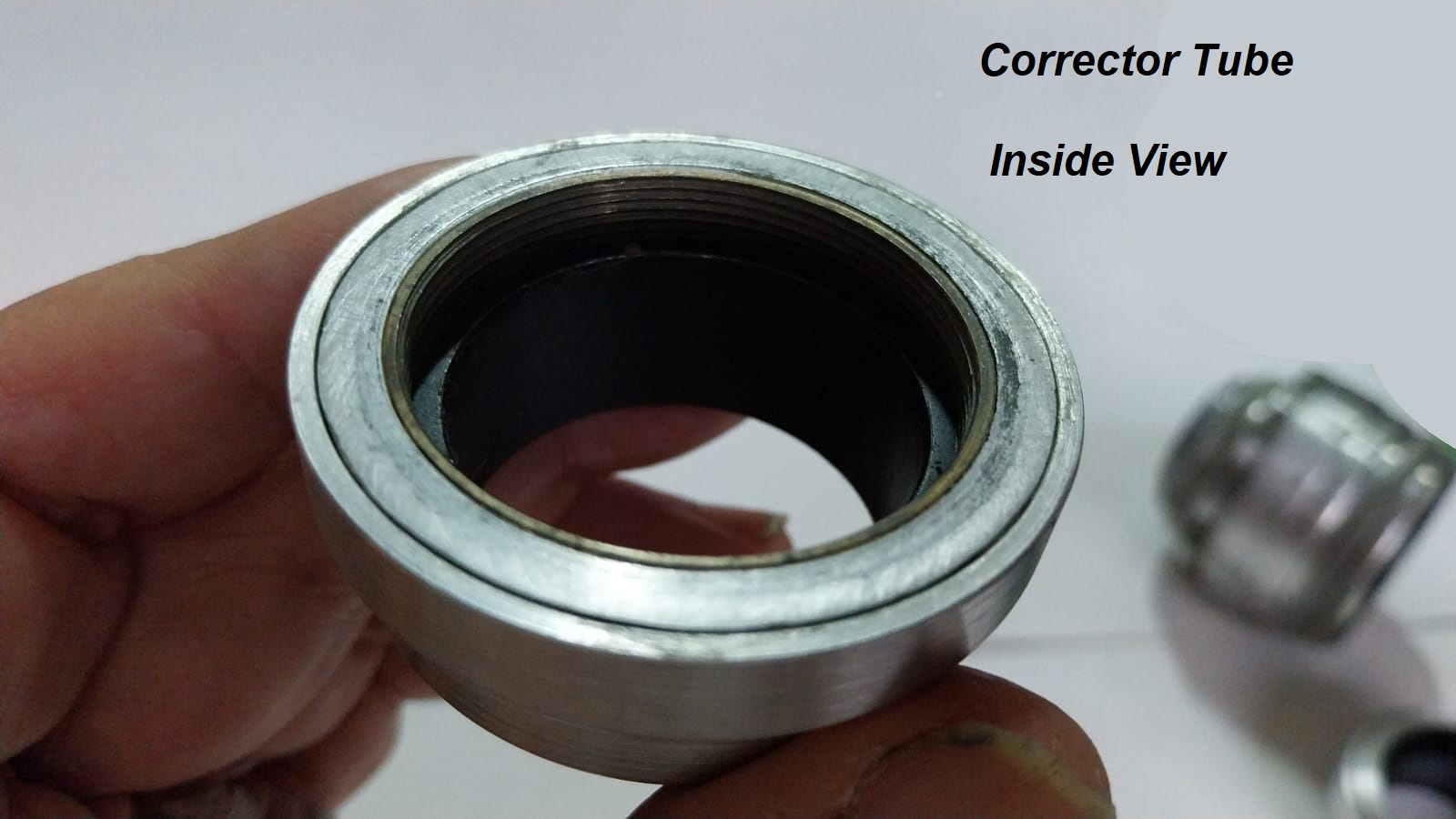

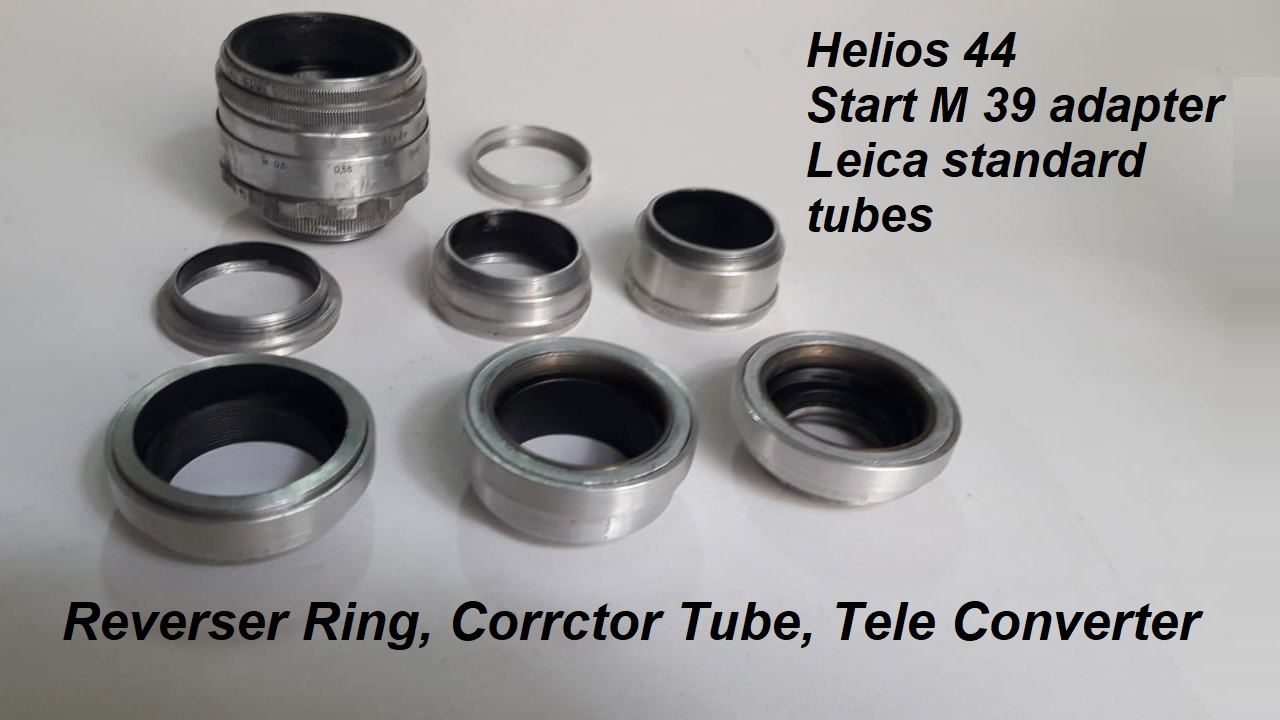

This developed system was adapted over the old white version of KMZ Helios 44. Beside the included Double kit of extension tubes it included a single element tele converter (а la Zeiss Distar -10.75D ), the corrector ring when the rear element is not used, a reverser ring for macro purposes, three extension rings M39 in the M42 standard ratios and a Start Bayonet coupler. The set included also a Soligor 75mm lens for macro prepaired to receive 49mm filtersm and a home made center spot soft filter 49mm а la Thambar.

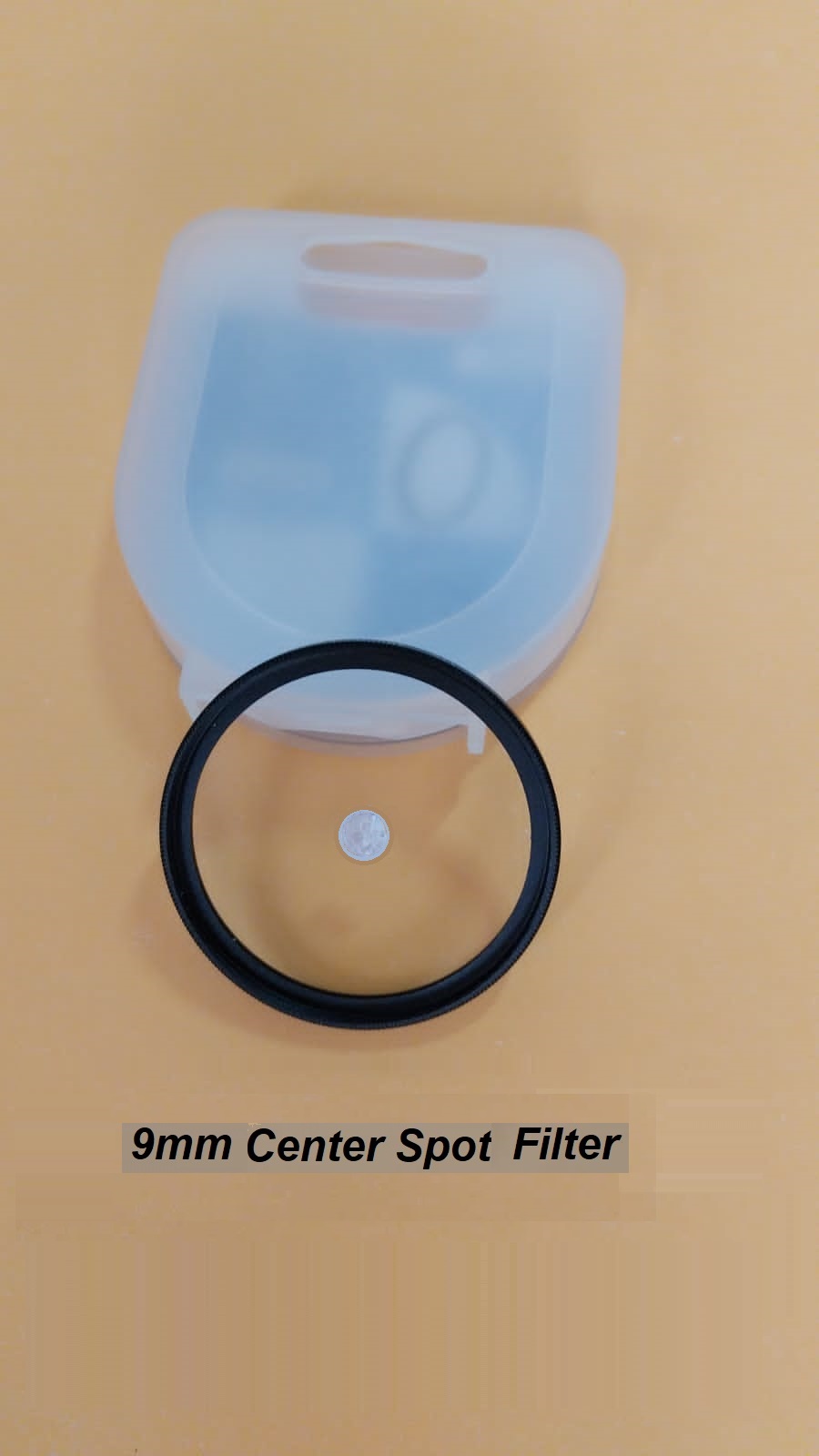

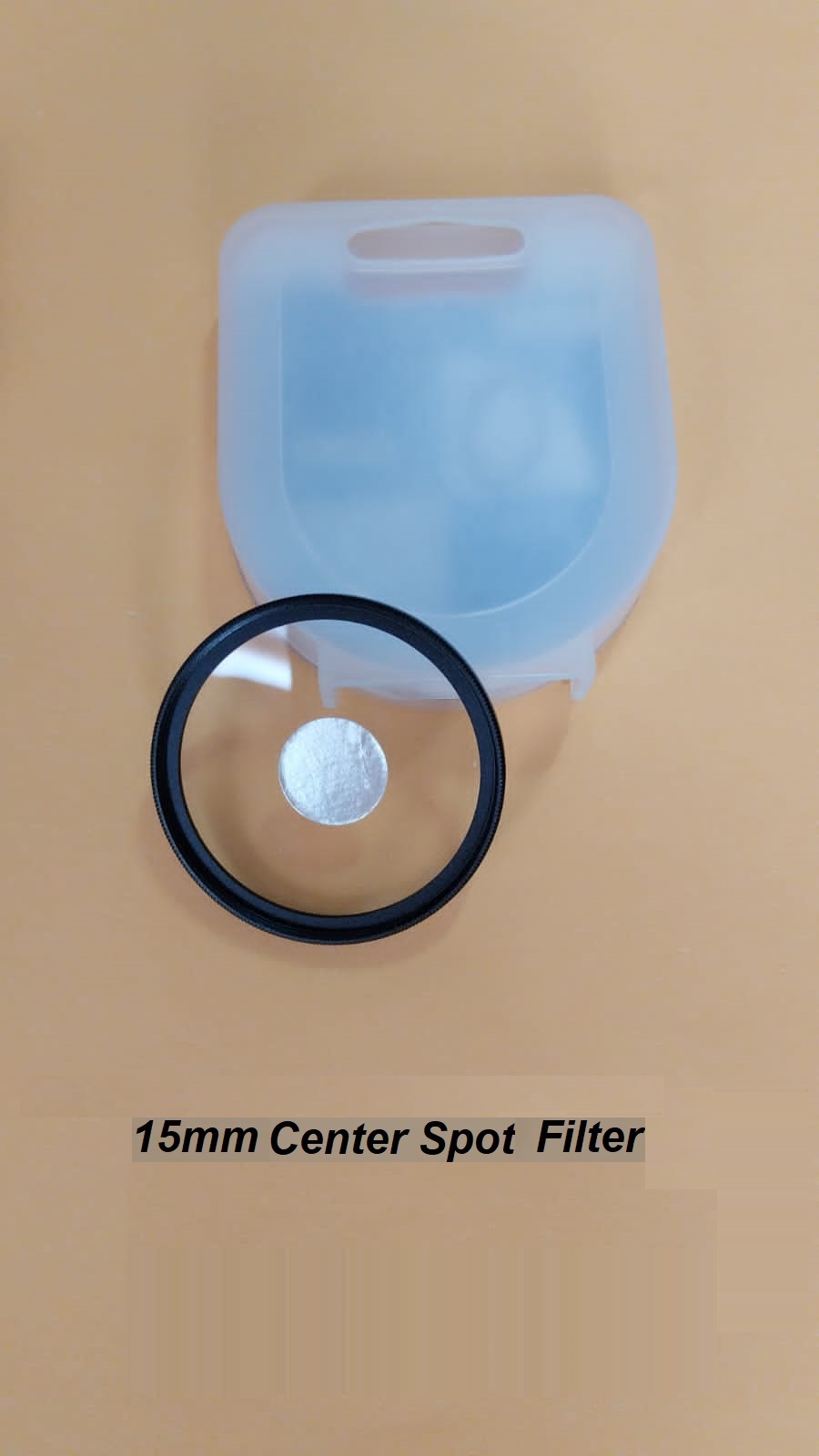

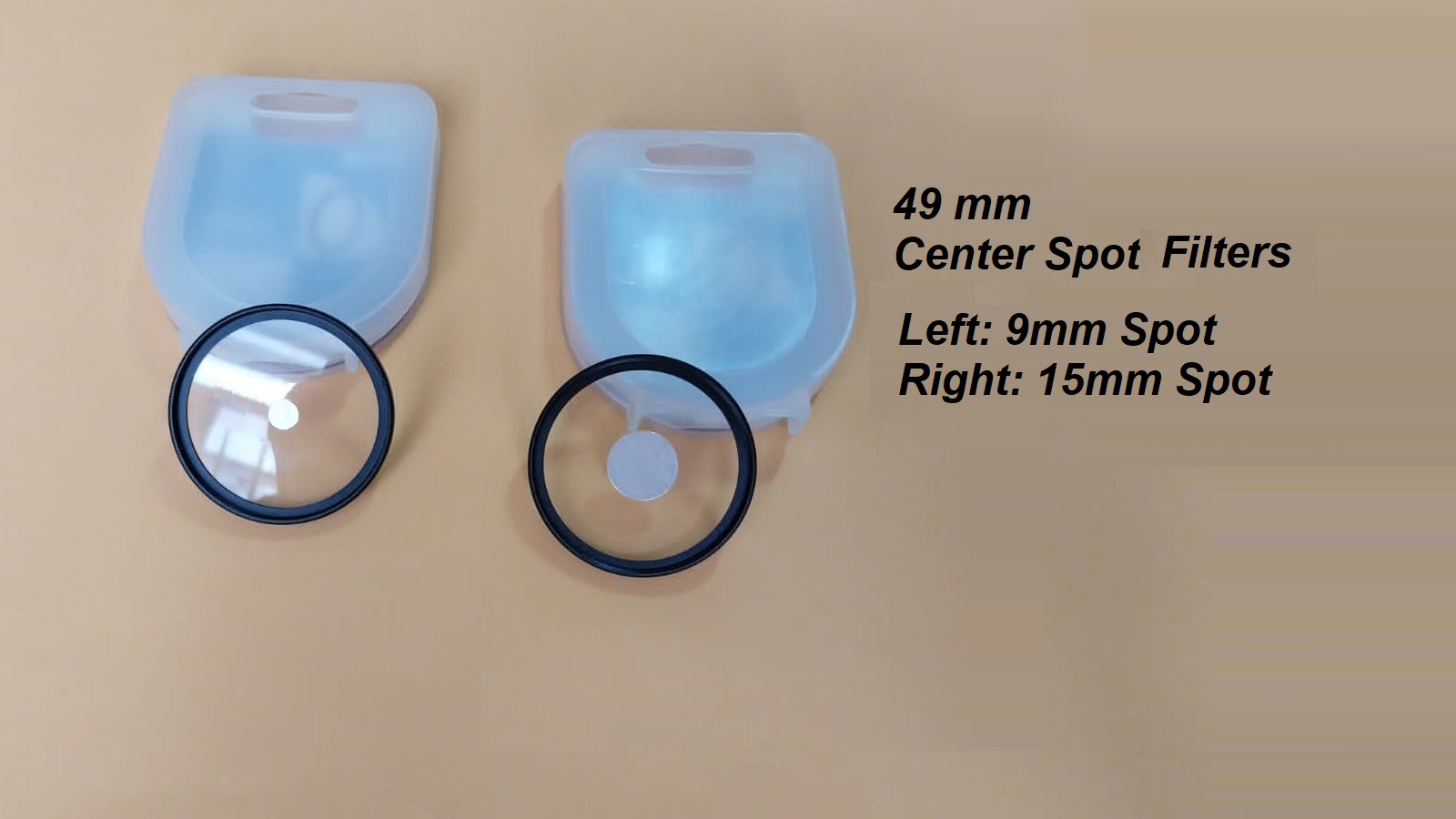

Together, two 49 mm Center blinded spot filter and a single element 10.75D teleconverter were included.

A ball joint head of complete different concept and a two level portatile tripod were also built and included.

FIRST ROW
START = ZENIT CASE
OUTFIT IN THE CASE
START IN EVEREADY CASE

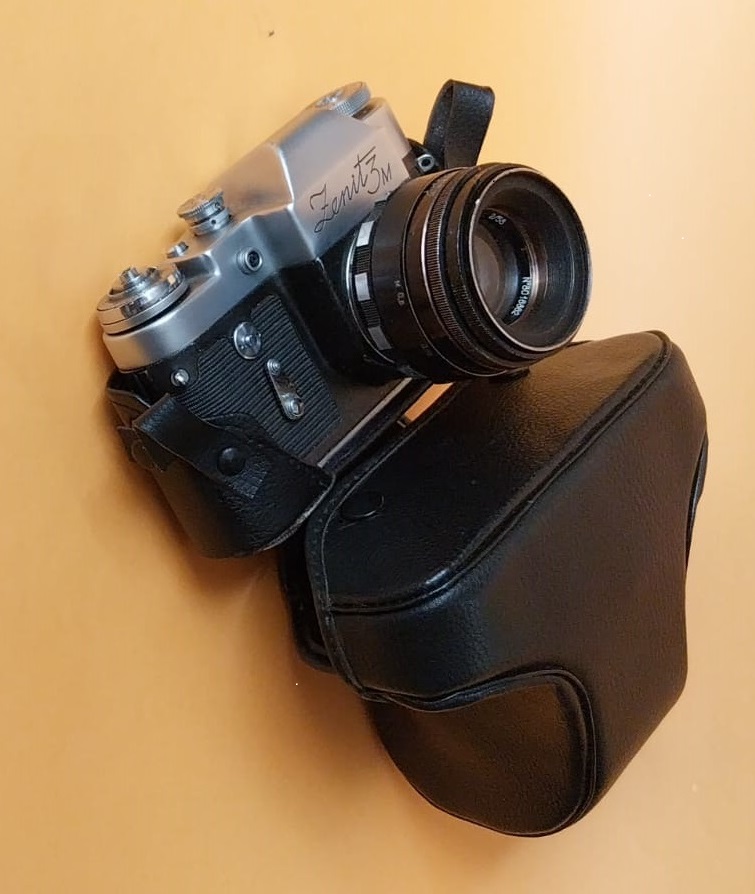

ZENIT IN EVEREADY CASE

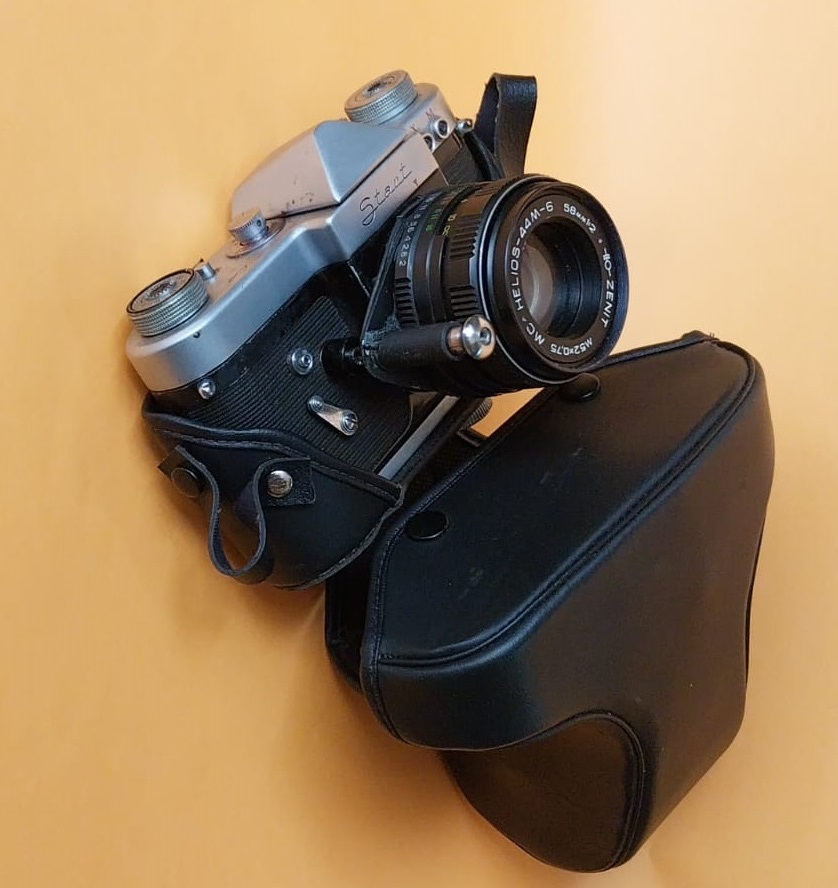

START EVEREADY CASE AND HOME BUILT HELIOS 44-6

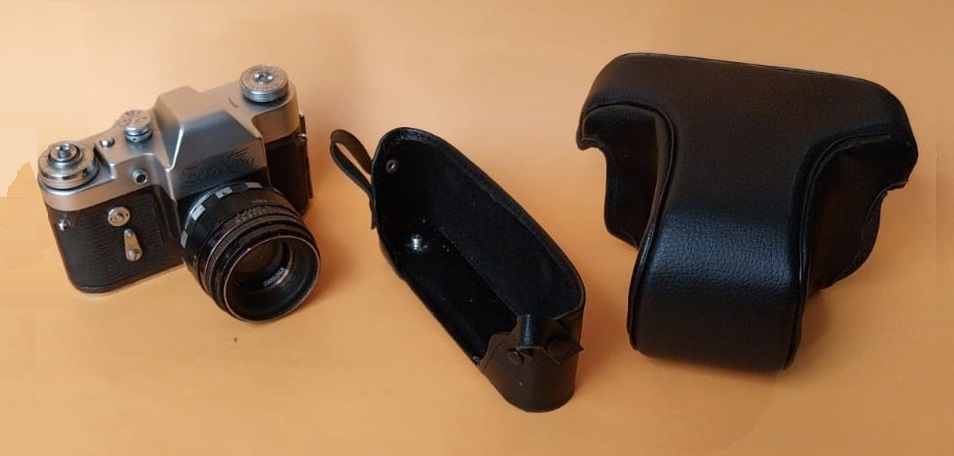

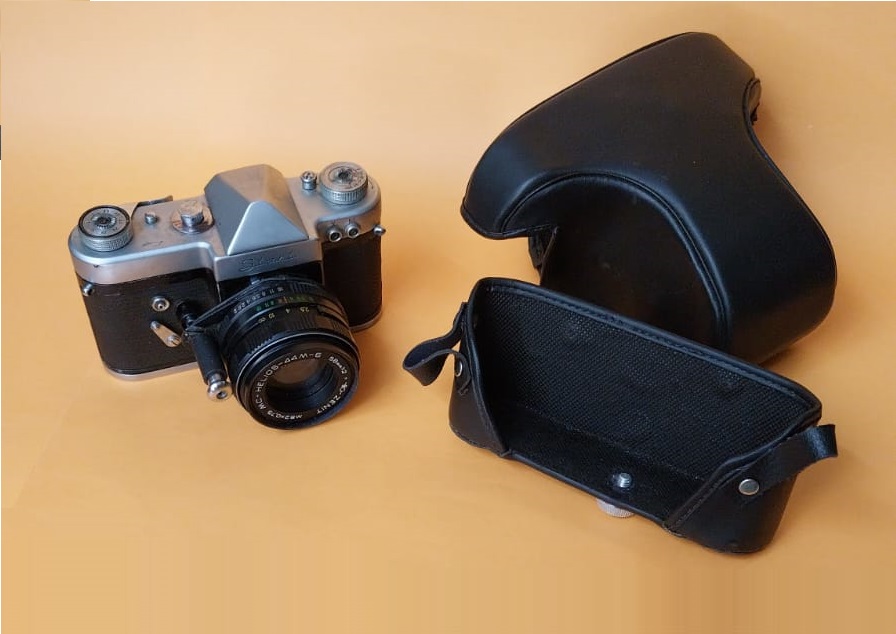

ZENIT AND EVEREADY CASE

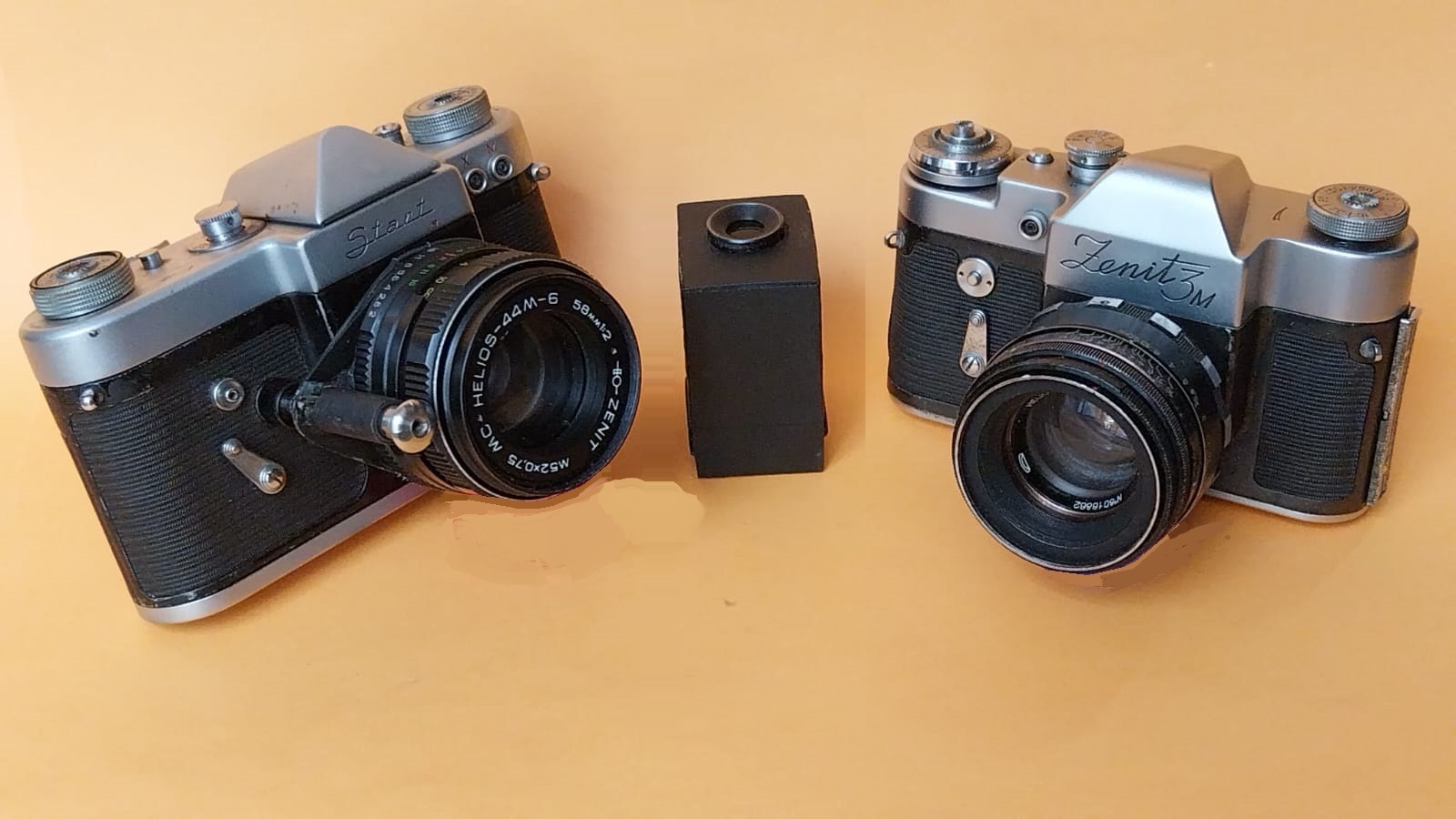

START ZENIT AND HOME BUILT FINDER


http://www.ussrphoto.com/UserContent2/2012024_BB1.jpeg


http://www.ussrphoto.com/UserContent2/2012024_BB2.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 2.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 3.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 4.jpeg

http://www.ussrphoto.com/UserContent2/2012024_cc 1.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 5.jpeg

SECOND ROW

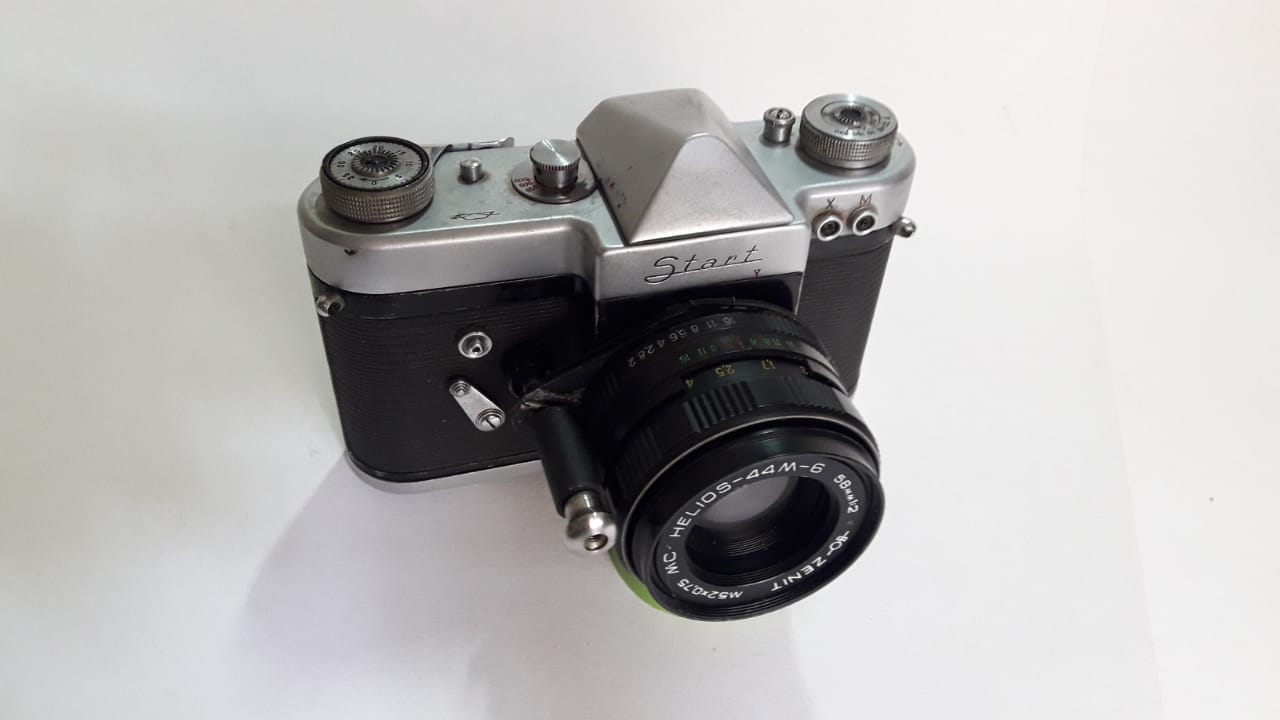

REFURBISHED START WITH NEW HELIOS

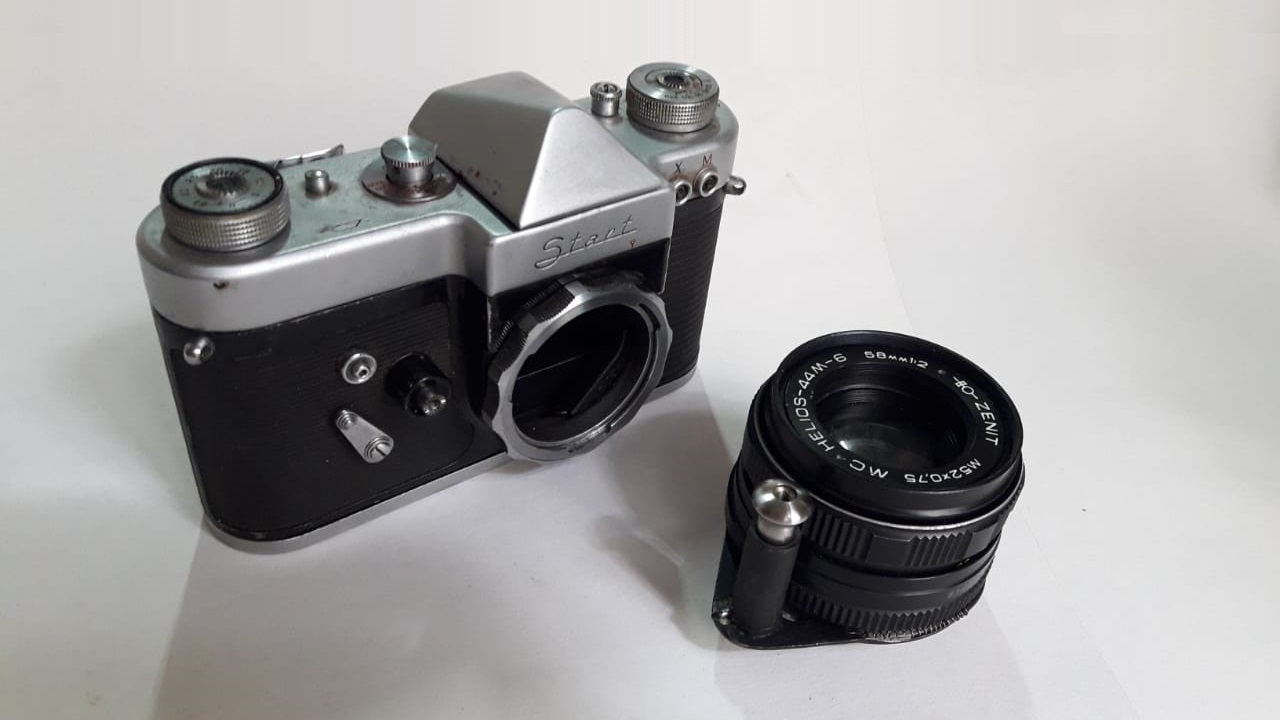

DETACHED LENS AND BODY

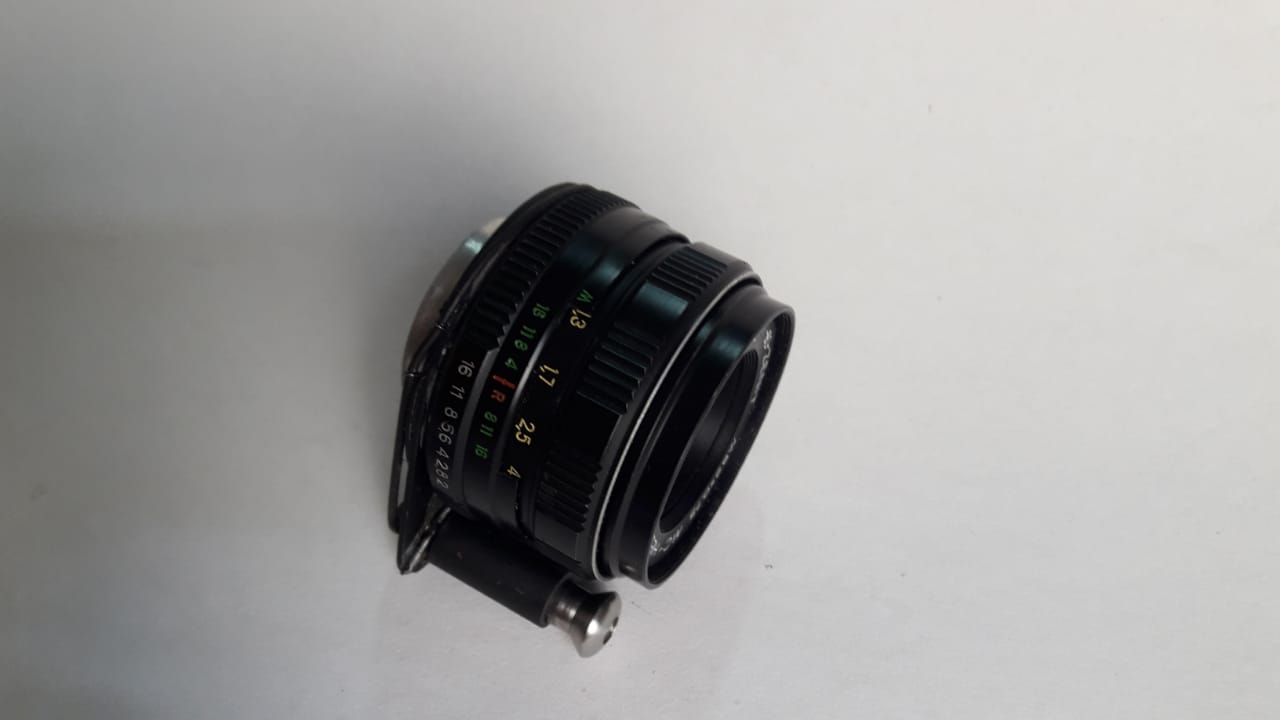

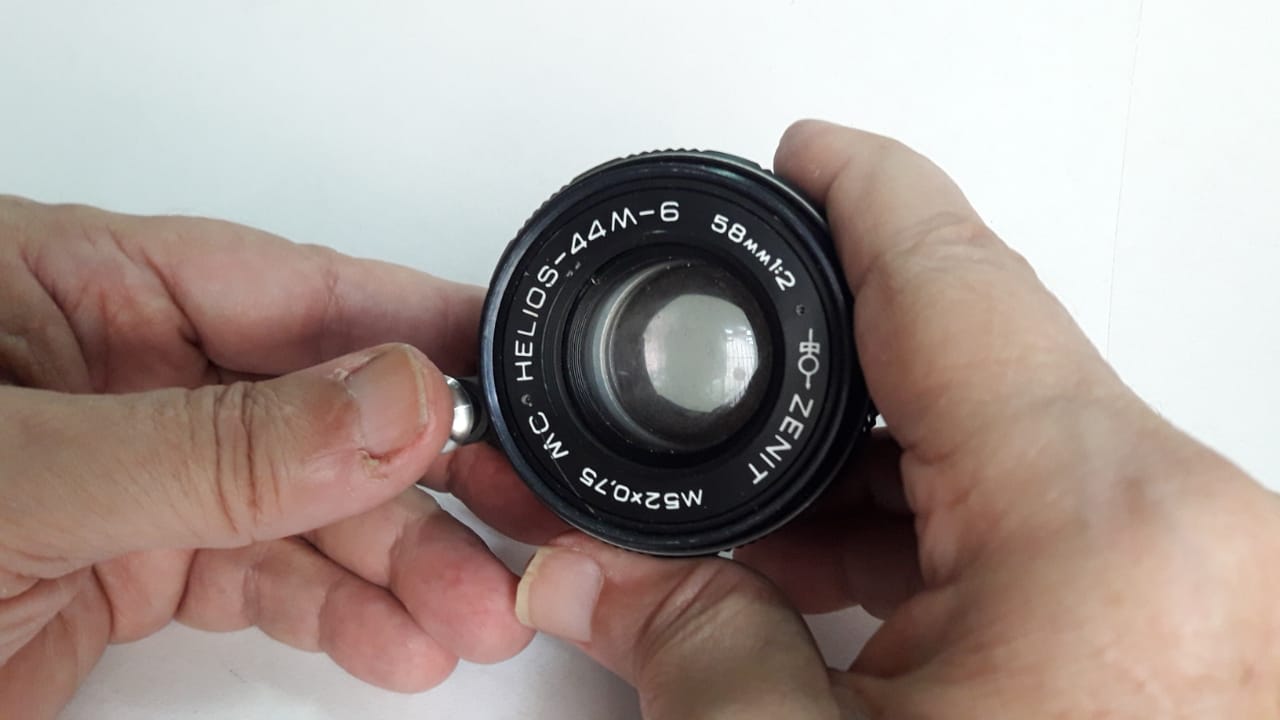

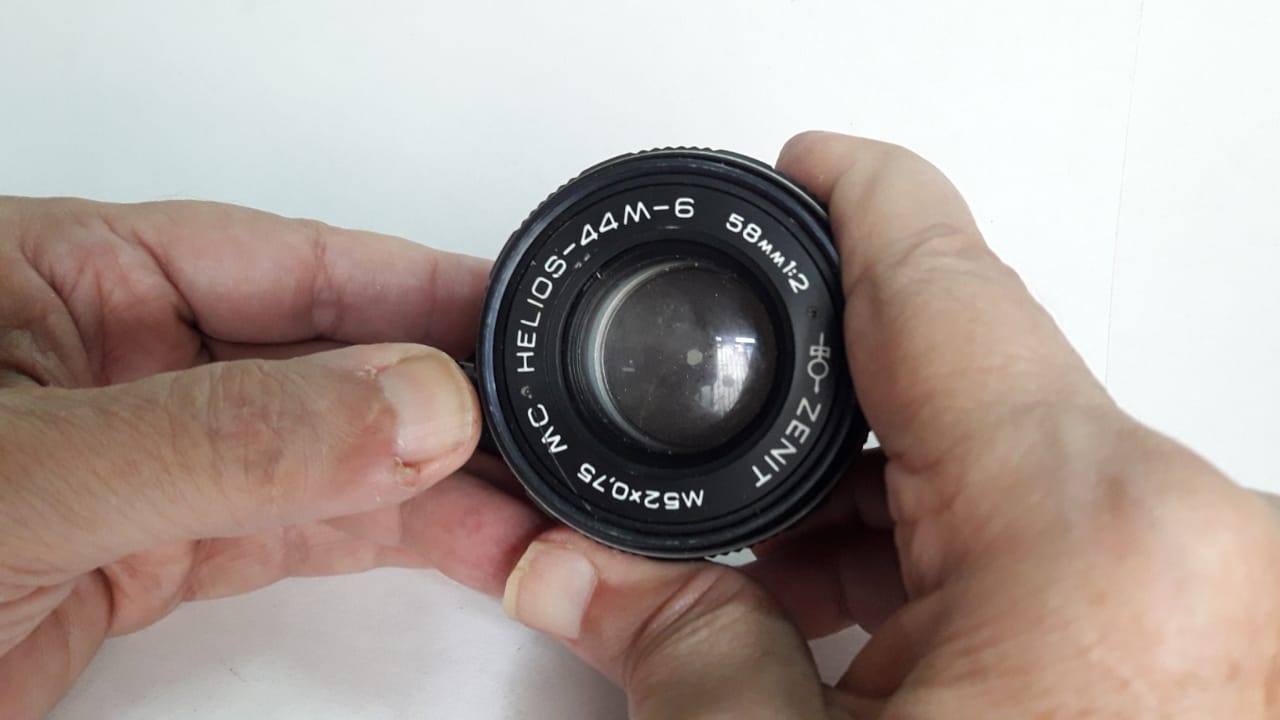

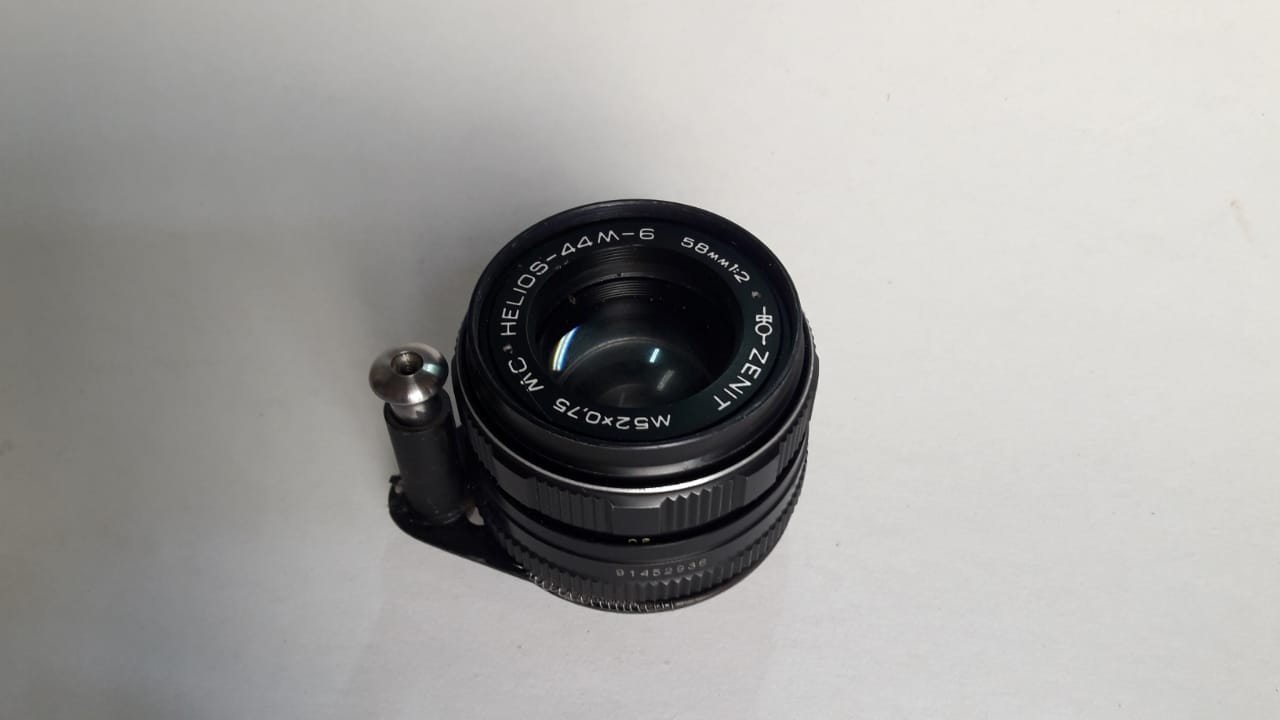

THE LENS
LATERAL VIEW
BACK VIEW
FRONT VIEW OPENED DIAPHRAGM
FRONT VIEW CLOSED DIAPHRAGM
BACK VIEW OPENED DIAPHRAGM
BACK VIEW CLOSED DIAPHRAGM

http://www.ussrphoto.com/UserContent2/2012024_cc 6.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 7.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 8.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 8.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 9.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 10.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 11.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 12.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 13.jpeg

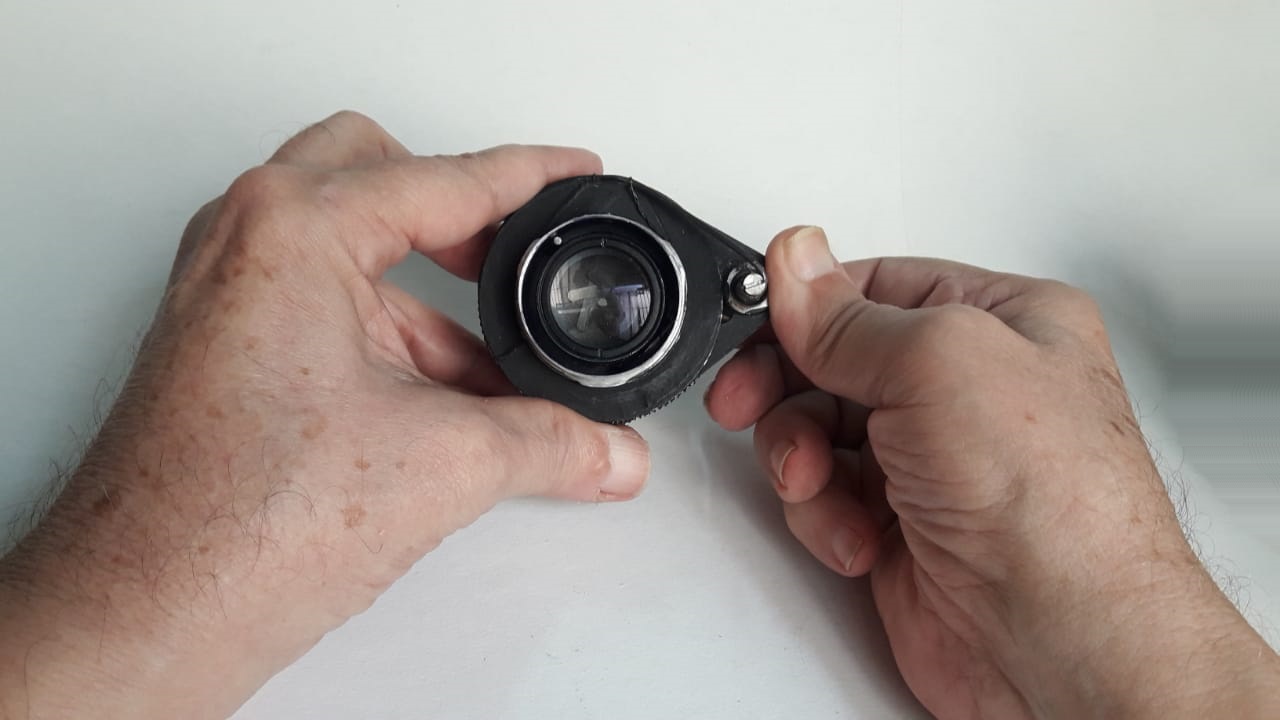

http://www.ussrphoto.com/UserContent2/2012024_cc 14.jpeg

THIRD ROW

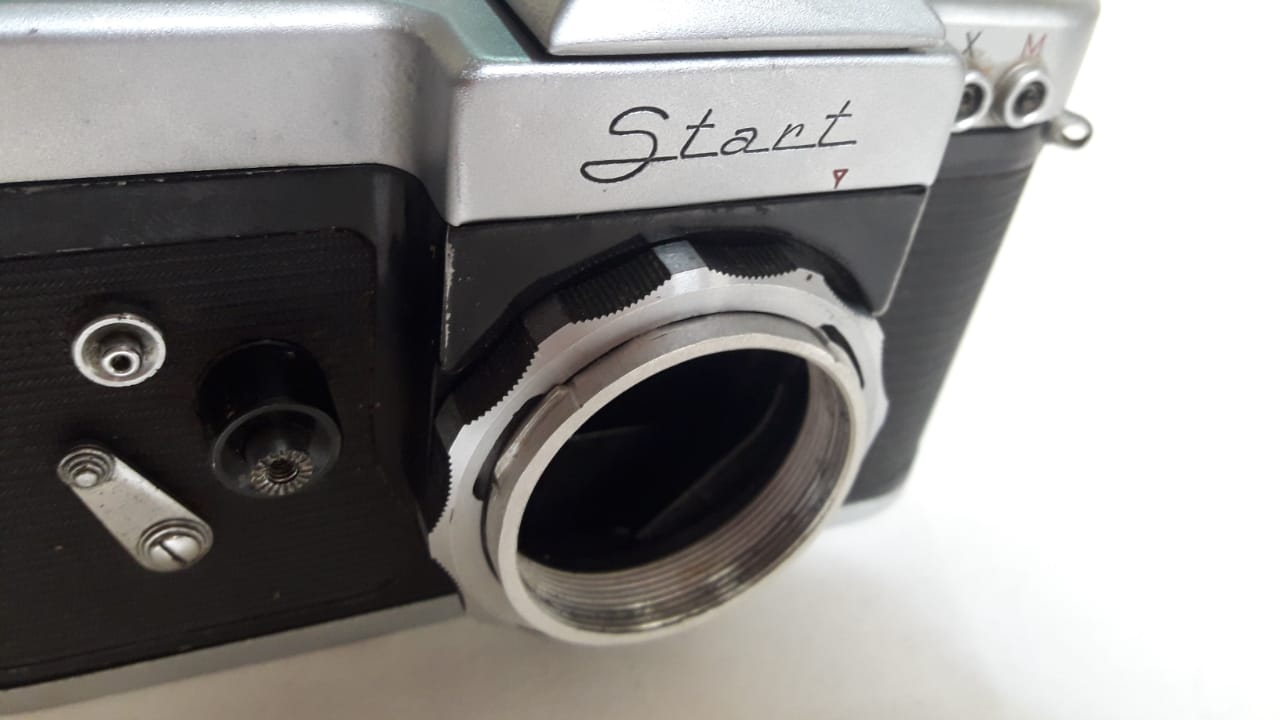

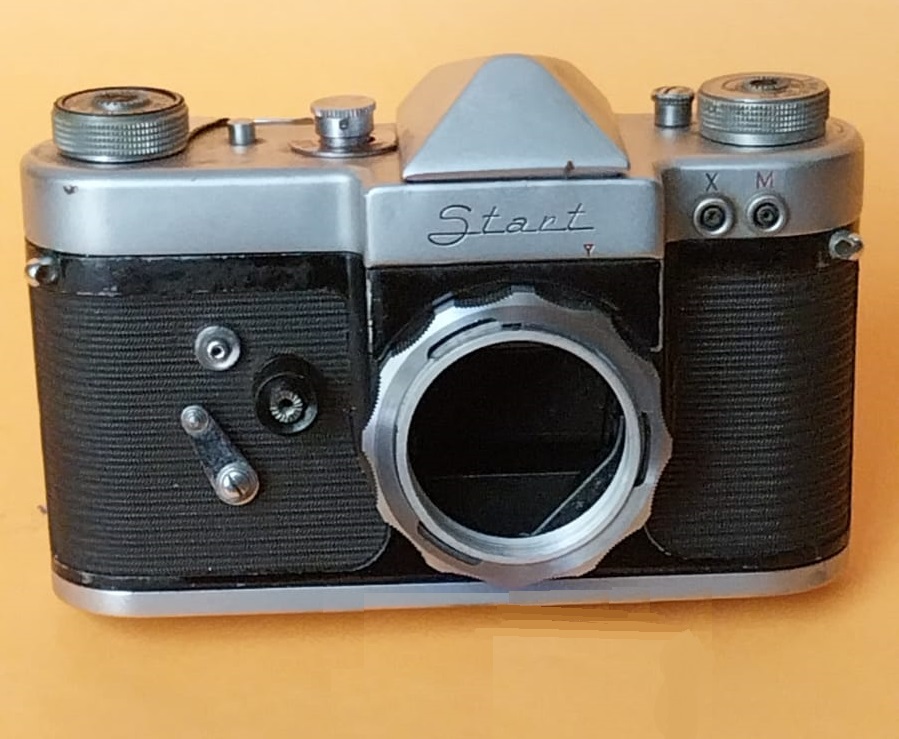

M39 TRANSIENT RING
M39 TRANSIENT RING 2ND VIEW

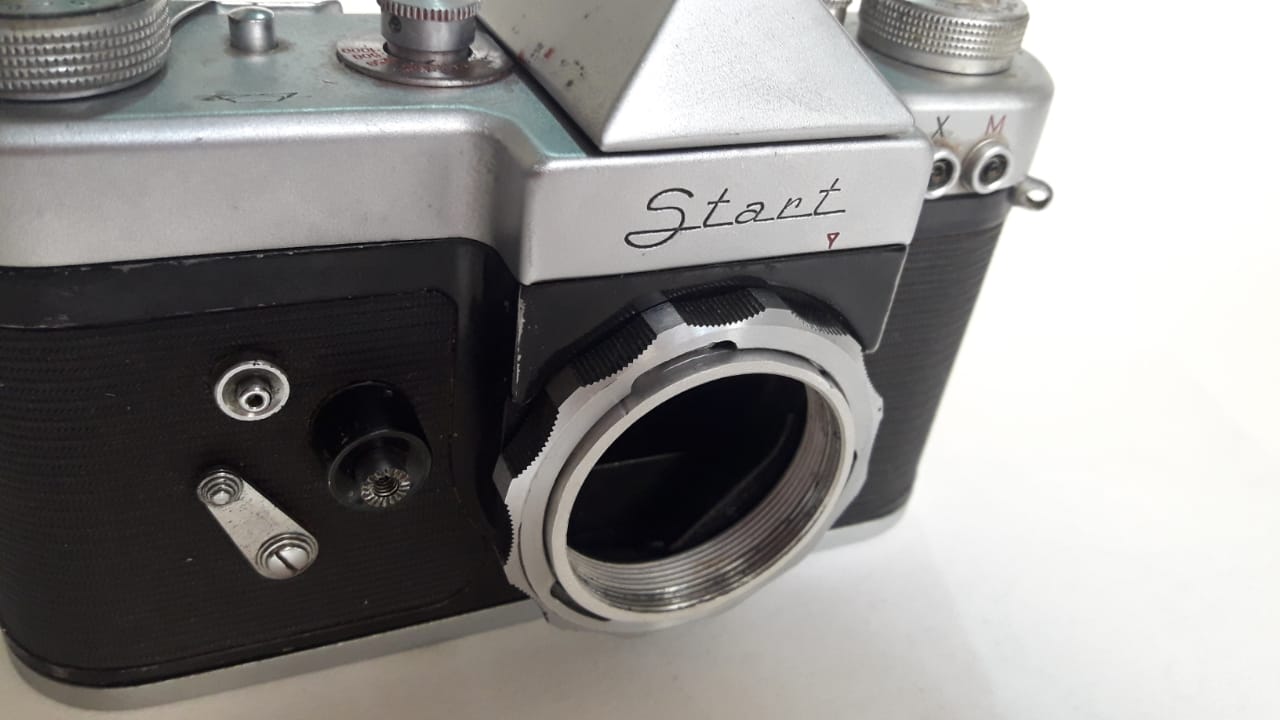

M39 TRANSIENT RING TIGHTNED

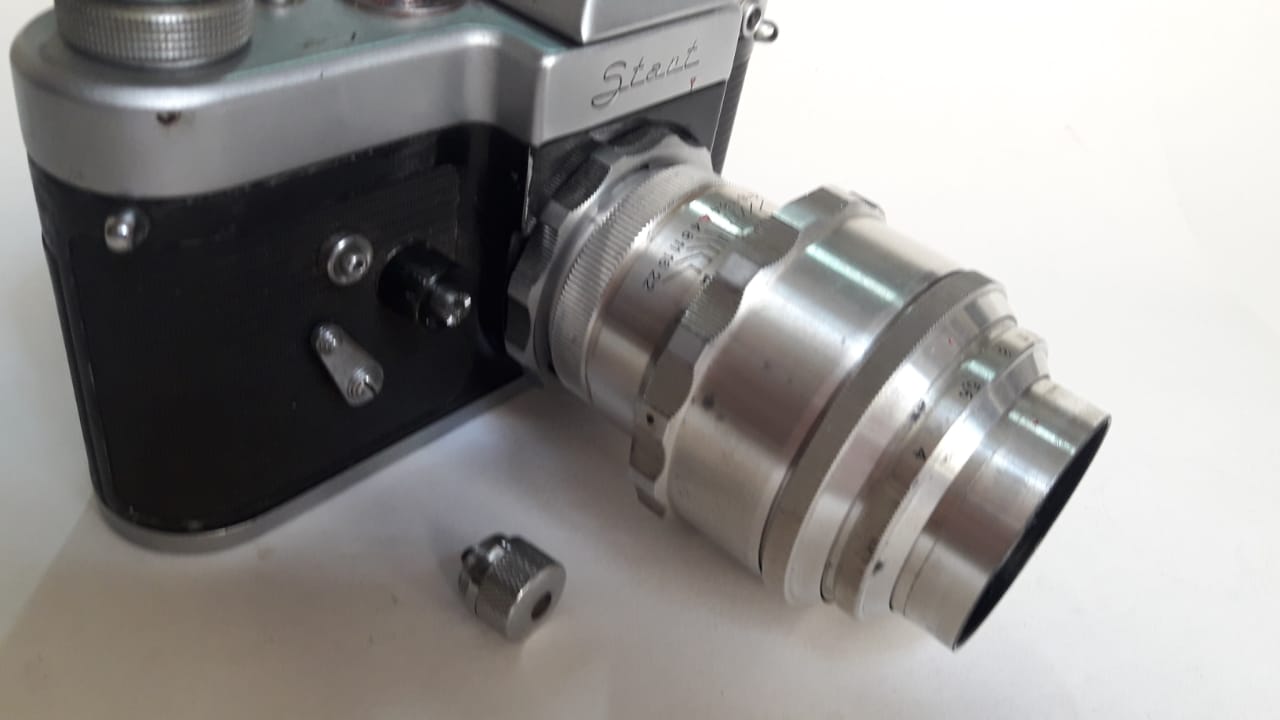

JUPITER 11 AND AUX. KNOB

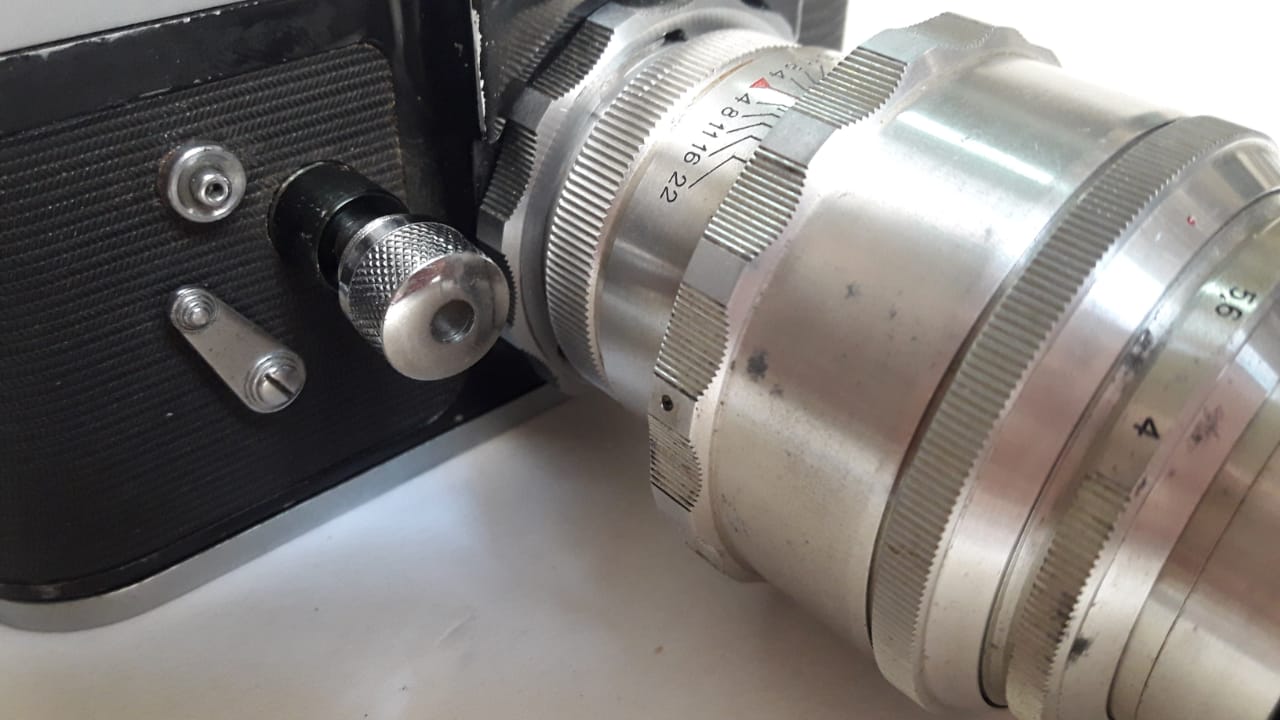

CLOSE VIEW OF ABOVE

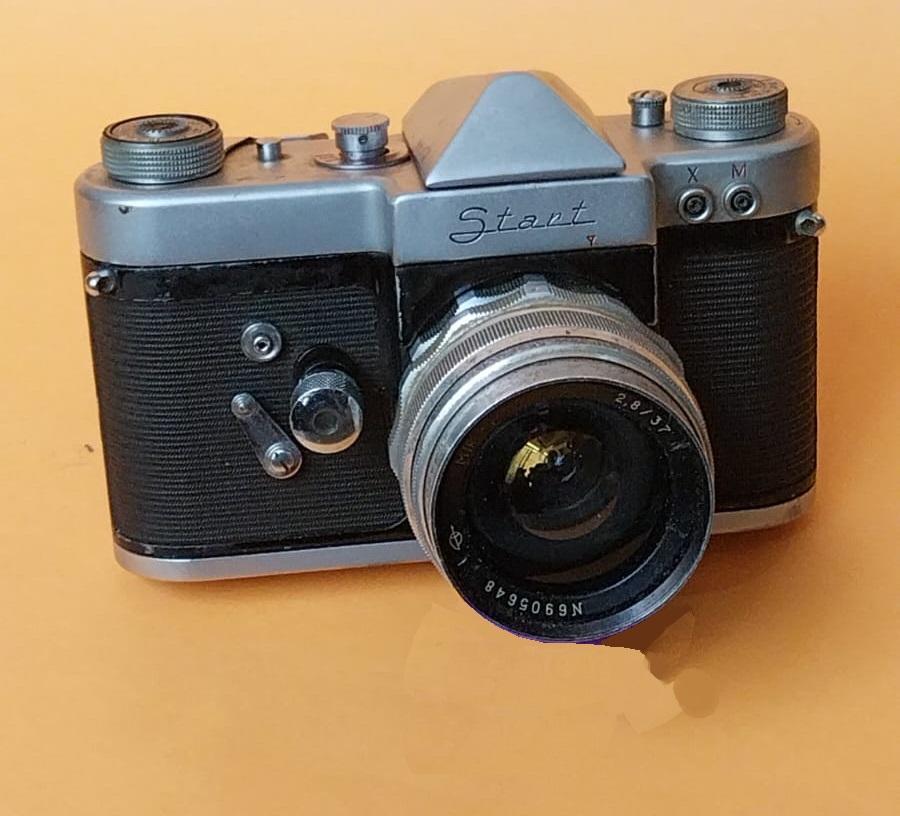

MIR 1 AND AUX. KNOB

http://www.ussrphoto.com/UserContent2/2012024_cc 15.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 16.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 17.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 18.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 19.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 20.jpeg

FOURTH ROW

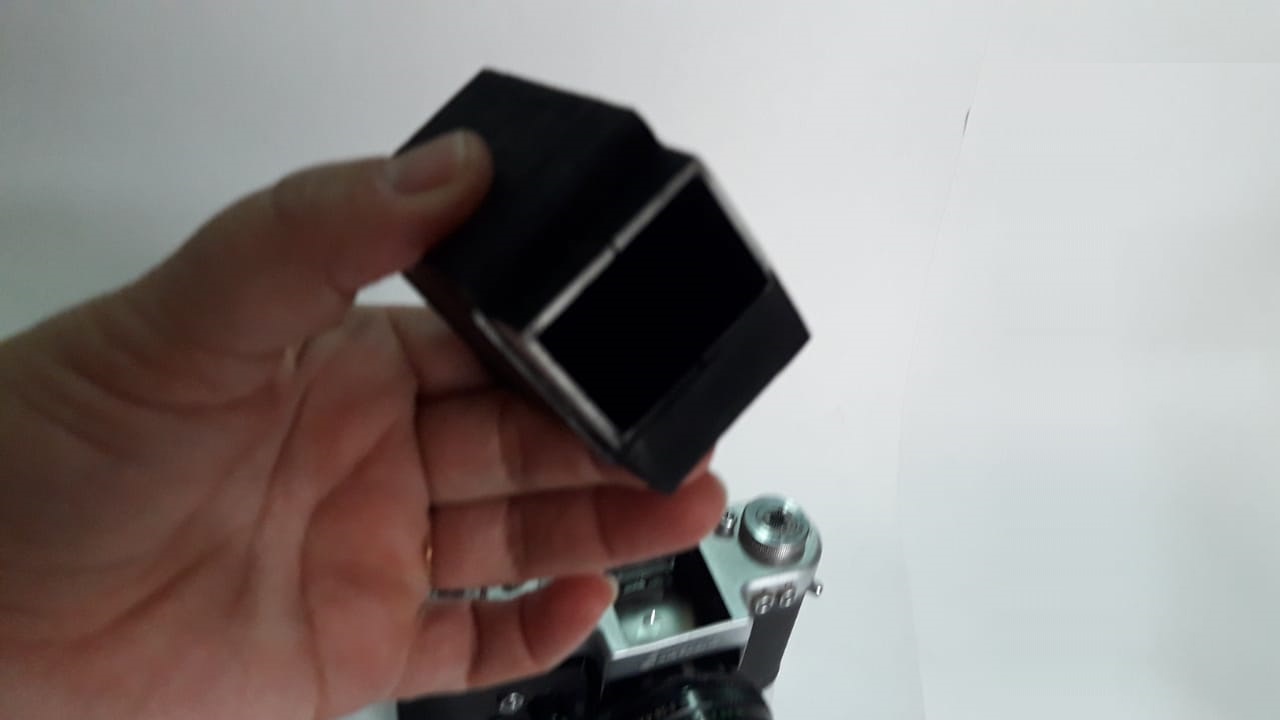

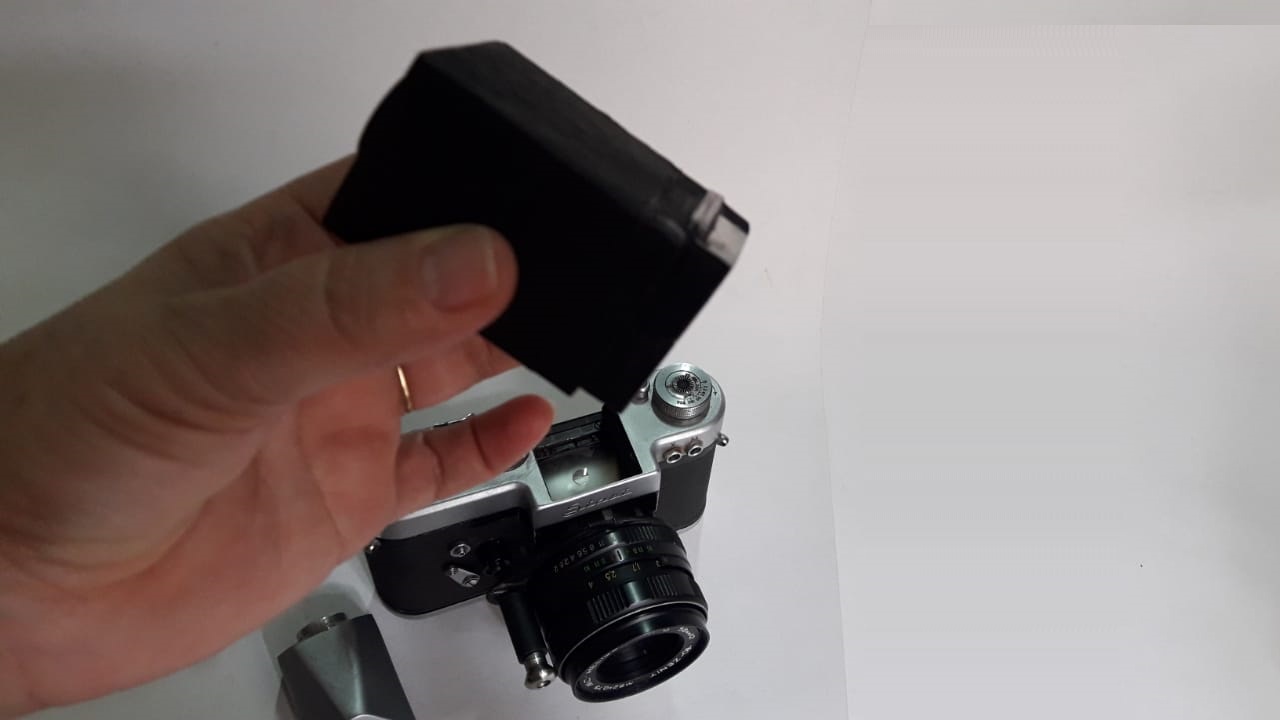

CHIMNEY FINDER
CHIMNEY FINDER 2ND VIEW

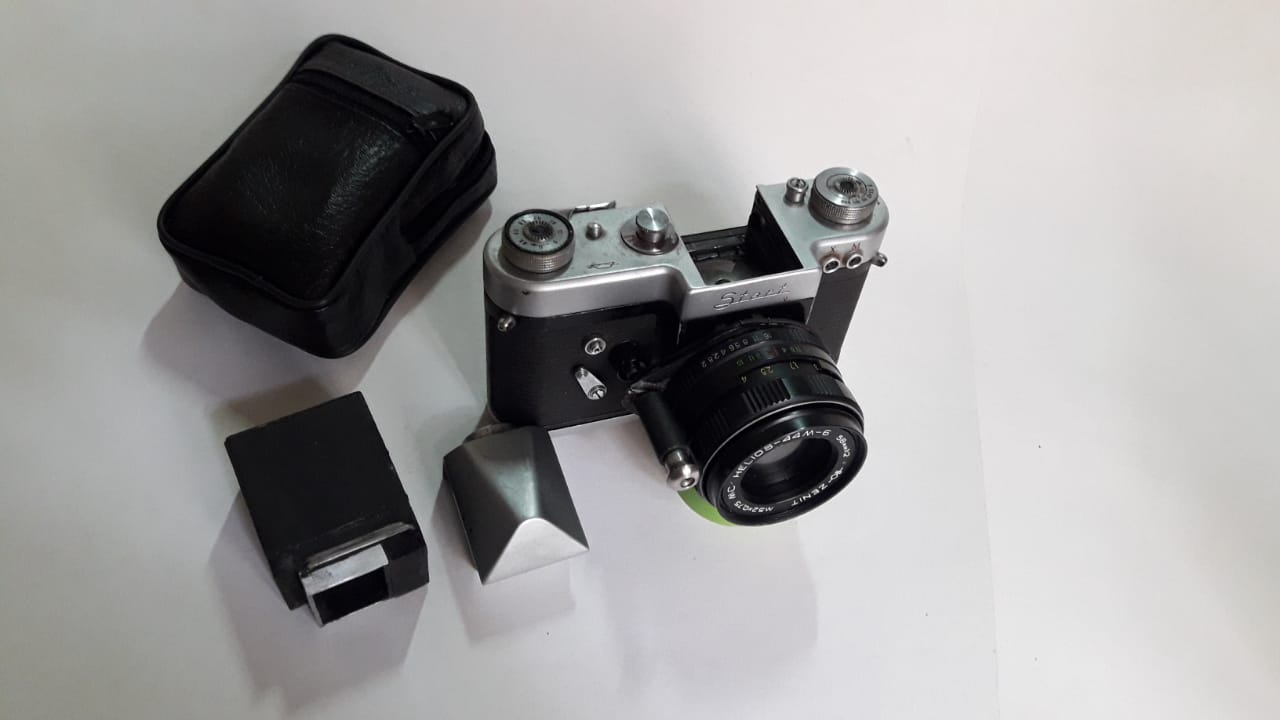

CHIMNEY FINDER, PENTAPRISM LENS AND CASE

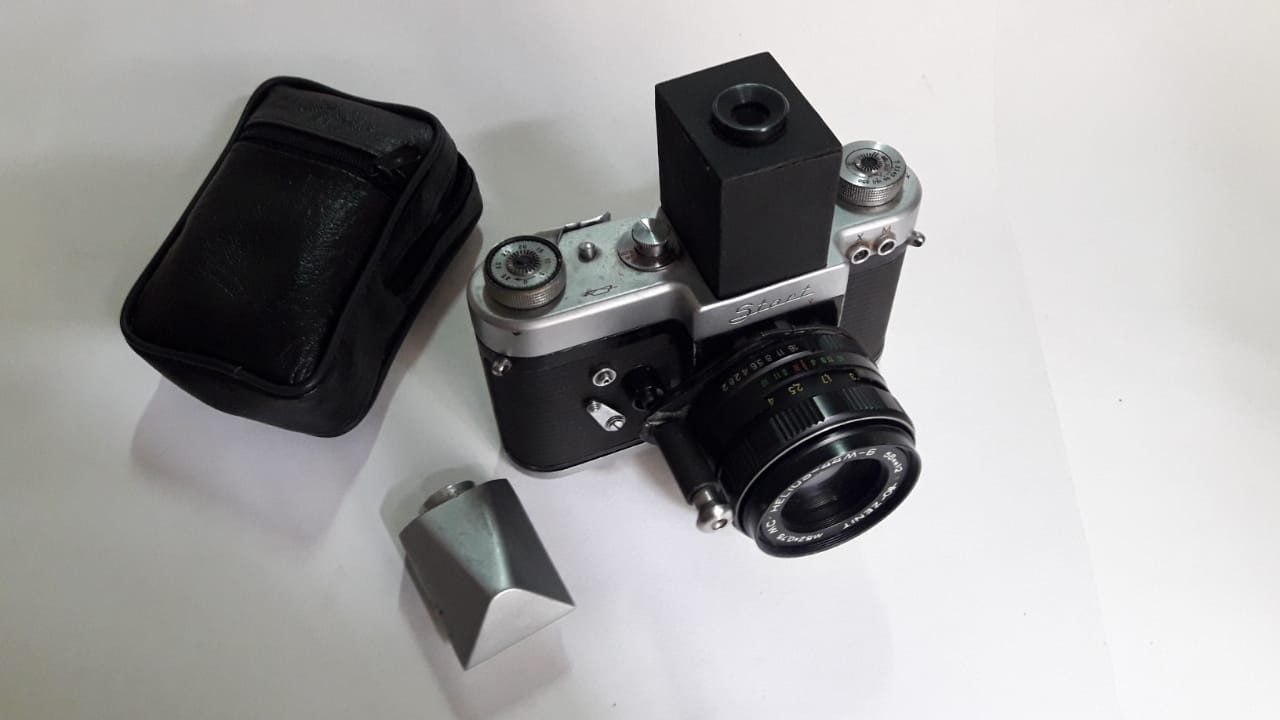

MOUNTED ON CAMERA
COMPLETE START CAMERA

http://www.ussrphoto.com/UserContent2/2012024_cc 21.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 22.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 23.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc 24.jpeg


http://www.ussrphoto.com/UserContent2/2012024_cc25.jpeg

As it was previously seen, this magnificent outfit touched me in a impactant way, not only due the Helios lens specially adapted for the Start camera, but mainly because I saw that very near me, and in the same state I live, so0meone built the “Outer Limits” and got further without my knowledge, or pehaps consultation.
I spent some hours studying its artisanal construction and the real limits of its possibilities. Certainly Mr or Professor Gilberto saw it in our site and gave his own version and/or contribution, but strangely left it behind when was gone to Spain.
Apparently he left no appointments at all. So, moved by some internal proudness, I decided to make a show in order to demonstrate the large capabilities of my Project constructed by someone I could not immagine could be interested to undertake it ahead. Together a two level tripod and a large angle swivel head came in the outfit and everything made me happy.
I wait this could make you enjoy and appreciate a very particular kind of collectionist that exists abroad and we are not aware.
Regards to all.



http://www.ussrphoto.com/UserContent2/2012024_CK 1.jpeg


http://www.ussrphoto.com/UserContent2/2012024_ck 1a.png


http://www.ussrphoto.com/UserContent2/2012024_CK 2.jpeg


http://www.ussrphoto.com/UserContent2/2012024_ck 2a.png


http://www.ussrphoto.com/UserContent2/2012024_ck 2b.png


http://www.ussrphoto.com/UserContent2/2012024_CK 3.jpeg


http://www.ussrphoto.com/UserContent2/2012024_CK 4.jpeg


http://www.ussrphoto.com/UserContent2/2012024_CK 5.jpeg


http://www.ussrphoto.com/UserContent2/2012024_CK 6.jpeg


http://www.ussrphoto.com/UserContent2/2012024_CK 7.jpeg


http://www.ussrphoto.com/UserContent2/2012024_CK 8.jpeg


http://www.ussrphoto.com/UserContent2/2012024_CK 9.jpeg


http://www.ussrphoto.com/UserContent2/2012024_Dck 3.jpg


http://www.ussrphoto.com/UserContent2/2012024_Dck 4.jpg


http://www.ussrphoto.com/UserContent2/2012024_Dck 5.jpg


http://www.ussrphoto.com/UserContent2/2012024_Dck 6.png


http://www.ussrphoto.com/UserContent2/2012024_Dck 7.png


http://www.ussrphoto.com/UserContent2/2012024_HEM 1.jpeg


http://www.ussrphoto.com/UserContent2/2012024_HEM 2.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JP1.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JP2.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPO 1.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPO 2.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPO 3.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPO 4.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPO 6.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPO 5.jpeg


http://www.ussrphoto.com/UserContent2/2012024_RTT 7.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPO 7.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPO 8.jpeg


http://www.ussrphoto.com/UserContent2/2012024_jpt 1.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPT 2.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPT 3.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPT 4.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPT 6.jpeg


http://www.ussrphoto.com/UserContent2/2012024_JPT 7.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SAP001.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SAP02.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SP 1.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SP 2.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SP 3.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SP 4.jpeg

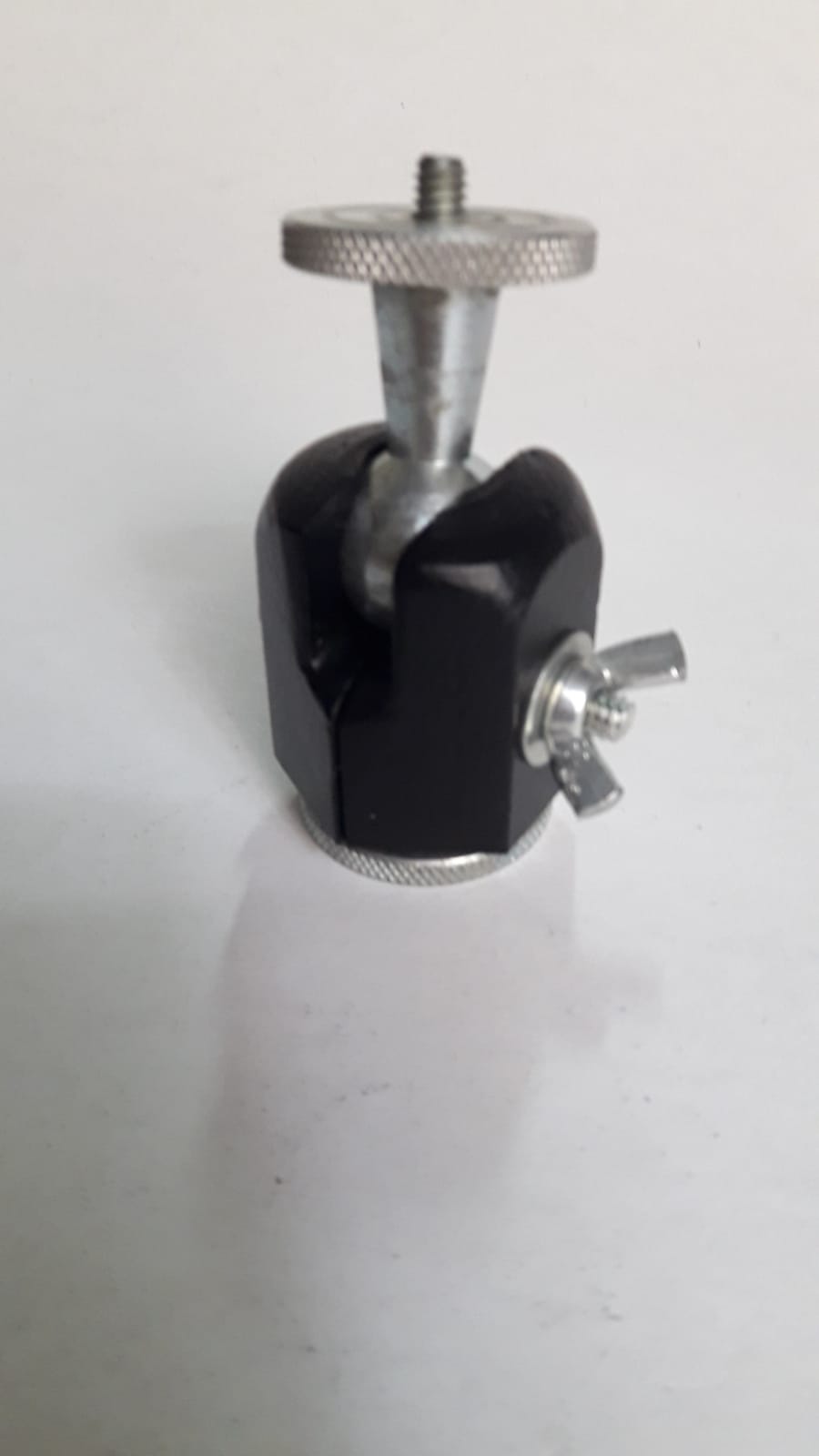

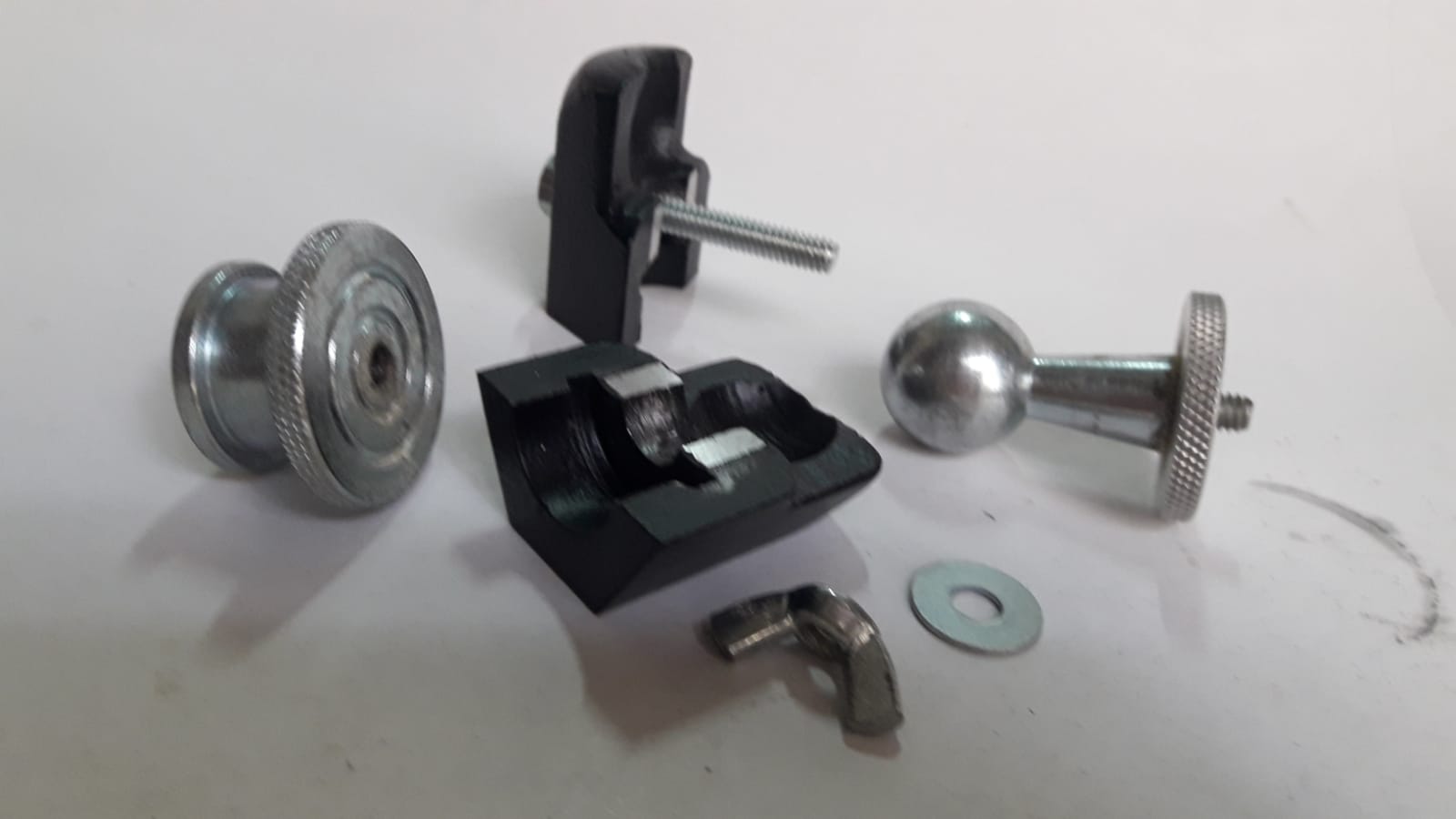

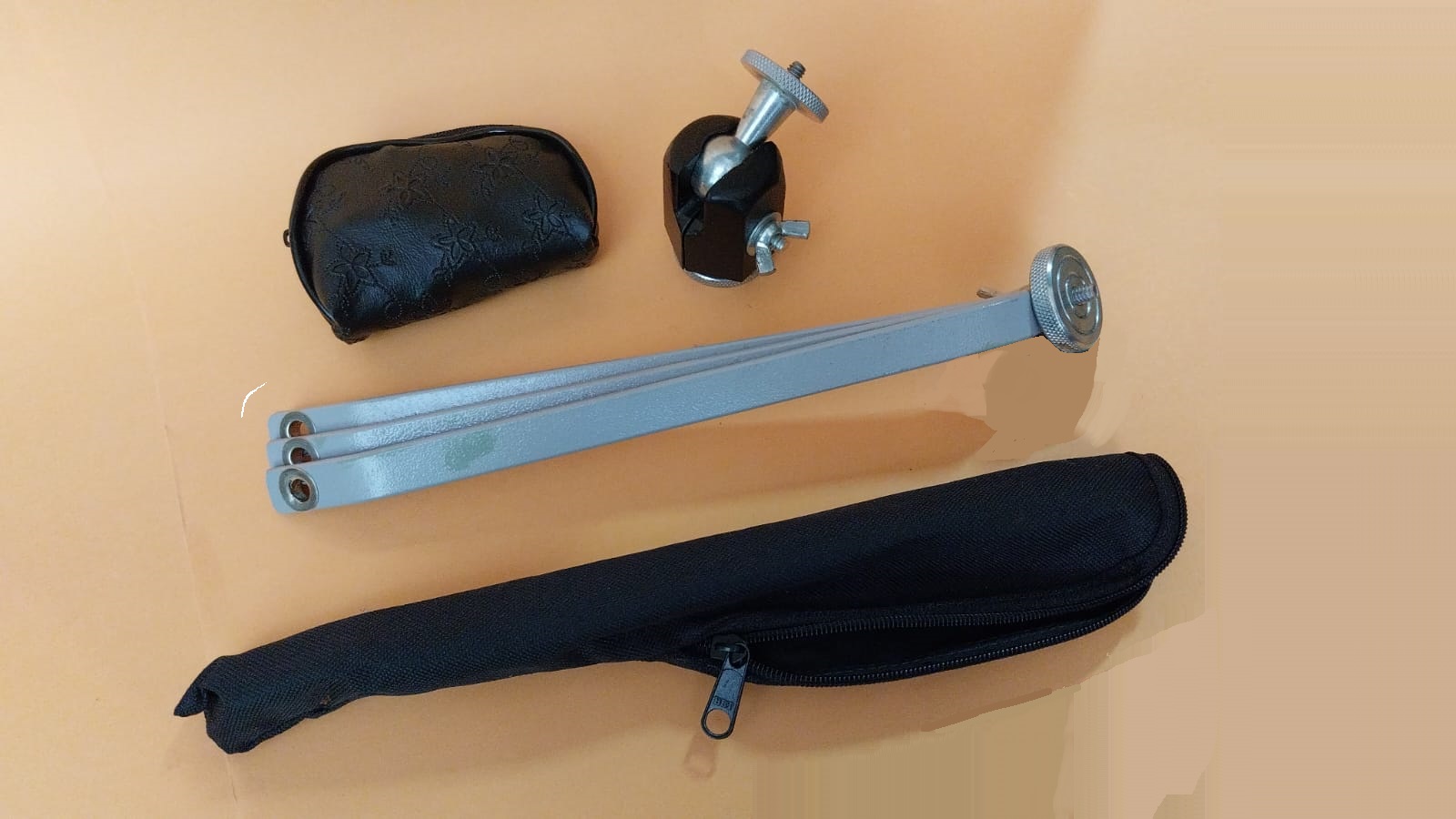

In complement of our previous description, this is the head and tripod that came together this historic outfit, Enjoy!


http://www.ussrphoto.com/UserContent2/2012024_SZKT 1.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SZKT2A.jpg


http://www.ussrphoto.com/UserContent2/2012024_SZKT2B.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SZKT3A.jpg


http://www.ussrphoto.com/UserContent2/2012024_SZKT4.jpg


http://www.ussrphoto.com/UserContent2/2012024_SZKT5.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SZKT7 (1).jpeg


http://www.ussrphoto.com/UserContent2/2012024_SZKT6.jpeg


http://www.ussrphoto.com/UserContent2/2012024_SZKT9.jpeg


http://www.ussrphoto.com/UserContent2/2012024_WhatsApp Image 2023-03-25 at 10.39.11.jpeg

An advertising lamp used by East- West Agencies in den Haag or one of their retailers.

Luiz,

unbelivable, what great sets!
I also own a Start with the M39 adapter ring and a waist level finder. Both are rare today.

Ulrich


http://fotos.cconin.de

Milo, the advertising is great. But also the Leica advertising looks nice :-)

Ulrich

http://fotos.cconin.de

Ulrich and Milo

Ulrich wait a bit more that I am prepairing two more items found in my garimpage thait i told about in the beginning and not yet ready.
Milo - EWA was a TOE associate during '70 up to '90 years. Was it found in recent still operating shop?

Regarda

Попал мне в коллекцию оригинальный сбор Zorki + редкий индустар 22 с документами. Многие интересовались, для чего изготавливали белые Индустар 22 жесткой конструкции. Вот и ответ. Это были опытные партии для выяснения спроса и отзывов на такие объективы.
Аппарат достался с сухими шторками. Шторки были заменены, механизмы почищены. Аппарат полностью рабочий.


http://www.ussrphoto.com/UserContent2/722024_P6070015.JPG


http://www.ussrphoto.com/UserContent2/722024_P6070019.JPG


http://www.ussrphoto.com/UserContent2/722024_P6070021.JPG


http://www.ussrphoto.com/UserContent2/722024_P6070022.JPG

Hi Denn,
welcome here & thank you for this note. Very interesting information.


Regards, Alexander

Would it be possible that someone please translates Denn Kirov? That would be nice...

www.a7camera.com www.120folder.com www.instantphoto.eu www.135compact.com www.oddcameras.com
www.subcompactcam.com

quote:

---

Originally posted by xya

Would it be possible that someone please translates Denn Kirov? That would be nice...

---

https://translate.google.com/ makes that possible

Regards, Alexander

And this one gives the best translation!!
https://www.deepl.com/fr/translator

Fred
