Still Cameras > Homemade Cameras > Home made Industar 50 with automatic aperture.
<< Previous entry      Next entry >> Print this entry      Start forum thread about this entry     Edit this entry

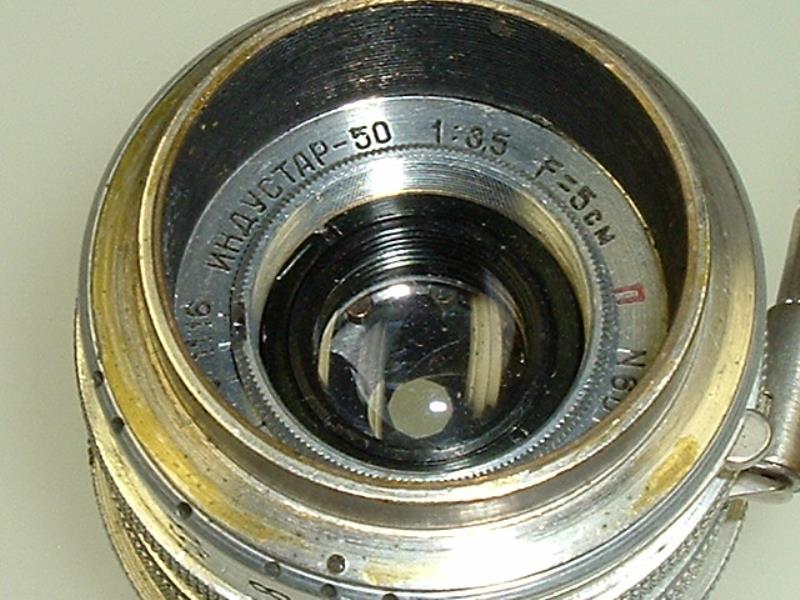

Home made Industar 50 with automatic aperture.


Home made Industar 50 with automatic aperture.

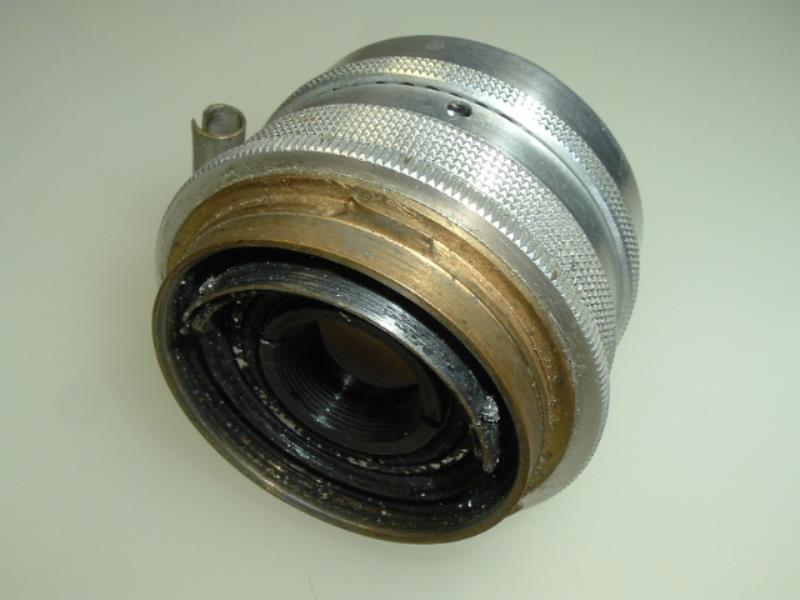

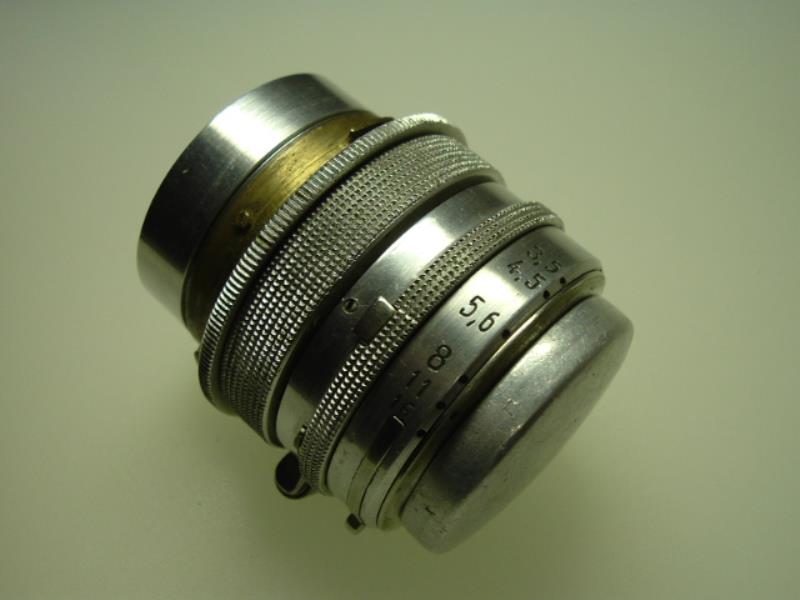

This lens works the same way as Tair 3C from Fotosniper. First aperture needs to be preset, and wind. With fully opened aperture is easy to focus on object. After camera is ready, aperture is close by triggering the spring using cable release.

By my estimate, this lens made at list 10 years before Fotosniper-2. I can only speculate that Krasnogor’s designers copy mechanism or ideas from this project. Also possible that this lens belong to some of the KMZ engineers who later use ideas to design Fotosniper.

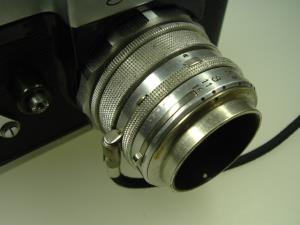

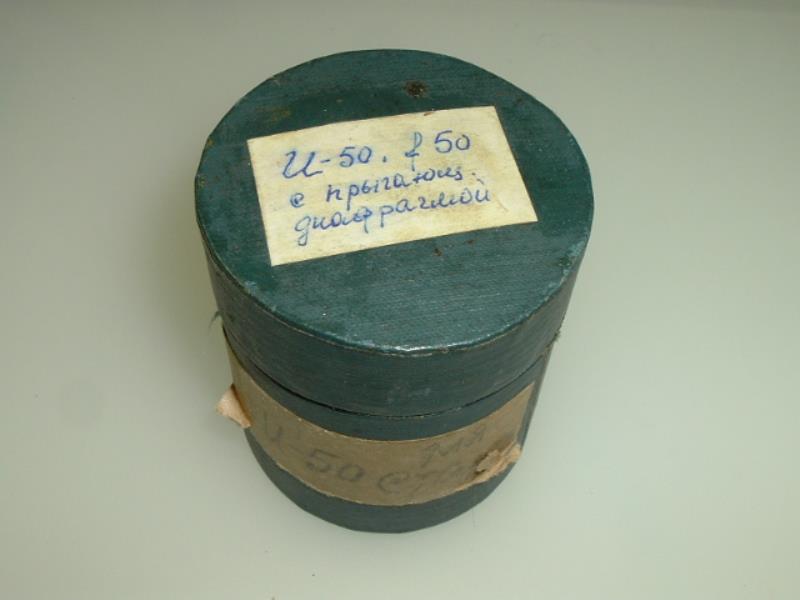

The lens fits for Start SLR. 100% custom made, even front and end caps are handmade :)

(Click to enlarge)


Created by okynek on 1/5/2009 10:06:52 PM   |   Last Edited by okynek on 1/5/2009 10:15:52 PM   Revision History
