Kiev Back Pinhole Camera
2008-2009

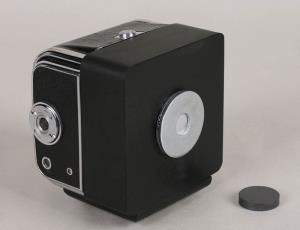

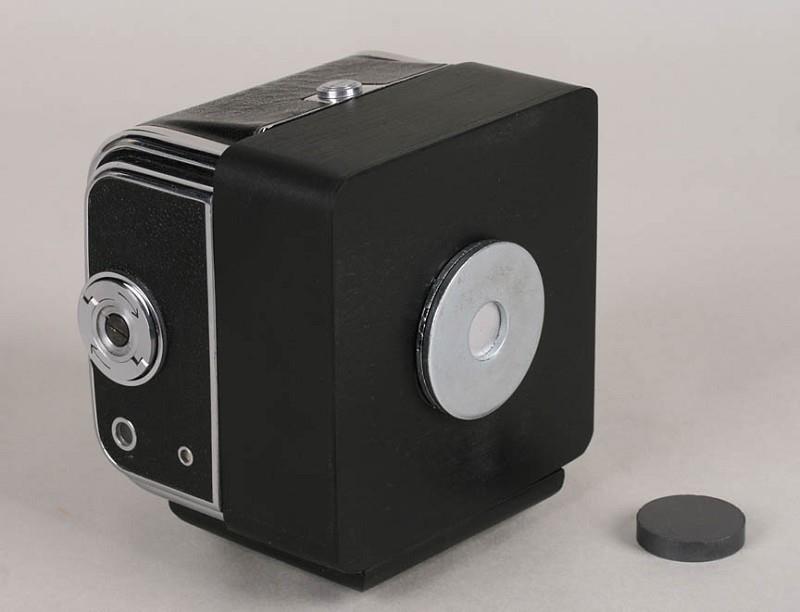

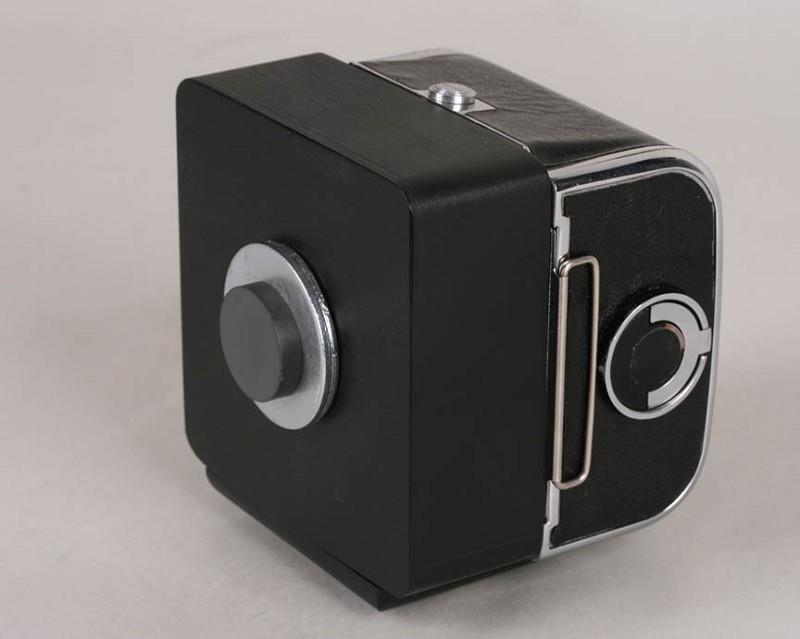

Kiev Back Pinhole Camera

A fine contemporary pinhole camera made in a small series by Cezary Bartczak in Poland.

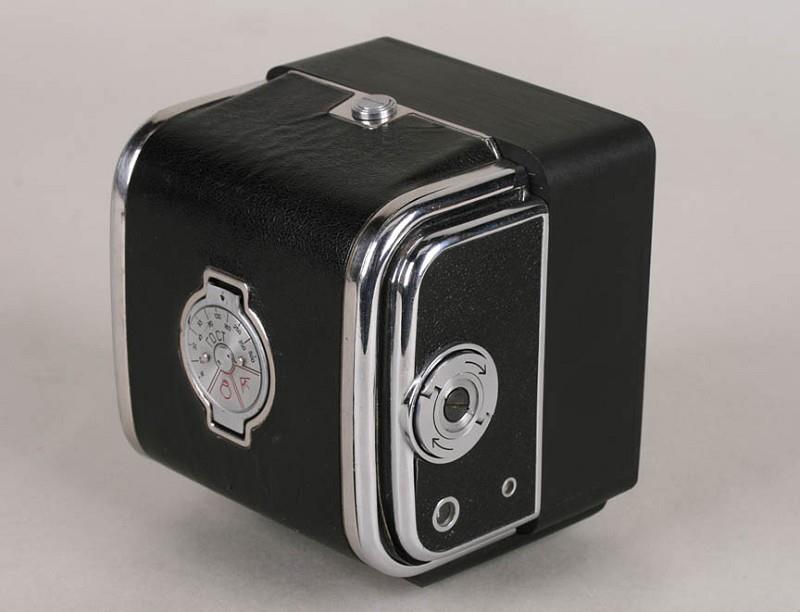

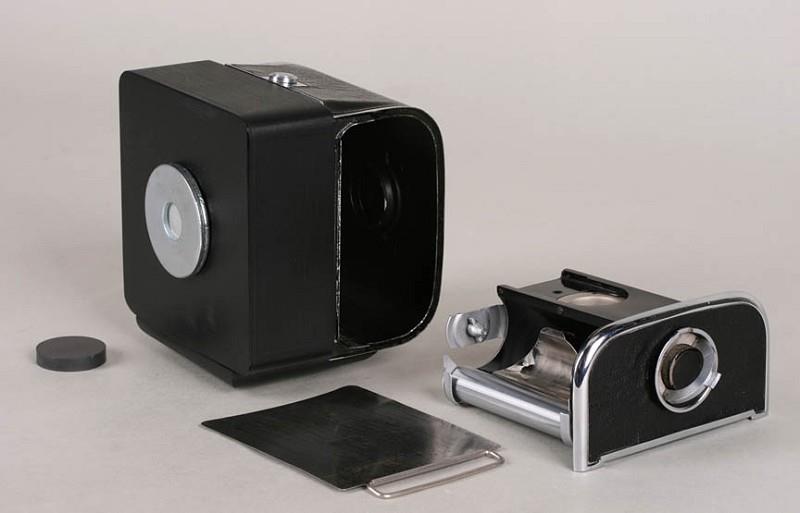

Beautifully crafted using a refurbished Kiev back so that 12 exposures can be made on a roll of 12o film (6 x 6 cm frame size). The body is black painted sycamore wood, permanently attached to the Kiev back and the 0.2 mm pinhole aperture is made with a precision mini drill.

The angle of view is stated to be 110 degrees, or the equivalent of a 16mm lens!
The aperture is equivalent of f. 150

The last photograph is the first that was made using a Kiev Back Pinhole Camera and was taken by the maker of the camera, Cezary Bartczak. He has a website with other work by him using pinhole cameras: www.pinhole.htw.pl

collection of Bill Parkinson
