Still Cameras > FED 1 > FED 1d
<< Previous entry      Next entry >> Print this entry      View Related Forum Thread - 4 post(s)     Edit this entry

FED 1d
1939-1941

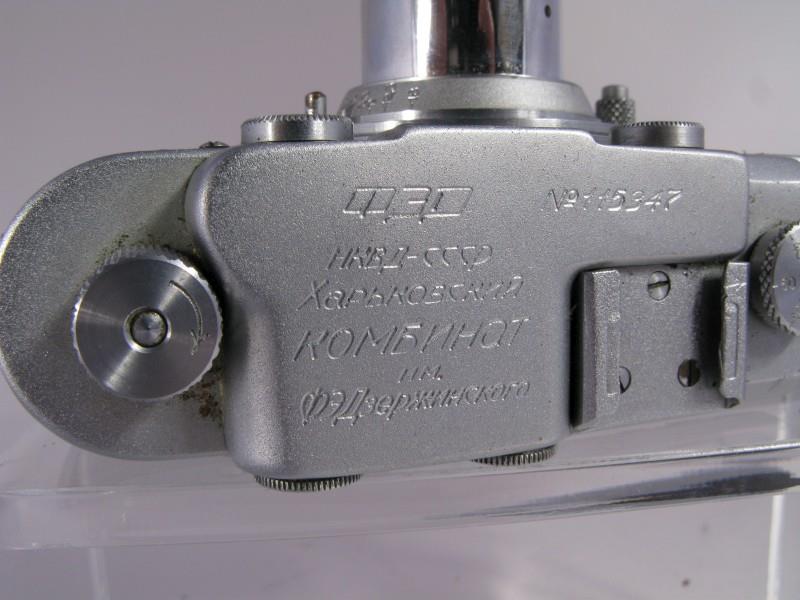

Engraving:
ФЭД НКВД-CССР Харьковский КОМБИНаТ им. ФЭДзержинского
(FED NKVD-SSSR Kharkovskii KOMBINAT im. FEDzerzhinskogo)
(FED NKVD-USSR Kharkov KOMBINAT named after F.E.Dzerzhinsky)
.
According to zenitcamera.com the NKVD ordered to change KOMMUNA into KOMBINAT on January 7th, 1939.
.
The FED 1d is the first real mass production model, without mechanical modification compared to the FED 1c. Only difference, the Russian engravings ('CCCP' instead of 'YCCP' and 'KOMBINAT' instead of 'Trudkommuna') on the top plate as Ukraine lost it's independence.
.
From #15x.xxx on, the pressure plate has no hole.
.
Serial number range: 95.xxx to 173.xxx
.
Some FED 1d cameras are said to have been made in Berdsk and have later serial numbers (up to 176.xxx as it seems) amongst the FED 1e serial numbers. But this might not be original cameras, since Fed 1e production already started in Kharkov in 1941 and it seems all FED 1e were manufactured in Kharkov before the evacuation. Besides that the first FED camera made in Berdsk was produced in January 1946 and Berdsk was ordered to produce 'Red Flag' and not 1d or 1e cameras (see Fed 1e thread).
.
.
Known serial numbers:
#body ___ #lens ______ lens-type _ speed __ owner/source _________ remarks
no serial _ 27151 ________ 50/2 __ 1000 __ Johan Kuiper
2570 ____ 25237/10 _____ 50/2 ___ 1000 __ Christian G.(Niko80) ____ odd #
5358 ____ ? ___________________________ Aidas ________________ odd #
25726 ___ 27211/35 _____ 50/2 ___ 1000 __ Jacques M. ____________ odd #
67588 ___ 113915 _______ 50/3,5 ________ Jacques M. ____________ odd #
67610 ___ 113869 _______ 50/3,5 ________ Jacques M. ____________ odd #
73334 ___ ? ________ on Fotosniper _______ Aidas ________________ odd #, likely 1st digit missing
93777 ____ mistake __on photo #98777_____ Molotok ______________ odd #
95088____96758 _______________________ A.Nikitin
95103 ________________________________ Allegro 2014
95601 ________________________________ Aidas
95826 ________________________________ A.Nikitin
95833 ________________________________ auction.ru
96383 ___ 97056 ______________________ A.Nikitin _______________ att. 21/V - 1939
97298 ___ 25682/18-2 ____ 50/2 ___ 1000 _ Jacques M.
98361 ___ 22898 ________ 50/2 ___ 1000 __ Christian G.(Niko80)
98527 ___ 25909 ________ 50/2 ___ 1000 __ Alex Photo
98666 ___ 24892 ________ 50/2 ___ 1000 __ eBay
99162 ___ ? ____________ 50/2 ___ 1000 __
99766 ___ ? ___________________________ Chris Sabine
100009 __ 100891/37-01 _________________ A.Nikitin
100617 __ 101393/54 ____________________ tuari
100883 __ 101814/51-5 __________________ geoffox23
101796 __ ? ____________ 50/2 ___ 1000 __ Jim McGee
101817 __ ? ____________ 50/2 ___ 1000 __ pointed by Ian Norris
102012 __ ? ____________ 50/2 ___ 1000 __ Nathan Dayton
102234 __ ? ___________________________ Molotok
104370 __ 26708/74-4 ____ 50/2 ___ 1000 __ Jacques M.
105157 __ ? ___________________________ Molotok
105237 __ ? ___________________________ Molotok
105384 __ ? ___________________________ Molotok
105453 __ ? ____________ 50/2 ___ 1000 __ DVD Technik
106348 __ ? ___________________________ ebay
107093 __ ? ___________________________ auction.ru
107327 __ ? ____________ 50/2 ___ 1000 __ Molotok
107723 __ 31185 ________ 50/2 ___ 1000 __ Stephan VDZ
109694 __ ? ____________ 50/2 ___ 1000 __ eBay
109742 __ ? ____________ 50/2 ___ 1000 __ eBay
110156 __ ? ____________ 50/2 ___ 1000 __ DVD
111357 __ ? ___________________________ ebay
111385 __ ? ___ post-war Ind.10 __ 1000 __ ebay 2016 link
111888 __ ? ___________________________ ebay
112797 __ ? ____________ 50/2 ___ 1000 __ DVD
112984 __ ? ___________ Ind.10 __ 1000 __ eBay
113097 __ 31331 ________ 50/2 ___ 1000 __ ebay
114965 __ ? ___________________________ ebay
115356 __ 27282/78 _____ 50/2 ___ 1000 __ Vladislav Kern

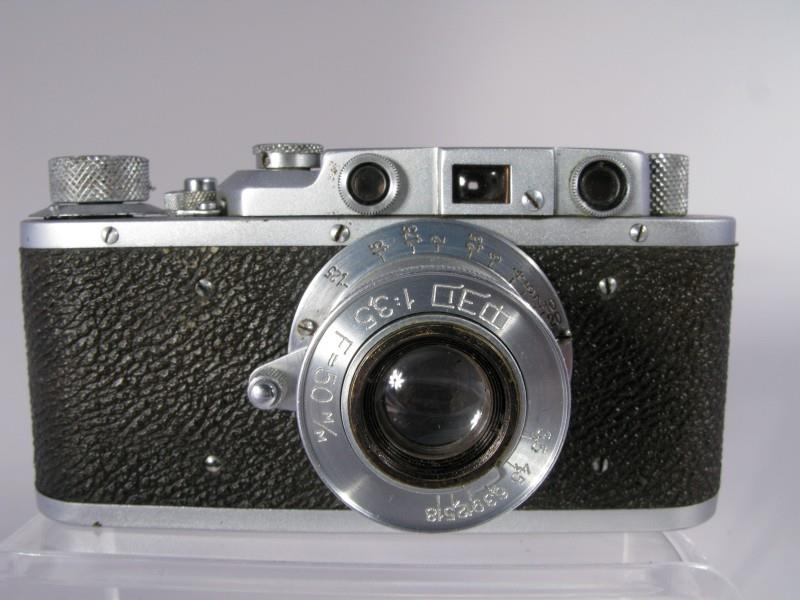

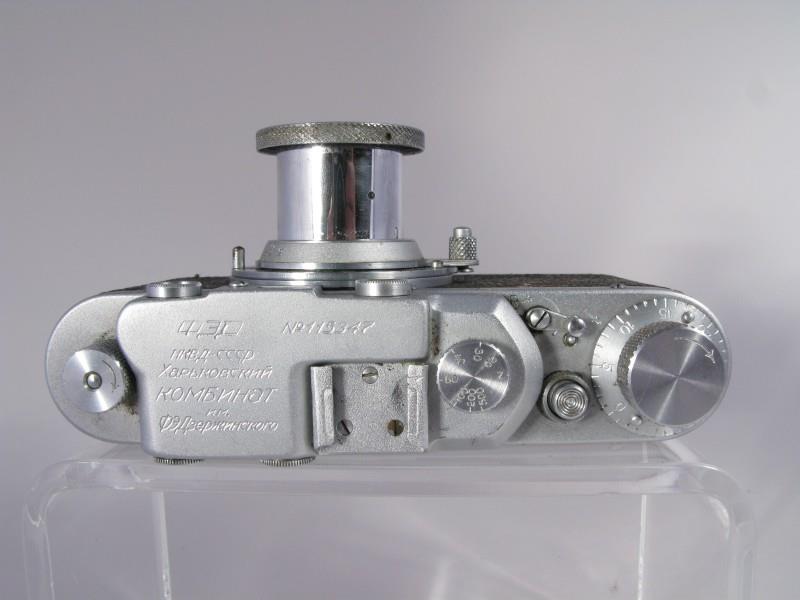

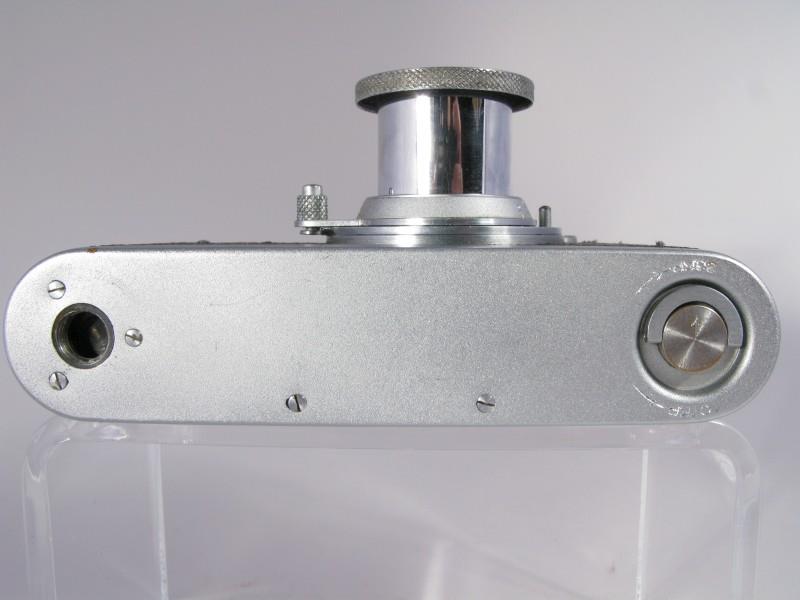

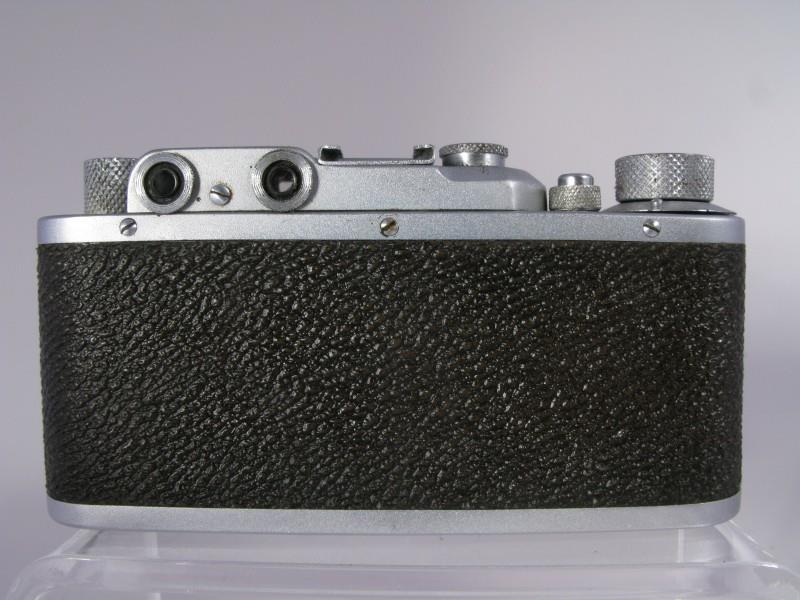

115347 __ ? ___________________________ Vladislav Kern ______ see photos
115732 __ 25178 ________ 50/2 ___ 1000 __ Soviet Camera Store
116318 __ 27721_________ 50/2 ___ 1000 __ A.Nikitin __________ attestat
116489 __ ? ____________ 50/2 ___ 1000 __ eBay
116905 __ ? ____________ 50/2 ___ 1000 __ eBay
117171 __ 27672 ________ 50/2 ___ 1000 __ A.Nikitin
117397 __ ? ___________________________ ebay
117899 __ ? ___________________________ ebay
118996 __ ? ___________________________ Molotok
118999 __ 27938/4 _______ 50/2 __ 1000 __ ebay
119054 __ ? ___________________________ flickr
119130 __ ? ___________________________ ebay
119669 __ ? ___________________________ ebay
119792 __ 27951 ________ 50/2 ___ 1000 __ Jacques M.
120752 __ ? ____________________ 1000 __ ebay __________ black top and bottom plate steel
121090 __ ? ___________________________ Molotok
122018 __ ? ___________________________ auction.ru
123120 __ ? ___________________________ ebay
123272 __ 26054/55 ______ 50/2 __ 1000 __ geoffox23
123529 __ 126404 ______________________ ebay
124414 __ ? ___________________________ Molotok
124420 __ ? ___________________________ R.Herron
124917 __ ? ____________ 50/2 ___ 1000 __ eBay
125167 __ ? ____________ 50/2 ___ 1000 __ DVD
125713 __ ? ___________________________ Alexander K.
125821 __ ? ___________________________ flickr
127769 __ ? ___________________________ redarmylivinghistory.com
127977 __ ? ___________________________ ebay
128472 __ ? ___________________________ ebay
129129 __ 30633 ________ 50/2 ___ 1000 __ Sokrat store
129277 __ 125581/77 ____________________ Christian G.(Niko80)
130205 __ 87446/81 _____________________ tuari
130419 __ ? _____________ 50/2 ___ 1000 __ eBay
130704 __ ? ____________________________ ebay
131794 __ 28904 _________ 50/2 ___ 1000 __ Chris Sabine
132262 __ 28946 _________ 50/2 ___ 1000 __ eBay
132610 __ 28957 _________ 50/2 ___ 1000 __ David Tomlinson
133024 __ ? ___________________________ ebay
133561 __ 31409/34 ______ 50/2 ___ 1000 __ Aidas
134888 __ ? _____________ 50/2 ___ 1000 __ ebay 2016 link
135038 __ ? ____________________________ ebay
135073 __ 026994 __ post-war Ind. _________ ebay
135269 __ ? _____________ 50/2 ___ 1000 __ Dr.Vonin
136157 __ 29576 _________ 50/2 ___ 1000 __ DVD _____ passport 20/08/1940 Harkov, Lesopark 27
136611 __ 2859182 - Carl Zeiss Jena__ 500 __ web
137146 __ ? ____________________________ Molotok
138730 __ 26504 _________ 50/2 ___ 1000 __ Juhani
139824 __ ? ____________________________ ebay
139831 __ ? ____________________________ Vyacheslav K.
140823 __ ? ____________________________ ebay
141079 __ ? ____________________________ georg16nik
141520 __ 141511 _________________ 500 __ ebay _____________ nearly same #
141579 __ ? _____________ 50/2 ___ 1000 __ mvd807
141580 __ 29989 _________ 50/2 ___ 1000 __ kievuser
141993 __ ? _____________ 50/2 ___ 1000 __ eBay
142839 __ ? ____________________________ ebay
144029 __ ? ____________________________ ebay
144306 __ 138420/81 ____________________ geoffox23
145068 __ ? ____________________________ auction.ru
145088 __ 30301 _________ 50/2 ___ 1000 __ list service
145179 __ 144662 _______________________ DVD _____ passport 22/10/1940 Harkov, Lesopark 27
145357 __ ? ____________________________ ebay
145682 __ ? _____________ 50/2 ___ 1000 __ eBay
145843 __ 24466 _________ 50/2 ___ 1000 __ outfitter
145902 __ 30335/12 ______ 50/2 ___ 1000 __ okynek
146818 __ 30525 _________ 50/2 ___ 1000 __ Johan Kuiper
147690 __ ? _____________ 50/2 ___ 1000 __ eBay
147758 __ ? ____________________________ ebay
148495 __ 30650 _________ 50/2 ___ 1000 __ eBay
148600 __ ? _____________ I-22 __________ ebay
150520 __ ? ____________________________ Aidas
152181 __ 151296 _______________________ ebay
152345 __ ? ___________ Sonnar ___ 1000 __ Molotok
153547 __ 4600 _________________________ A.Komarov
145179 __ ? ____________________________ DVD
154278 __ ? ____________________________ fotoua
154699 __ ? ____________________________ ebay
155477 __ ? ____________________________ DVD
155624 __ ? ____________________________ DVD
158827 __ ? ____________________________ M. Beadle
155849 __ 92235/17 _____________________ A.Komarov
156361 __ 31119 _________ 50/2 __________ Aidas
157264 __ 31228 _________ 50/2 __________ eBay
157514 __ ? ____________________________ ebay __________ smooth black cover
157694 __ 29044/59 ______ 50/2 ___ 1000 __ Jacques M.
157858 __ 7230 _________________________ tuari
158202 __ 31358 _________ 50/2 ___ 1000 __ ebay
158978 __ 24761 _________ 50/2 ___ 1000 __ SOVDEPIA
159013 __ ? _____________ 50/2 ___ 1000 __ Soviet Camera Store
160084 __ no lens ________________ 1000 __ eBay
160216 __ ? ____________________________ ebay 2016 link
160568 __ ? ____________________________ David Tomlinson
160636 __ ? _____________ 50/2 ____ 500 __ Molotok
160873 __ 31726 _________ 50/2 ___ 1000 __ Stephan Vdz
161017 __ ? _____________ 50/2 __________ Clodebort
161551 __ 99344 ________________________ ebay
163518 __ 182238 _______________________ ebay
163729 __ ? ____________________________ Molotok
164433 __ 2711193 CZJ Sonnar f2 __ 1000 __ Jacques M.
164716 __ ? ____________________________ DVD _____ passport 18/03/1941 Kharkov, Lesopark 54
164771 __ 31933 _________ 50/2 ___ 1000 __ SOVDEPIA
165413 __ ? ____________________________ ebay
165879 __ 164725 _______________________ ebay
165973 __ 102466/188 ___________________ ebay
167401 __ ? ____________ 100/6.3 ________ rafcamera
166245 __ ? ____________________________ ebay
167621 __ 32470/11-3 ____ 50/2 ___ 1000 __ georg16nik
168018 __ 162821 _______________________ DVD _____ passport 18/06/1941 Harkov, Lesopark 54
168072 __ ? ____________________________ ebay
168125 __ 29406 ________ 50/2 ___ 1000 __ Alain Berry
168636 __ ? ____________ 50/2 ___ 1000 __ Diego (Italy)
169410 __ 168677/171 ___________________ geoffox23
169776 __ ? _____________ 50/2 ___ 1000 __ eBay
170125 __ ? _____________ 50/2 ___ 1000 __ Fedka
170510 __ 163486/89 ____________________ A.Komarov
170792 __ 3238x _________ 50/2 ___ 1000 __ eBay
171056 __ 169254 _______________________ ebay
171362 __ 32168/63 ______ 50/2 ___ 1000 __ ebay
171649 __ 170276 _______________________ tuari
171776 __ 8452 _________________________ ebay
172171 __ ? ____________________________ Avto Metreveli
172194 __ ? ____________________________ Avto Metreveli
172681 __ 32678 _________________ 1000 __ ebay
172682 __ ? _____________________ 1000 __ ebay
172936 __ 32726/5_________50/2___ 1000 __ mirror
173012 __ ? ____________________________ Chris Sabine
173428 __ ? ____________________________ Jacques M.
173444 __ ? _____________________ 1000 __ A.Nikitin
173561 __ ? ____________________________ private
.
Links:
____________________________________________________________________________________
(Click to enlarge)


Created by Vlad on 5/22/2008 11:48:04 PM   |   Last Edited by Jacques M. on 6/19/2024 2:15:44 PM   Revision History
Share
  • Request Entry Removal
  • Request Image Removal

  • Google


    Contact us

    Hits: 915244
